Lara Sterilizers
Ready for the futureIncredible outside
You don’t need to be a lover of design to appreciate the Lara sterilizers. Their smooth surfaces are comfortable to the touch, the instruments are easy to load and the flat colour screen displays allow you to navigate through the intelligent menu structure quickly and with ease.

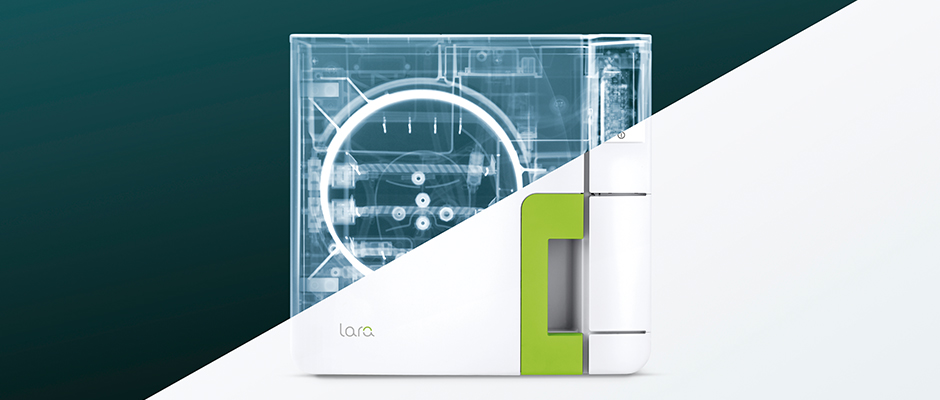

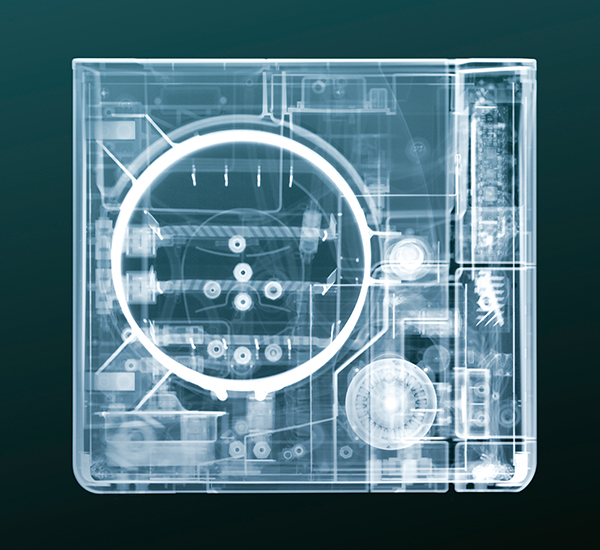

Incredible inside
Discover the W&H Lara sterilizers down to the smallest detail. So many components, perfectly arranged to offer you complete satisfaction by simplifying the sterilization process while providing you with comprehensive documentation. Unique upgradeability allows you to customise your Lara sterilizer with your personal needs and to comply with regulatory requirements.Incredible because
- Fastest B cycle in its segment
- Unique upgradeability thanks to Activation Codes
- Colour touch display for easy navigation
- Automatic cycle record via high capacity USB stick
- Optional high end label and cycle report printer
- Ergonomics and functional design
- Ideal dimensions to integrate and operate
-

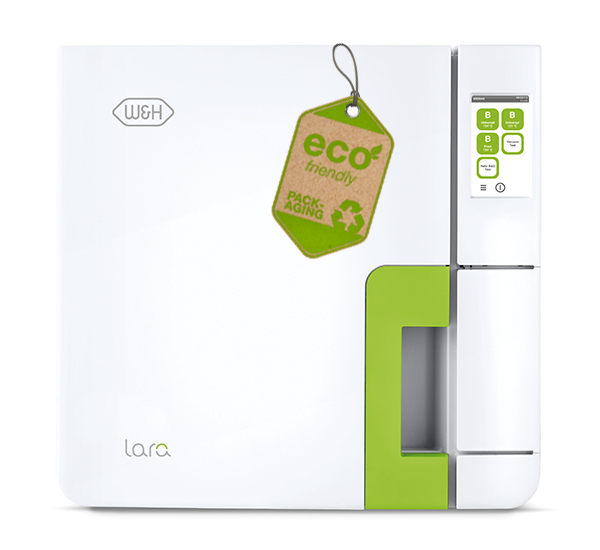

New environmentally friendly packaging
The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.

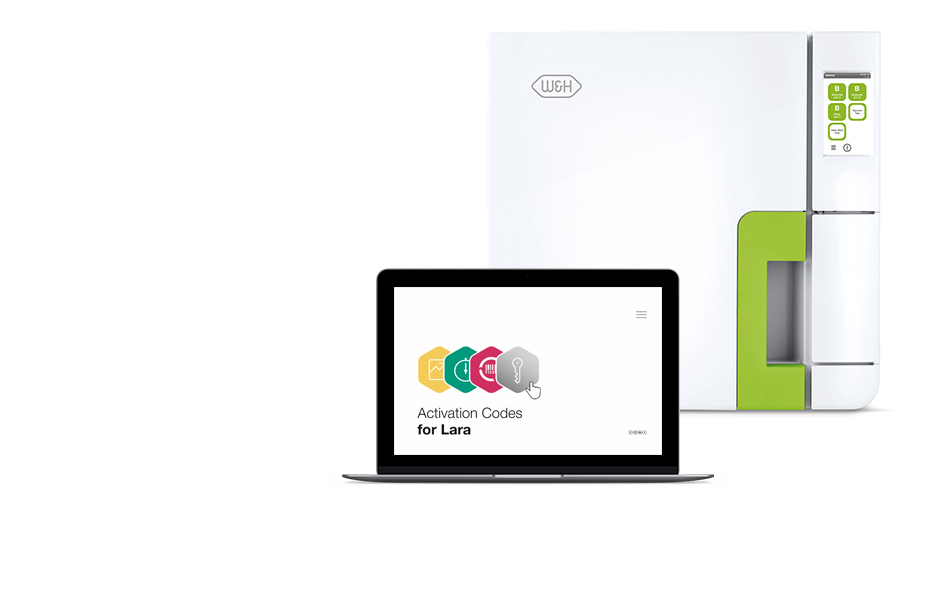

Six steps to your customized sterilizer:
- Purchase Activation Code of your choice from your local approved dental supplier.
- After receiving the related login code go to activation.wh.com
- You specify this code along with the serial number and model of your sterilizer.
- Your individual, secure Activation Code is generated.
- Enter this code in the menu of your Lara sterilizer.
- The feature is available.
Reprocessing in less than 23 minutes!
![Lara sterilizer]( "Lara sterilizer")
Lara sterilizer
supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test
Lara 17
REF 19941122Chamber size 17 l
Lara 22
REF 19942122Chamber size 22 l
Download Area
FAQ
- Do I need to document the results of all periodic tests?
- How long should I archive the documentation of regular tests?
- Does my sterilizer need any periodic qualification/validation?
- Whom should I contact to validate and maintain my sterilizer?
- Should I pouch/wrap my instruments and how long can I store them after sterilization?
- Which water quality should I use for my sterilizer?
- At the end of the cycle, there is residual water in the chamber.
- Water is leaking at the front of the sterilizer.
- The sterilizer remains switched OFF.
- Stains or spots on instruments.
- No cycles are stored in the cycle history menu.
- When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
- The sterilizer enters into “Standby mode” immediately after being switched on.
- The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
- Warning about programmed maintenance.
- The cycle report printer does not work.
- The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
- How do I change consumable components on my sterilizer?
- What is the maximum noise level of the Lara sterilizer?
- Do I need to carry out periodic testing on my W&H Sterilizer?
- Warning about consumable replacement.
- Warning about saving to the USB (HTML and SCL files)
- How do I clean the water tanks and what products should I use?
- What is validation?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

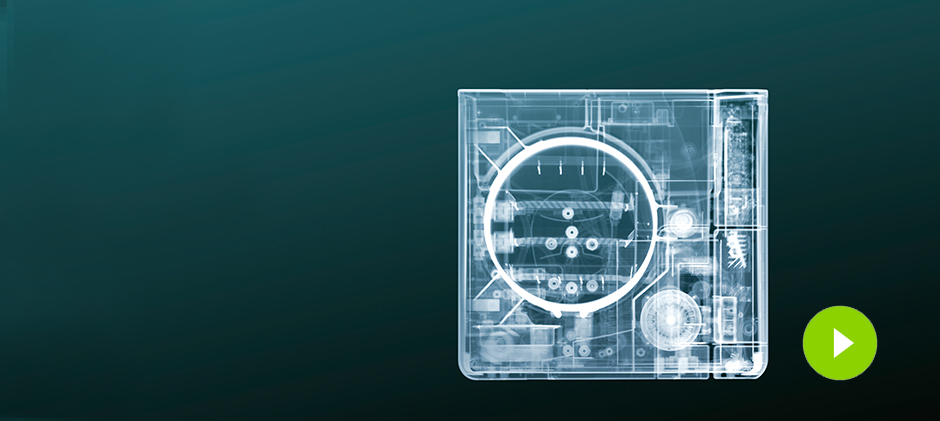

Videos & Tutorials
-
Lara sterilization cycles
Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121 S FAST 134 (optional) Temperature: 134 °C 134 °C 121 °C 134 °C Holding time (minutes): 4 18.5 20.5 3.5 Total cycle duration
(minutes) including
complete drying:Lara 17 Automatic from25 to 5137 Automatic from40 to 6552 41 to 73 20 to 22 Lara 22 Automatic from28 to 5539 Automatic from40 to 6854 42 to 76 20 to 22 Lara 17 loads:Lara 22 loads:maximum solid 4.5 kg/typical 2 kg/maximum porous 1.5 kgmaximum solid 5.5 kg/typical 2 kg/maximum porous 2 kgmax. unwrapped 2 kgmax. unwrapped 2 kgLara 17/22 containers load: maximum 9 kg maximum 9 kg Test cycles: Helix/Bowie Dick/Vacuum test Items supplied with: reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test
Lara
Trade name: Lara Type: RIL-117 RIL-122 Chamber size: 17 l 22 l Power supply: 200–240 V AC; 50/60 Hz; 10 A
Power consumption: 2.0–2.4 kW Overall dimension
(width x height x depth):465 x 452 x 646 mm Weight: 42.5 kg 44 kg Main / Used water tanks: 4.8/4.8 l Working range: 7 to 15 cycles Usable space in chamber
(width x height x depth)¹:195 x 195 x 312 mm 195 x 195 x 400 mm Connection types: 2 USB ports (5 as option), integrated automatic water filling valve (1) Usable space is referred to standard rack configuration.
Lara sterilizers were designed, certified and validated with the most stringent directives and standards:
N°2017/745
Medical Device Regulation
IEC 61326-1
Electromagnetic compatibility
2014/68/EU
Pressure equipment Directive
IEC 61010-1
Safety requirements sterilizer
EN 13060
Small steam sterilizer
IEC 61010-2-040
Specific requirements for steam sterilizer
IEC 61770
Electric appliances connected to the water mains
2012/19/EU
Waste Electrical and Electronic Equipment
The sterilizer can be validated according to EN ISO 17665-1
