Instruments for bone surgery

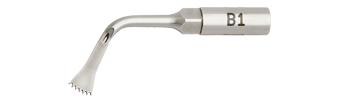

B1 (REF 05530100)
- Fine-toothed saw for fine cuts, with little bone loss when harvesting bone blocks.

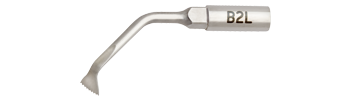

B2R, B2L (REF 06958600, 05544400)
- Fine-toothed instrument for horizontal cuts, with little bone loss, in hard-to-reach areas. Right-curved and left-curved models available.

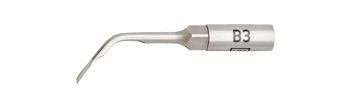

B3 (REF 05542100)
- Sharp instrument for modelling and contouring the bone surface, as well as for collecting bone chips.

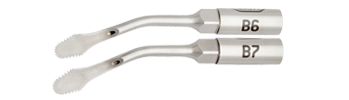

B6, B7 (REF 07022500, 07022600)
- Special saw for fine and deep cuts in record time. Especially suitable for harvesting bone blocks, splitting the alveolar ridge, separating tooth roots and for root-tip resections.
Instrument kit »Bone« (REF 07173100)
Instruments for lateral sinus lift

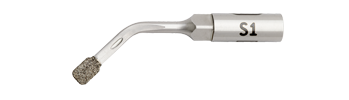

S1 (REF 05542900)
- Diamond-coated instrument for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

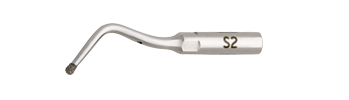

S2 (REF 05534700)
- Instrument with diamond-coated ball for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

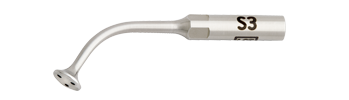

S3 (REF 05508200)
- Instrument for gentle detachment of the Schneiderian membrane from the bone. The coolant film protects the Schneiderian membrane by means of three coolant openings.

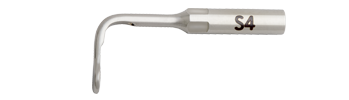

S4 (REF 05542300)
- Instrument with rounded edges for atraumatic detachment of the Schneiderian membrane.

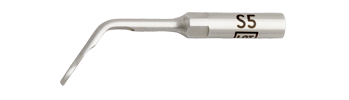

S5 (REF 05542800)
- Instrument with rounded edges for atraumatic detachment of the Schneiderian membrane.
Instrument kit »SPECIAL« (REF 07173200)
- Consists of: S1, S2, S3, S4, S5
Instruments for extraction

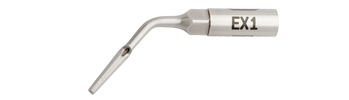

EX1 (REF 06069300)
- Instrument for atraumatic tooth extraction to preserve the alveolar bone.

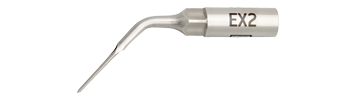

EX2 (REF 06071100)
- Instrument for atraumatic tooth extraction to preserve the alveolar bone.
Instrument kit »EX« (REF 07173500)
- Consists of: EX1, EX2
Instruments for retrograde endodontics

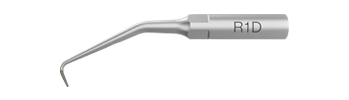

R1D (REF 05975200)
- Straight, diamond-coated instrument for retrograde root canal preparation.

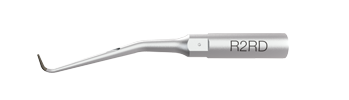

R2RD (REF 05991000)
- Slightly right-curved, diamond-coated instrument for retrograde root canal preparation.

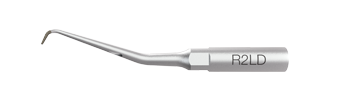

R2LD (REF 05999400)
- Slightly left-curved, diamond-coated instrument for retrograde root canal preparation.

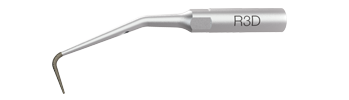

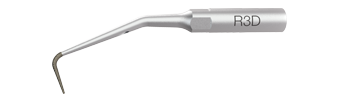

R3D (REF 05998800)
- Angled, diamond-coated instrument for retrograde root canal preparation.

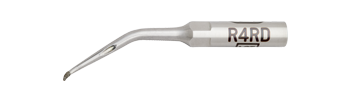

R4RD (REF 06005000)
- Strongly right-curved, diamondcoated instrument for retrograde root canal preparation.

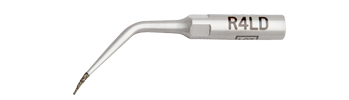

R4LD (REF 06004700)
- Strongly left-curved, diamond-coated instrument for retrograde root canal preparation.
Instrument kit »Endo« (REF 07173300)
- Consists of: R1D, R2RD,R2LD, R3D, R4RD, R4LD
Instruments for periodontology

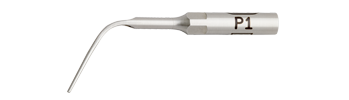

P1 (REF 06067700)
- For removing concretions in the subgingival region. Ideal for treatment of deep, periodontal pockets.

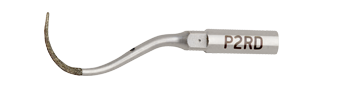

P2RD (REF 06061700)
- Right-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.

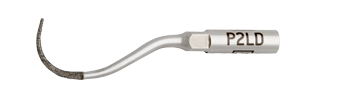

P2LD (REF 06061800)
- Left-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.
Instrument kit »Paro« (REF 07173400)
- Consists of: P1, P2RD, P2LD
Preparation of the implant site and crestal sinus lift

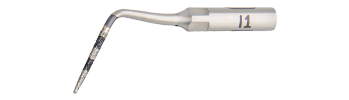

I1 (REF 07786800)
- Diamond-coated instrument with depth marks for pilot preparation with the correct axial alignment.

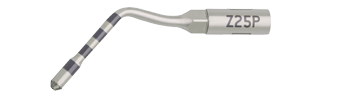

Z25P (REF 07785600)
- Diamond-coated instrument for expansion of the pilot hole (up to a diameter of 2.5 mm) in the cortical area.

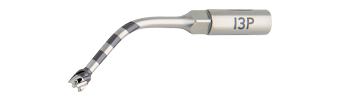

I2A, I2P, I3A, I3P (REF 07797800, 07788800, 07885600, 07887000)
- Instruments for gradual preparation of the implant bed (2 to 3 mm) up to the desired depth.
A = anterior region
P = posterior region

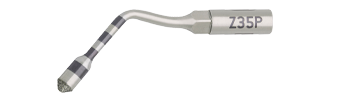

Z35P (REF 07980600)
- Diamond-coated instrument for expansion of the pilot hole (up to a diameter of 3.5 mm) in the cortical area.

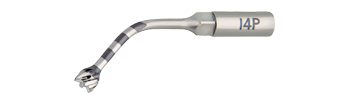

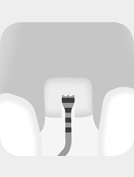

I4A, I4P (REF 07889400, 07889500)
- Instruments for preparation of the implant bed (4 mm) up to the desired depth. A = anterior region P = posterior region
Z25P, Z35P (REF 07785600, 07980600)
- An instrument which is diamondcoated on the front face with internal coolant supply for preparing the base of the sinus and for lifting the Schneiderian membrane using a cooling medium.
Instrument kits »Implant/Crestal A« (REF 07997090)
- Consists of: I1, I2A, I3A, I4A, Z25P, Z35P
Instrument kits »Implant/Crestal P« (REF 07997110)
- Consists of: I1, I2P, I3P, I4P, Z25P, Z35P
