This product is not available anymore.

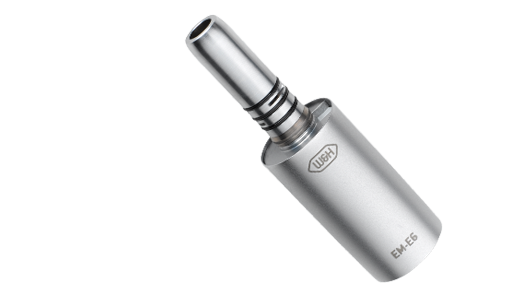

Electric Motor (EM-E6)

Compact & powerful

A compact and exceptionally powerful brushless electric motor,
its main applications are fillings, prosthetics and prophylaxis.
Its short length and light weight are especially ergonomic
and allow you to work with ease.

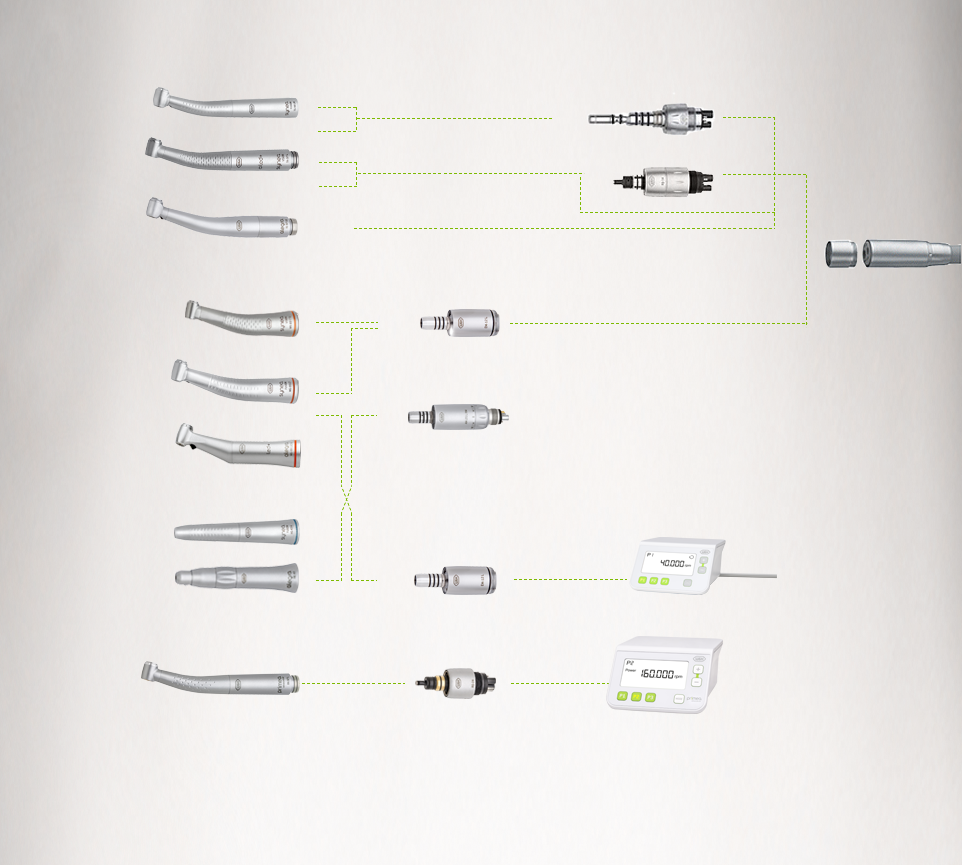

System Overview

Restoration & Prosthetics

Restoration & Prosthetics

System Overview

* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.

  • Tabletop control with brushless electric motor

    Plug and Go – Electric power for the dental air unit

    As a tabletop model, the brushless electric motor
    is ready for immediate use as there is no need to modify or interfere with the dental control unit.
    The tabletop control is easily connected to the turbine supply hose and is ready to use immediately. Power is supplied via an
    external power pack.

    Your advantages at a glance

    • Motor fully sterilizable
    • Light weight
    • Exceptionally powerful
    • Brushless – therefore maintenance-free
    • Long life
    • Lifetime bearing lubrication
    • Wide range of applications

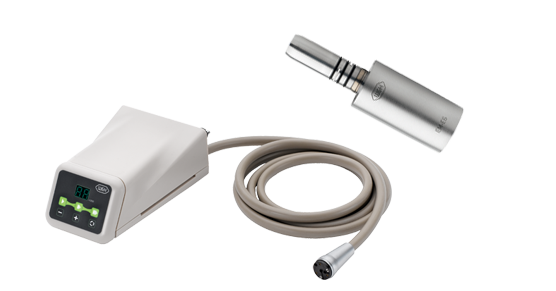

    Tabletop control EM-E6 TP in a set with Electric Motor EM-E6

    Tabletop control EM-E6 TP in a set with
    Electric Motor EM-E6

    The uncomplicated display of the tabletop control can be used to configure three storage locations. The direction of rotation of the motor can be changed by pressing a button. The motor is brushless and is provided with lifetime bearing lubrication and is therefore
    maintenance-free. It is durable and robust.

    EM-E6 TP set with EM-E6
    REF 90000110

    consists of:
    tabletop control EM-E6 TP, electric motor EM-E6,
    supply hose, power pack


    Download Area

    FAQ

    Instructions for use

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Videos & Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept

    Downloads

  • Electric Motor EM-E6
    Spray: Internal
    Hose-side coupling: W&H screw coupling
    Coupling instrument: ISO 3964 (DIN 13.940)
    Speed range: 2,000 – 40,000 rpm
    Maximum power: 55 W
    Torque: 3 Ncm
    Coolant air: 6–8 Nl/min
    Direction of rotation: Forward/reverse operation
    Weight: 64 g
    Guarantee: 24 months
    Length without ISO connection: 38.6 mm

    Tabletop control unit EM-E6 TP
    Weight: 445 g
    Dimensions (L x W x H): 146 x 99 x 59 mm
    Motors that can be used: EM-E6
    Guarantee: 12 months
    Power pack voltage/frequency: 100–240 V, 50–60 Hz
