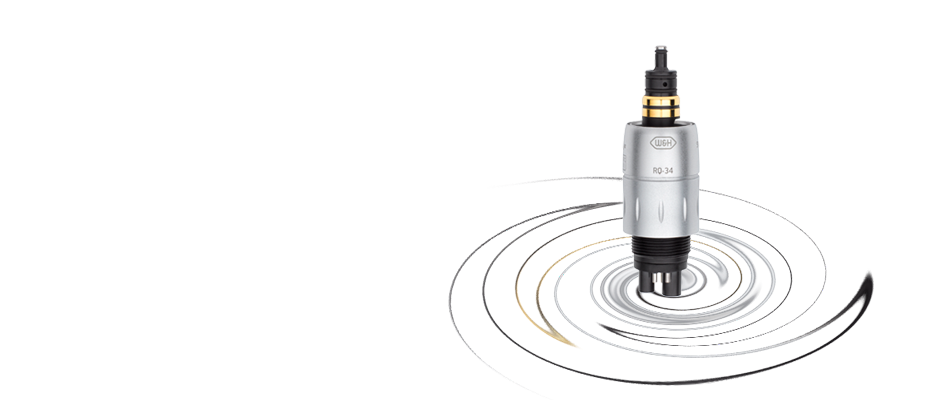

Roto Quick couplings

Versatile system interfaces

The Roto Quick coupling is a connector that transfers the distribution of air, water, electricity and light between the supply hose of the dental unit and air drive.

System Overview

Restoration & Prosthetics

Restoration & Prosthetics

System Overview

* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.

  • Roto Quick

    Light, flexible and sterilizable:

    W&H Roto Quick couplings are versatile and suitable for use with transmission instruments with LED+, LED and halogen lights.

    24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).

    Advantages

    • Versatile: for all turbine handpieces, air motors and scalers with Roto Quick connections.
    • Compatible with all standardized turbine hoses.
    • Hygienic: non-retraction valve reduces the backflow of contaminated spray water and minimizes the risk of infection.
    • Intelligent: the power transmission enables you to take advantage of revolutionary technologies, such as the 5x Ring LED+.
    • Flexible 360° instrument rotation for easy and ergonomic handling.
    • Ergonomic: lightest system available to date.
    • Customizable: continuous regulation of the spray water supply for rapid adjustment by the user – even during treatment.
    • 24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).

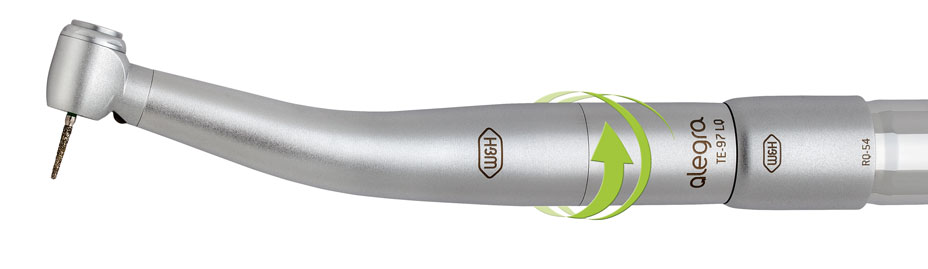

    W&H Alegra turbine TE-97 LQ with Roto Quick coupling RQ-54

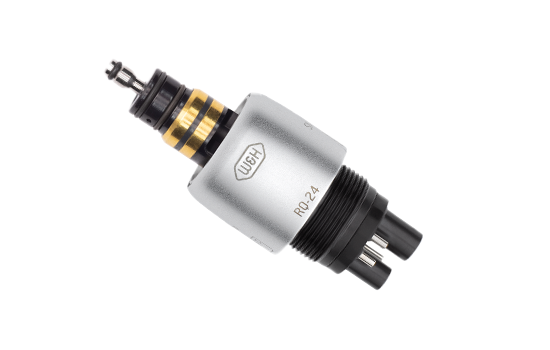

    Roto Quick coupling RQ-24

    Roto Quick couplings with light

    RQ-24
    REF 10402400

    › 6-hole connection

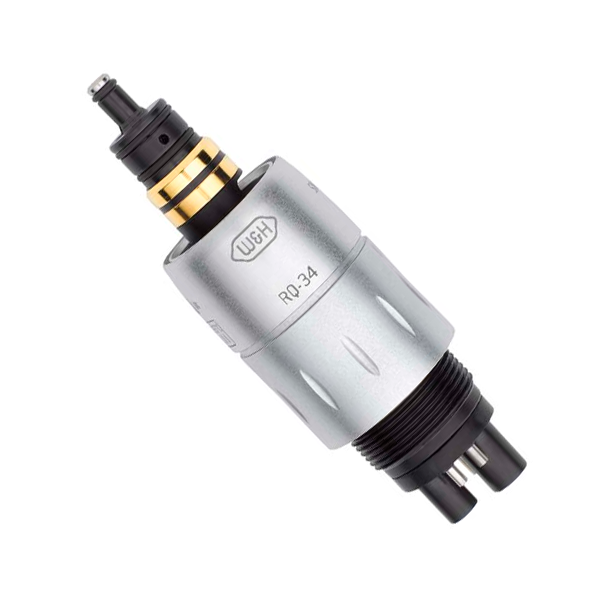

    RQ-34
    REF 10403400

    › spray regulation
    › 6-hole connection

    RQ-53 *
    REF 10405300

    › Borden 2(3)-hole connection
    › With integrated light generator

    RQ-54 *
    REF 10405400

    › standard 4-hole connection
    › with integrated light generator

    Request Price
    Buy Now

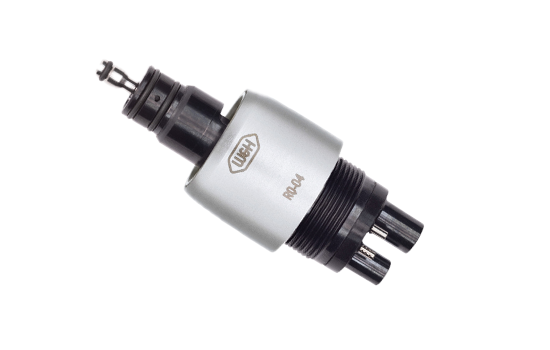

    Roto Quick coupling RQ-04

    Roto Quick couplings without light

    RQ-03
    REF 10400300

    › 2(3)-hole connection

    RQ-04
    REF 10400400

    › standard 4-hole connection

    RQ-14
    REF 10401400

    › spray regulation
    › standard 4-hole connection

    Request Price
    Buy Now

    * Roto Quick couplings RQ-53 and RQ-54 with generator: for use with Alegra LED dental turbine handpieces TE-97 LQ and TE-98 LQ.

    Download Area

    FAQ

    Instructions for use

    Roto Quick couplings

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Videos & Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept

    Downloads

  • Roto Quick couplings

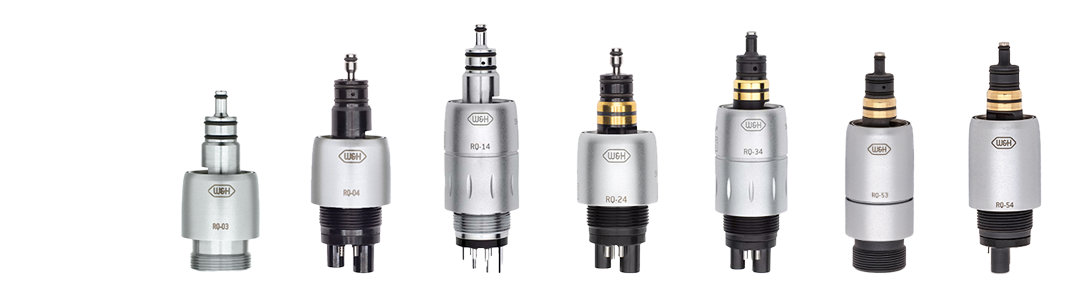

    Type: RQ-03 RQ-04 RQ-14 RQ-24 RQ-34 RQ-53 * RQ-54 *
    Light: – – – Yes Yes Yes Yes
    Spray regulator: – – Yes – Yes – –
    Connection: 2(3)-hole Standard
    4-hole     		Standard
    4-hole     		6-hole 6-hole 2(3)-hole Standard
    4-hole

    * with integrated light generator
