Working in all directions

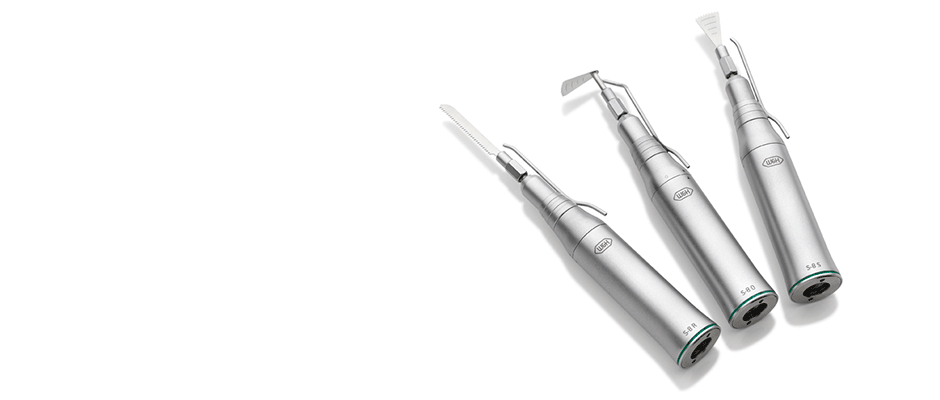

Our saw handpieces S-8 R, S-8 S
and S-8 O offer a perfect and long-term solution for osteotomy or bone removal with sagittal, oscillating or reciprocating movement.
No matter what your requirements or those of your patients, W&H can fulfil them.Your advantages at a glance
- Innovative saw-blade shape for outstanding cutting performance
- One drive speed for all 3 saw types
- Durable and robust due to high-grade stainless steel
- For sagittal, oscillating or reciprocal movement
- Range of saw blades for all surgical applications
- Low vibration and exceptionally quiet
- Can be dismantled for thorough cleaning

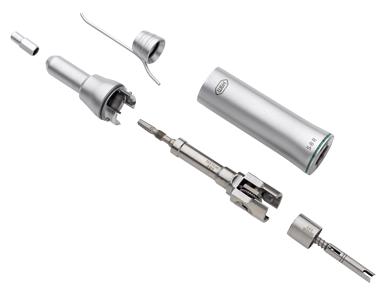

Saw handpieces,
can be easy dismantledCan be easy dismantled
All three models were designed for use with maximal rotational speed while ensuring a uniform speed or cutting power of the instruments at the bone.
But most importantly, they can be dismantled for simple and precise cleaning.

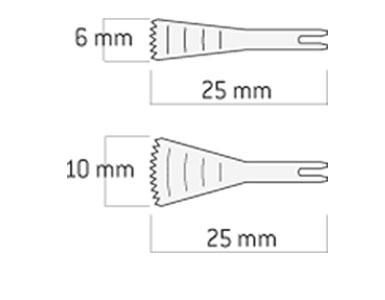

Saw bladesSagittal saw blades for Saw Handpiece S-8 S

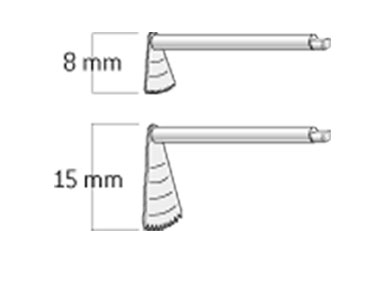

width 6 mm or 10 mm, incl. depth gauge on the saw blade (2.5 mm graduations), available as single pack or five packOscillating saw blades for Saw Handpiece S-8 O

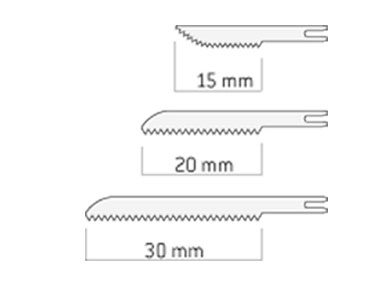

height 8 mm or 15 mm, incl. depth gauge on the saw blade (2.5 mm graduations), available as single packReciprocating saw blades for Saw Handpiece S-8 R
length 15 mm, 20 mm or 30 mm, crosswise tooth setting for increased cutting power, available as single pack or five pack
Saw Handpieces
![Saw Handpiece S-8 S]( "Saw Handpiece S-8 S")

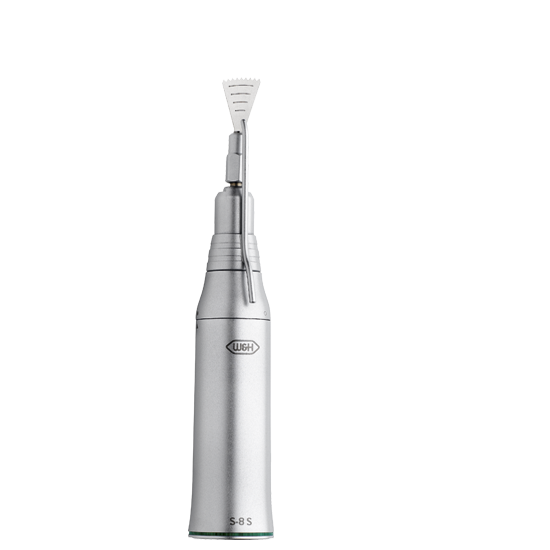

Saw Handpiece S-8 S
with sagittal motion,
cutting direction parallel to the axisS-8 S
REF 10100803Transmission ratio: 3,25:1
Strokes / angles: 3°
Frequency (strokes/min.): 12.300
Drive speed: 40.000 min-1
![Saw Handpiece S-8 O]( "Saw Handpiece S-8 O")

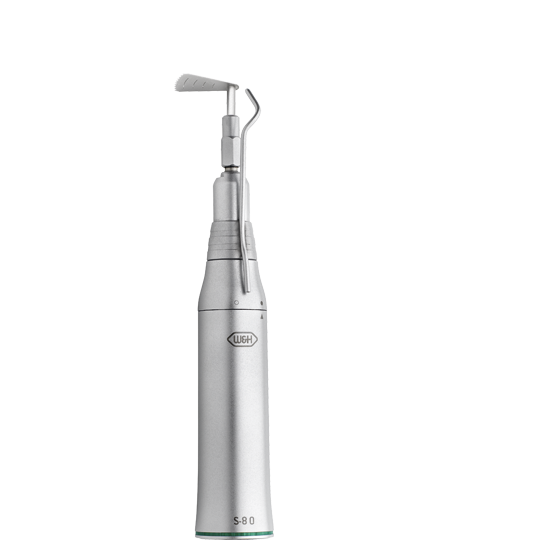

Saw Handpiece S-8 O
with oscillating motion,
cutting direction 90° to the axisS-8 O
REF 10100802Transmission ratio: 3,4:1
Strokes / angles: 12°
Frequency (strokes/min.): 11.800
Drive speed: 40.000 min-1
![Saw Handpiece S-8 R]( "Saw Handpiece S-8 R")

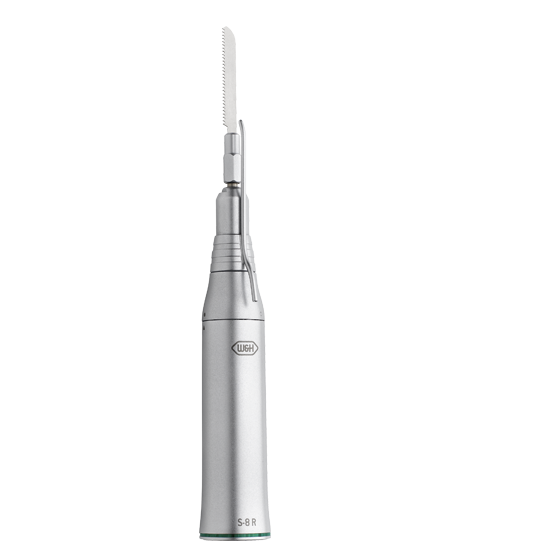

Saw Handpiece S-8 R
with reciprocating motion,
forward / reverse cutting directionS-8 R
REF 10100801Transmission ratio: 3,25:1
Strokes / angles: 1,8 mm
Frequency (strokes/min.): 12.300
Drive speed: 40.000 min-1Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
Downloads
-
Saw Handpieces
Type: S-8 R S-8 O S-8 S Transmission ratio: 3.25:1 3.4.1 3.25:1 Coupling system: ISO 3964 (DIN 13940) Strokes / angles: 1.8 mm 12° 3° Frequency (strokes/min.): 12,300 11,800 12,300 Maximum drive speed: 40,000 min -1 40,000 min -1 40,000 min -1 Can be easily dismantled: yes yes yes
