Water Distiller

Water treatment device for distillation from tap water

The use of pure fresh water is absolutely essential for optimal life of your sterilizer and of all your instruments. The Water Distiller produces 4 litres of pure water from tap water. With this volume, used in our sterilizers, where consumption is optimized and reduced to the minimum, up to 8 sterilization cycles can be carried out.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

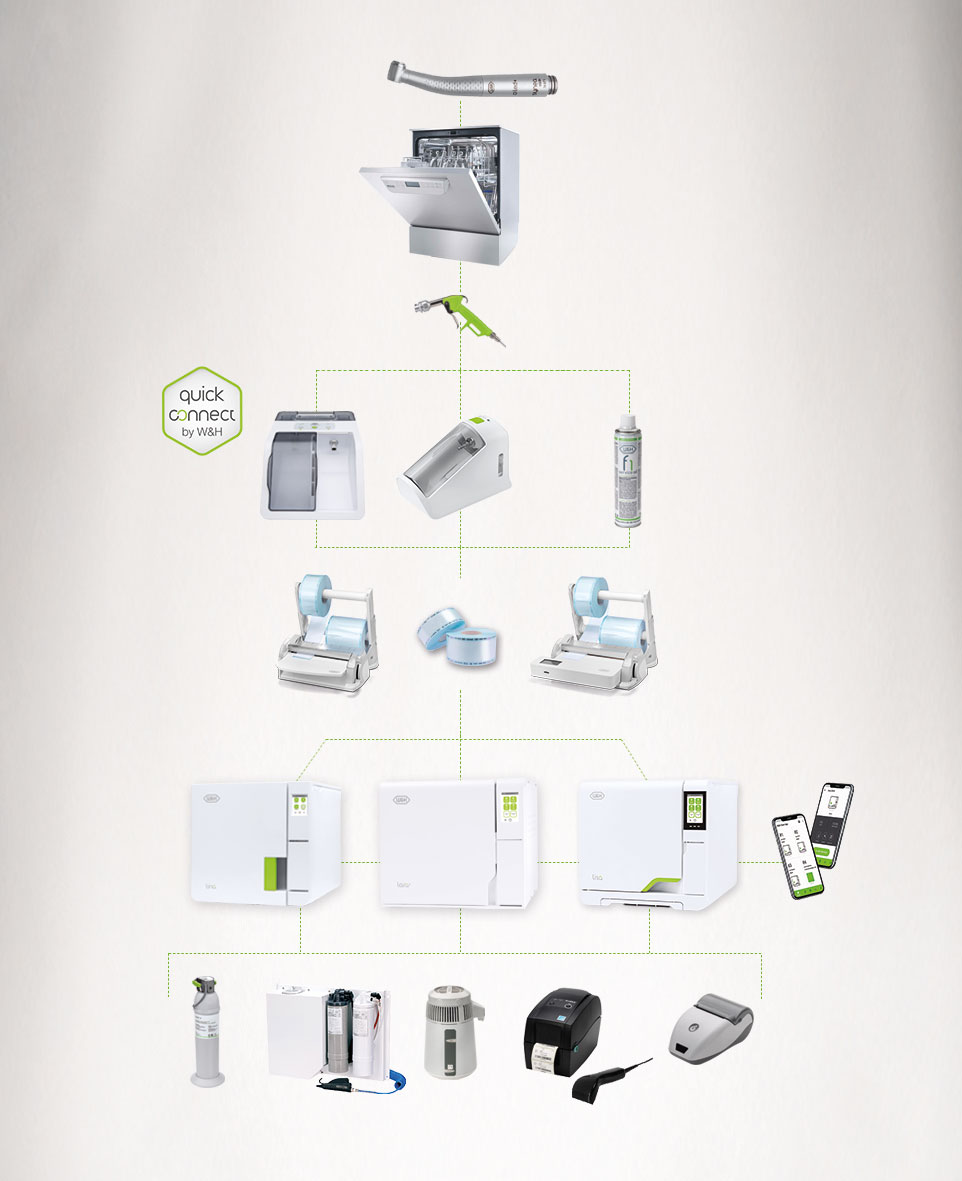

System Overview

Answer 3 questions to find the right Water Treatment Device for your demands!

Find the right Water Treatment Device for your demands.

1
2
3

How many sterilizers are installed?

How many cycles run per day on each sterilizer?

What is the water conductivity level?

Your product recommendation:

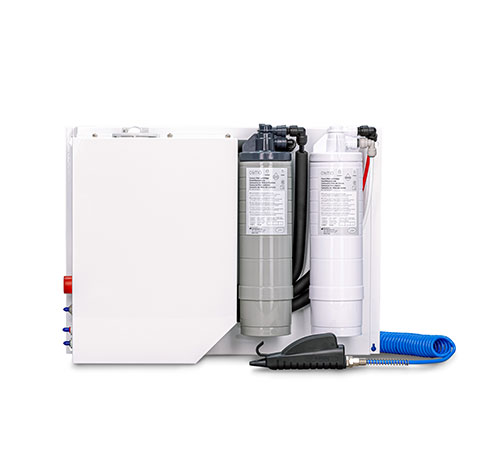

Osmo

Possible alternative product:

Your product recommendation:

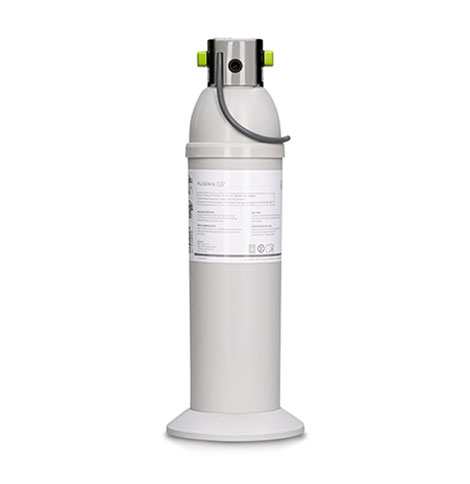

Multidem

Possible alternative product:

Your product recommendation:

Distilled Water

Possible alternative product:


  • Distilled water of exceptional purity

    The Water Distiller enables economical production of distilled water for sterilization.

    The device supplies 4 litres of distilled water in less than 5 hours. With this volume, up to 8 sterilization cycles can be carried out in our sterilizers. A water receiver is supplied together with the distiller.

    Advantages at a glance

    • Very simple to use
    • Silent in operation
    • Compact, light and mobile
    • Stainless steel tank,
      robust and easy to maintain
    • Automatic heater cutout
    • Integrated carbon filter
    Water receiver is supplied together with the distiller

    Water receiver is supplied together with the distiller

    The water receiver for the distilled water is supplied together with the distiller.

    It is the same size as that of the fresh water tank equipped on the Lisa sterilizers.
    //a.storyblok.com/f/45617/4d33e321c8/dist-water-tank.png

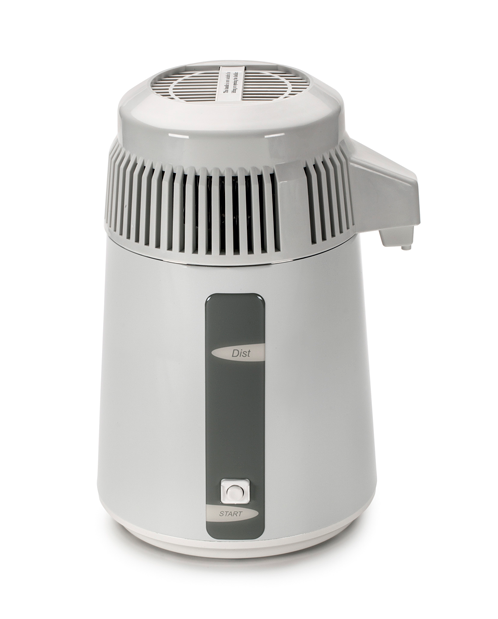

    Water Distiller

    Water Distiller
    REF 19723101

    Download Area

    Instructions for use

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

  • Technical data

    Water Distiller
    Water treatment principle: Distillation
    Direct connection to sterilizer: no
    Number of connectable sterilizers: -
    Possibility of manual filling:
    Fulfilling sterilization requirements:
    Water quality output: 5-10 µS/cm
    Produced water: 4 litres/5h
    Volume storage tank: 4 litres
    Water pressure (min./max.): -
    Main device dimensions (w x h x d): 23 cm (Ø) x 36 cm (h)
    Water tank dimensions (w x h x d): 17 cm (Ø) x 25 cm (h)
    Weight: 3.5 kg
    Electrical supply needed:
    Electrical power supply: 230 V AC; 50 Hz
    Wall mount: no
    Backflow preventer according to EN1717: -
    Demineralized water according to EN13060 Annex C:
