Assistina 3x3
- Internal and external cleaning
- Optimum price-performance ratio
- Easy to use
- Validated process
- Automatic documentation
-

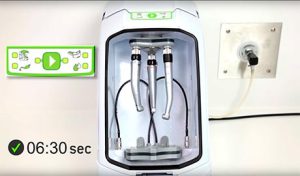

Internal and external cleaningInternal cleaning with W&H Activefluid
The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.
External cleaning with W&H Activefluid
The removal of organic deposits before sterilization increases the safety of your patients and your practice team. -
Optimum price-performance ratioMaximum cleaning efficiency with low purchase price and extremely economical in use.
-
![Easy to use]( "Easy to use")

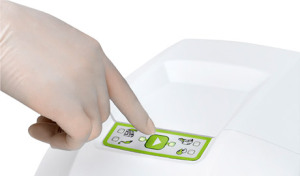

Easy to useThe operation of the Assistina is intuitive,
absolutely no training is required.
The instrument preparation starts at the press of a button. -
Validated processThe validation of the process is confirmed by expert opinion.
You can find the validation in the download area on the right side. ![Validated process]( "Validated process")
-
![Automatic documentation]( "Automatic documentation")
Automatic documentationSolutions for the automatic documentation of cycle data for the Assistina 3x3 are currently offered by companies DIOS (Dios MP, etc.) and Comotec (segosoft). Further providers will follow.
-
1 Internal and external cleaning
Internal and external cleaningInternal cleaning with W&H Activefluid
The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.
External cleaning with W&H Activefluid
The removal of organic deposits before sterilization increases the safety of your patients and your practice team. -
2 Optimum price-performance ratio
Optimum price-performance ratioMaximum cleaning efficiency with low purchase price and extremely economical in use.
-
3 Easy to use
![Easy to use]( "Easy to use")
Easy to useThe operation of the Assistina is intuitive,
absolutely no training is required.
The instrument preparation starts at the press of a button. -
4 Validated process
Validated processThe validation of the process is confirmed by expert opinion.
You can find the validation in the download area on the right side. ![Validated process]( "Validated process")
-
5 Automatic documentation
![Automatic documentation]( "Automatic documentation")
Automatic documentationSolutions for the automatic documentation of cycle data for the Assistina 3x3 are currently offered by companies DIOS (Dios MP, etc.) and Comotec (segosoft). Further providers will follow.
-
Assistina 3x3 / Assistina 3x2
Assistina 3x3 3x2 Supply voltage: 100 - 240 V AC Permitted voltage fluctuation: ±10 % Nominal current: 0.1 - 0.3 A Frequency: 50 - 60 Hz Max. power consumption: 40 VA Air consumption: approx. 100 Nl/min. approx. 60 Nl/min. Operating pressure: 5 - 10 bar
(controlled via an integrated automatic pressure controller)Max. volume: 70 dB 65 dB Height / Width / Depth: 358 mm x 207 mm x 397 mm Weight: 7.5 kg 6.5 kg Capacity: 1000 ml W&H Activefluid, MC-1100
200 ml W&H Service Oil F1, MD-200Designed for: Straight and contra-angle handpieces, turbines,
air motors and air-driven scalers
