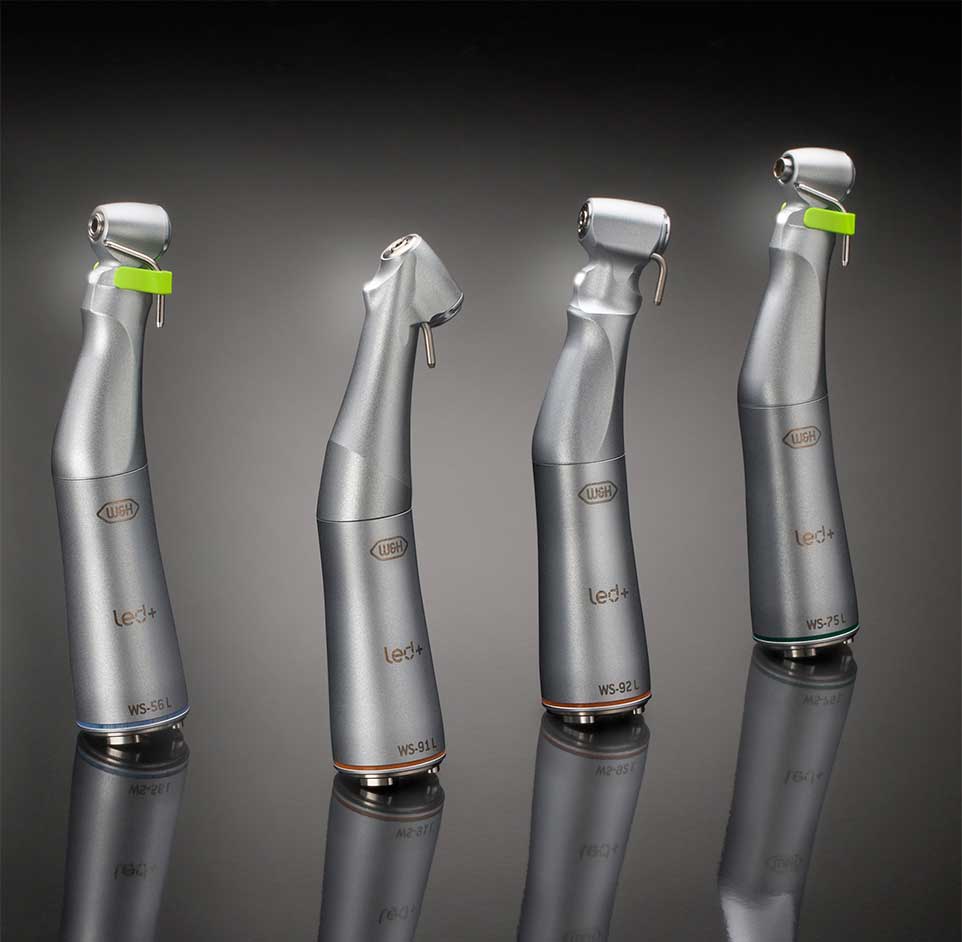

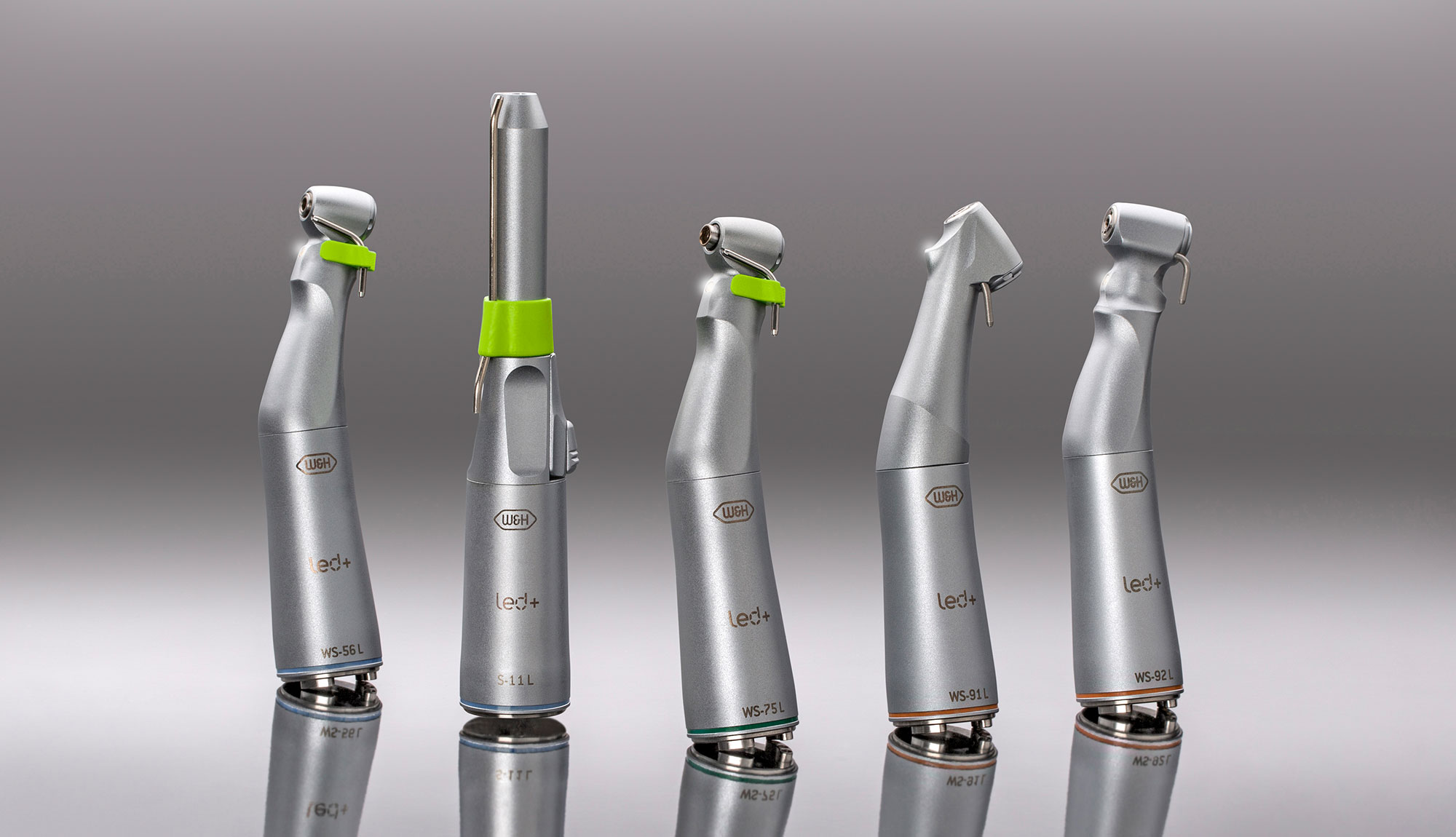

The new surgical contra-angle handpieces with mini LED+ and W&H connection

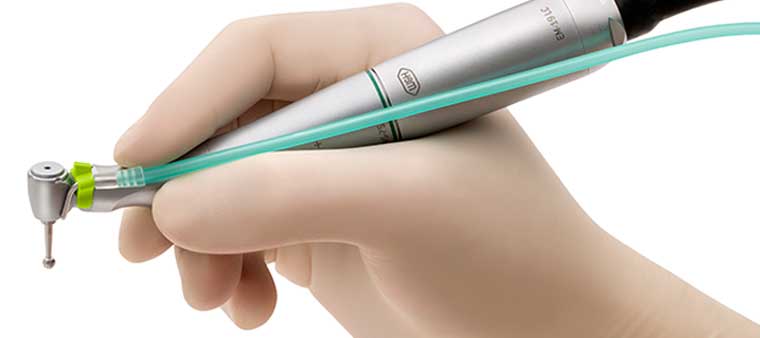

Fatigue-free operationFatigue-free operation

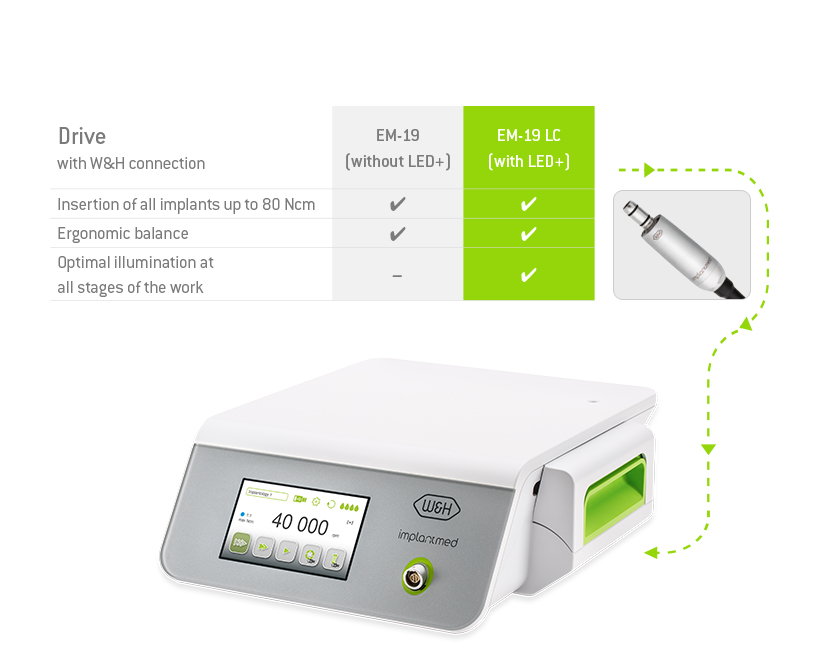

Combination with the ultra-short EM-19 electric motor allows long periods of work without fatigue.

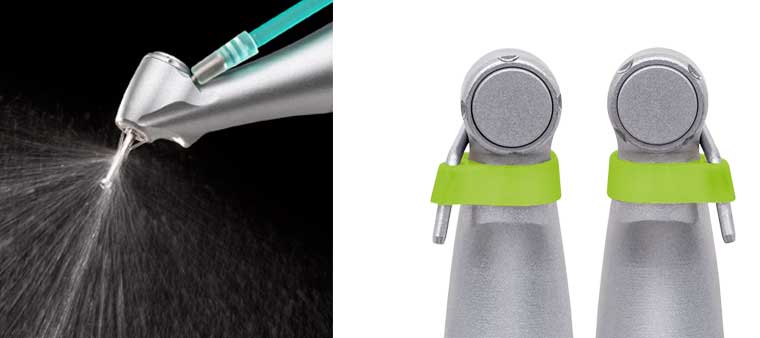

Optimum cooling and illuminationOptimum cooling and illumination
Optimum illumination
By halving the size of a normal LED, the mini LED+ offers optimum illumination of the treatment site.
Optimum cooling
There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements.Your advantages at a glance
- Matched to Implantmed SI-1023, SI-1015 and SI-1010
- Optimal illumination at all stages of the work
- Fatigue-free working thanks to ergonomic balance
- Robust and long service life due to high-quality stainless steel with scratch-resistant coating
- Developed for the W&H electric motor EM-19 LC
- Work with daylight quality
- Can be dismantled for thorough cleaning
- Thermal Washer Disinfector compatible
![Surgical contra-angle handpiece WS-56 L]( "Surgical contra-angle handpiece WS-56 L")

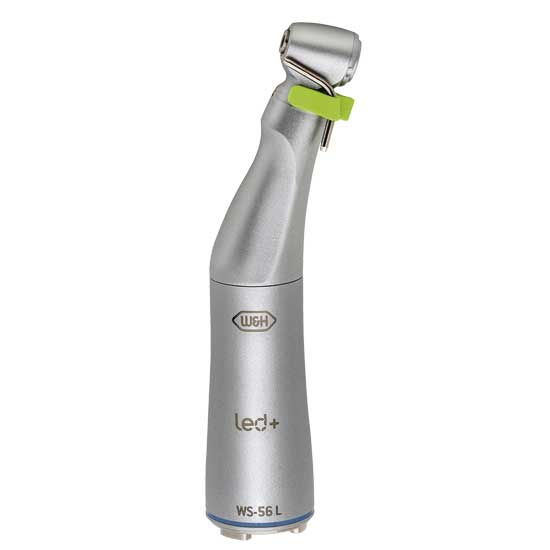

WS-56 L
Surgical contra-angle handpiece
with push-button and mini LED+
Coupling system: W&H EM-19 LC / EM-19
Maximum drive speed: 50.000 min-1WS-56 L
REF 300400001:1, can be dismantled, single spray, for surgical burs and cutters with
contra-angled shank Ø 2.35 mmIndications
Osteotomy, sequestrotomy,
germectomy, hemisection

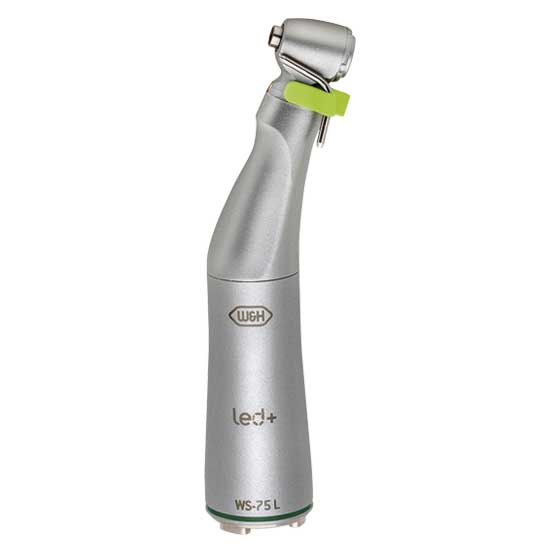

![Surgical contra-angle handpiece WS-75 L]( "Surgical contra-angle handpiece WS-75 L")
WS-75 L
Surgical contra-angle handpiece with hexagon chucking system, push-button and mini LED+ Coupling system: W&H EM-19 LC / EM-19
Maximum drive speed: 50.000 min-1WS-75 L
REF 3003300020:1, can be dismantled, single spray, for surgical burs and cutters with
contra-angled shank Ø 2.35 mm,
(shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling systemIndications
Specially for preparation of the implant site and implant insertion

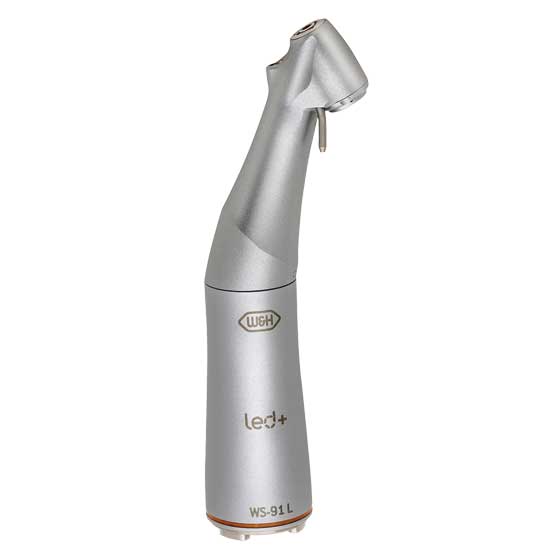

![Surgical contra-angle handpiece WS-91 L]( "Surgical contra-angle handpiece WS-91 L")
WS-91 L
Surgical contra-angle handpiece with 45° head, push-button and mini LED+
Coupling system: W&H EM-19 LC / EM-19
Maximum drive speed: 50.000 min-1WS-91 L
REF 300490001:2,7, can be dismantled, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm
Indications
Specially to improve access in the premolar and molar region
![Surgical contra-angle handpiece WS-92 L]( "Surgical contra-angle handpiece WS-92 L")

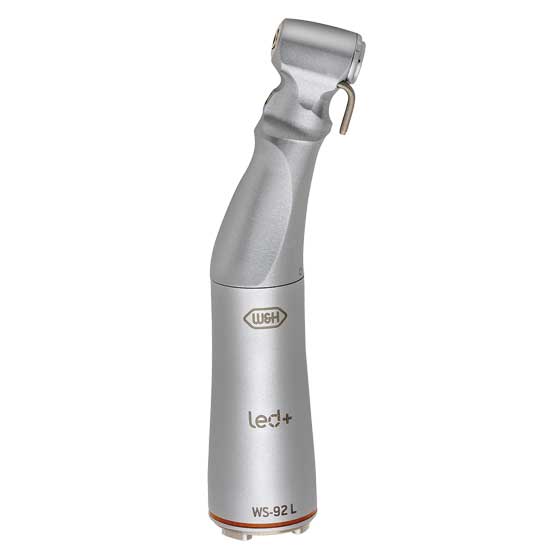

WS-92 L
Surgical contra-angle handpiece with push-button and mini LED+
Coupling system: W&H EM-19 LC / EM-19
Maximum drive speed: 50.000 min-1WS-92 L
REF 300430001:2,7, can be dismantled, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm
Indications
Osteotomy, sequestrotomy,
germectomy, hemisection
Surgical contra-angle handpieces with mini LED+ and generator
Work with daylight quality
As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini LED+, which offers outstanding illumination with high-contrast, natural light.
Your advantages at a glance
- Natural reproduction of red tones
- Independent power supply with integrated generator
- Fatigue-free working thanks to optimal ergonomics
- Durable and robust due to high-quality stainless steel and scratch-resistant coating
- Can be dismantled for thorough cleaning
- Thermal Washer Disinfector compatible

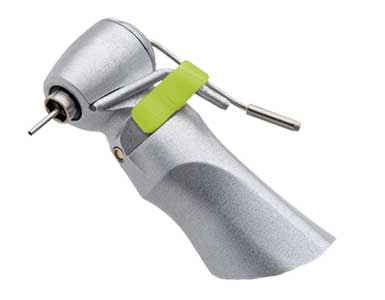

Fatigue-free working thanks to optimal ergonomicsFatigue-free working
The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.

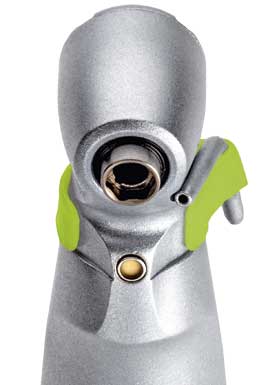

Perfect light due to mini LED+Optimal illumination
Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the contra-angle head and offers optimal illumination. With its neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area regardless of whether you have an optic or non-optic drive system.

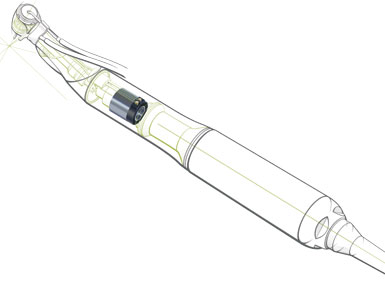

Independent power supplyIndependent power supply
As soon as you activate your contra-angle handpiece, the generator turns.It autonomously generates the electricity needed for the mini LED+ regardless of the type of drive system you work with.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the contra-angle handpieces from scratches. This facilitates cleaning and preserves the value.

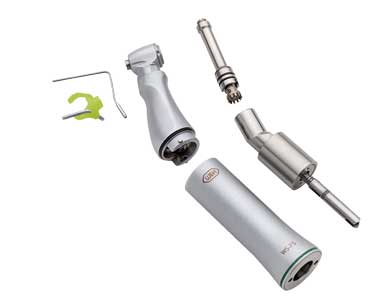

Can be dismantled without toolsPerfect cleaning – Can be dismantled without tools
To enable thorough cleaning to be carried out, the contra-angle handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.
Cleaning parts individually provides the most effective result.

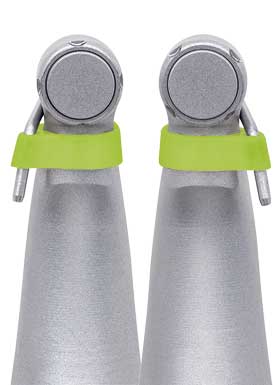

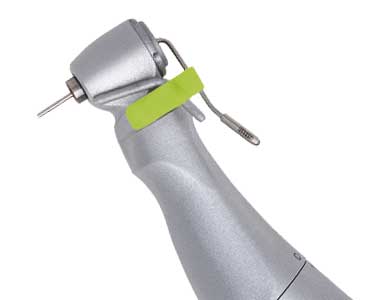

Variable coolingVariable cooling
There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements.

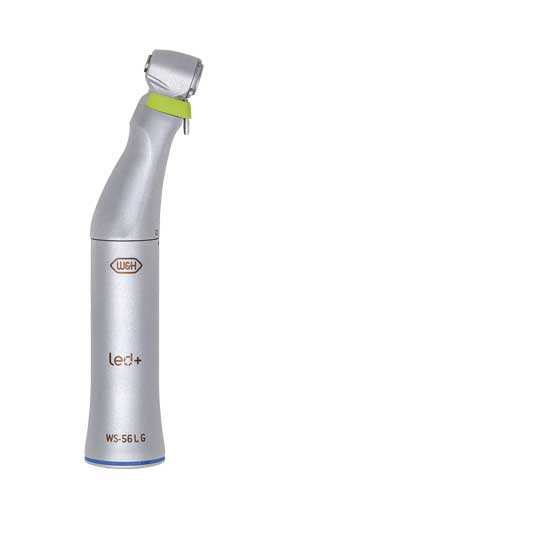

![Surgical contra-angle handpiece WS-56 L G]( "Surgical contra-angle handpiece WS-56 L G")
WS-56 L G
Surgical contra-angle handpiece with push-button, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)WS-56 L G
REF 300390001:1, can be dismantled, single spray, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, maximum drive speed 40,000 min-1
Indications
e.g.: maxillary and mandibular osteotomy,
germectomy, sequestrectomy
![Surgical contra-angle handpiece WS-75 L G]( "Surgical contra-angle handpiece WS-75 L G")

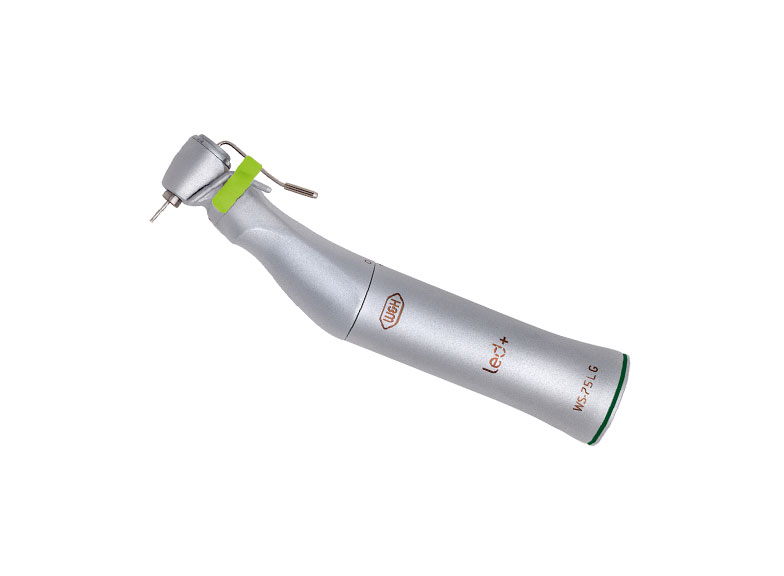

WS-75 L G
Surgical contra-angle handpiece with push-button, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)WS-75 L G
REF 3003200020:1, can be dismantled, single spray,
with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, (shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling system, maximum drive speed 40,000 min-1Indications
e.g.: implantation, osteotomy

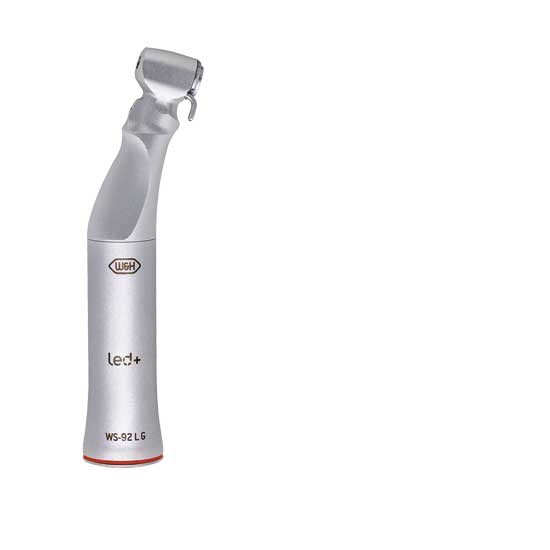

![Surgical contra-angle handpiece WS-92 L G]( "Surgical contra-angle handpiece WS-92 L G")
WS-92 L G
Surgical contra-angle handpiece with push-button, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)WS-92 L G
REF 300420001:2.7, can be dismantled, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm, maximum drive speed 40,000 min-1
Indications
e.g.: hemisection, extraction of wisdom teeth
Surgical contra-angle handpieces with 45° head
For tight squeezes
The contra-angle handpieces with 45° head unite the advantages of straight and contra-angle handpieces for the first time.
This is particularly helpful in the surgical extraction of wisdom teeth, precise tooth separations and apical resections.
Depending on the drive speed, the ratio of 1:2.7 makes it possible to achieve speeds of up to 135,000 revolutions per minute on the rotary instrument.Your advantages at a glance
- Considerably better visibility of the treatment site thanks to the 45° head
- Unite the advantages of a straight and contra-angle handpiece
- Makes the access to the maxillary and mandibular molars much simpler
- A 3x spray guarantees sufficient cooling of the rotary instrument and the treatment site.

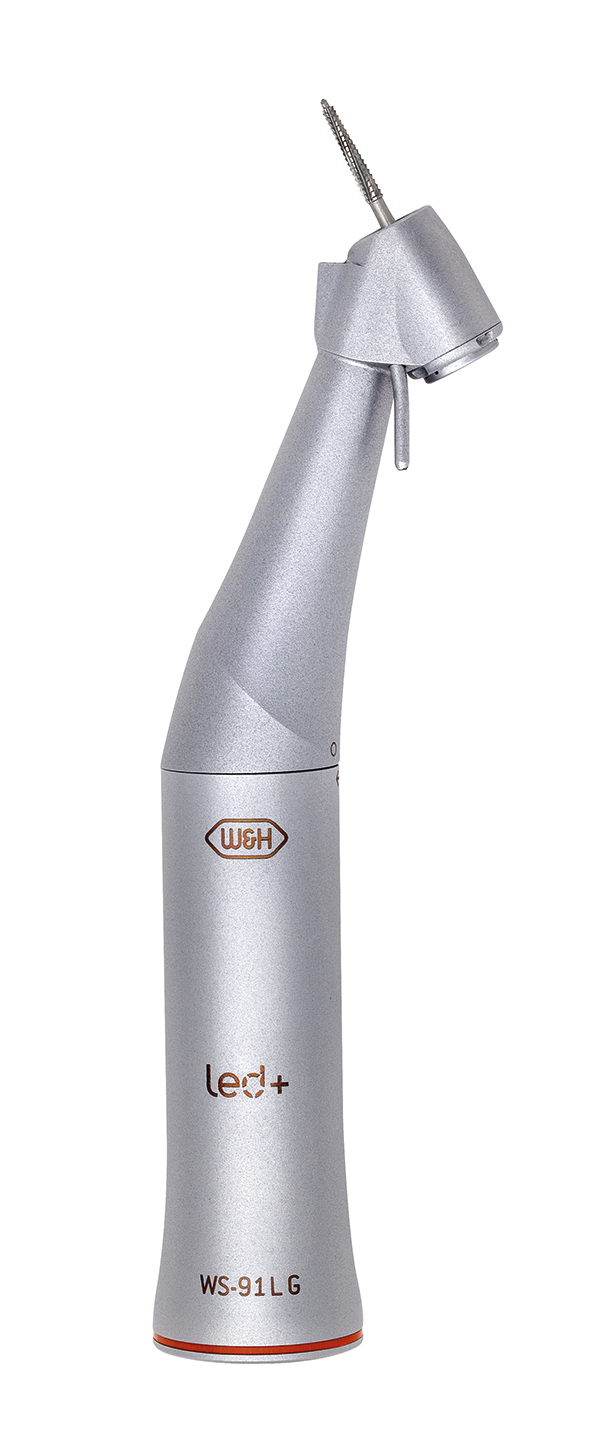

![Surgical contra-angle handpiece WS-91 L G]( "Surgical contra-angle handpiece WS-91 L G")

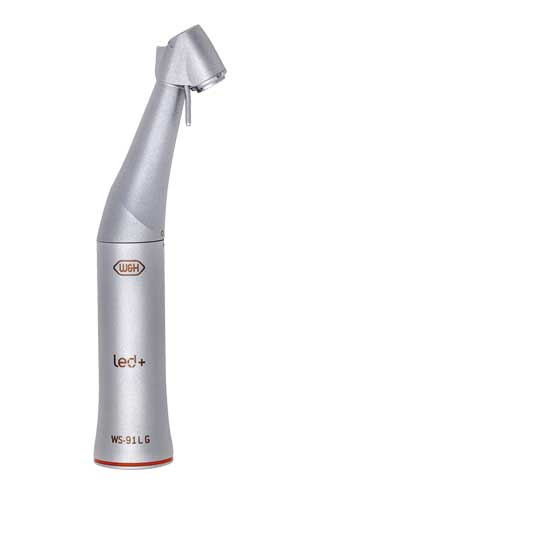

WS-91 L G
Surgical contra-angle handpiece with 45° head, push-button, mini LED+ and generator Coupling system: ISO 3964 (DIN 13940)
WS-91 L G
REF 300480001:2.7, can be dismantled, with mini LED+,
triple spray, for surgical burs and cutters
with FG shank Ø 1.6 mm,
maximum drive speed 40,000 min-1Indications
e.g.: hemisection, extraction of wisdom teeth

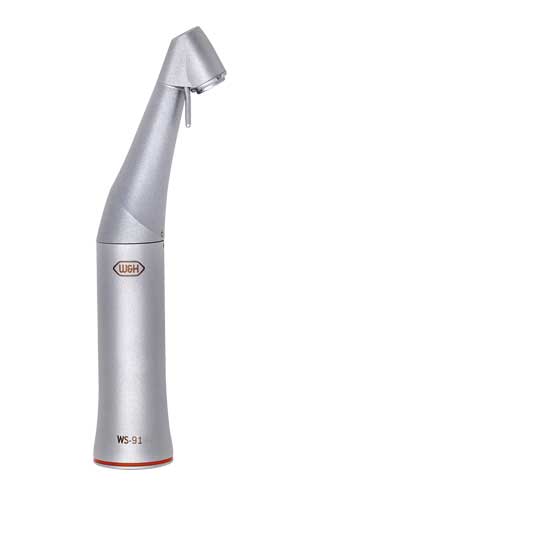

![Surgical contra-angle handpiece WS-91]( "Surgical contra-angle handpiece WS-91")
WS-91
Surgical contra-angle handpiece
with 45° head and push-button
Coupling system: ISO 3964 (DIN 13940)WS-91
REF 300470001:2.7, can be dismantled, without light, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm, maximum drive speed 50,000 min-1
Indications
e.g.: hemisection, extraction of wisdom teeth
Surgical contra-angle handpieces without light
Providing the best treatment
The high standards required for the achievement of optimum surgical results are met by the W&H range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.
The main features at a glance
- Durable and robust due to high-quality stainless steel and scratch-resistant coating (except WI-75 E/KM)
- Fatigue-free working thanks to optimal ergonomics
- Can be dismantled for thorough cleaning (except WI-75 E/KM)
- Thermal Washer Disinfector compatible
Fatigue-free working thanks to optimal ergonomicsFatigue-free working
The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the contra-angle handpieces from scratches. This facilitates cleaning and preserves the value.
Can be dismantled without toolsPerfect cleaning – Can be dismantled without tools
To enable thorough cleaning to be carried out, the contra-angle handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.
Cleaning parts individually provides the most effective result.
Variable coolingVariable cooling
There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements

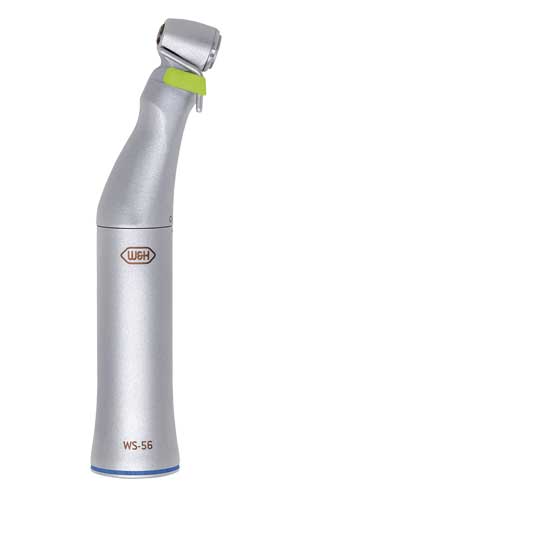

![Surgical contra-angle handpiece WS-56]( "Surgical contra-angle handpiece WS-56")
WS-56
Surgical contra-angle handpiece with push-button
Coupling system: ISO 3964 (DIN 13940)WS-56
REF 300380001:1, can be dismantled, single spray, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, maximum drive speed 50,000 min-1
Indications
e.g.: maxillary and mandibular osteotomy,
germectomy, sequestrectomy

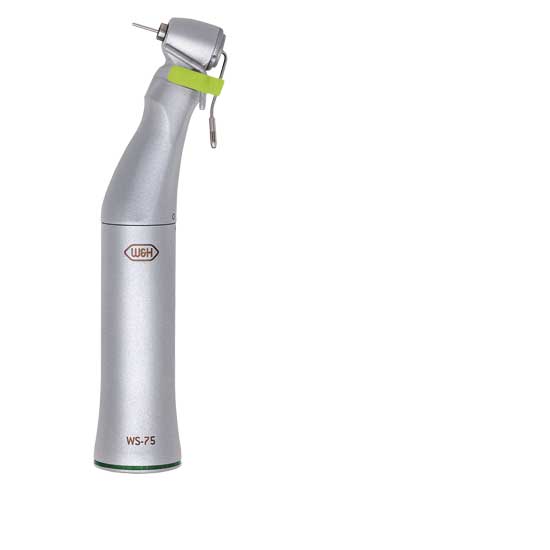

![Surgical contra-angle handpiece WS-75]( "Surgical contra-angle handpiece WS-75")
WS-75
Surgical contra-angle handpiece
with push-button
Coupling system: ISO 3964 (DIN 13940)WS-75
REF 3006500020:1, can be dismantled, single spray,
with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm,
(shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling system,
maximum drive speed 50,000 min-1Indications
e.g.: implantation, osteotomy
![Surgical contra-angle handpiece WS-92]( "Surgical contra-angle handpiece WS-92")

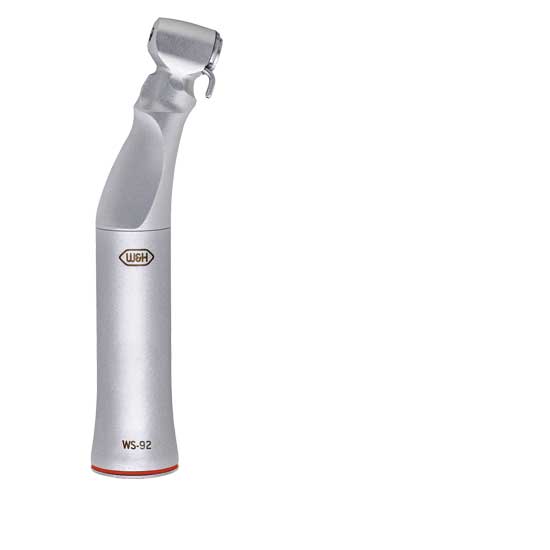

WS-92
Surgical contra-angle handpiece with push-button
Coupling system: ISO 3964 (DIN 13940)WS-92
REF 300410001:2.7, can be dismantled, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm, maximum drive speed 50,000 min-1
Indications
e.g.: hemisection, extraction of wisdom teeth

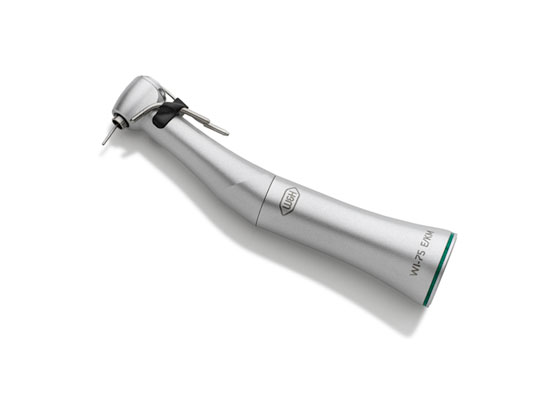

![Implantology contra-angle handpiece WI-75 E/KM]( "Implantology contra-angle handpiece WI-75 E/KM")
WI-75 E/KM
Implantology contra-angle handpiece with push-button
Coupling system: ISO 3964 (DIN 13940)WI-75 E/KM
REF 1020755020:1, cannot be dismantled, single spray,
with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, (shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling system, maximum drive speed 50,000 min-1Indications
e.g.: implantation, osteotomy
Download Area
FAQ
- Can LED instruments with generator be sterilized?
- How to dismantle the handpiece
- Which material is used at W&H surgical instruments?
- What is the difference between WI-75 and WS-75?
- Is the removable spray clip of my surgical hand piece sterilizable?
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
- Can the new contra-angles be attached to old motors?
- Can our customers disassemble the new contra-angles
- Can current contra-angles be attached to new motors?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
Surgical contra-angle handpieces with mini LED+ and W&H connection Type: WS-75 L WS-56 L WS-91 L WS-92 L Transmission ratio: 20:1 1:1 1:2.7 1:2.7 Coupling system: W&H EM-19 LC / EM-19 Lighting system: mini LED+ External spray: single triple Internal bur cooling system: Kirschner/Meyer – – – Chucking system: push-button chuck Rotary instruments: for surgical burs and cutters
with contra-angled shaft Ø 2.35 mmfor surgical burs and cutters
with FG shank Ø 1.6 mmMaximum drive speed: 50,000 min -1 Can be dismantled: yes
Surgical contra-angle handpieces with mini LED+ and generator Type: WS-75 L G WS-56 L G WS-91 L G WS-92 L G Transmission ratio: 20:1 1:1 1:2.7 1:2.7 Coupling system: ISO 3964 Lighting system: mini LED+ Power supply: via independent generator Light quality: daylight External spray: single triple Internal bur cooling system: Kirschner/Meyer – – – Chucking system: push-button chuck Rotary instruments: for surgical burs and cutters
with contra-angled shank Ø 2.35 mmfor surgical burs and cutters
with FG shank Ø 1.6 mmMaximum drive speed: 40,000 min -1 Can be dismantled: yes Surgical contra-angle handpieces without light Type: WS-75
(WI-75 E/KM*)WS-56 WS-91 WS-92 Transmission ratio: 20:1 1:1 1:2.7 1:2.7 Coupling system: ISO 3964 External spray: single triple Internal bur cooling system: Kirschner/Meyer – – – Chucking system: push-button chuck Rotary instruments: for surgical burs and cutters
with contra-angled shank Ø 2.35 mmfor surgical burs and cutters
with FG shank Ø 1.6 mmMaximum drive speed: 50,000 min -1 Can be dismantled: yes * WI-75 E/KM: cannot be dismantled
