Alegra turbines
Experience Alegra turbines in 3D
-
Alegra dental turbine handpieces without light
Long service life and
extremely quiet operationAlegra turbine handpieces offer top quality due to their precision manufacture. Ceramic ball bearings in Alegra turbine handpieces guarantee vibration-free and quiet operation.
And ensure an extremely long service life. Particularly when used with optimized care and maintenance procedures!Your advantages at a glance
- Ceramic ball bearings
- Triple spray for TE-97 and TE-98 models
- Powerful and reliable performance
- Patented hygienic head system
- Integrated resuction stop
- Component replacement by the user
- Thermal washer disinfectable and sterilizable
Power Blade RotorFull steam ahead with the Power Blade rotor
The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.
Simple bur changingOptimum balance and retention force
The easy operation of the
push-button chucking system
facilitates rapid bur change.No tools required!

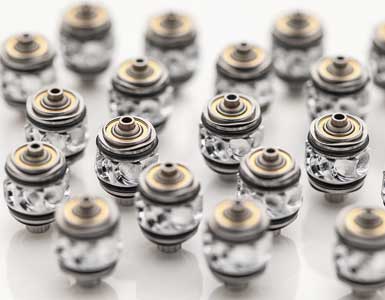

Long service lifeMade in Austria
Innovative technologies, high quality material
concepts and stringent quality criteria guarantee
long service life of Alegra turbine handpieces.

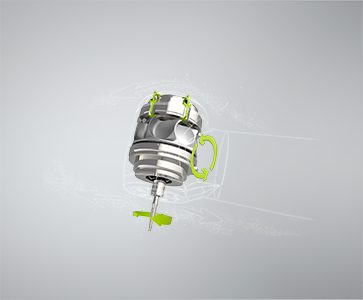

Patented hygienic
head systemPatented hygienic head system
The circulating air in the turbine
head ensures no aerosol particles
are sucked into the turbine as the
rotor slows down.

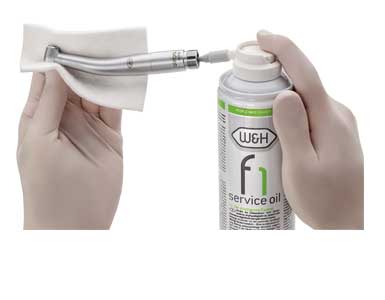

Manual lubricationW&H Service Oil F1
W&H Service Oil F1 in a spray can is ideal for the
perfect manual lubrication of Alegra turbine handpieces.W&H Service Oil F1 cleans and lubricates your
Alegra turbine handpiece and guarantees trouble-free use.
Maintenance at the press of a buttonDental devices from W&H:
Automatic internal and external cleaning and lubrication
The W&H cleaning and maintenance devices Assistina 301 plus, Assistina 3x2 and Assistina 3x3 provide optimized maintenance options from oil service up to automatic internal and external cleaning.
Preparing your turbine handpieces for sterilization in record time!
![Alegra dental turbine handpiece TE-97]( "Alegra dental turbine handpiece TE-97")

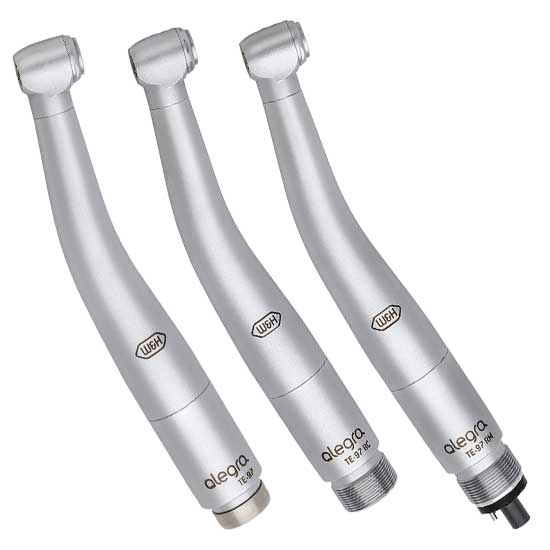

TE-97
Dental turbine handpiece with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10.4 mm
Power*: 16 Watt
Speed*: 390,000 -1TE-97
REF 30068000Dental turbine handpiece
with Roto Quick connectionTE-97 BC
REF 30069000Dental turbine handpiece
with Borden 2-hole connectionTE-97 RM
REF 30070000Dental turbine handpiece
with standard 4-hole connection
![Alegra dental turbine handpiece TE-98]( "Alegra dental turbine handpiece TE-98")

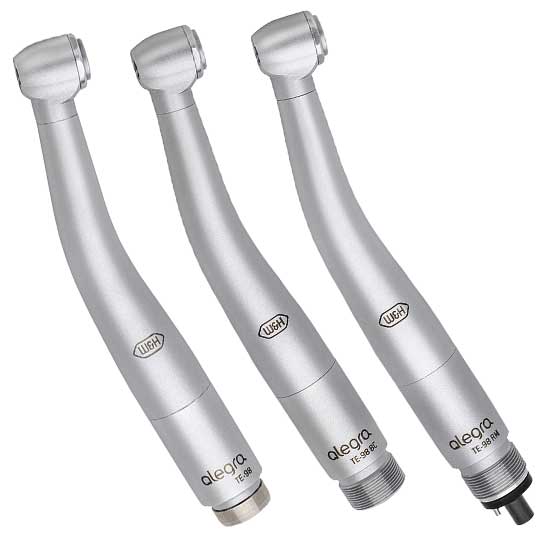

TE-98
Dental turbine handpiece with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330,000 -1TE-98
REF 30071000Dental turbine handpiece
with Roto Quick connectionTE-98 BC
REF 30072000Dental turbine handpiece
with Borden 2-hole connectionTE-98 RM
REF 30073000Dental turbine handpiece
with standard 4-hole connection
![Alegra dental turbine handpiece TE-95]( "Alegra dental turbine handpiece TE-95")

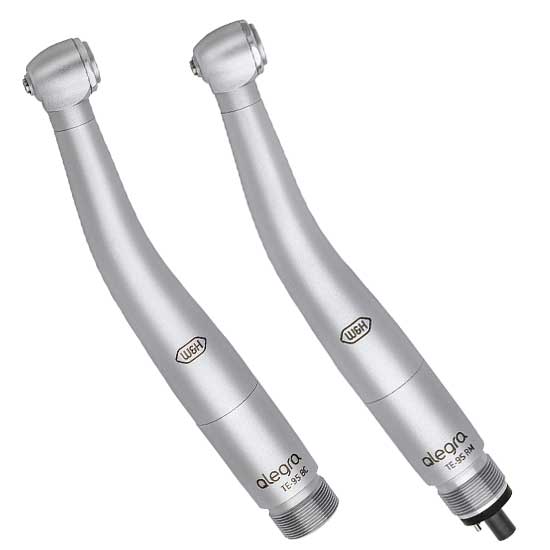

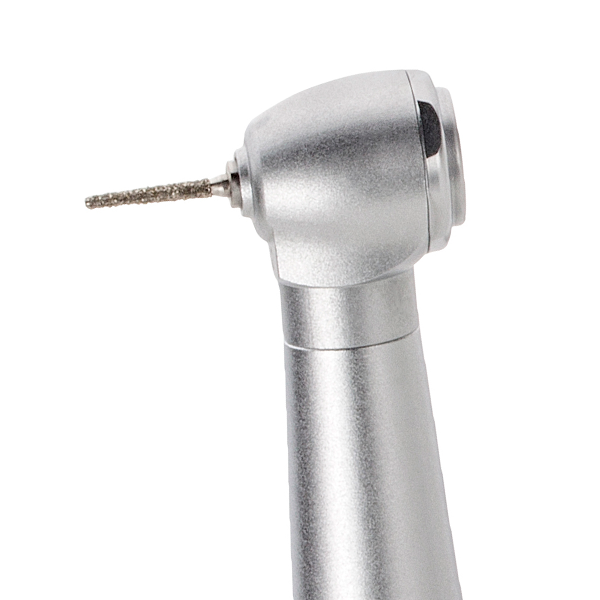

TE-95
Dental turbine handpiece with steel ball bearings, single spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330,000 -1TE-95 BC
REF 30074000Dental turbine handpiece
with Borden 2-hole connectionTE-95 RM
REF 30075000Dental turbine handpiece
with standard 4-hole connection
* The power and speed depend on the quality of the supply hose used and may differ from the specified value.
Alegra dental turbine handpieces with LED
for use with Roto Quick couplings RQ-53 and RQ-54
Optimal view and independent LED
for the dentistThe ideal position of the LED on the turbine head of the Alegra dental turbine handpieces with light guarantees optimal view and illumination of the treatment site.
Integration of a generator in the coupling enables the use of these dental turbine handpieces with light on the turbine hose without using a power supply.
Alegra dental turbine handpieces with light offer you top quality due to their precision manufacture. The ceramic ball bearings in the Alegra dental turbine handpieces with light guarantee vibration-free and quiet operation. And ensure an extremely long service life.
Your advantages at a glance
- Independent light
- Ceramic ball bearings
- Triple spray
- Powerful and reliable performance
- Patented hygienic head system
- Integrated resuction stop
- Component replacement by the user
- Thermal washer disinfector compatible

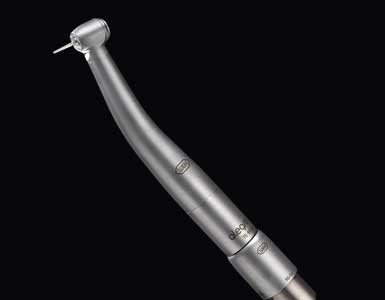

Independent lightTurbine handpiece with light and
Roto Quick coupling with generator
A generator in the Roto Quick coupling enables the
use of turbine handpieces with light on the turbine hose
without using a power supply.
Optimal viewOptimal LED position
The position of the LED on the turbine head
guarantees optimal view and illumination
of the treatment site.
Excellent ergonomicsFatigue-free working
Easy 360° rotation of the dental turbine with light on the Roto Quick coupling ensures fatigue-free operation.
The low overall weight and slender design provide additional relief.
Patented hygienic
head systemPatented hygienic head system
Patented hygienic head system
The circulating air in the turbine
head ensures no aerosol particles
are sucked into the turbine as the
rotor slows down.
Manual lubricationW&H Service Oil F1
W&H Service Oil F1 in a spray can is ideal for the perfect
manual lubrication of Alegra turbine handpieces with light.W&H Service Oil F1 cleans and lubricates your Alegra
turbine handpiece with light and guarantees trouble-free use.
Maintenance at the
press of a buttonDental devices from W&H:
Automatic internal and external cleaning and lubrication
The W&H cleaning and maintenance devices Assistina 301 plus, Assistina 3x2 and Assistina 3x3 provide optimized maintenance options from oil service up to automatic internal and external cleaning.
Preparing your turbine handpieces with light for sterilization in record time!
![Alegra Dental turbine handpiece with LED light TE-97 LQ]( "Alegra Dental turbine handpiece with LED light TE-97 LQ")

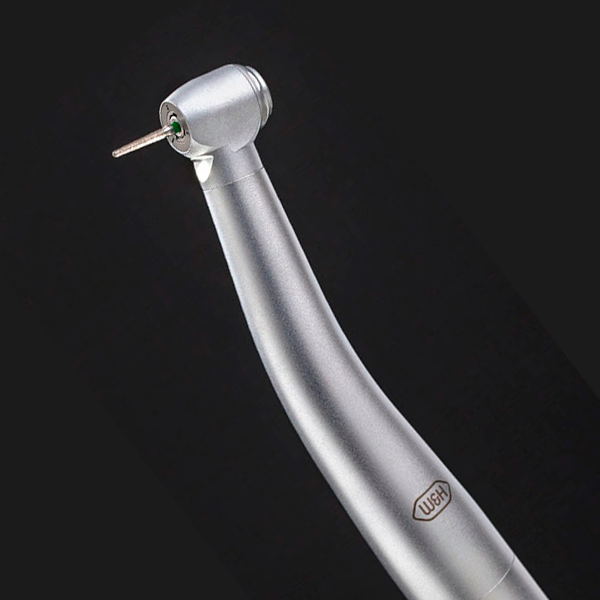

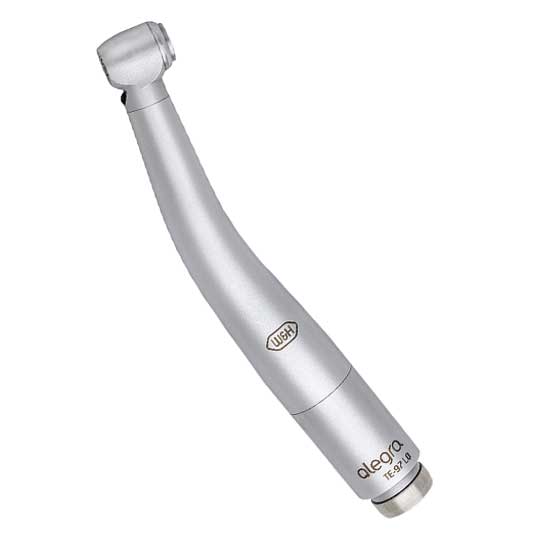

TE-97 LQ
Dental turbine handpiece with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10,4 mm
Power*: 16 Watt
Speed*: 390.000 min-1TE-97 LQ
REF 30066000Dental turbine handpiece with light
with Roto Quick connection
![Alegra Dental turbine handpiece with LED light TE-98 LQ]( "Alegra Dental turbine handpiece with LED light TE-98 LQ")

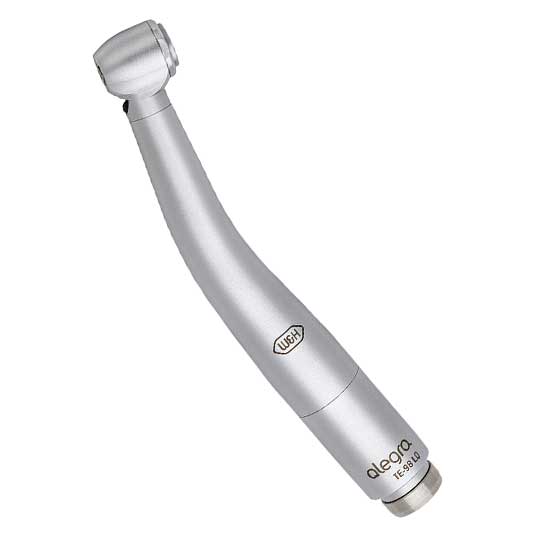

TE-98 LQ
Dental turbine handpiece with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330.000 min-1TE-98 LQ
REF 30067000Dental turbine handpiece with light
with Roto Quick connection
* The power and speed depend on the quality of the supply hose used and may differ from the specified value.
Roto Quick couplings with generator
for use with Alegra LED dental turbine handpieces TE-97 LQ and TE-98 LQ
![Roto Quick coupling with generator RQ-53]( "Roto Quick coupling with generator RQ-53")

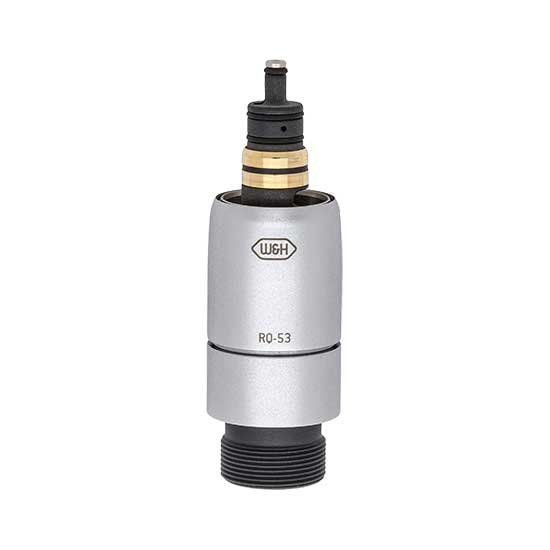

RQ-53
Roto Quick coupling with generator
and resuction stopRQ-53
REF 10405300Roto Quick coupling
with Borden 2-hole connection
![Roto Quick coupling with generator RQ-54]( "Roto Quick coupling with generator RQ-54")

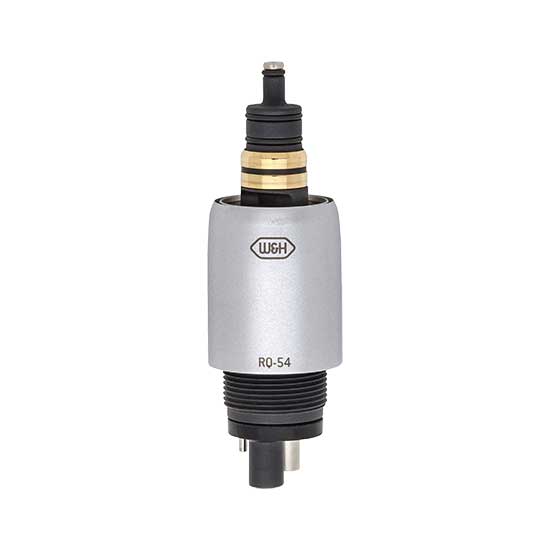

RQ-54
Roto Quick coupling with generator
and resuction stopRQ-54
REF 10405400Roto Quick coupling
with standard 4-hole connectionDownload Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
Downloads
-
Alegra Dental turbine handpieces without light
Types: TE-95 BC / TE-95 RM TE-98 /
TE-98 BC / TE-98 RMTE-97 /
TE-97 BC / TE-97 RMConnection: TE-97 / TE-98: Roto Quick couplings
BC: Borden 2-hole (Type 1) / RM: Standard 4-hole (Type 3)Head size (Ø mm): 12.2 10.4 Power (W): 18** 16** Speed (± 30.000 rpm): 330,000 rpm 390,000 rpm Rotary instruments: FG burs with 1.6 mm Ø, according to ISO 1797-1 Maximum length approved by W&H (mm): 25 21 Ball bearings: steel ceramic Spray: single triple Recommended operating pressure (bar): 2.2 – 2.8 Warranty: 12 months
** Performance value applies at a rated pressure of 2.5 bar for turbines without light, of 2.8 bar for turbines with light and exhaust air pressure of max. 0.2 barWhen operating with the maximum permissible operating pressure of 2.8 bar, it is possible to reach 18 watt for TE-97, TE-97 RM, TE-97 BC and 20 watt forTE-98, TE-98 RM, TE-98 BC.
Alegra Dental turbine handpieces with LED
Types: TE-98 LQ* TE-97 LQ* Connection: W&H Roto Quick couplings RQ-53 and RQ-54 Head size (Ø mm): 12.2 10.4 Power (W): 18** 16** Speed (± 30.000 rpm): 330,000 rpm 390,000 rpm Rotary instruments: FG burs with 1.6 mm Ø, according to ISO 1797-1 Maximum length approved by W&H (mm): 25 21 Ball bearings: ceramic Spray: triple Recommended operating pressure (bar): 2.2 – 2.8 Warranty: 12 months * TE-97 LQ and TE-98 LQ turbines with LED are intended for use with W&H RQ-53 and RQ-54 Roto Quick couplings only.** Performance value applies at a rated pressure of 2.5 bar for turbines without light, of 2.8 bar for turbines with light and exhaust air pressure of max. 0.2 bar
When operating with the maximum permissible operating pressure of 2.8 bar, it is possible to reach 18 watt for TE-97, TE-97 RM, TE-97 BC and 20 watt forTE-98, TE-98 RM, TE-98 BC.
