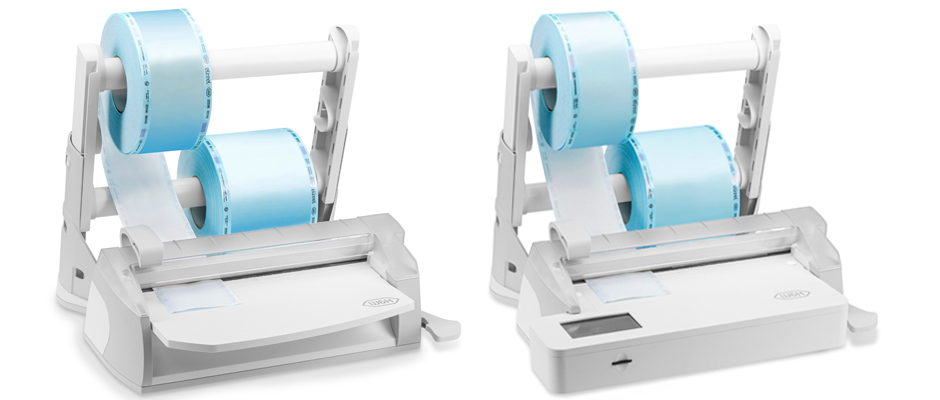

Seal²
Comfort and ease of useHandling is improved with the transparent sealing station and integrated work surface.
All types of roll in arm’s reach
Seal²'s patented double roll holder can accommodate a large selection of roll widths to suit all your needs.
Seal² fits everywhere
The roll holder can be separated from the sealing station and can also be wall mounted.Your advantages at a glance
- Perfect quality seals with no risk of burning the bags
- Transparent sealing station with integrated work surface
- Patented double roll holder
- Can accommodate a larger selection of roll widths
- Roll holder can be wall mounted
- Intuitive light and acoustic signals
- Sealing seam of 12 mm width
No temperature adjustment
is neededA perfect wrap procedure
The sealing temperature is electronically regulated which prevents bags form getting burnt thus guaranteeing that pouches are hermetically sealed.
Patented double roll holder
that can be wall-mountedAll types of roll in arm’s reach
The patented double roll holder can accommodate a larger selection of roll widths to perfectly suit your needs.
The roll holder can be separated from the sealing station and can also be wall mounted.

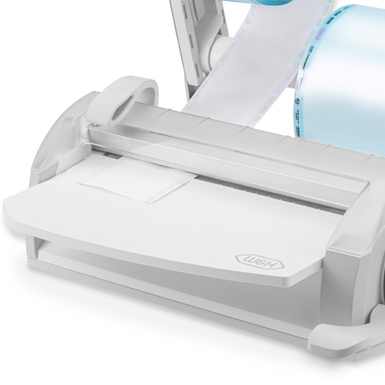

Transparent cutting station
and integrated work surfaceComfort and ease of use
Seal² offers improved handling due to its unique transparent sealing station and integrated work surface.
SealVal²
Safe and validatedWith SealVal² the thermal sealing is now more than just sealing. The device monitors, saves and displays the data and results of the sealing process for validation.
Thermal sealing and cutting of rolls and bags of laminated paper/polypropylene or other thermosealable material can be done easily and secure.In addition to the above, SealVal² offers the following advantages:
- Full traceability recording of sealing parameters as pressure, time and temperature
- Easy user management due to identification of the batch sealing responsible user
- User-friendly touchscreen with coloured display and intuitive menu structure
- Flexible installation for space optimization thanks to the roll holder on the wall
- Save data to generate sealing reports
- Pre-set and customizable sealing programs available
- Ethernet connection available by default (LAN cable not included)
Quick-Guide: How to use SealVal² software
Learn how to install and use the software for the SealVal² in the Quick-Guide.
Please note: Software requires Java Virtual Machine JRE version 8 to be able to operate on your computer!
![Download]( "Download")
![Seal²]( "Seal²")

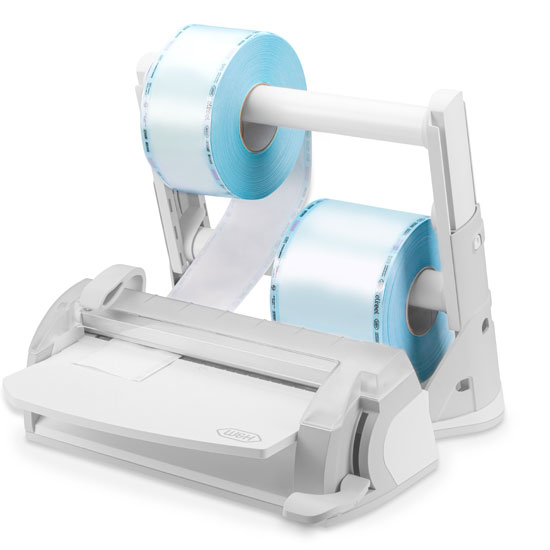

Seal²
Seal²
REF 19722101
![SealVal²]( "SealVal²")

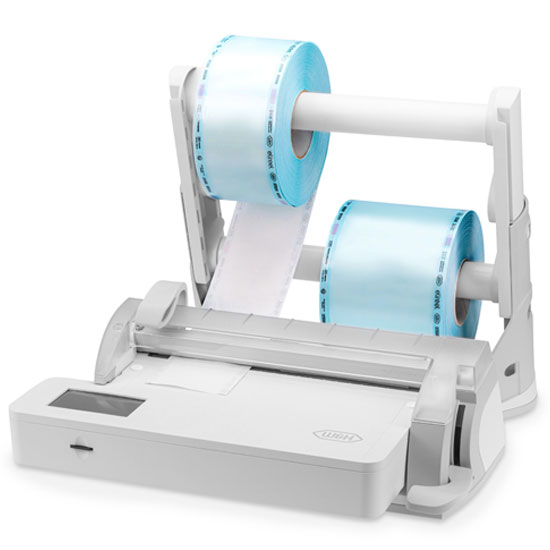

SealVal²
SealVal²
REF 19722103
![Seal Check]( "Seal Check")
Seal²

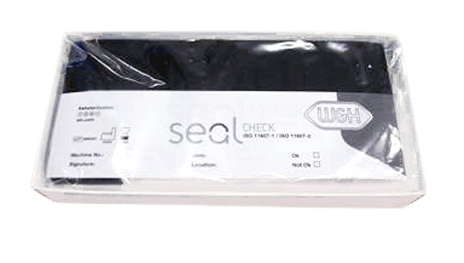

Seal Check
REF T802100XPack includes 100 test sheets; EN 11607-1 and EN 11607-2 compliant.
Download Area
-
Seal²
Voltage:
200 / 240 V
100 / 120 V
Number of phases:
1
1
Power supply:
50 / 60 Hz
50 / 60 Hz
Power:
180 W
180 W
Isolation class:
I / IPX0
I / IPX0
Fuses:
Nr. 2 – 5x 20 T4 A
Nr. 2 – 5x 20 F10 A
Environmental conditions for which the device has been designed:
• Internal use
• Altitude up to 3000 m
• Temperature: +5 / +40 °C
• Relative max. humidity: 85%
• Max voltage variation: ± 10 %
• Installation category (overvoltage category): II
• Pollution level: 1Interrupter:
bipolar
Weight:
7.1 kg
Dimensions of the seal:
12 x 310 mm
Type of sealing:
At constant temperature
SealVal²
Voltage:
200 / 240 V ac, single phase
Frequency:
50 / 60 Hz
Power:
180 W
Insulation class:
I / IPX0
Fuses:
N.2 – 5x 20 - T 5 A
Conditions of use:
Environment
Max. altitude
Temperature
Max. relative humidity
Max. voltage tolerance
Overvoltage category
Pollution degree
Max. surge (≤ 5s)
Max. surge (> 5s)Indooruse only
3000 m asl
+5÷ +40°C
85%
±10%
II
2
230V + 1200V
230V + 250VMains switch:
Bipolar
Weight:
8.3 kg
Welding area:
12 x 310 mm
Welding temperature:
Standard mode
Free Option mode180°C min.
170°C max. 200°C (set by the user)
