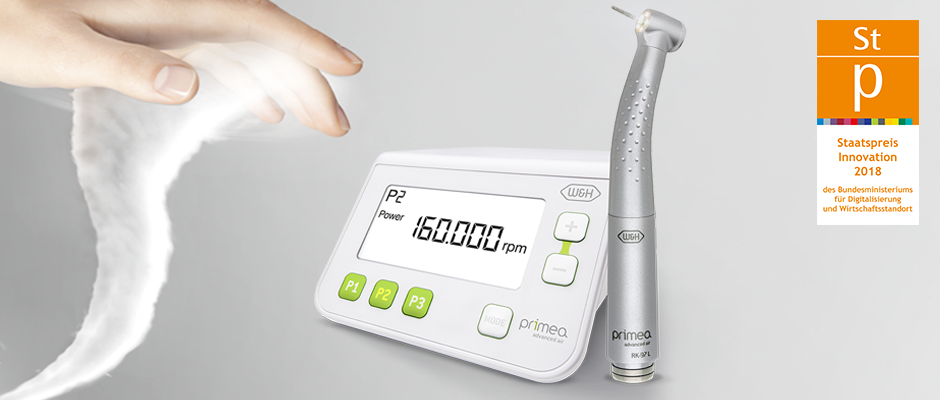

Primea Advanced Air

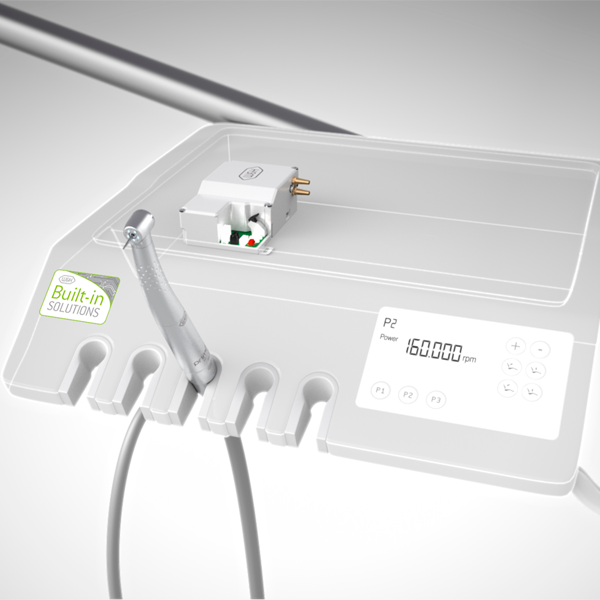

This product is available to be purchased as an Add-on or Built-in Solution (selected dental units only). You can discover the advantages of the two versions here.
- Removal Rate
- Value retention
- Illumination
- Cooling
- Hygienic head system
- Ergonomics
- Coupling
- Bur speed
- Operating mode
- Presetting program
- Save program channel
-

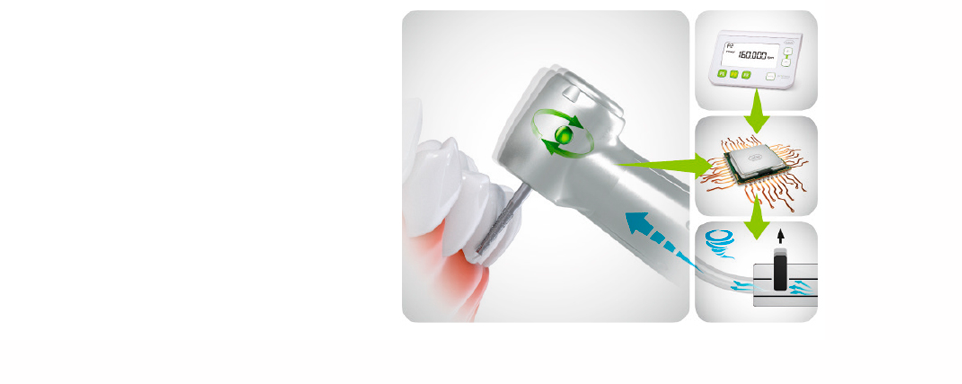

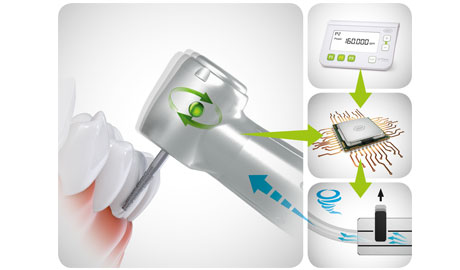

Constant Removal Rate
Automatic power adjustment with electronic air control thanks to Advanced Air technology.
With the Advanced Air technology, loss of speed is a thing of the past. A sensor in the head of the turbine measures the actual rotation speed of the bur on the tooth constantly. As soon as the speed threatens to slow, the control module adjusts the air supply immediately so as to ensure the constant removal of tooth structure. -

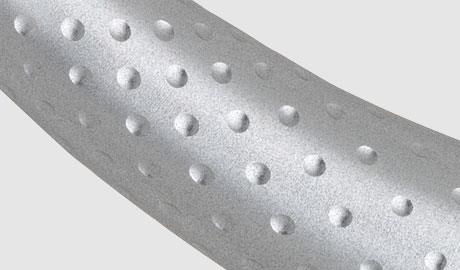

Extraordinary value retention
Everyday like new with
the special, scratch-resistant
coating. -
Shadowless illumination
The 5x Ring LED+ offers an
optimal view of the treatment
site with perfect contrasts. -

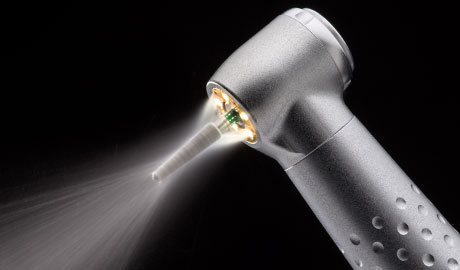

Optimum cooling
Thanks to the 5x spray the bur
tip is optimally cooled in every
application position. -
Patented hygienic head system
The circulating air in the turbine
head ensures no aerosol particles
are sucked into the turbine as the
rotor slows down. -

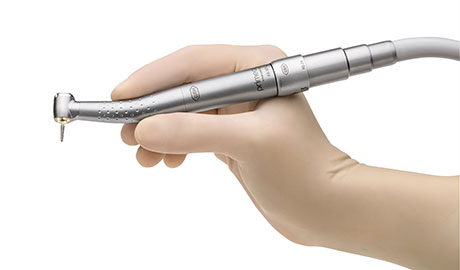

Excellent ergonomics
Fatigue-free working and high
tactile feedback thanks to low
weight and quiet operation. -

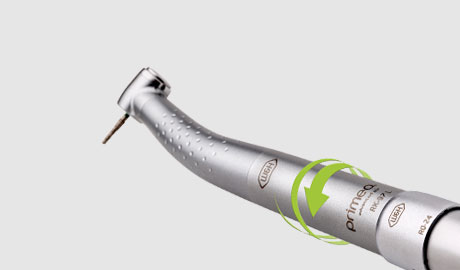

RQ-24
360° rotation and low overall weight
with the RQ-24 Roto Quick coupling. -

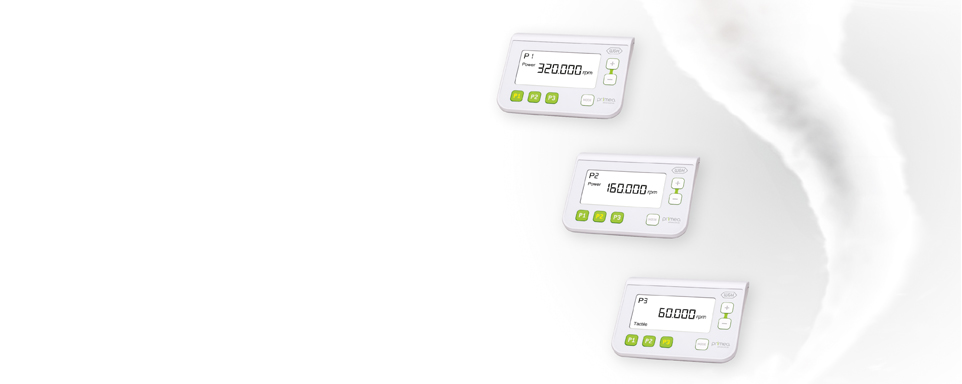

Adjustable bur speed
Wide range of applications
and controlled preparation
at constant speeds thanks to
adjustable bur speed between
60,000 and 320,000 rpm. -

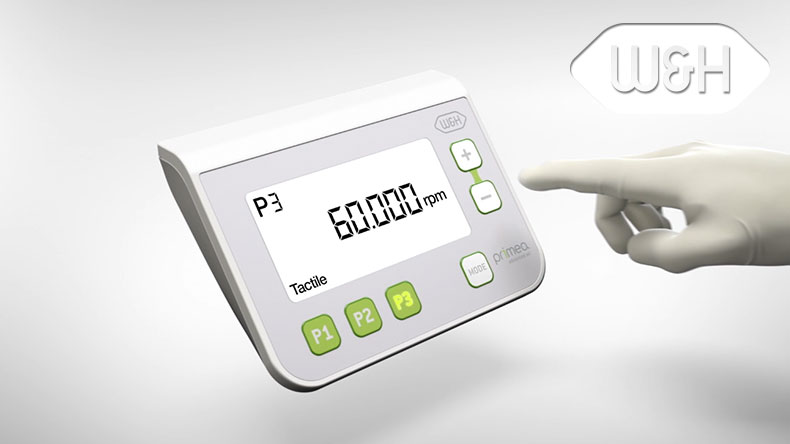

Additional function: operating mode
Whilst the set speed is always maintained constant under increasing pressure in »Power« mode, »Tactile« mode permits reduction of the speed.
This makes it possible to perform sensitive steps with even more control and even more minimally invasively. -
-
-
1 Removal Rate
Constant Removal Rate
Automatic power adjustment with electronic air control thanks to Advanced Air technology.
With the Advanced Air technology, loss of speed is a thing of the past. A sensor in the head of the turbine measures the actual rotation speed of the bur on the tooth constantly. As soon as the speed threatens to slow, the control module adjusts the air supply immediately so as to ensure the constant removal of tooth structure. -
2 Value retention
Extraordinary value retention
Everyday like new with
the special, scratch-resistant
coating. -
3 Illumination
Shadowless illumination
The 5x Ring LED+ offers an
optimal view of the treatment
site with perfect contrasts. -
4 Cooling
Optimum cooling
Thanks to the 5x spray the bur
tip is optimally cooled in every
application position. -

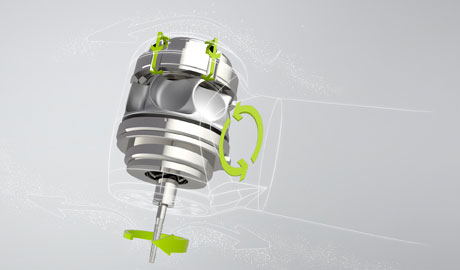

5 Hygienic head system
Patented hygienic head system
The circulating air in the turbine
head ensures no aerosol particles
are sucked into the turbine as the
rotor slows down. -
6 Ergonomics
Excellent ergonomics
Fatigue-free working and high
tactile feedback thanks to low
weight and quiet operation. -
7 Coupling
RQ-24
360° rotation and low overall weight
with the RQ-24 Roto Quick coupling. -
8 Bur speed
Adjustable bur speed
Wide range of applications
and controlled preparation
at constant speeds thanks to
adjustable bur speed between
60,000 and 320,000 rpm. -
9 Operating mode
Additional function: operating mode
Whilst the set speed is always maintained constant under increasing pressure in »Power« mode, »Tactile« mode permits reduction of the speed.
This makes it possible to perform sensitive steps with even more control and even more minimally invasively. -

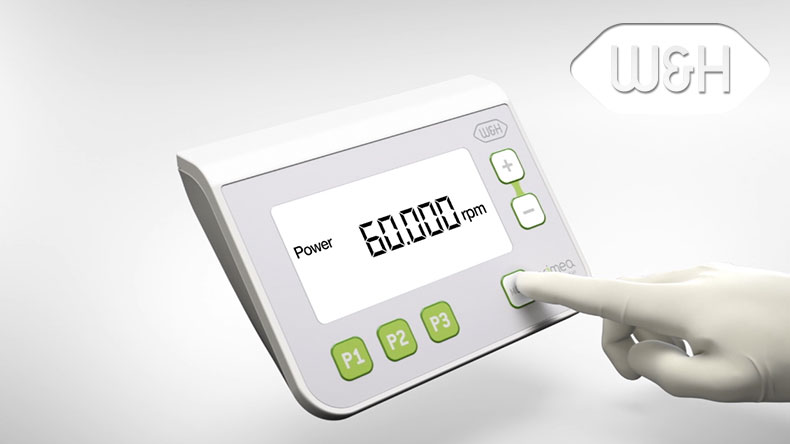

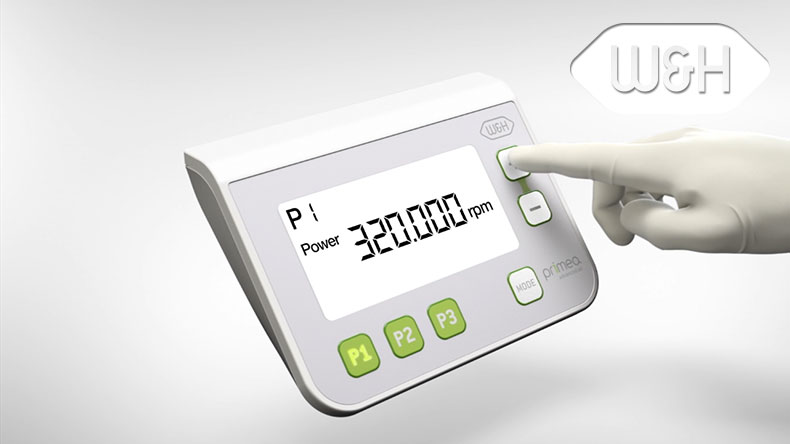

10 Presetting program
-

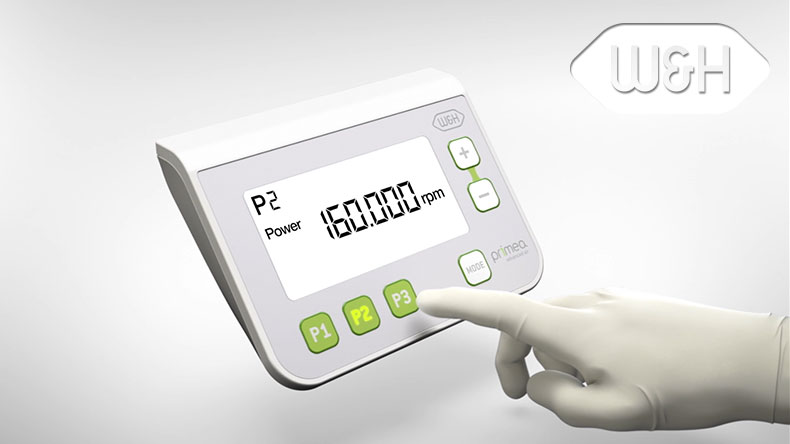

11 Save program channel
-
It’s in your hands
You can always rely on Primea Advanced Air. It adapts to your personal preparation requirements and works together with you hand in hand.
You regulate the speed and benefit from maximum control. perfect combination, which represents a real competitive advantage for air driven dental units.
An interesting alternative to conventional turbines and red contra-angle handpieces for units with electric motors.Your advantages at a glance
- Optimal view with 5x Ring LED+
- Perfect cooling thanks to 5x spray
- Fatigue-free working thanks to ideal ergonomics and lightweight handpiece
- Best tactile feedback with quiet operation
- Value retention thanks to special scratch-resistant coating
- Added control thanks to non-slip grip profile
-
Ultimate safety due to patented hygienic
head system - Maximum access thanks to small head
Patented hygienic
head systemPatented hygienic head system
The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.State price winner 2018State price winner 2018
Ring LED+Shadowless illumination
The 5x Ring LED+ offers an
optimal view of the treatment
site with perfect contrasts.Scratch-resistant coatingExtraordinary value retention
Everyday like new with the special,
scratch-resistant coating.Optimum coolingOptimum cooling
Thanks to the 5x spray the bur tip is optimally cooled

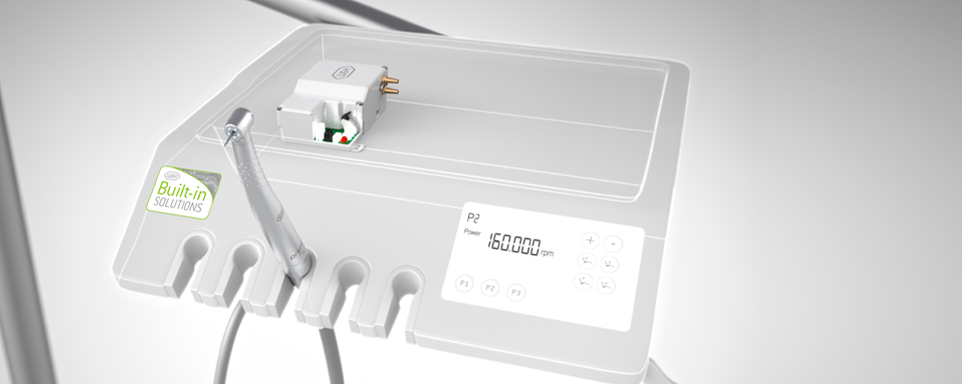

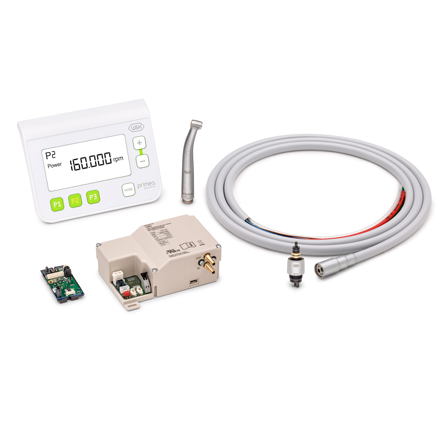

in every application position.Built-in Set
REF 90000141consists of:
> AC-1.0 Advanced Air Controller +
AD-1.0 Analog-digital converter
> Supply hose VA-6
> Air supply hose Ø 8 mm
> 2 connection sets
(pneumatic and electric)
> RQ-24
> RG-97 L

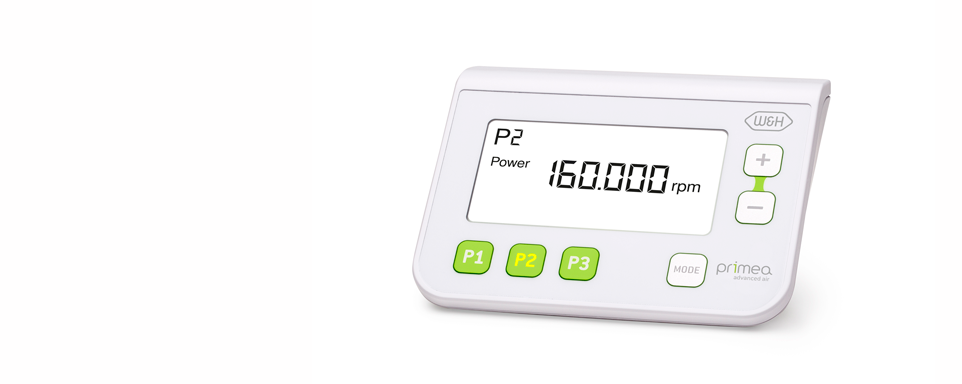

> Display D-2.0 A

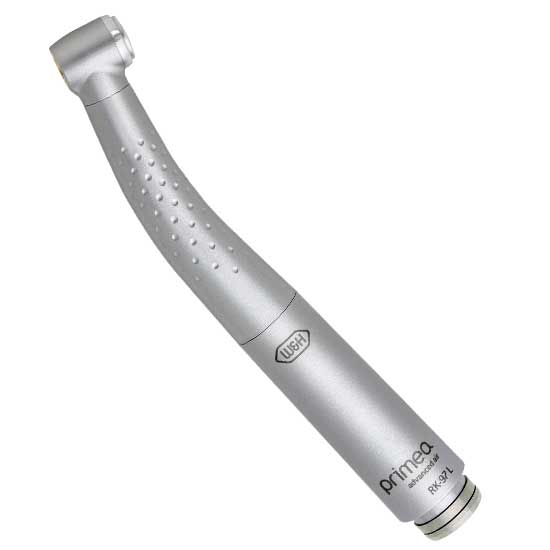

Primea Advanced Air turbine RK-97 L
5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mmRK-97 L
REF 30221000Ring LED+, ceramic ball bearings,

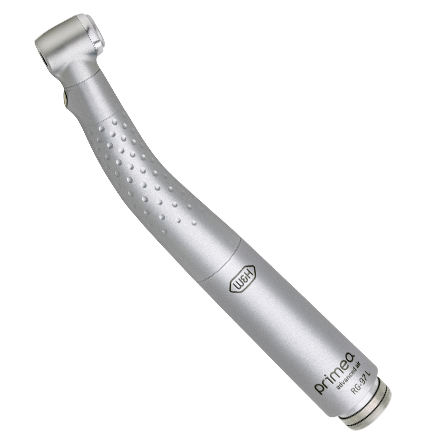

coupling system Roto QuickPrimea Advanced Air turbine RG-97 L
5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mmRG-97 L
REF 30222000LED+, ceramic ball bearings,
coupling system Roto QuickDownload Area
FAQ
- Should I always call my authorized W&H service partner first before I send devices/instruments for repair?
- Which rotary instruments can be used with Primea Advanced Air Turbines?

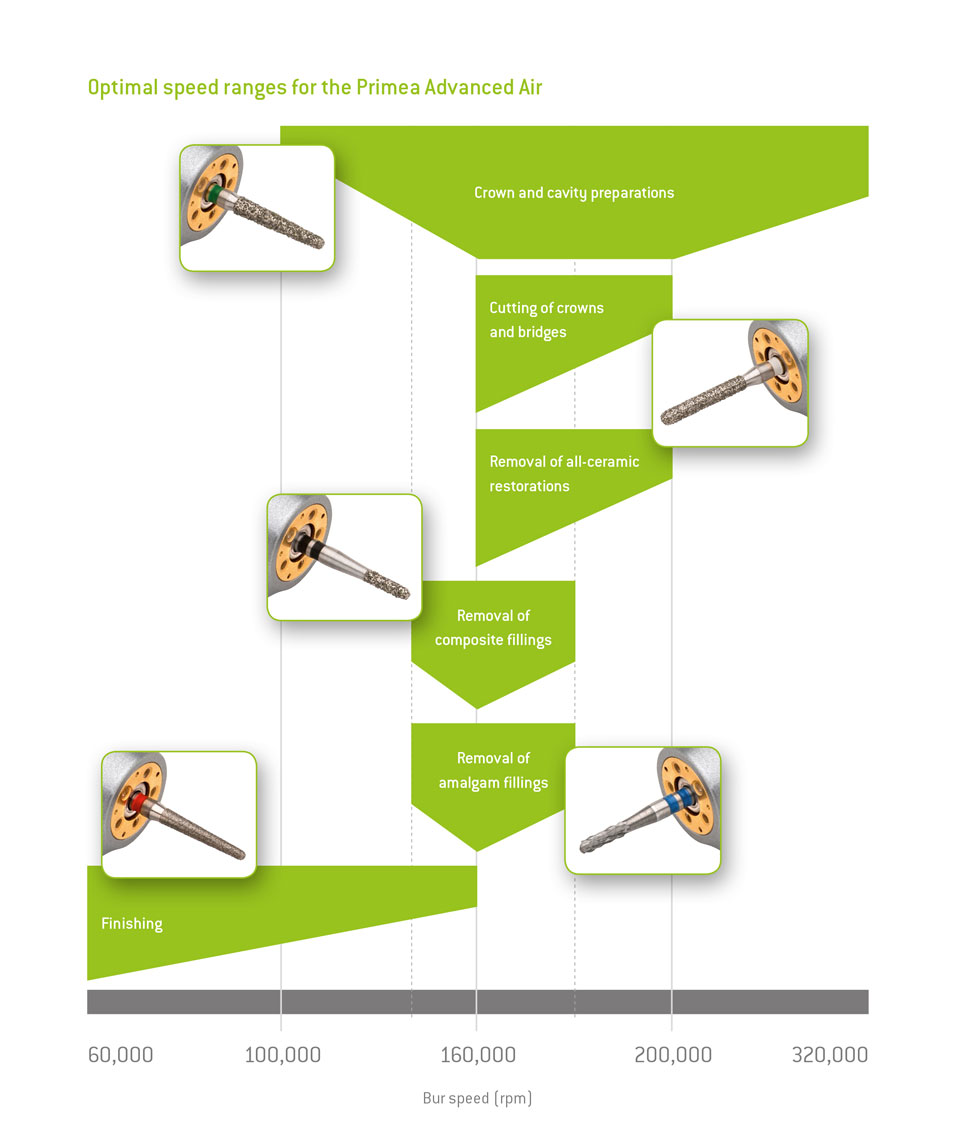

- Which speed setting should I use on the Primea Advanced Air System?
- What is the maximum rotary instrument length approved by W&H for Primea Advanced Air Turbines?
- How does the Roto Quick coupling's W&H Click & Pull System work? How do I remove a Primea Advanced Air Turbine?
- How is the Primea Advanced Air System cleaned? How is it prepared?
- Does the Primea Advanced Air Built-in need to be serviced?
- Does the Primea Advanced Air Add-on need to be serviced?
- Can turbines from other manufacturers be operated in a Primea Advanced Air System?
- What features do the two operating modes "Power" and "Tactile" offer?
- Can my Primea Advanced Air Turbine be sterilized in a sterilizer?
- Can my Primea Advanced Air Turbine be prepared in a thermo washer disinfector?
- What do I do if my Primea Advanced Air Turbine does not achieve sufficient power/speed?
- I have just purchased a new W&H Primea Advanced Air Turbine. How can I activate it?

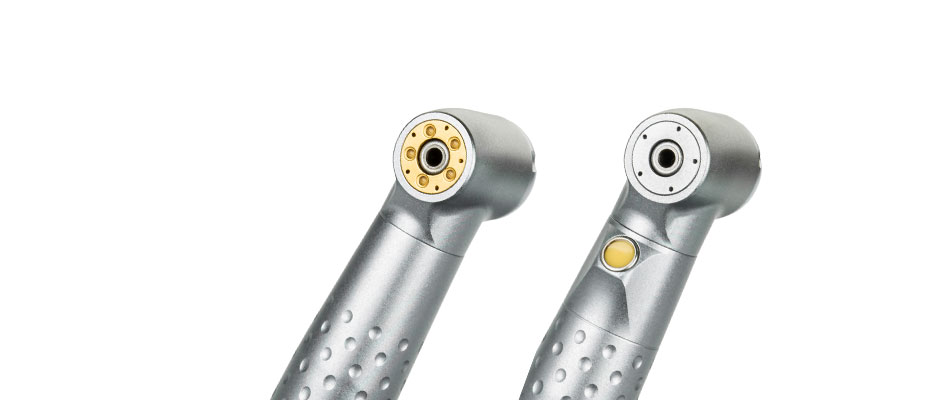

- Are there different Primea Advanced Air Turbines?
- In which versions can I purchase the Primea Advanced Air System? What are my installation options?
- How can I integrate the Primea Advanced Air Built-in into my unit?
- How do I connect the Primea Advanced Air Add-on to my unit?
Videos & Tutorials
-
Primea Advanced Air turbines
Type: RK-97 L RG-97 L Speed range as Advanced Air turbine (± 30.000 rpm): 60,000 – 320,000 rpm Maximum power as Advanced Air turbine (Add-on): 27 W at 5.5 bar Maximum power as Advanced Air turbine (Built-in): 30 W at 5.9 bar Speed range as standard turbine (± 30.000 rpm): 400,000 rpm Maximum power as standard turbine: 21 W Head with bur: Ø 10 mm Head height with bur (19 mm): 21.1 mm Weight: 39 g Noise level: 57 dB (A) Rotary instruments:
Maximum working part diameter:
Maximum permissible length:FG bur Ø 1.6 mm, compliant with ISO 1797
2 mm
21 mmCoupling: Roto Quick Light: Ring LED+ LED+ Illuminating power: 25,000 Lux Spray: 5x Ball bearing: Ceramic Warranty: 24 months 12 months
