W&H Australia
-
Perfect control
Based on decades of experience W&H has developed with the Perfecta 300 and Perfecta 600 a dental laboratory motor control unit which is available as a table control, knee control or foot control unit. In the Perfecta 600 laboratory handpiece the air-jet function is actually integrated, this is a world first for your dental laboratory.
The main features at a glance
- Time saving due to integrated air-jet function (Perfecta 600)
- Efficient motor handpiece
-
Ergonomic operation by means of the
operating controls -
Free and relaxed work through
automatic programs -
»E-type« motor with ISO connection
(only Perfecta 300) - 24 months warranty

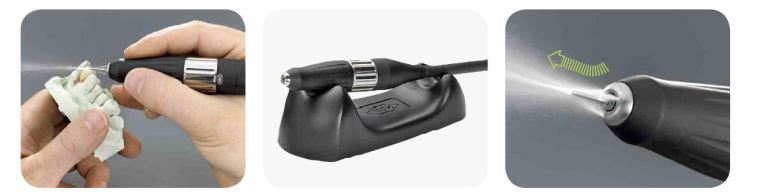

A world first: handpieces with integrated air-jet function (Perfecta 600)Handpieces with integrated air-jet function
Both handpieces have an integrated air-jet function. You no longer have to keep reaching for the air gun, saving you a lot of time. You also work with the powerful electric motor with a constant speed and very low noise. The ergonomic shape of the handpieces ensures convenient handling.High-speed handpiece
The motor speed is easily controlled and ideal for accurate machining of all ceramic materials. You can also easily connect the triple spray. It provides protection from microcracking and guarantees optimum cooling.ISO-motor
The »E-type« motor with ISO connection (5,5 Ncm 1,000 – 40,000 rpm) is an optional accessory for the Perfecta 300 only. All straight and contra-angle handpieces with ISO connection, can be used.
Simple operation: space-saving, safe and convenientSpace-saving, safe and convenient
Simple controls – all functions and operating conditions clearly in view.
With the very easy controls you can control all functions and with the Perfecta 900 Set switch between the two handpieces.

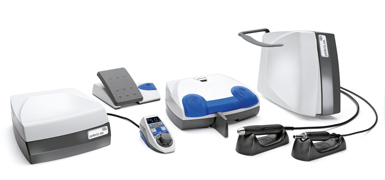

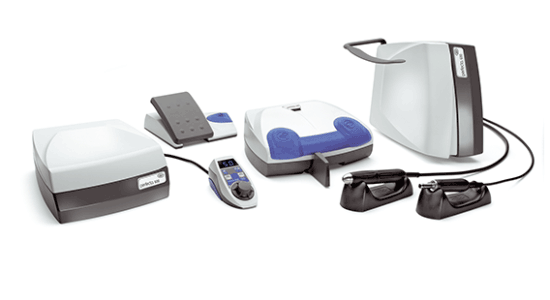

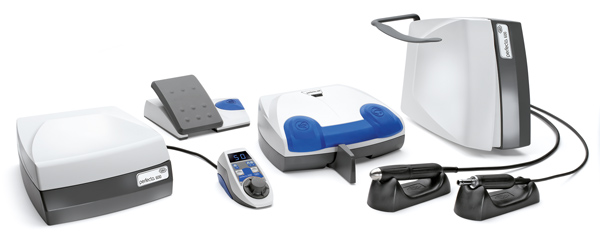

Model of your choice: table, knee or foot control unitPerfecta 300 and Perfecta 600 in the model of your choice
Perfecta as a table control
The unit comprises separate operating controls, the control unit which is freely placeable, the foot pedal with an additional button for the air-jet function (Perfecta 600) and the technical handpiece.
Perfecta as a knee control
The unit comprises separate operating controls, the control unit which is mounted beneath the table and has a pedal for the air-jet function (Perfecta 600) and the motor handpiece. The knee control is optionally retrofitable with a foot pedal.
Perfecta as a foot control
The unit comprises the control unit with an additional button for the air-jet function (Perfecta 600) and the motor handpiece. The foot control is optionally retrofitable with separate operating controls.
![Control unit for dental laboratory Perfecta 300]( "Control unit for dental laboratory Perfecta 300")
Control unit for dental laboratory Perfecta 300
- Motor handpiece 5.5 Ncm
1,000 – 40,000 rpm
- Brushless motor
- Tool Ø 2.35 mm
- Optional: Version »E-Type« with
ISO connection
- Automatic: bistable mode
- Forward/reverse drivePerfecta 300 table control
REF 14933000operating controls, freely placeable control unit, foot pedal, motor handpiece
Perfecta 300 knee control
REF 14933100operating controls, control unit, motor handpiece. Optional: foot pedal
Perfecta 300 foot control
REF 14933200control unit, motor handpiece
Optional: operating controls
![Control unit for dental laboratory Perfecta 600]( "Control unit for dental laboratory Perfecta 600")
Control unit for dental laboratory Perfecta 600
- Motor handpiece 7.5 Ncm
1,000 – 50,000 rpm
- Brushless motor
- Tool Ø 2.35 mm
- Air-jet function
- Automatic: bistable/speed control operation
- Forward/reverse drivePerfecta 600 table control
REF 14936000operating controls, freely placeable control unit, foot pedal with an additional button for the air-jet function, motor handpiece
Perfecta 600 knee control
REF 14936100operating controls, control unit with pedal for the air-jet function, motor handpiece. Optional: foot pedal
Perfecta 600 foot control
REF 14936200control unit with an additional button for the air-jet function, motor handpiece.
Optional: operating controlsDownload Area
FAQ
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
Types Perfecta 300 Perfecta 600 Handpieces Motor handpiece with 5.5 Ncm, 1,000 – 40,000 rpm + - Motor handpiece with 7.8 Ncm, 1,000 – 50,000 rpm - + High-speed handpiece with 0.7 Ncm, 5,000 – 100,000 rpm - - Brushless motor + + Can be used for burs diameters 1.6 / 2.35 / 3.0 mm -/+/o -/+/o Special functions Integrated air-jet function - + Automatic programs: Bistable / Speed control operation -/+ +/+ Clockwise and anti-clockwise operation + + Model types Table control unit with foot-operated starter / knee control unit / foot control unit +/+/+ +/+/+ External operating controls (optional for foot control unit) + + »E-type« motor with ISO coupling, 5.5 Ncm, 1,000 – 40,000 rpm o - Warranty 24 months + + Accessories Wall bracket for operating controls o o Milling device adaptor - - Technical handpiece 945 for ISO motor o - + Standard equipment o optional - not available
