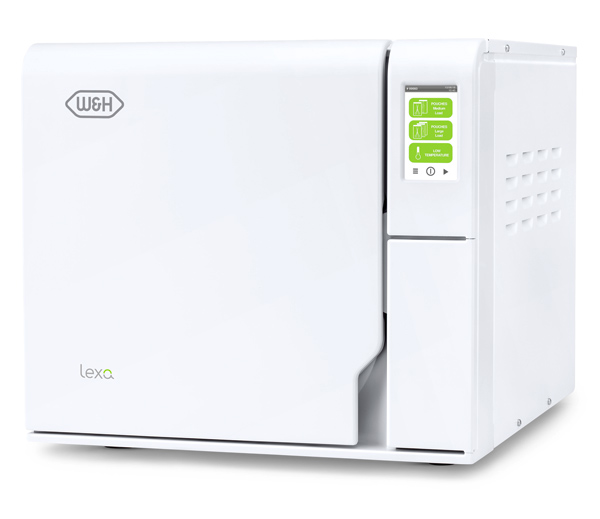

Lexa sterilizer

High capacity and efficiency

Lexa offers versatile cycle program options for several loads, guaranteed by the closed-door drying process with HEPA filters and the use of fresh water for each cycle.

Descoperiți produsul

Lexa
Technical data

Sterilization on a high standard

Built to offer more of all that counts in every day medical infection control.

Your sterilization process deserves Lexa!
- Increased efficiency due to the large chamber capacity and short cycle times, including excellent load drying.
- Increased flexibility due to the user-friendly trays and exclusive rack design.
- Increased usability due to the simple and intuitive menu interface, high-end color touchscreen and ergonomic design.
- Increased protection due to a complete and customizable traceability system.
Fastest cycles depending on the load

Flexibility in cycle selection

Ease of use thanks to smart interface and user-friendly menu structure

Extended connectivity thanks to Ethernet port (LAN) or Wi-Fi kit (optional). W&H Steri App to control up to 4 sterilizers

Automatic water
filling (optional) for time saving and ease of use

User authentication and load release option (optional) for a complete and customized traceability system

Built-in USB
data logger for the digital cycle documentation

Barcode label printer (optional) for the extension of the documentation system by making the link »load – cycle – patient«

8 kg (18 lbs) sterilized and dried in 30 minutes!

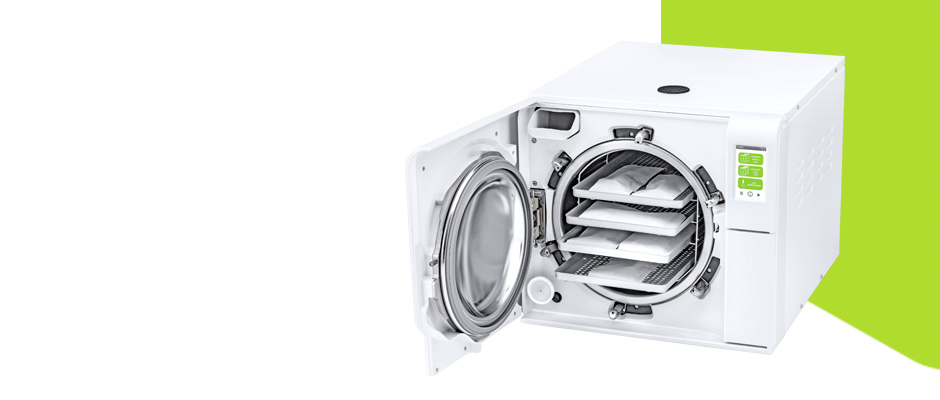

Higher efficiency due to higher capacity ... Lexa comes with 4 large trays along with a unique rack providing larger loading surface and more loading options.

... and less cycle time. Lexa offers versatile program options for several loads in order to reduce overall cycle duration.

Your advantages at a glance
User-friendly interface and high-end colour touchscreen for simple navigation to all sterilization option

Customizable drying time

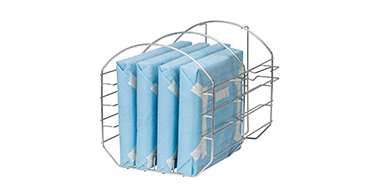

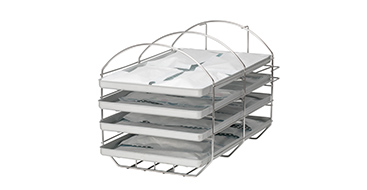

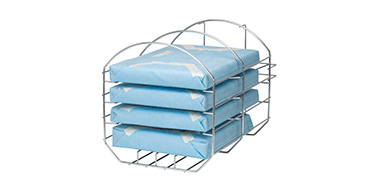

Large capacity sterilizer chamber with unique tray and exclusive design

Versatile sterilization program options with short cycle times
Superior vacuum-assisted drying

Meets stringent hygiene standards, including dynamic pulsed air removal, closed door drying and single-use water management

Easy maintenance – Lexa does not require periodic execution of cleaning cycles
Programmable cycle start

Excellent value for money

Automatic digital cycle recording on USB stick

User authentication and load release (optional)

Barcode label printing (optional)
Lexa sterilizer

supplied with reversible rack, 4 aluminium trays, drain tube, tray holder, USB drive, door opening tool, factory test

Lexa MN-111
110 V
REF 19943401

Chamber size 28 l
100–125 V AC; 50/60 Hz; 12 A Single Phase

Lexa MN-111
220 V
REF 19943101

Chamber size 28 l
200–240 V AC; 50/60 Hz 10 A Single Phase

Solicitați preț
Download
FAQ
mai multe
Instrucțiuni de utilizare

Instructions for use
Lexa sterilizer

Maintenance Sheet
Lexa MN-111 2018

Găsiți toate versiunile lingvistice ale secțiunii Actualizare Igienizare și Întreținere (EN ISO 17664:2017) aici Centru Download.

Downloads

Brochure Lexa

Brochure Hygiene Advice

RIC Collection Brochure Hygiene

Environmental labelling of packaging

Lexa sterilization programs

Sterilization cycle	Unwrapped	Pouches Medium Load	Pouches Large Load	Pouches & Wrapped Cassettes	Wrapped Cassettes	Low Temperature
Temperature:	132°C (270°F)	132°C (270°F)	132°C (270°F)	132°C (270°F)	132°C (270°F)	121°C (250°F)
Holding time (minutes):	4’	4’	4’	4’	4’	30’
Total cycle duration (minutes) including drying*:	26’–39’	43’–53’	48’–58’	53'-64'	58'-71'	73’–79’
Max. load (excluding trays):	8.1 kg (18 lbs)	1.4 kg (3 lbs)	2.7 kg (6 lbs)	5.0 kg (11 lbs)	6.4 kg (14 lbs)	2.3 & 2 kg (5 & 4.4 lbs) including trays

Items supplied with: chamber rack, 4 larger trays, tray holder, drain tube, USB drive.

* Cycle times are approximate and may vary depending on voltage and instrument loads.

Denumire comercială:	Lexa 110 V	Lexa 220 V
Type:	MN-111
Chamber size:	28 l (7.4 gal)
Power supply:	100–125 V AC; 50/60 Hz; 12 A Single Phase	200–240 V AC; 50/60 Hz 10 A Single Phase
Overall dimension (width x height x depth):	490 x 452 x 616 mm (19.3“ x 17.8“ x 24.3“)
Weight:	48 kg (105.8 lbs)
Main / Used water tanks:	6.4/6.7 l (1.7/1.8 gal)
Connection types:	5 USB ports, 1 Ethernet port

**Lexa sterilizers were designed, certified and validated according to the following standards and directives:**
N°2017/745	Regulamentul privind Dispozitivele Medicale
EN 13060	Small steam sterilizer
IEC 61326-1	Electromagnetic compatibility
IEC 61010-1	Safety requirements
IEC 61010-2-040	Specific requirements for steam sterilizer
IEC 61770	Back syphonage
ASME*	Boiler and pressure vessel code
ANSI/AAMI ST55	Table-top steam sterilizers
CSA C22.2 No. 61010-1-12	Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
2012/19/EU	Waste Electrical and Electronic Equipment (WEEE)
UL 61010-1	Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
EN 2014/68/EU	Directiva privind Echipamentele sub Presiune
