W&H Headquarters - EN
Discover Product
-
Click on the Icon to place the Lexa virtually in your reprocessing room and see for yourself how well it fits.Drag the mouse in any direction to view the product from all sides.
Open the website with your mobile phone and experience the Lexa in your reprocessing room!
Sterilization on a high standard
Built to offer more of all that counts in every day medical infection control.
Your sterilization process deserves Lexa!- Increased efficiency due to the large chamber capacity and short cycle times, including excellent load drying.

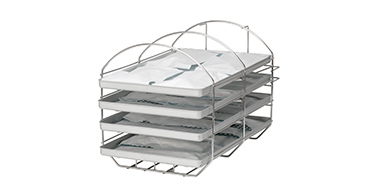

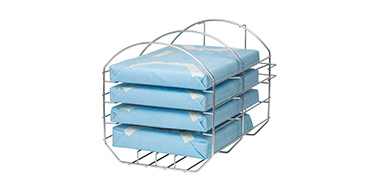

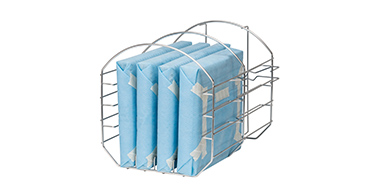

- Increased flexibility due to the user-friendly trays and exclusive rack design.
- Increased usability due to the simple and intuitive menu interface, high-end color touchscreen and ergonomic design.
- Increased protection due to a complete and customizable traceability system.
![]()
![]()
![]()
Your advantages at a glance
- User-friendly interface and high-end colour touchscreen for simple navigation to all sterilization option
- Customizable drying time

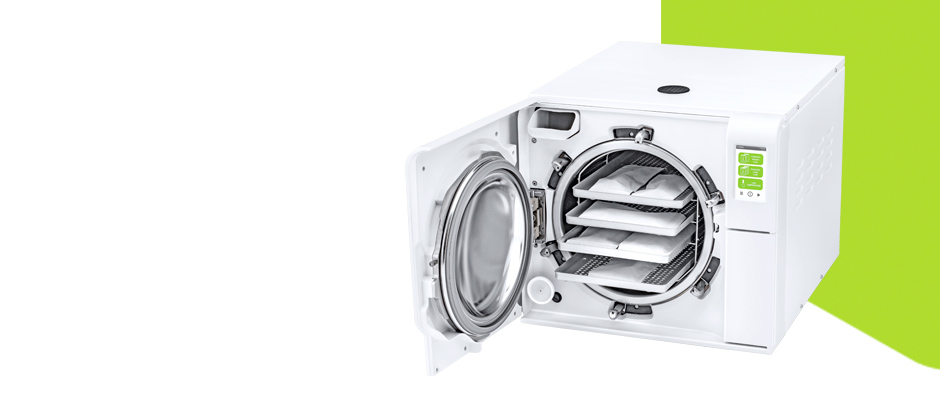

- Large capacity sterilizer chamber with unique tray and exclusive design
- Versatile sterilization program options with short cycle times
- Superior vacuum-assisted drying
- Meets stringent hygiene standards, including dynamic pulsed air removal, closed door drying and single-use water management
- Easy maintenance – Lexa does not require periodic execution of cleaning cycles
- Programmable cycle start
- Excellent value for money
- Automatic digital cycle recording on USB stick
- User authentication and load release (optional)
- Barcode label printing (optional)

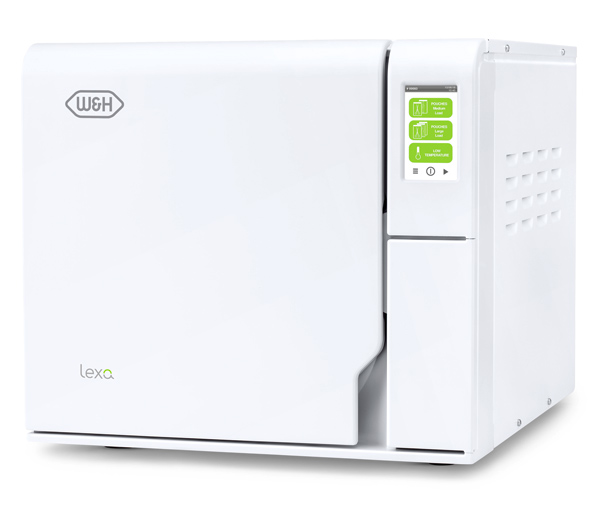

![Lexa sterilizer]( "Lexa sterilizer")
Lexa sterilizer
supplied with reversible rack, 4 aluminium trays, drain tube, tray holder, USB drive, door opening tool, factory test
Lexa MN-111
110 V
REF 19943401Chamber size 28 l
100–125 V AC; 50/60 Hz; 12 A Single PhaseLexa MN-111
220 V
REF 19943101Chamber size 28 l
200–240 V AC; 50/60 Hz 10 A Single PhaseDownload Area
FAQ
- What is the maximum noise level of the Lexa sterilizer?
- Which water quality should I use for my sterilizer?
- The sterilizer remains switched OFF.
- Water is leaking at the front of the sterilizer.
- The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
- The cycle report printer does not work.
- What is validation?
- The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
- Do I need to document the results of all periodic tests?
- How long should I archive the documentation of regular tests?
- Should I pouch/wrap my instruments and how long can I store them after sterilization?
- Warning about consumable replacement.
- Does my sterilizer need any periodic qualification/validation?
- Who should I contact to validate and maintain my sterilizer?
- How do I change consumable components on my sterilizer?
- How do I clean the water tanks and what products should I use?
- At the end of the cycle, there is residual water on load.
- Stains, spots, or colour change on instruments.
- No cycles are stored in the cycle history menu.
- When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
- The sterilizer enters into “Standby mode” immediately after being switched on.
- Do I need to carry out periodic testing on my W&H Sterilizer?
- Warning about saving to the USB (HTML and SCL files)
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
Lexa sterilization programs
Sterilization cycle Unwrapped Pouches Medium Load
Pouches Large Load Pouches & Wrapped Cassettes Wrapped
Cassettes
Low
TemperatureTemperature: 132°C (270°F) 132°C (270°F) 132°C (270°F) 132°C (270°F) 132°C (270°F) 121°C (250°F) Holding time (minutes): 4’ 4’ 4’ 4’ 4’ 30’ Total cycle duration (minutes) including drying*: 26’–39’ 43’–53’ 48’–58’ 53'-64' 58'-71' 73’–79’ Max. load (excluding trays): 8.1 kg (18 lbs) 1.4 kg (3 lbs) 2.7 kg (6 lbs) 5.0 kg (11 lbs) 6.4 kg (14 lbs) 2.3 & 2 kg (5 & 4.4 lbs) including trays
Items supplied with: chamber rack, 4 larger trays, tray holder, drain tube, USB drive.
* Cycle times are approximate and may vary depending on voltage and instrument loads.
Trade name: Lexa 110 V Lexa 220 V Type: MN-111 Chamber size: 28 l (7.4 gal) Power supply: 100–125 V AC; 50/60 Hz; 12 A Single Phase
200–240 V AC; 50/60 Hz 10 A Single Phase
Overall dimension
(width x height x depth):490 x 452 x 616 mm (19.3“ x 17.8“ x 24.3“) Weight: 48 kg (105.8 lbs) Main / Used water tanks: 6.4/6.7 l (1.7/1.8 gal) Connection types: 5 USB ports, 1 Ethernet port Lexa sterilizers were designed, certified and validated according to the following standards and directives: N°2017/745 Medical Device Regulation EN 13060 Small steam sterilizer IEC 61326-1 Electromagnetic compatibility IEC 61010-1 Safety requirements
IEC 61010-2-040 Specific requirements for steam sterilizer
IEC 61770 Back syphonage
ASME* Boiler and pressure vessel code
ANSI/AAMI ST55 Table-top steam sterilizers
CSA C22.2 No. 61010-1-12 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
2012/19/EU Waste Electrical and Electronic Equipment (WEEE)
2014/68/EU Pressure Equipment Directive
UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
The sterilizer can be validated according to EN ISO 17665-1
*On Request
