* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available

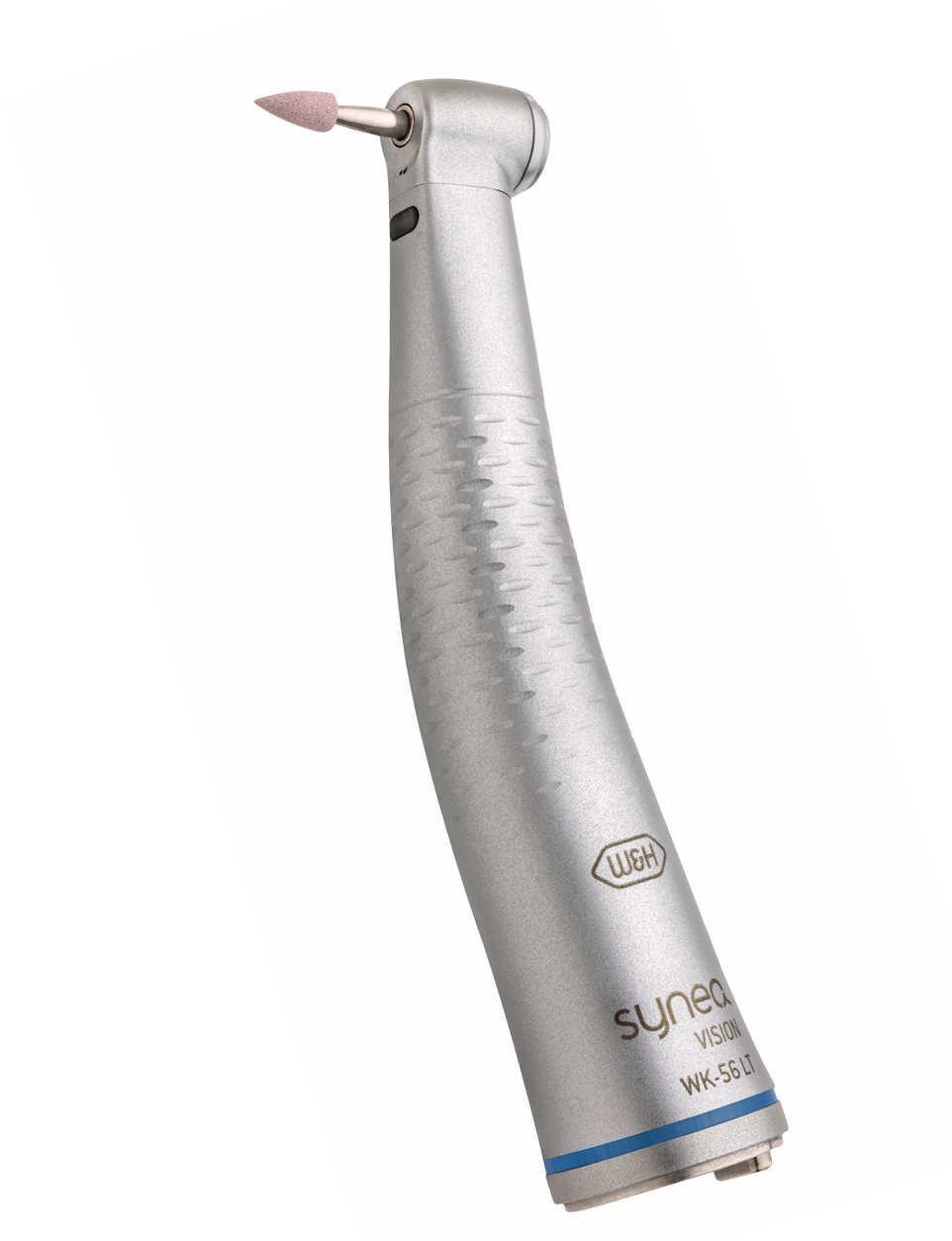

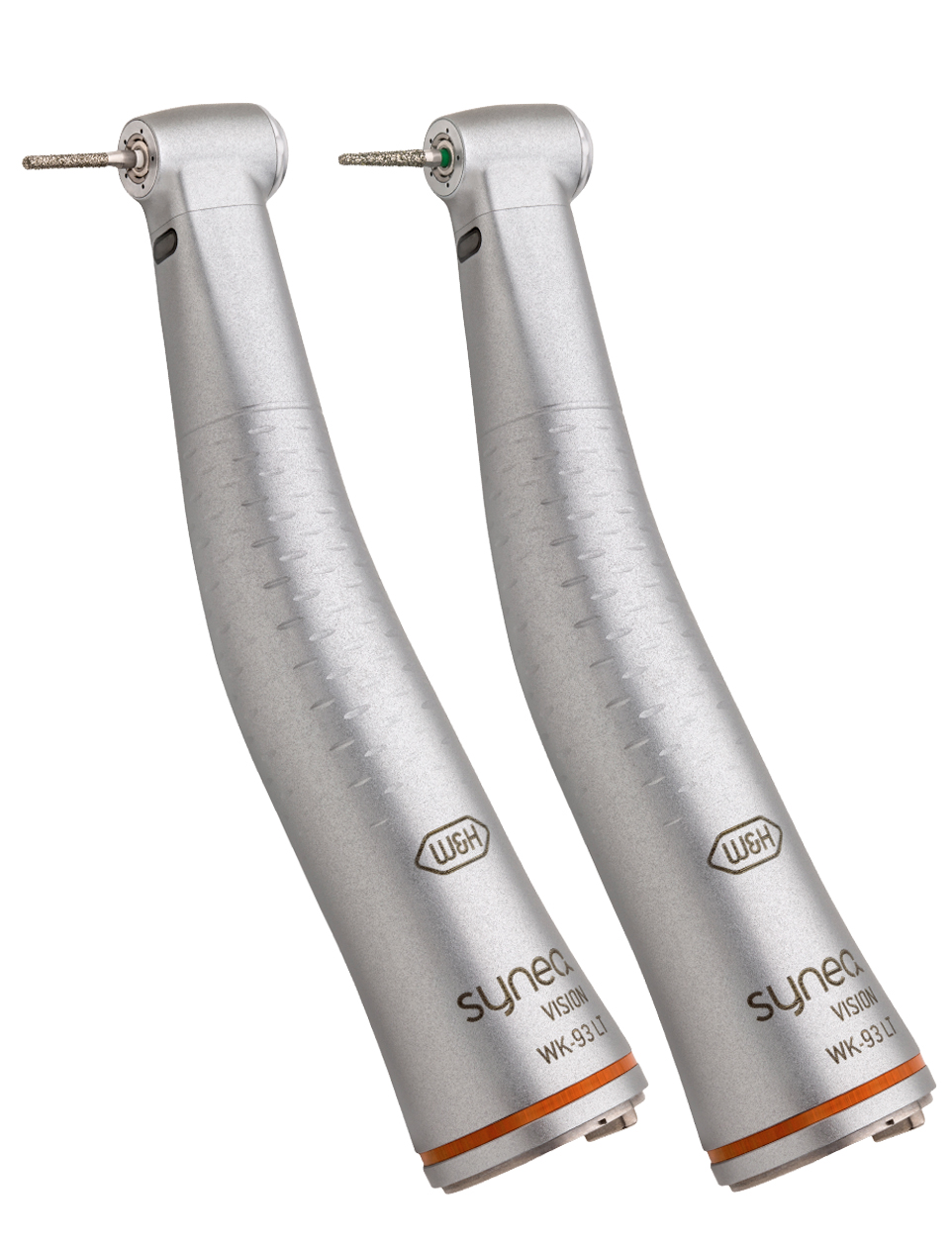

*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.
-

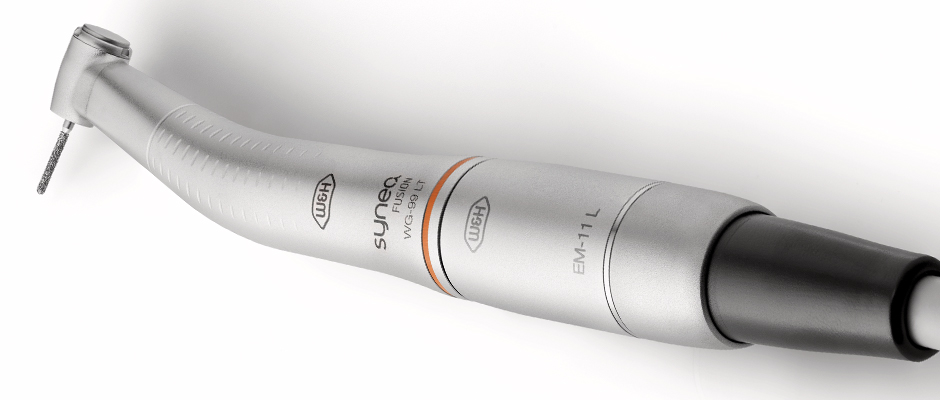

Perfect balance of performance and ergonomics
It is particularly small and surprisingly light,
is comfortable to hold and in addition
to the consistent high power, also scores
extra points with its features such as
LED technology, long service life and
quiet operation.Your advantages at a glance
- Particularly small
- Poptimally balanced
- 25% lighter, 15% shorter
- LED technology
- Consistently high power

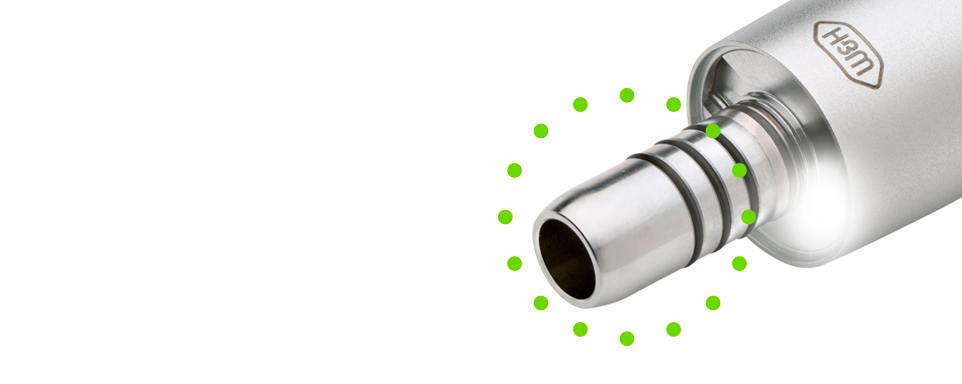

- ISO short coupling
- Low maintenance and preserved value
- Quiet and low vibration

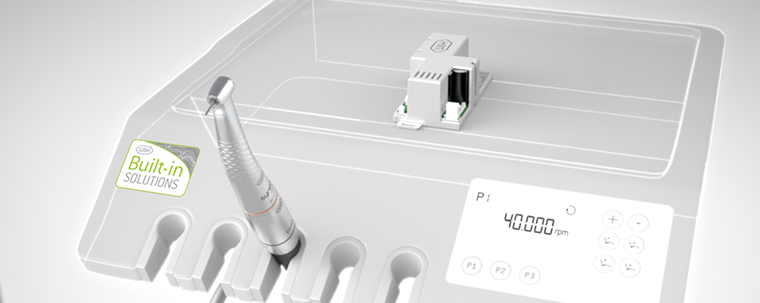

Built-in solutionBuilt-in solution

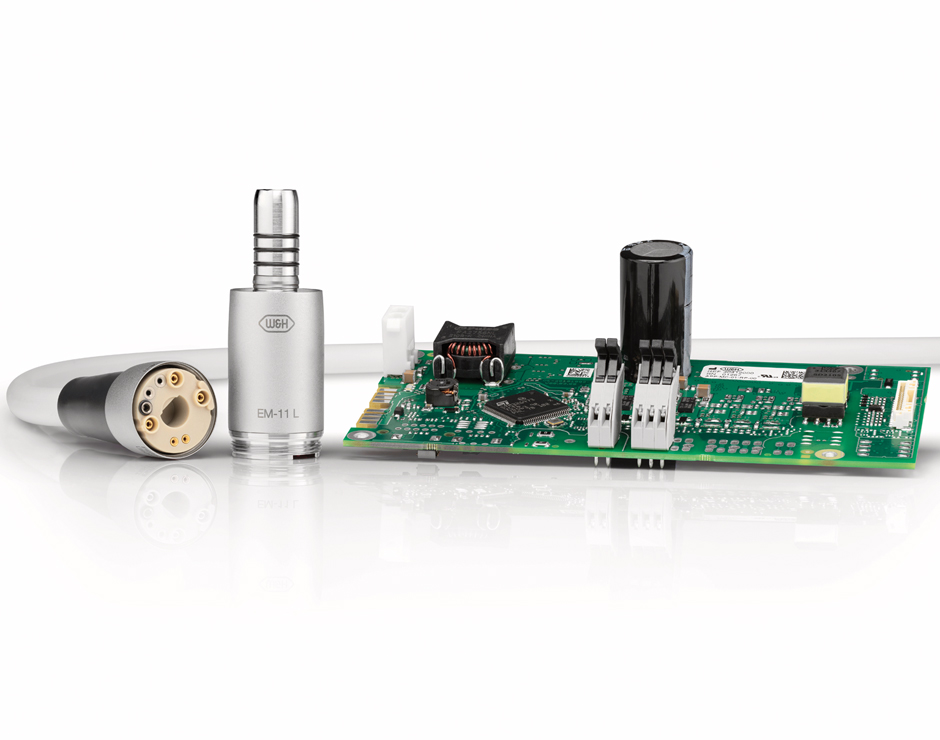

Selected unit manufacturers offer the W&H EM-11 L electric motor as a fully integrated drive solution within the scope of a complete system. It can be controlled simply and conveniently via your dental unit’s control panel.
Ask W&H or your unit manufacturer about the EM-11 L as a Built-in solution.
Low maintenanceLow maintenance and preserved value
The long-lasting brushless drive means reduced service and maintenance costs combined with increased service life.
Quiet
Sensor-controlled drive technology makes it particularly quiet and largely free from vibration.

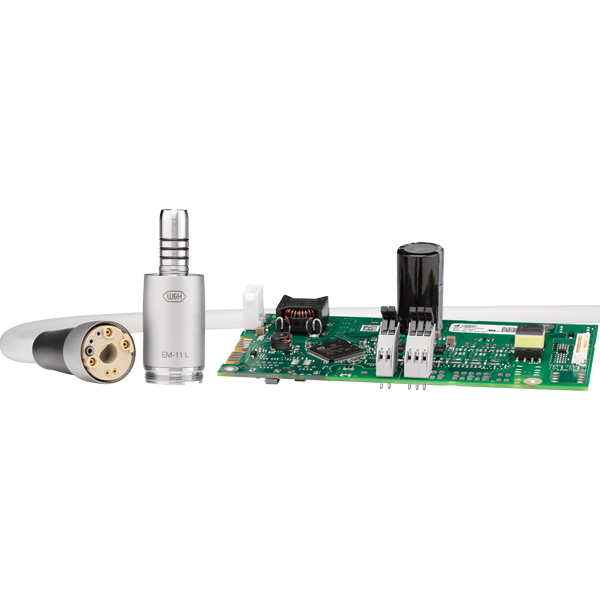

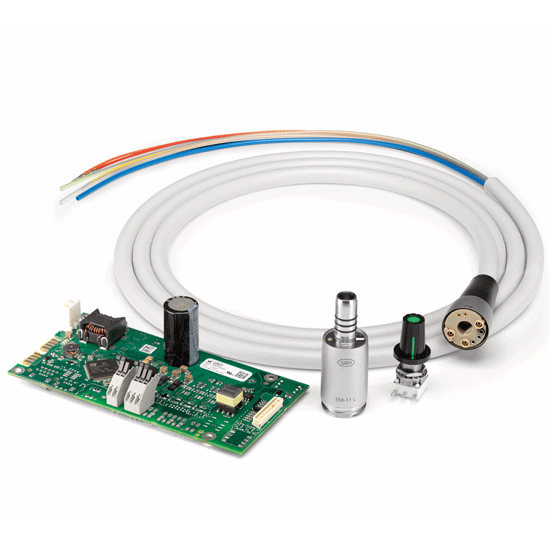

![Built-in electric motor EM-11 L kit analog (electrical)]( "Built-in electric motor EM-11 L kit analog (electrical)")
Built-in electric motor EM-11 L kit analog (electrical)
> APP-MC-01-RP-00
motorcontroller analog
> VE-11 supply hose
> EM-11 L electric motor
> 1 connection set electricElectric motor EM-11 L
REF 90000392analog control knob

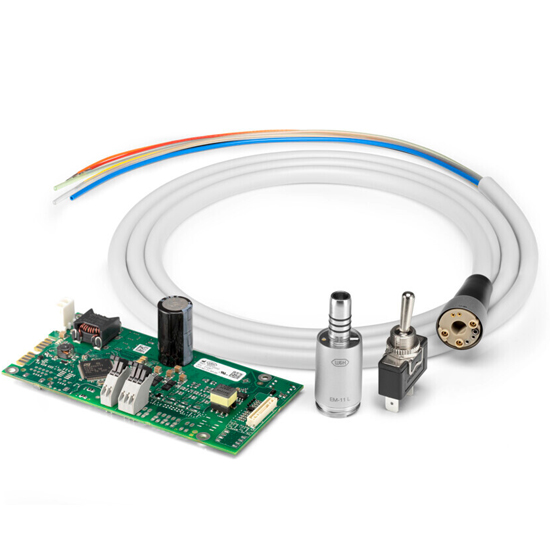

![Built-in electric motor EM-11 L kit analog (pneumatic)]( "Built-in electric motor EM-11 L kit analog (pneumatic)")
Built-in electric motor EM-11 L kit analog (pneumatic)
> APP-MC-01-RP-00
motorcontroller analog
> VE-11 supply hose
> EM-11 L electric motor
> 1 connection set pneumatic
> switch pneumaticElectric motor EM-11 L
REF 90000393analog control knob
Download Area
FAQ
- How do I connect the EM-12 L electric motor to my unit as an Add-on?
- Which contra-angle handpiece series is recommended for the EM-12 L electric motor?
- Can I sterilize my EM-12 L electric motor in a sterilizer?
- Should I always call my W&H service partner in advance before sending devices/instruments in for repair?
- What is a brushless electric motor and what benefits does it offer me as a user?
- Does the electric motor need to be lubricated with oil?
- Does the Add-on version of the EM-12 L electric motor require maintenance?
- Does the Built-in version of the EM-12 L electric motor require maintenance?
- Can my EM-12 L electric motor be reprocessed in a thermo washer disinfector?
- How can I integrate the EM-12 L electric motor into my unit as a Built-in version?
-
-

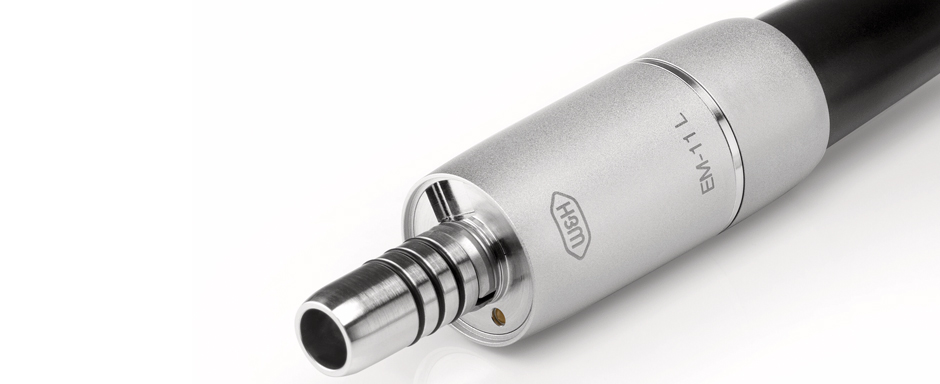

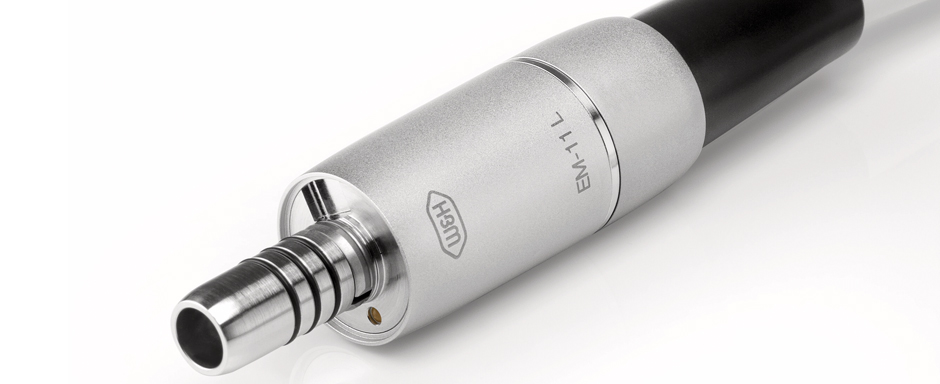

Electric motor EM-11 L
Type: EM-11 L Speed range*: 2.000–40.000 min -1 Maximum power: 59 W Length (effective, without ISO connection): 31,55 mm Weight: 57 g Noise level: 43 dB (A) Light: LED Spray: intern Cooling air: 6–8 Nl/min Direction of rotation: forward/reverse operation Instrument coupling: ISO 3964 (short) compatible Warranty: 24 months *Speed range depends on motor/system version
