Fast and powerful

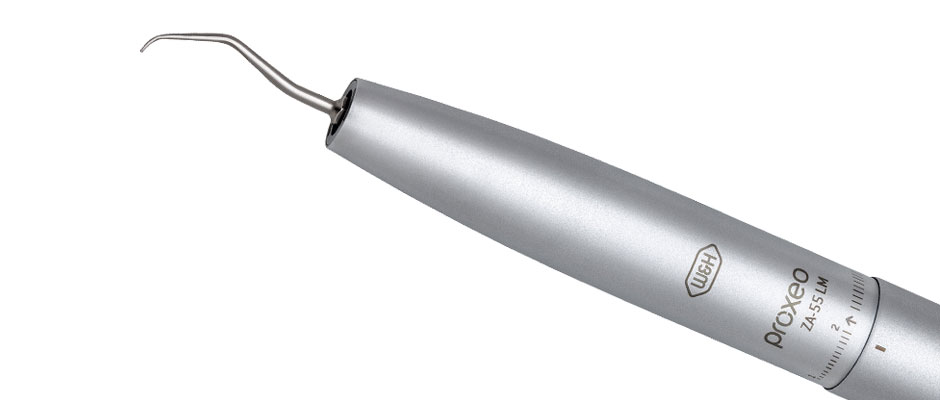

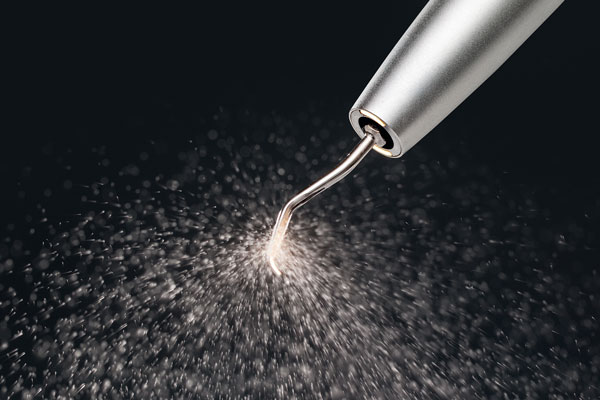

The air-driven Proxeo scaler with the integrated spray and two large optic outlets is ideal for the removal of plaque and calculus as well as cleaning root surfaces.
Your advantages at a glance
- Large tip range
- Stepless power regulation
- Integrated spray
- Two large optic outlets
-
Coupling system Roto Quick,
Multiflex®* or Sirona®**

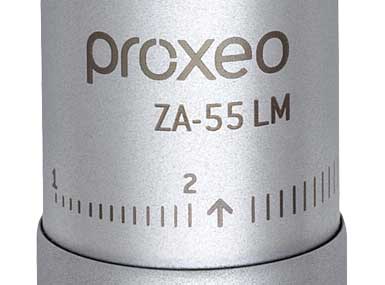

Stepless power regulatorStepless power regulator
Makes applications effective and simple:
power can be adjusted smoothly using the control ring.

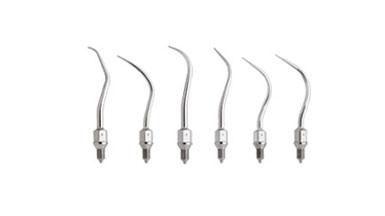

Tips and tip changerTips and tip changer
Tips for every application
The combination of the Proxeo Air scaler with the tip range is the ideal basis for perfect results.

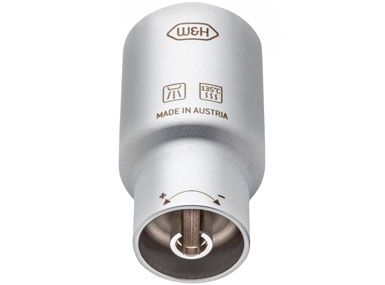

Tip changer
Changing tips safely and quickly with the W&H tip changer.

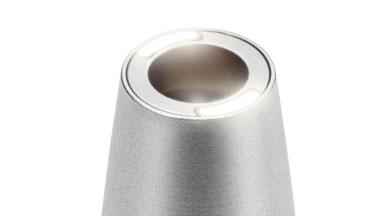

Large optic outletsLarge optic outlets
Two large optic outlets provide illumination of the treatment site.
![Proxeo Air Scaler]( "Proxeo Air Scaler")

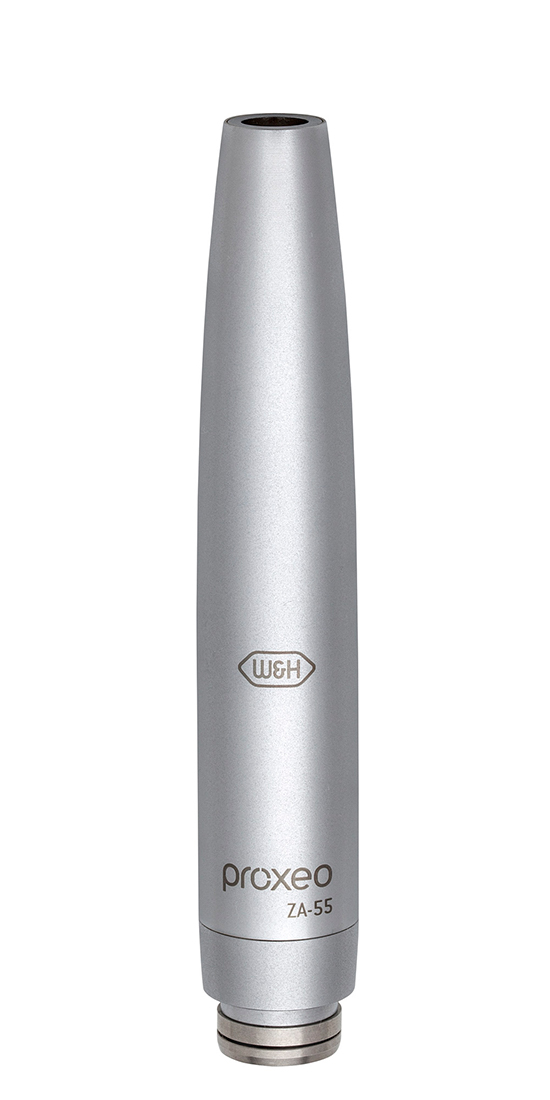

Proxeo Air Scaler
Coupling system: Roto Quick
Oscillating frequenzy: 6 kHz
Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APrZA-55
REF 10035501without light, without power regulation,
with tips 1AU, 2AU, 3AU, 1AP

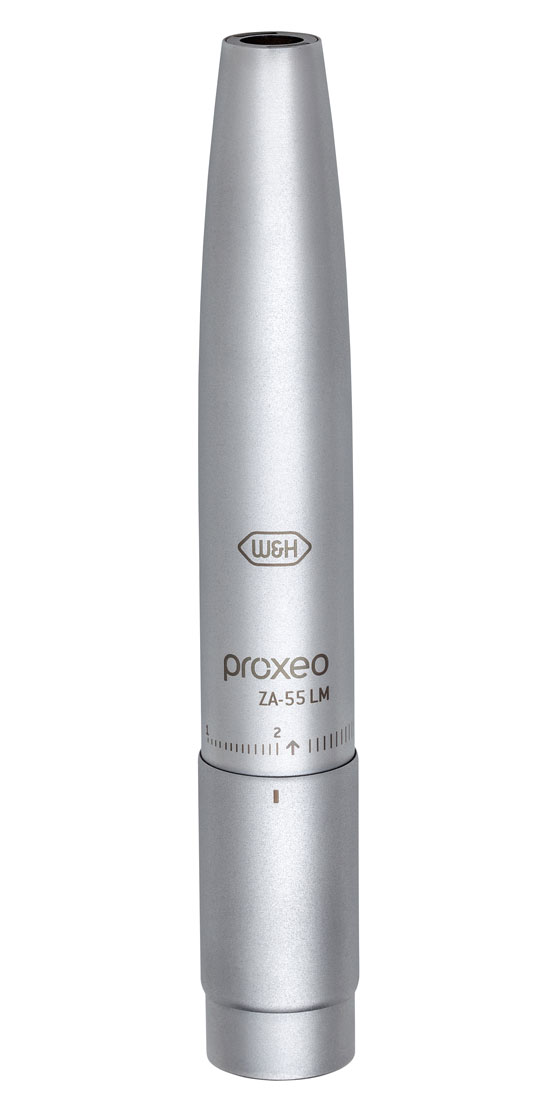

![Proxeo Air Scaler]( "Proxeo Air Scaler")
Proxeo Air Scaler
Coupling system: Multiflex®*
Oscillating frequenzy: 6 kHz
Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APrZA-55 LM
REF 10035502with light, with power regulation,
with tips 1AU, 2AU, 3AU, 1APZA-55 M
REF 10035503without light, without power regulation,
with tips 1AU, 2AU, 3AU, 1AP

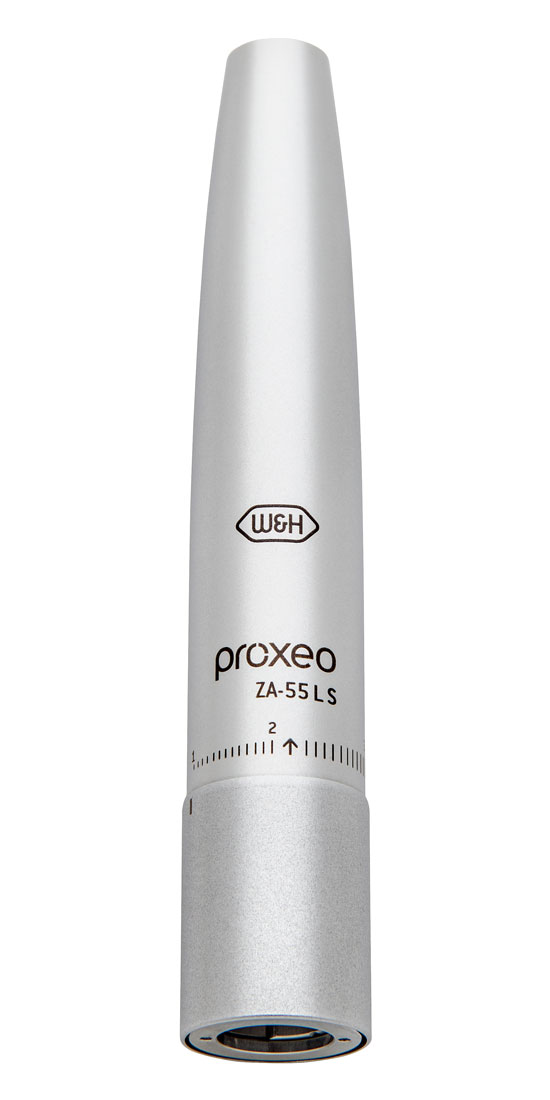

![Proxeo Air Scaler LS]( "Proxeo Air Scaler LS")
Proxeo Air Scaler
Coupling system: Sirona®**
Oscillating frequenzy: 6 kHz
Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APrZA-55 LS
REF 30227000with light, with power regulation,
with tips 1AU, 2AU, 3AU, 1AP*Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
**Sirona® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim
![Proxeo Air Scaler]( "Proxeo Air Scaler")

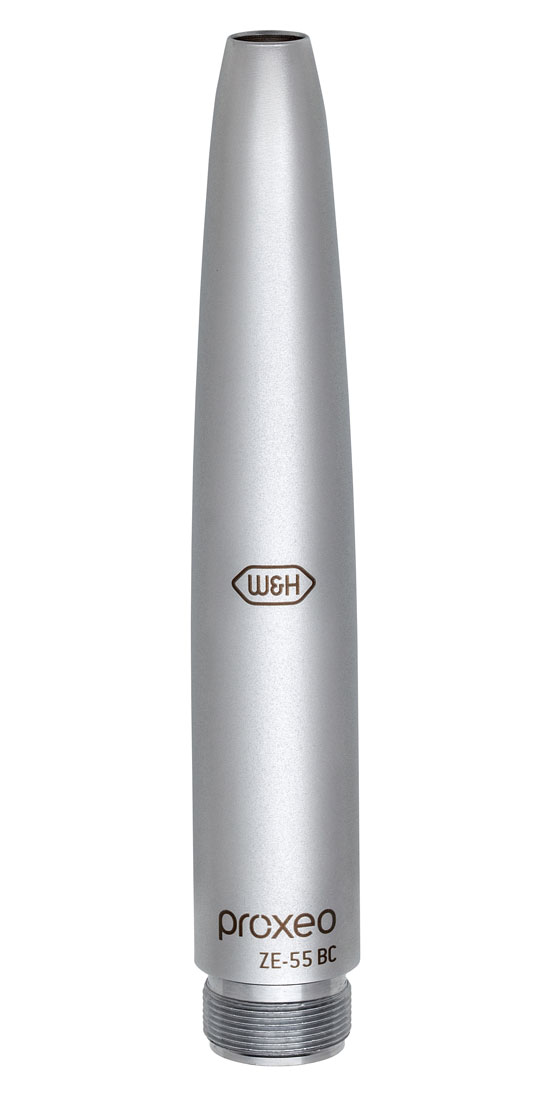

Proxeo Air Scaler
Coupling system: Borden 2(3)-hole
Oscillating frequenzy: 6 kHz
Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APrZE-55 BC
REF 11015500without light, without power regulation,
with 2 tips 1AU
![Proxeo Air Scaler]( "Proxeo Air Scaler")

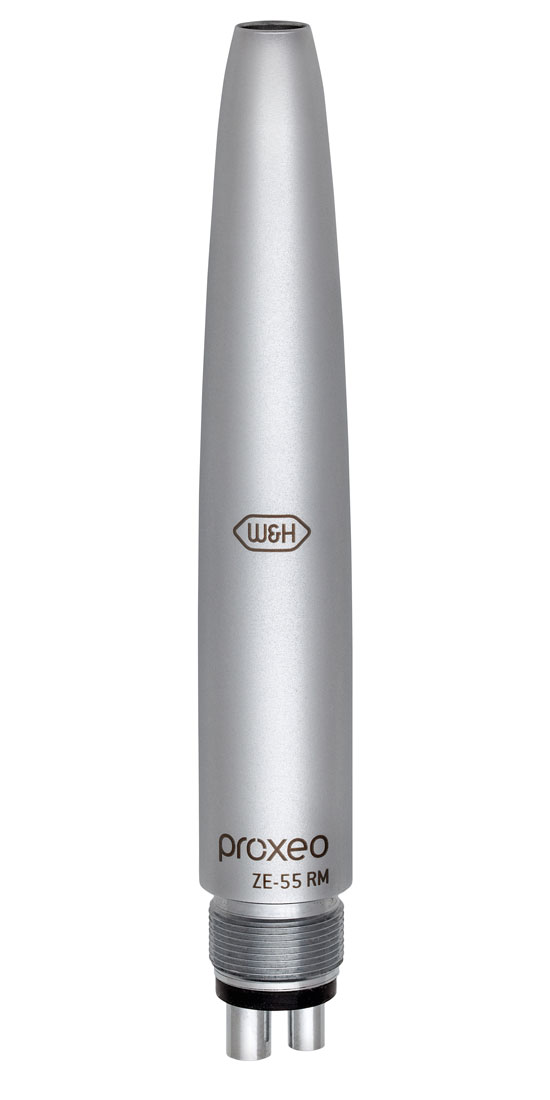

Proxeo Air Scaler
Coupling system: Ritter-Midwest 4-hole
Oscillating frequenzy: 6 kHz
Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APrZE-55 RM
REF 11015501without light, without power regulation,
with 2 tips 1AUDownload Area
FAQ
Instrukcje użytkownika
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Poradniki video
Pliki do pobrania
-
Proxeo Air Scaler
Type: ZA-55 LM ZA-55 LS ZA-55 ZA-55 M ZE-55 BC ZE-55 RM Light: Yes No Power regulation: Yes No Oscillating frequency: 6 kHz Oscillation amplitude: < 200 μm* Operating pressure: 3.4 ± 0.3 bar 2.5 ± 0.3 bar Coolant flow volume: 20–50 ml/min Coupling: RM-34 LED, Multiflex®** Sirona®** RQ-3, RQ-4,
RQ-14Multiflex®** Fixed connection
BC 2(3)-hole connection
RM 4-hole connection
Applicable W&H tips: 1AU, 2AU, 3AU,
1AP, 2APl, 2APr, 3AP
Tips from other manufacturers must be approved for use with W&H air scalers.*Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
**Sirona® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim
