W&H United Kingdom
-
The First Choice Thermo Washer Disinfector Dryer
Having a validated reproducible cleaning process within your decontamination cycle protects both you and your patients.
ThermoKlenz automatically regulates water temperature and detergent quantity, so you can be sure that you are getting a consistent cleaning result every time.
Handpiece connectors enable the effective cleaning and drying of your valuable tools. It is important that handpiece lumens are fully dry inside prior to steam sterilization, as otherwise steam would not be able to contact all of the internal surfaces and sterility could not be guaranteed.
Available for underbench or benchtop use.The main features at a glance
- Validated reproducible cleaning
- Minimises risk of sharps injuries during cleaning
- Cost effective and simple to use
- Compact exterior with spacious interior
- Forced hot air drying of handpieces and instruments

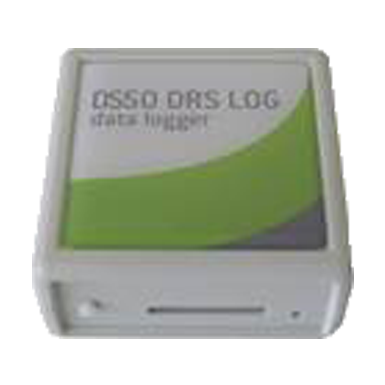

Validated reproducible cleaningKlenzSecure data logger
The ThermoKlenz cleaning process is validated, ensuring guaranteed consistent cleaning with regulated water temperature and detergent concentration. It also now comes with the KlenzSecure data logger as standard, so you can keep electronic records of your cleaning cycles.

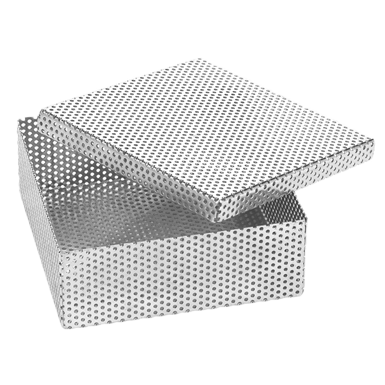

Minimises risk of sharps injuries during cleaningBasket for small items
Manual cleaning exposes team members to the unnecessary risk of sharps injuries. Utilising an automated cleaning machine like ThermoKlenz minimises the risk.

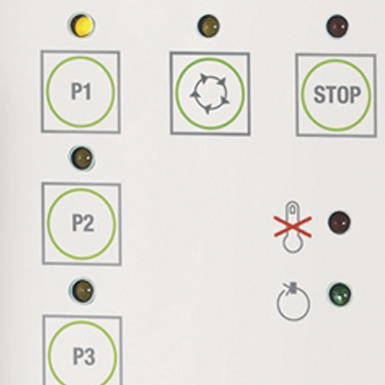

Cost effective and simple to useThermoKlenz control panel close-up
ThermoKlenz is simple to use, with clearly labelled buttons and a self-dosing detergent dispenser. Cost per cycle can be up to two-thirds less than a typical large underbench thermo washer disinfector dryer.
Compact exterior with spacious interiorSpacious interior
Underbench: Compact exterior (W 560 mm x H 800 mm x D 575 mm) to fit easily under a standard work bench, whilst concealing a spacious interior. The height of the chamber above the ground is designed to be more ergonomic than a large chamber machine, with minimal bending required in order to load it.
Benchtop: Compact exterior (W 560mm x H 555 mm x D 575 mm) to fit easily on a standard worktop.

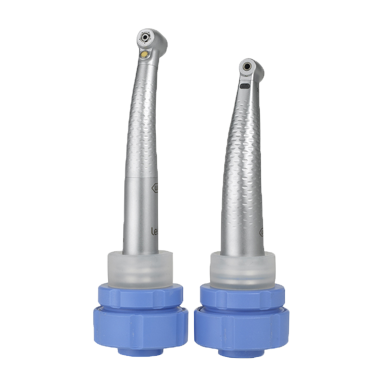

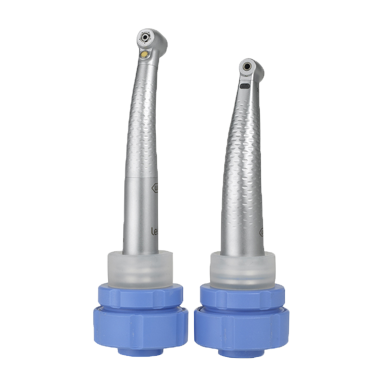

Forced hot air drying of handpieces and instrumentsHandpiece holders
Forced hot air drying of handpieces and instruments removes the risk of residual moisture on surfaces, internal and external, which would prevent steam from contacting them and compromise the sterilization process.
ThermoKlenz
Thermo washer disinfector dryer.
Supplied with:
1 x main basket with integrated handpiece connections and space for multiple sets of instruments
1 x rack for 8 clip trays/cassettes
1 x basket for loose instruments
1 x basket with lid for small items
1 x 1 litre bottle of KlenzKlean detergent solution
1 x 1 litre bottle of KlenzKlean detergent solution
1 x 1 litre bottle of KlenzScale descaling solution
1 x descaling solution dispenser
1 x KlenzSecure data logger
A Reverse Osmosis (RO) water connection is supplied as standard, should it be requiredThermoKlenz Underbench
REF 90000151Thermo Washer Disinfector Dryer set
Includes Data LoggerThermoKlenz Benchtop
REF 90000191Download Area
FAQs
- Do I need to carry out periodic testing on my ThermoKlenz?
- What periodic tests do I need to carry out on my ThermoKlenz?
- Does my ThermoKlenz need to be commissioned from new?
- How do I de-scale my ThermoKlenz?
- Can I process all handpieces in my ThermoKlenz?
- Who should I use to carry out validation and maintenance on my ThermoKlenz?
- What is validation?
- Do I need to document the results of all periodic tests?
- How long should I Keep periodic test records?
Video Tutorials
-
Power supply: 230 V AC
50 Hz / 12 APower consumption: 2950 W Power pump: 150 W Overall dimensions: Width: 560 mm - Height: 800 mm - Depth: 575 mm Chamber dimensions: Width: 400 mm - Height: 300 mm - Depth: 450 mm Max net weight: 48 kg Gross weight: 51 kg Drain connection 25 mm dia Hydraulic connection cold water 3/4" male Min / Max pressure (cold water supply) 2.5 Bar / 5 Bar Min / Max temperature (cold water supply) +5 degrees Celsius / +15 degrees Celsius Noise 52 dB(A) Max room termperature permitted 40 degrees Celsius
