Proxeo Aura

Happy patient. Happy professional.

The Proxeo Aura Air Polishing System is a real all-rounder. Soft deposits and stains can be removed thoroughly and efficiently without changing the handpiece. The powders, handpiece and spray heads work together perfectly and allow thorough and atraumatic supragingival and subgingival cleaning.

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

Proxeo Aura

Air Polishing System

1

Controlled spray pattern

2

Optimal adaptation

3

The choice is yours

4

Convenient refilling

5

4 different turbine connections

  • Controlled spray pattern

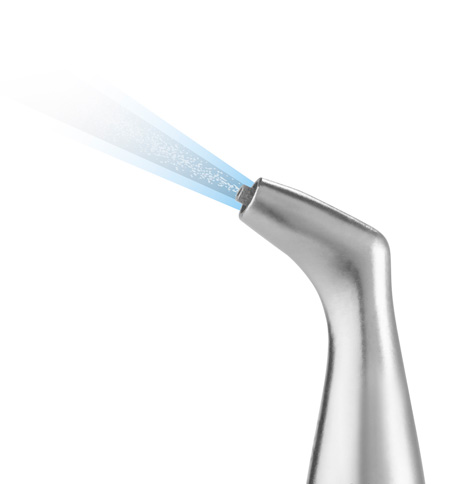

    The optimally bundled powder jet with its focused spray pattern ensures controlled and efficient working. In addition, the powder is enveloped in a water jacket upon exiting, which reduces the powder emission.

  • Optimal adaptation

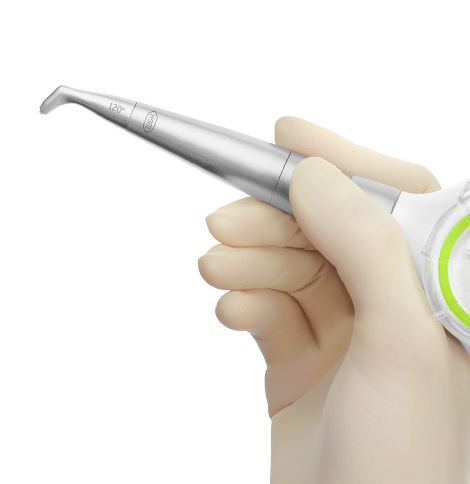

    The 360° rotation function allows dynamic adaptation of the spray heads to the respective treatment position at any time.

  • The choice is yours

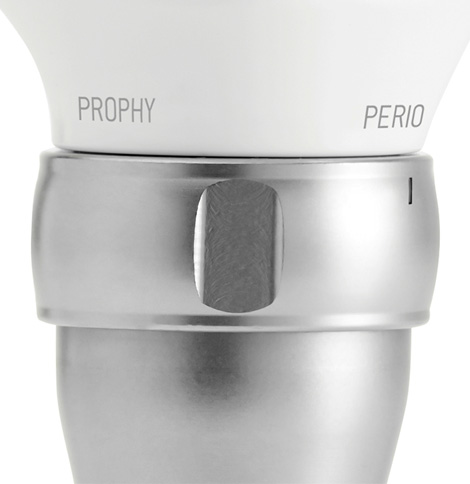

    Set the right working pressure to suit the clinical indication using the adjustment ring and achieve brilliant treatment results every time.

  • Convenient refilling

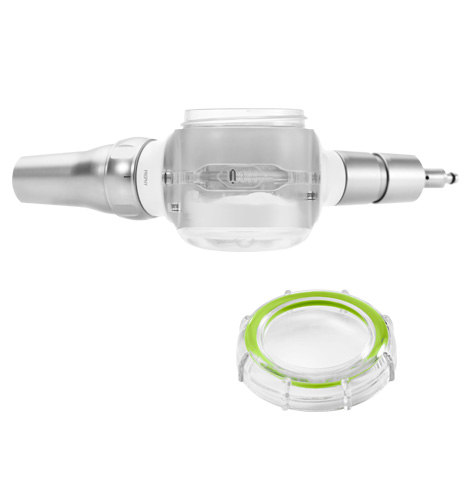

    The side opening of the powder container means that instead of holding the handpiece when refilling, you can simply rest it on the table. This leaves both your hands free, making refilling of the powder much easier.

  • 4 different turbine connections

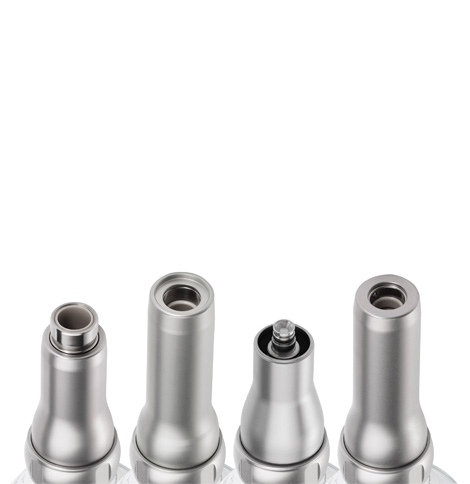

    The Proxeo Aura air polishing handpiece is available with connections for W&H Roto Quick, KaVo Multiflex, NSK and SIRONA. Simply connect it to the turbine hose and you’re ready to start.

  • 1 Controlled spray pattern
  • 2 Optimal adaptation
  • 3 The choice is yours
  • 4 Convenient refilling
  • 5 4 different turbine connections
  • Air polishing with system

    Application

    Setting

    Powder

    Spray head

    Supragingival Prophy Prophylaxis Powder SOFT / Prophylaxis Powder SMOOTH Standard / Optional
    Supragingival, sulcus,
    subgingival pockets < 3 mm
    Perio Prophylaxis Powder SENSITIVE – Glycine Powder Standard / Optional
    Subgingival pockets > 3 mm Perio Prophylaxis Powder SENSITIVE – Glycine Powder Standard / Optional


    Proxeo Aura

    It’s in your hands

    Whether you are working supragingivally, in the sulcus or in deep pockets, the combination of the right powder, the corresponding setting on the adjustment ring and the matching spray head ensures you always achieve optimal treatment results.

    Main advantages at a glance

    • Practical adjustment ring for simple switching between prophylaxis and periodontal treatments
    • 2 different powder for a wide range of indications
    • Optimally bundled powder jet for controlled spray pattern and less powder emission
    • Spray attachments with different angles and in different lengths for optimal access
    • Special periodontal accessories for thorough treatment of deep pockets
    • Clear powder container with lateral opening for easy refilling and simple checking of powder level
    • Range of turbine connections – suitable for all devices
    • The choice is yours

      The choice is yours

      Set the right working pressure to suit the clinical indication using the adjustment ring and achieve brilliant treatment results every time.

      › Prophy: for efficient working in the supragingival region
      › Perio: for atraumatic treatment with glycine powder in the supra and subgingival region

    • Slender – almost like a perio probe

      Slender – almost like a perio probe

      The sterile, slender perio tips allow you to work gently, even in deep pockets. Soft and flexible, they adapt perfectly to the periodontal situation. The lateral outlet directs the jet sideways, promoting atraumatic cleaning.

    • Controlled spray pattern

      Controlled spray pattern

      The optimally bundled powder jet with its focused spray pattern ensures controlled and efficient working. In addition, the powder is enveloped in a water jacket upon exiting, which reduces the powder emission.

    • Optimal adaptation

      Optimal adaptation

      The 360° rotation function allows dynamic adaptation of the spray heads to the respective treatment position at any time.

    • 4 different turbine connections

      4 different turbine connections

      The Proxeo Aura air polishing handpiece is available with connections for W&H Roto Quick, KaVo Multiflex, NSK and SIRONA. Simply connect it to the turbine hose and you’re ready to start.

    • Convenient refilling

      Convenient refilling

      The side opening of the powder container means that instead of holding the handpiece when refilling, it can be rested on a worksurface. This leaves both hands free, making refilling of the powder much easier.

    • Problem-free workflows

      Problem-free workflows

      The clear powder container allows you to check the powder level at all times, enabling you to integrate a powder change into your workflow with ease.

    • Appropriate angles

      Appropriate angles

      The special perio spray heads and the 90°- and 120°-angled spray heads in two different lengths ensure you are optimally equipped for all hard-to-reach areas.

    • Cleaning made easy

      Cleaning made easy

      The special cleaning tools can be used to keep the handpiece and spray heads clean at all times.

    • Hygienic reprocessing

      Hygienic reprocessing

      The handpiece can be simply wipe-disinfected. The removable spray heads are thermo washer disinfectable and sterilizable.

    Proxeo Aura stands for efficient air polishing. This system with an air polishing handpiece and the corresponding powders allows the thorough, controlled removal of supra- and subgingival biofilm, as well as stains.

    Georg Musil
    Product manager W&H, Bürmoos

    The Proxeo Aura is easy to use, ergonomic and suitable for a wide range of applications. Perfect for efficient, supra- and subgingival air polishing!

    Babette McLaren
    Dental hygienist, Munich


    Sets for successful air polishing

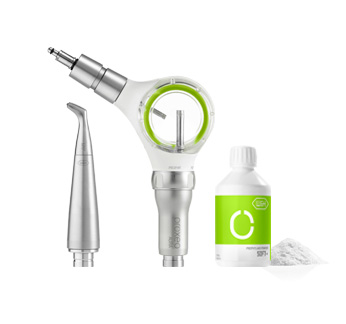

    Proxeo Aura Prophy-Set

    › Air polishing handpiece
    › 120° spray head
    Prophylaxis Powder SOFT (250 g)

    PF-60
    REF 08020760

    W&H RotoQuick

    PF-60 M
    REF 08020770

    KaVo Multiflex

    PF-60 N
    REF 08020780

    NSK

    PF-60 S
    REF 08020790

    Sirona

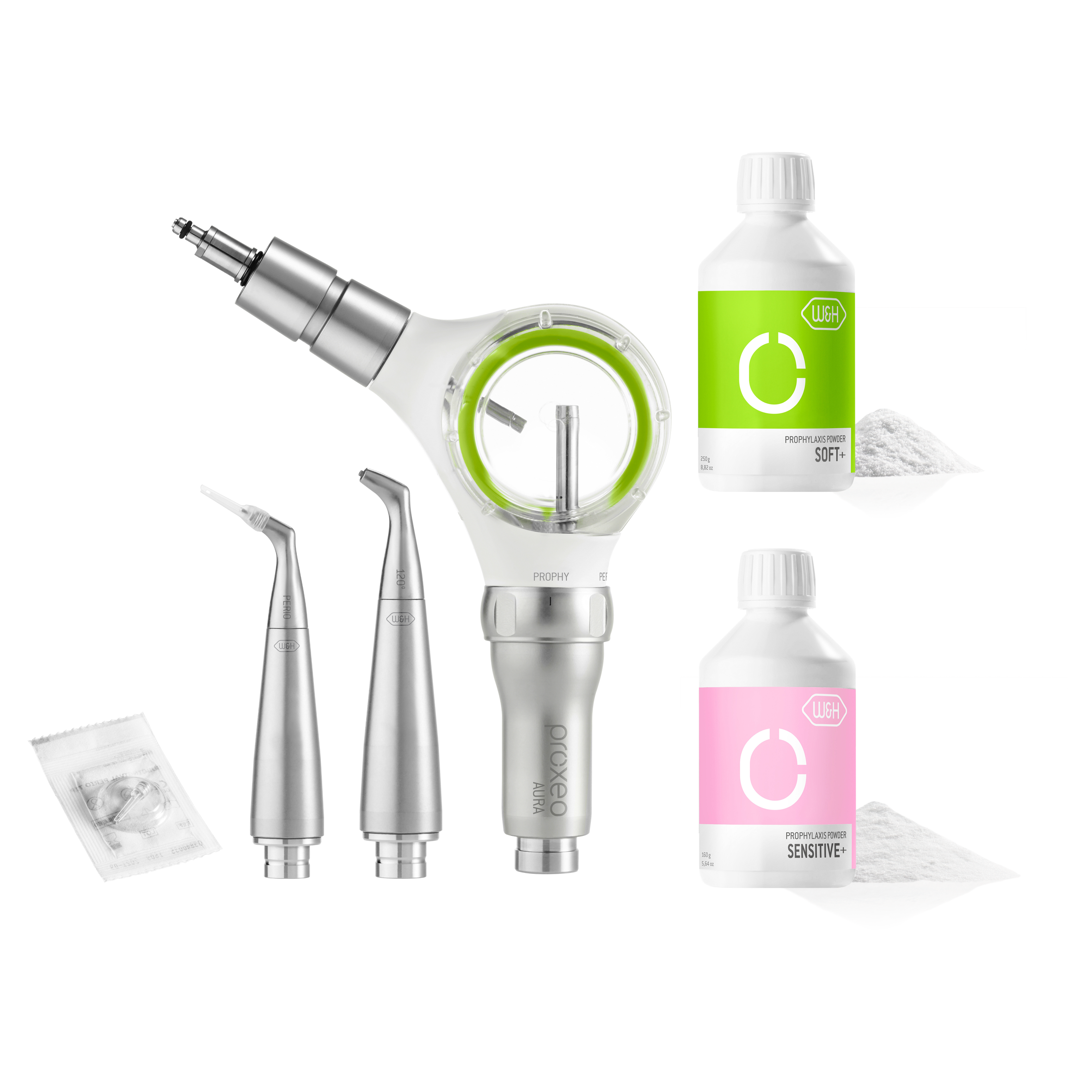

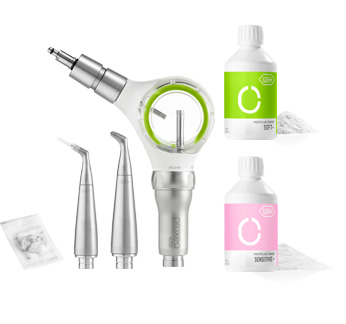

    Proxeo Aura Perio-Set

    › Air polishing handpiece
    › 120° spray head
    › Spray head perio
    › 40 perio tips (subgingival)
    Prophylaxis Powder SOFT (250 g)
    Prophylaxis Powder SENSITIVE - Glycine Powder (160 g)

    PF-60
    REF 08020761

    W&H RotoQuick

    PF-60 M
    REF 08020771

    KaVo Multiflex

    PF-60 N
    REF 08020781

    NSK

    PF-60 S
    REF Sirona

    Sirona


    Proxeo Aura Pulver - Prophylaxis Powder

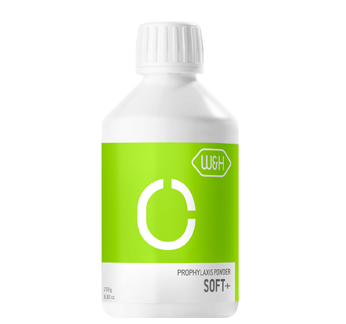

    Prophylaxis Powder SOFT

    › Based on sodium bicarbonate
    › Average particle size 40 μm
    › Mint taste

    Prophylaxis Powder SOFT
    REF 08020870

    4x250 g

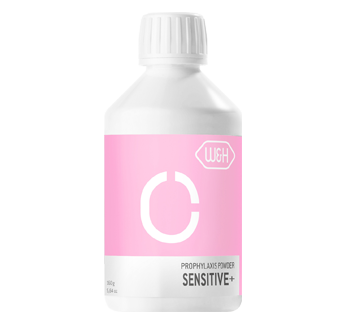

    Prophylaxis Powder SENSITIVE – Glycine Powder

    › Based on glycine
    › Average particle size 25 μm
    › Sweetish taste
    › Water soluble

    Prophylaxis Powder SENSITIVE
    REF 08020890

    2x160 g

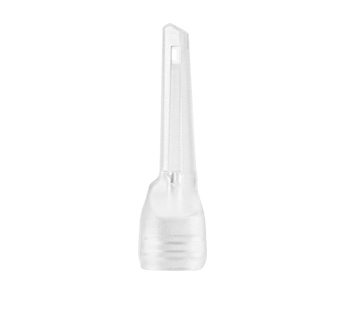

    Perio tips

    Subgingival perio tips

    40 pcs

    Subgingival perio tips
    REF 08020860

  • Air polishing handpiece

    Operating air pressure bar:

    2.2–3.0

    Operating water pressure bar:

    1.0–3.0

    Weight:

    155 g

    Dimensions (W×D×H):

    200×90×50 mm

    Ambient conditions:

    from +10°C to +35°C
    relative humidity of 30% to 75%

    Type/connection:

    PF-60/W&H Roto Quick, PF-60 M/KaVo Multiflex
    PF-60 N/NSK, PF-60 S/SIRONA

    Air pressure P:

    800 hPa/1,060 hPa

    Spray heads:

    Thermo washer disinfectable

    Sterilizable up to the
    stated temperature

    Perio tips:

    Not for re-use

    Sterilized with ethylene oxide
