Lexa sterilizer
Discover the Lexa sterilizer for yourself!
-
Click on the Icon to place the Lexa virtually in your reprocessing room and see for yourself how well it fits.Drag the mouse in any direction to view the product from all sides.
Open the website with your mobile phone and experience the Lexa in your reprocessing room!![]()
Sterilization on a high standard
Built to offer more of all that counts in every day medical infection control.
Your sterilization process deserves Lexa!- Incredible efficiency: Large chamber capacity of 7.4 gallons and short cycle times, including excellent load drying.

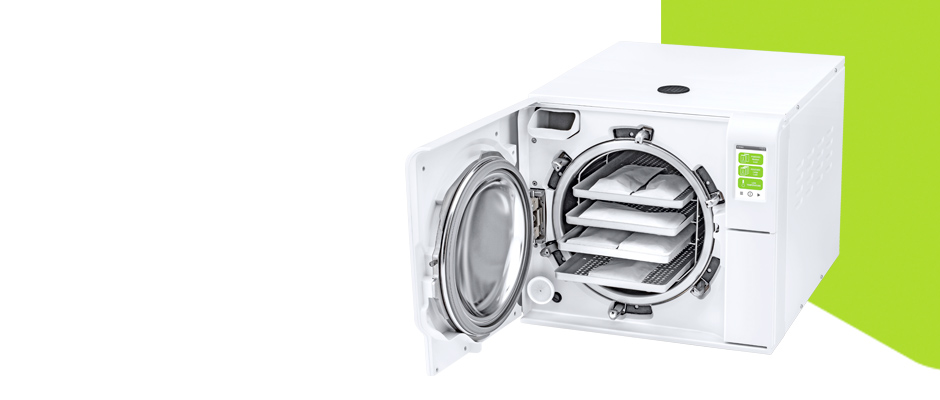

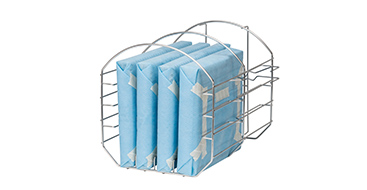

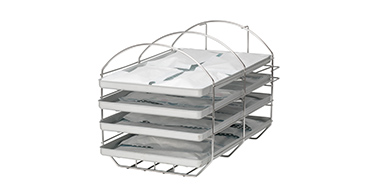

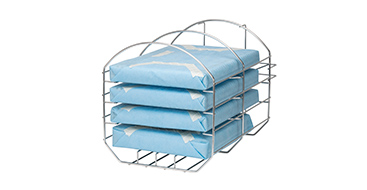

- Incredible flexibility: Lexa comes with 4 large trays along with a unique rack providing larger loading surface and more loading options.
- Incredible protection: Automatic digital cycle recording on USB stick.
- Incredible speed: Lexa offers versatile program options for several loads in order to reduce overall cycle duration.

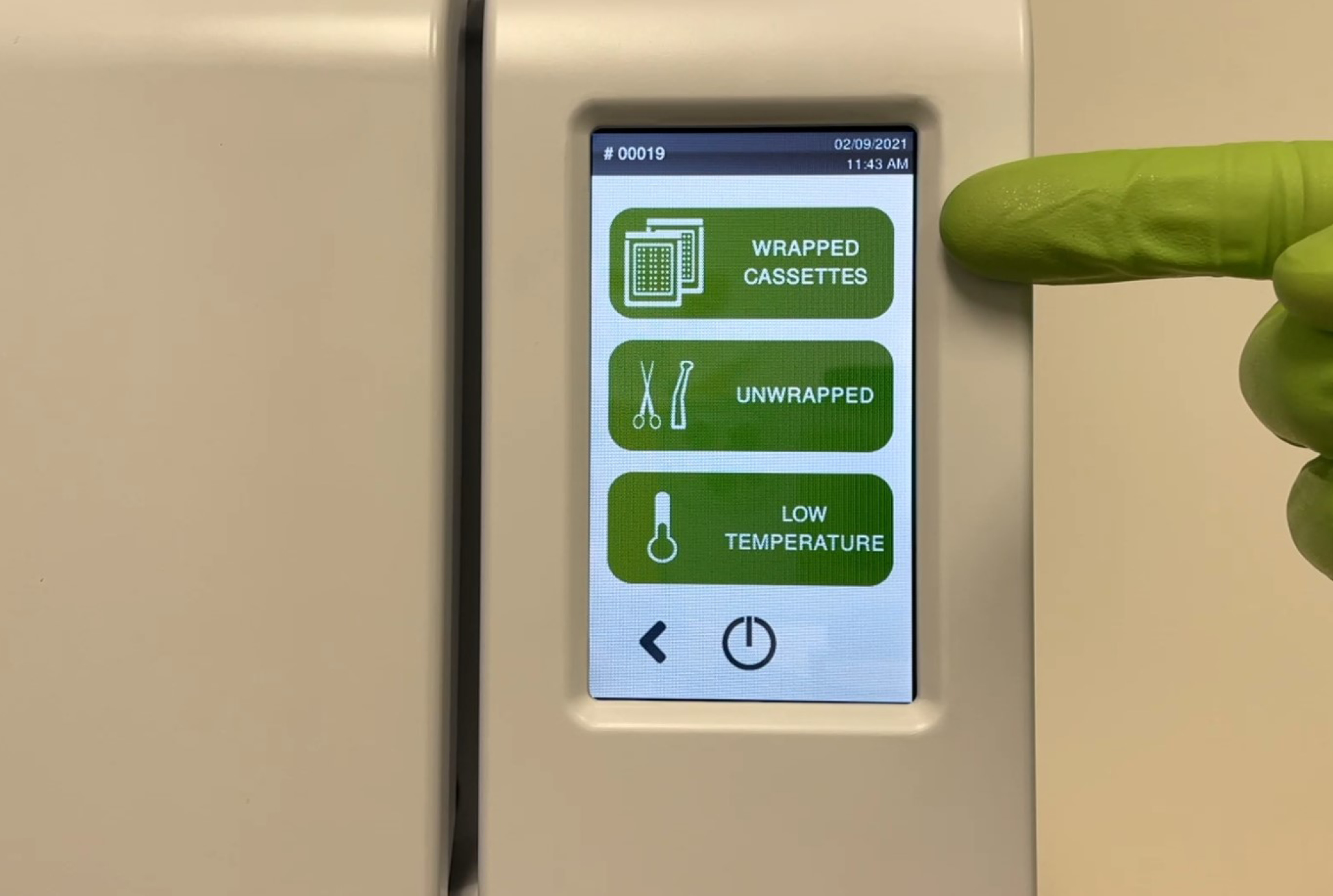

- Incredible usability: User-friendly interface and high-end 4.3” color touchscreen for simple navigation to all sterilization option.
- Incredible standards: Closed-door vacuum-assisted drying for excellent load drying and single use water management.
![]()
![]()
![]()
Your advantages at a glance
- User-friendly interface and high-end colour touchscreen for simple navigation to all sterilization option
- Customizable drying time

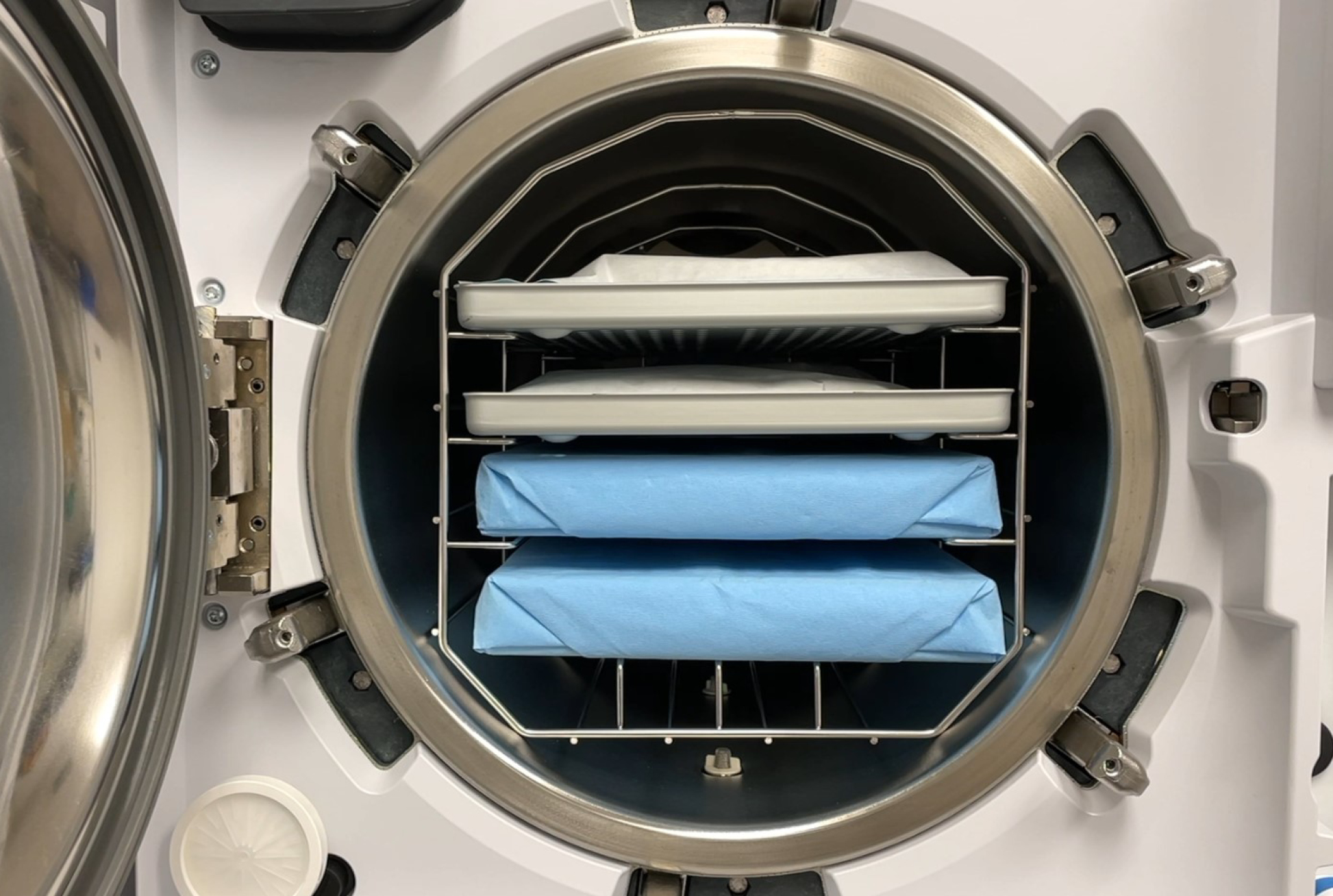

- Large capacity sterilizer chamber with unique tray and exclusive design
- Versatile sterilization program options with short cycle times
- Superior vacuum-assisted drying
- Meets stringent hygiene standards, including dynamic pulsed air removal, closed door drying and single-use water management
- Easy maintenance – Lexa does not require periodic execution of cleaning cycles
- Programmable cycle start
- Excellent value for money
- Automatic digital cycle recording on USB stick
- User authentication and load release (optional)
- Barcode label printing (optional)

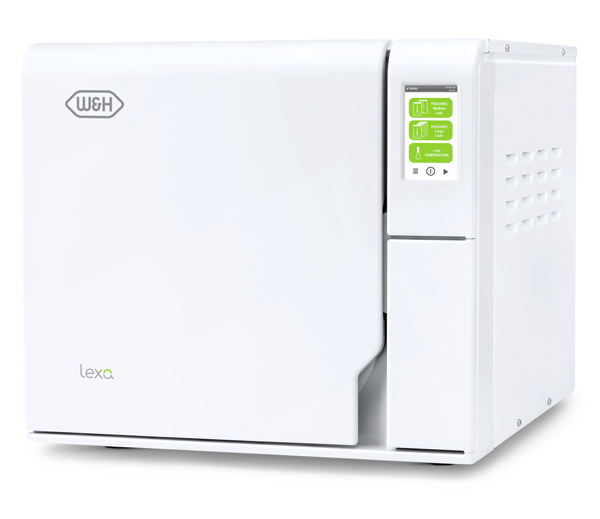

![Lexa sterilizer]( "Lexa sterilizer")
Lexa sterilizer
supplied with autofill & autodrain, tray rack, 4 aluminium trays, drain tube, tray holder, USB drive & emergency door opening tool
Warranty details: 2 years or 2,000 cycles - whichever comes first.Lexa MN-111
110 V
REF 19943401Chamber size 28 l
100–125 V AC; 50/60 Hz; 12 A Single PhaseLexa MN-111
220 V
REF 19943101Chamber size 28 l
200–240 V AC; 50/60 Hz 10 A Single PhaseDownload Area
FAQs
- What is validation?
- Do I need to document the results of all periodic tests?
- How long should I archive the documentation of regular tests?
- Does my sterilizer need any periodic qualification/validation?
- Whom should I contact to validate and maintain my sterilizer?
- How do I change consumable components on my sterilizer?
- How do I clean the water tanks and what products should I use?
- Should I pouch wrap my instruments and how long can I store them after sterilization?
- When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
- The sterilizer remains switched OFF.
- Water is leaking at the front of the sterilizer.
- At the end of the cycle, there is residual water in the chamber
- Stains, spots or colour change on instruments.
- No cycles are stored in the cycle history menu
- The sterilizer enters into “Standby mode” immediately after being switched on.
- The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
- Warning about saving to the USB (HTML and SCL files)
- The cycle report printer does not work.
- The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
- Warning about consumable replacement.
- Which water quality should I use for my sterilizer?
- What is the maximum noise level of the Lexa sterilizer?
- Do I need to carry out periodic testing on my W&H Sterilizer?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
Lexa sterilization programs
Sterilization cycle Unwrapped Pouches Medium Load
Pouches Large Load Pouches & Wrapped Cassettes Wrapped
Cassettes
Low
TemperatureTemperature: 132°C (270°F) 132°C (270°F) 132°C (270°F) 132°C (270°F) 132°C (270°F) 121°C (250°F) Holding time (minutes): 4’ 4’ 4’ 4’ 4’ 30’ Total cycle duration (minutes) including drying*: 26’–39’ 43’–53’ 48’–58’ 53'-64' 58'-71' 73’–79’ Max. load (excluding trays): 8.1 kg (18 lbs) 1.4 kg (3 lbs) 2.7 kg (6 lbs) 5.0 kg (11 lbs) 6.4 kg (14 lbs) 2.3 & 2 kg (5 & 4.4 lbs) including trays
Items supplied with: chamber rack, 4 larger trays, tray holder, drain tube, USB drive.
* Cycle times are approximate and may vary depending on voltage and instrument loads.
Trade name: Lexa 110 V Lexa 220 V Type: MN-111 Chamber size: 28 l (7.4 gal) Power supply: 100–125 V AC; 50/60 Hz; 12 A Single Phase
200–240 V AC; 50/60 Hz 10 A Single Phase
Overall dimension
(width x height x depth):490 x 452 x 616 mm (19.3“ x 17.8“ x 24.3“) Weight: 48 kg (105.8 lbs) Main / Used water tanks: 6.4/6.7 l (1.7/1.8 gal) Connection types: 5 USB ports, 1 Ethernet port Lexa sterilizers were designed, certified and validated according to the following standards and directives: N°2017/745 Medical Device Regulation EN 13060 Small steam sterilizer IEC 61326-1 Electromagnetic compatibility IEC 61010-1 Safety requirements
IEC 61010-2-040 Specific requirements for steam sterilizer
IEC 61770 Back syphonage
ASME* Boiler and pressure vessel code
ANSI/AAMI ST55 Table-top steam sterilizers
CSA C22.2 No. 61010-1-12 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
2012/19/EU Waste Electrical and Electronic Equipment (WEEE)
UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
EN 2014/68/EU Pressure Equipment Directive
The sterilizer can be validated according to EN ISO 17665-1
*On Request
