Compact. Lightweight.
W&H offers the optimal range of air motors for your straight and contra-angle handpieces.
Your advantages at a glance
- Short and lightweight
- 360° rotation of the contra-angle handpiece on the motor
- Extremely powerful motor with high torque
- Long lifespan
- Thermo washer disinfectable and sterilizable
![Air motor AM-25 A RM]( "Air motor AM-25 A RM")

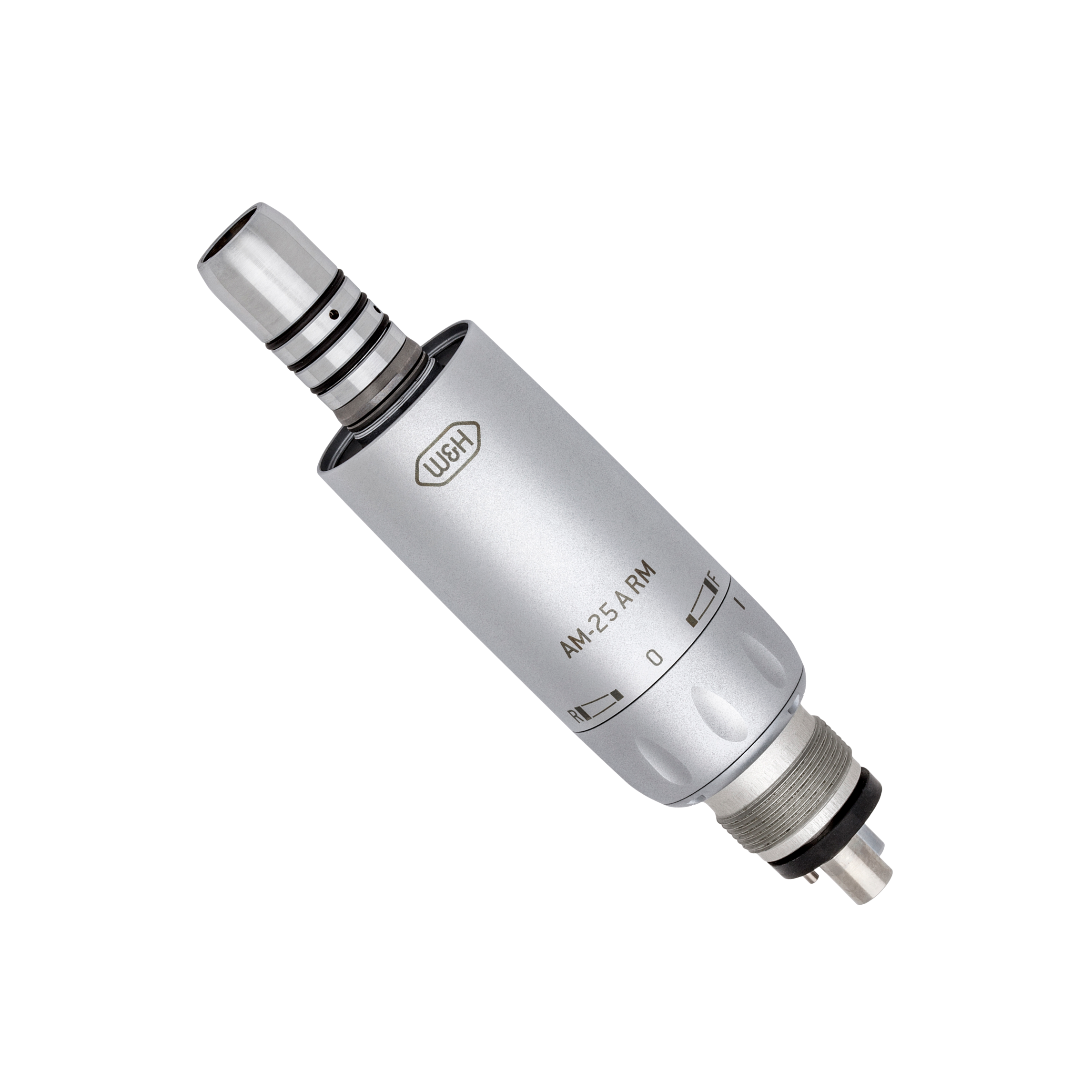

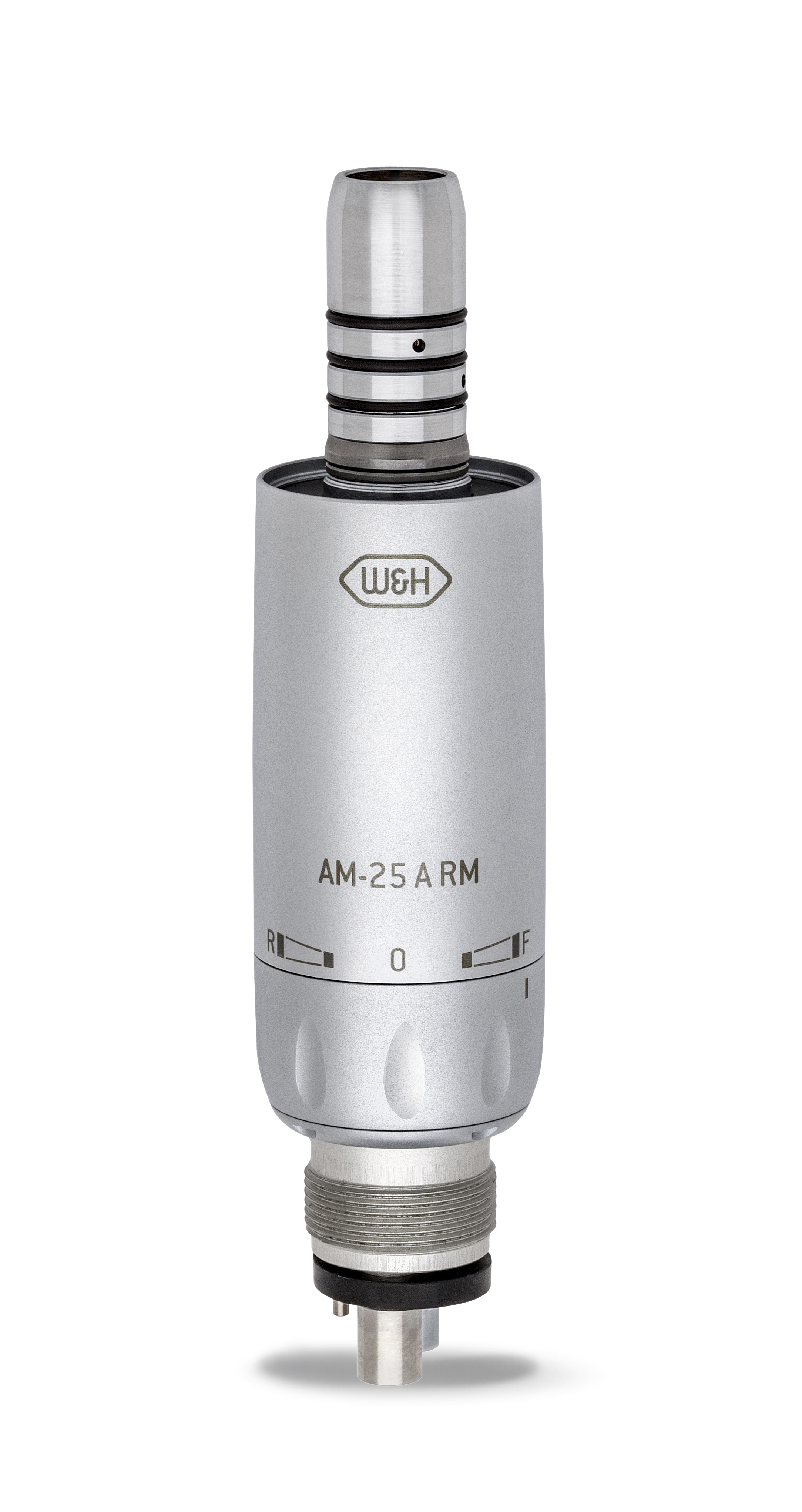

Air motor AM-25 A RM
internal spray
forward / reverse drive
speed: up to 25.000 rpm*AM-25 A RM
REF 30103000without light, internal spray, standard 4-hole connection
![Air motor AM-25 E BC/RM]( "Air motor AM-25 E BC/RM")

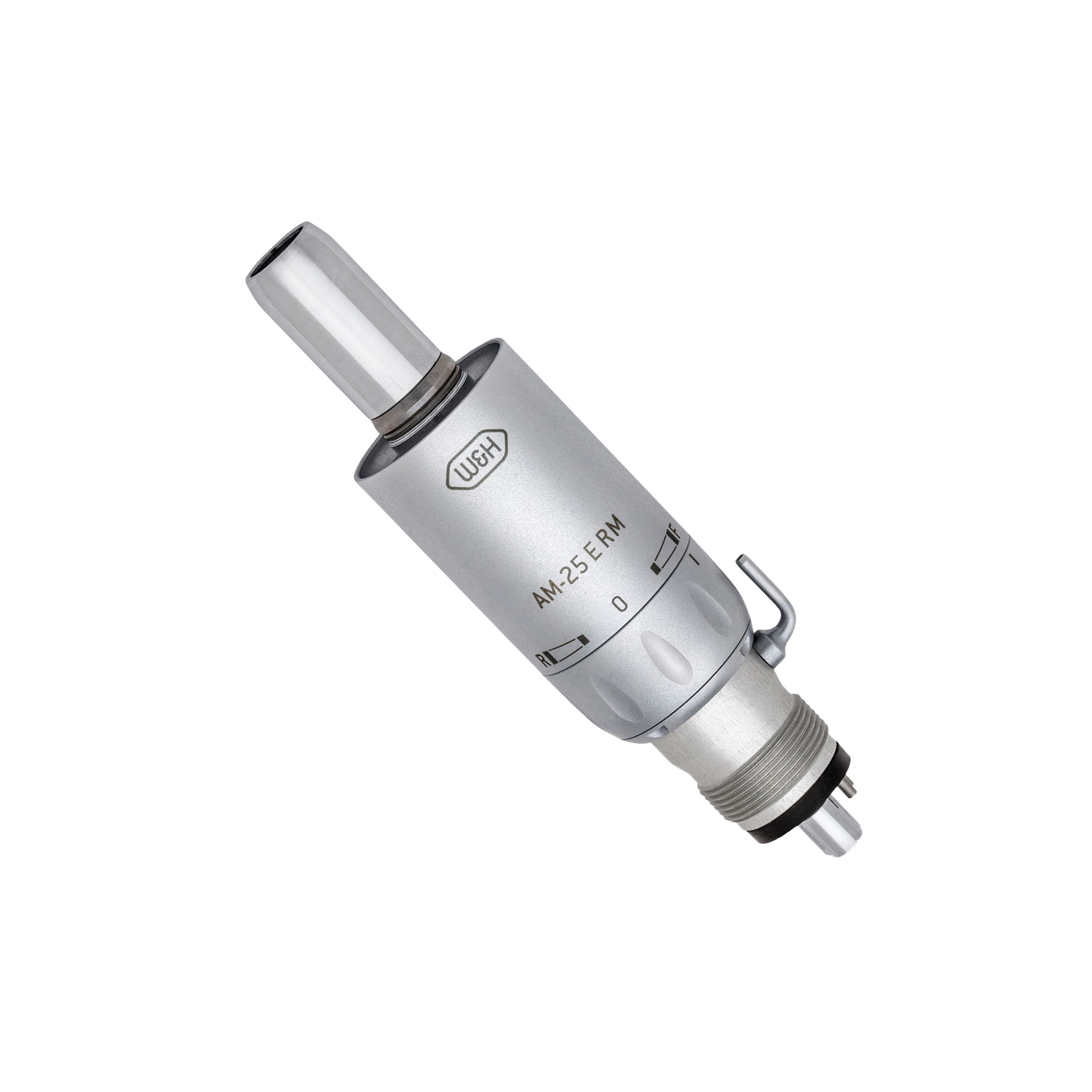

Air motor AM-25 E RM
external spray
forward / reverse drive
speed: up to 25.000 rpm*AM-25 E RM
REF 30105000without light, external spray, standard 4-hole connection
![Air motor AM-25 BC/RM]( "Air motor AM-25 BC/RM")

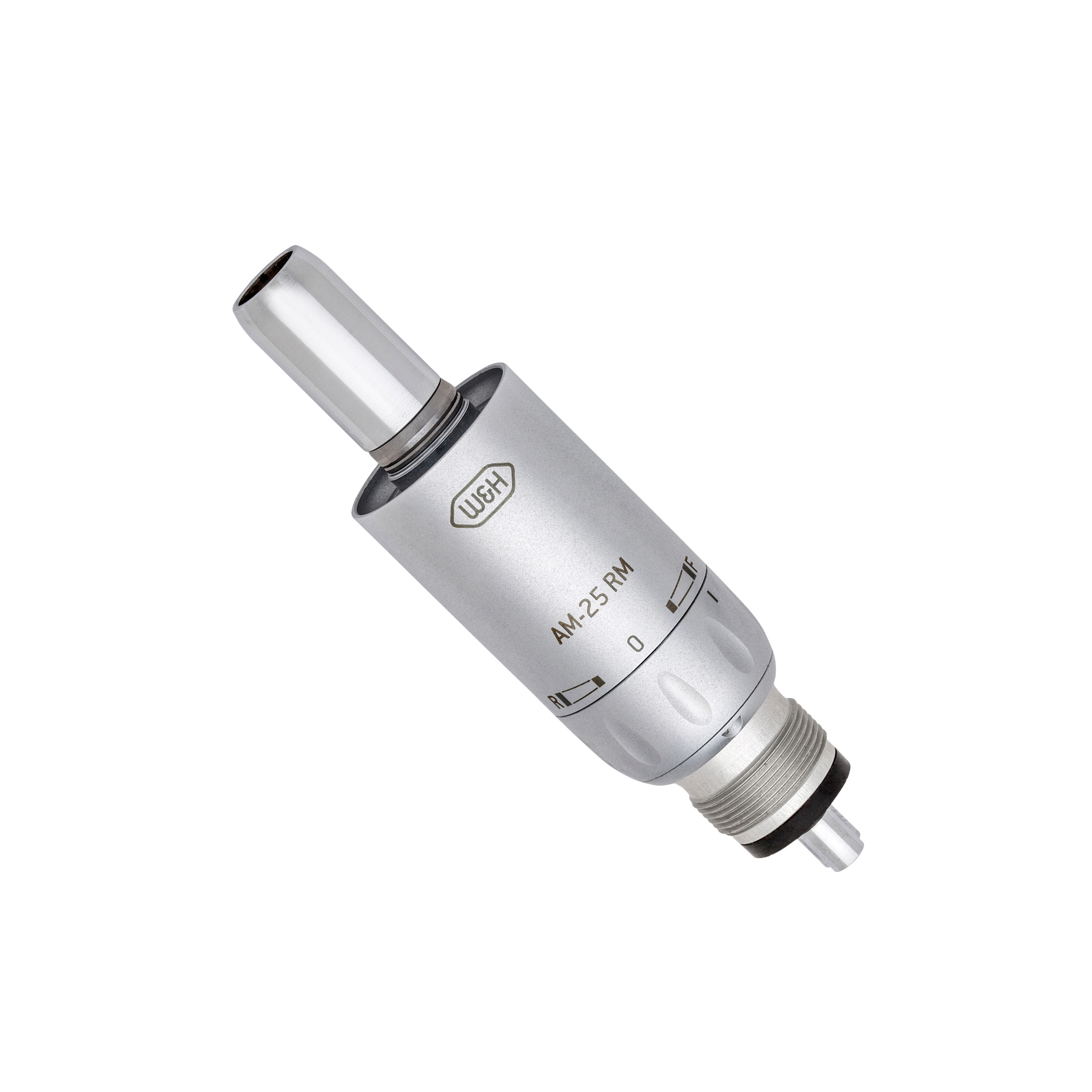

Air motor AM-25 RM
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-25 RM
REF 30108000without light, without spray, standard 4-hole connection
![Air motor AM-20]( "Air motor AM-20")

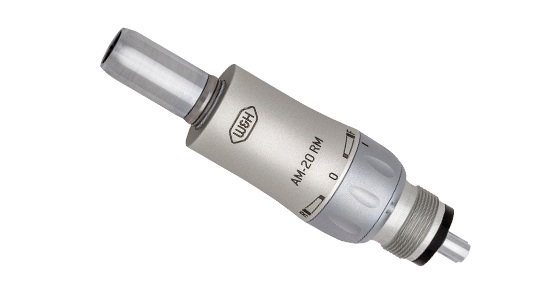

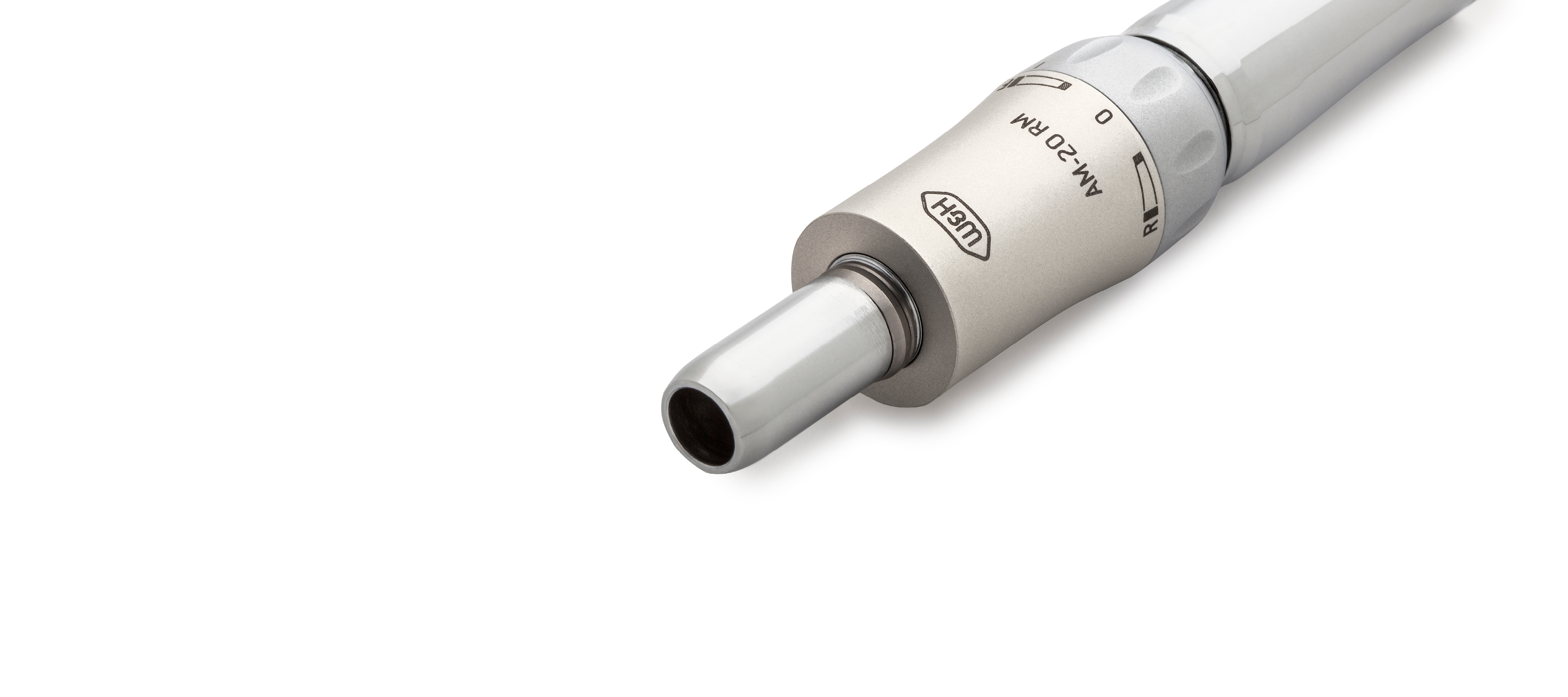

Air motor AM-20
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 RM
REF 30106000without light, standard 4-hole connection
![Air motor AM-20 E]( "Air motor AM-20 E")

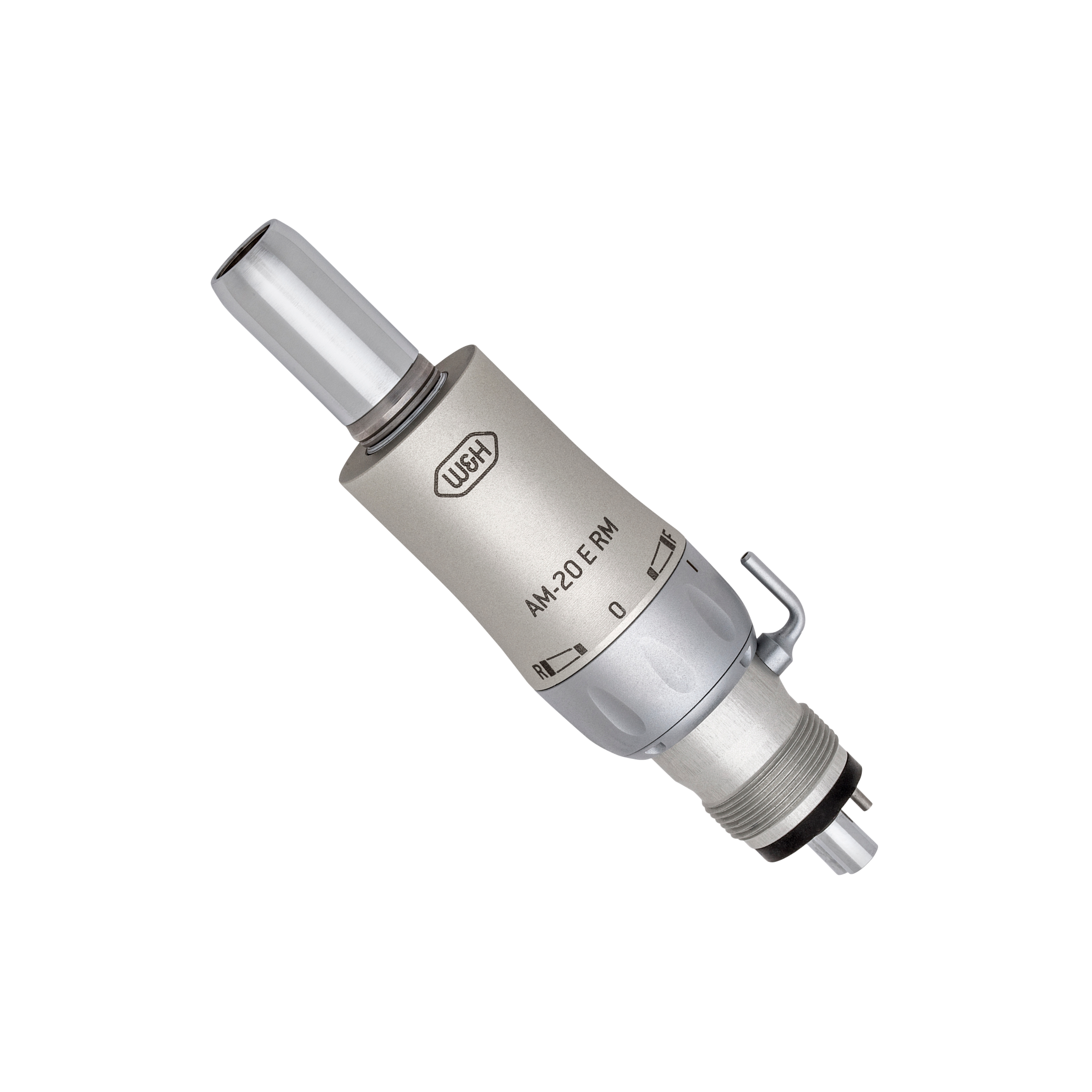

Air motor AM-20 E
external spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 E RM
REF 30107000without light, standard 4-hole connection

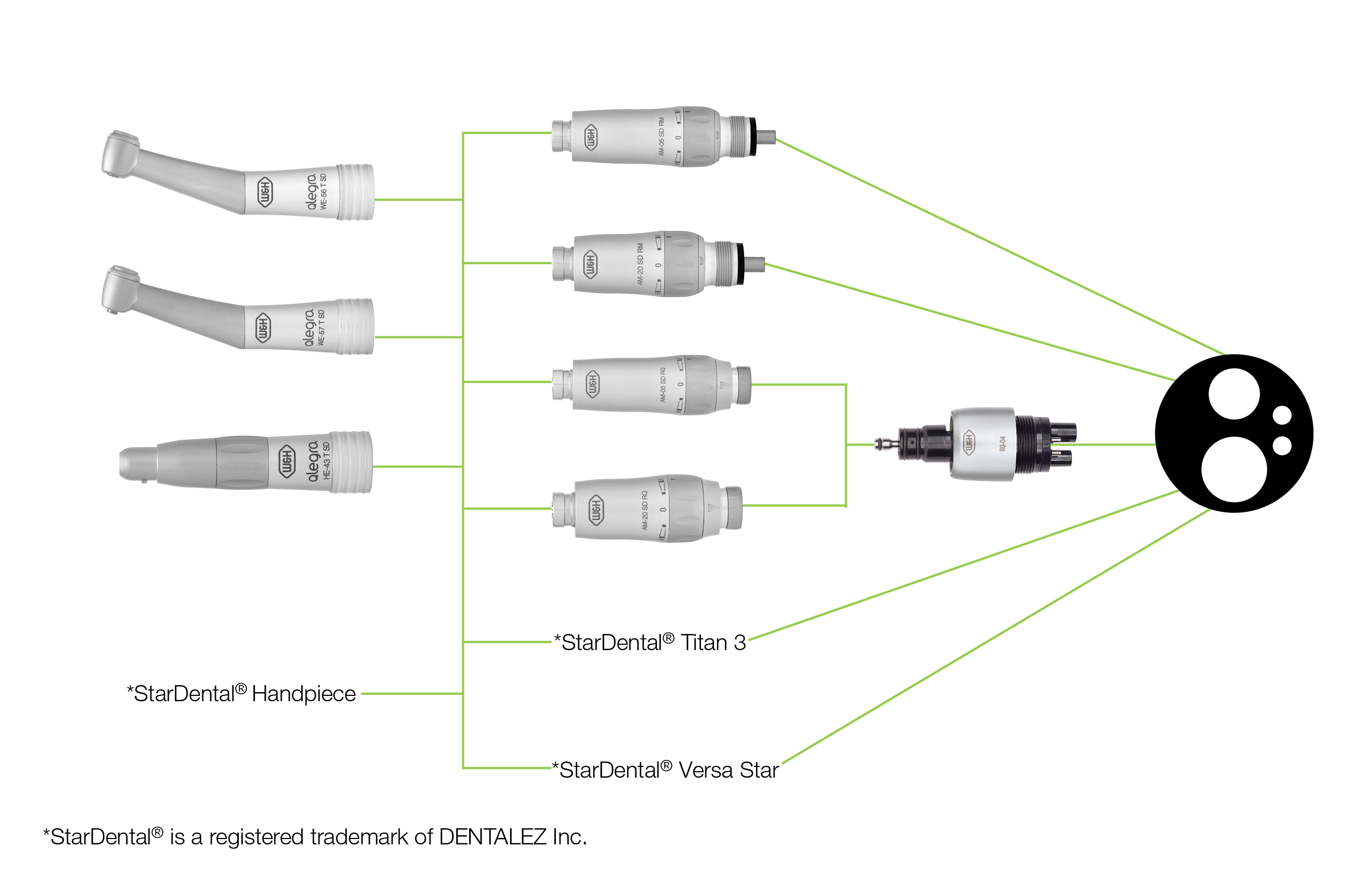

Air Motor for StarDental® Connection
![Air motor AM-05 SD RQ]( "Air motor AM-05 SD RQ")

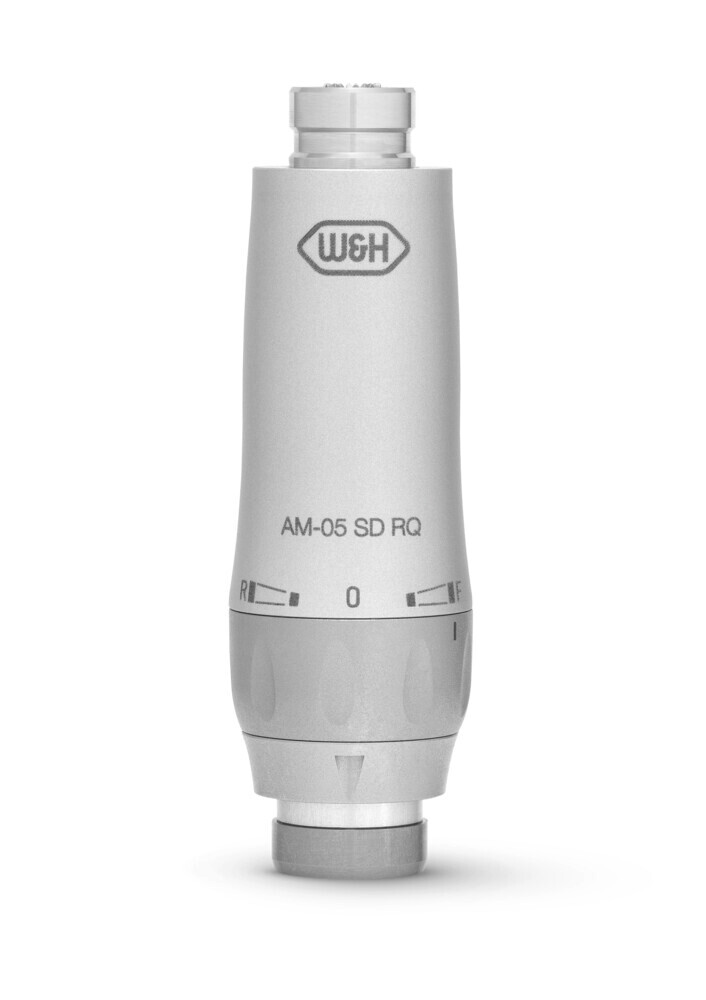

Air motor AM-05 SD RQ
without spray
forward / reverse drive
4:1 speed decreasingAM-05 SD RQ
REF 30403000without light, Roto Quick Connection, 4:1 speed decreasing
![Air motor AM-20 SD RQ]( "Air motor AM-20 SD RQ")

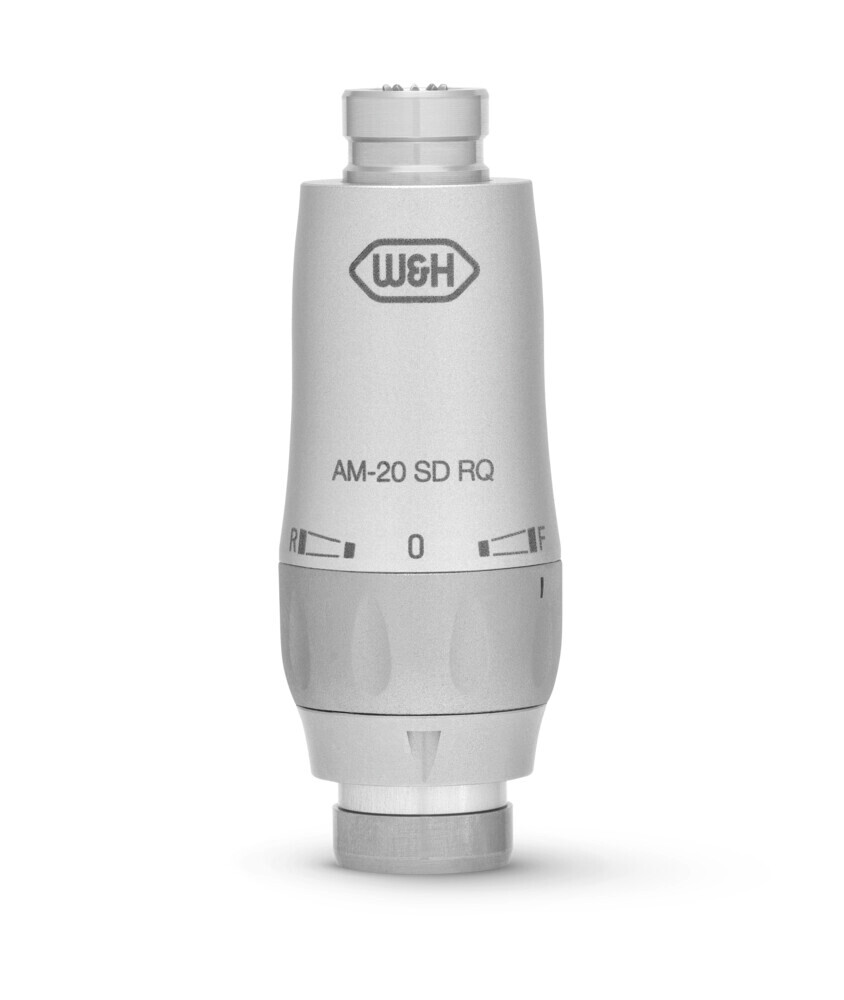

Air motor AM-20 SD RQ
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 SD RQ
REF 30401000without light, Roto Quick Connection
![Air motor AM-05 SD RM]( "Air motor AM-05 SD RM")

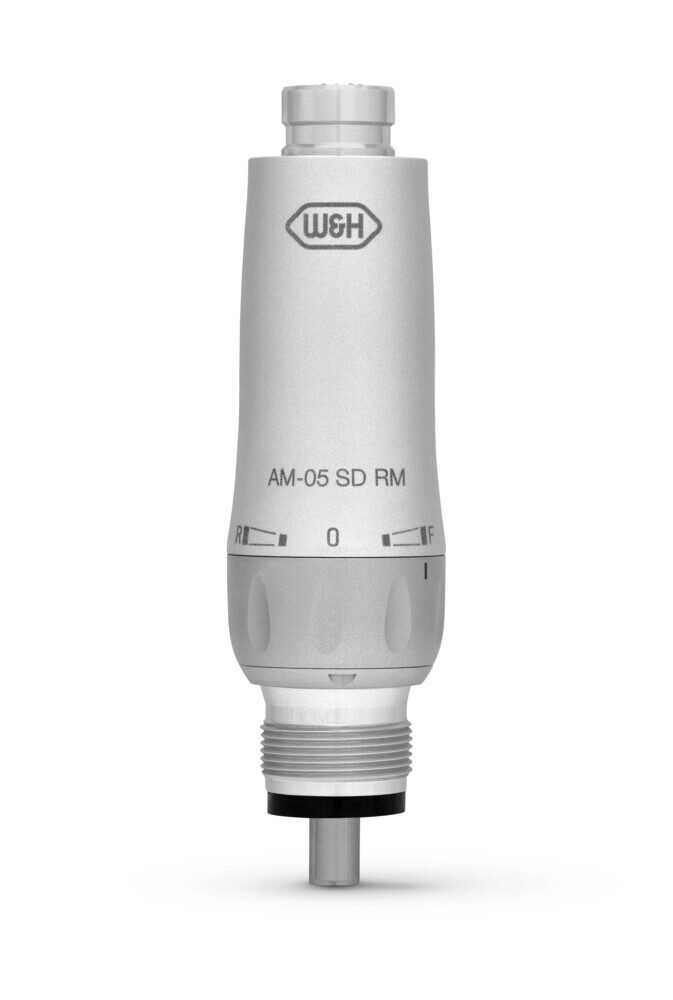

Air motor AM-05 SD RM
without spray
forward / reverse drive
4:1 speed decreasingAM-05 SD RM
REF 30219001without light, standard 4-hole connection, 4:1 speed decreasing
![Air motor AM-20 SD RM]( "Air motor AM-20 SD RM")

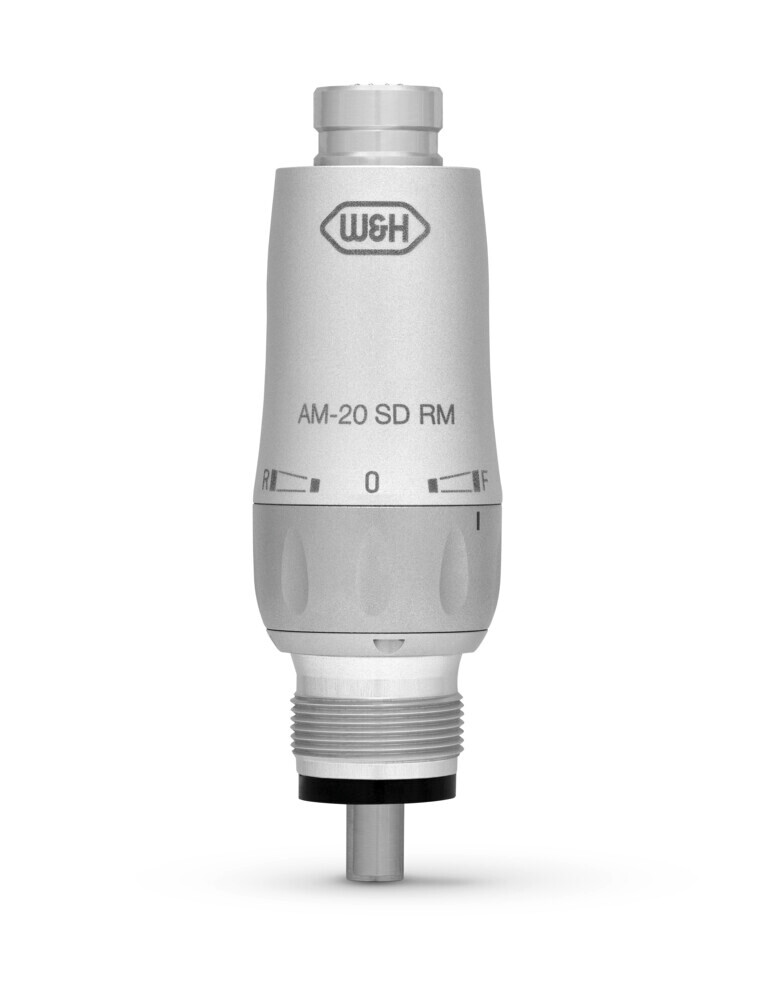

Air motor AM-20 SD RM
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 SD RM
REF 30114001without light, standard 4-hole connection
![]()

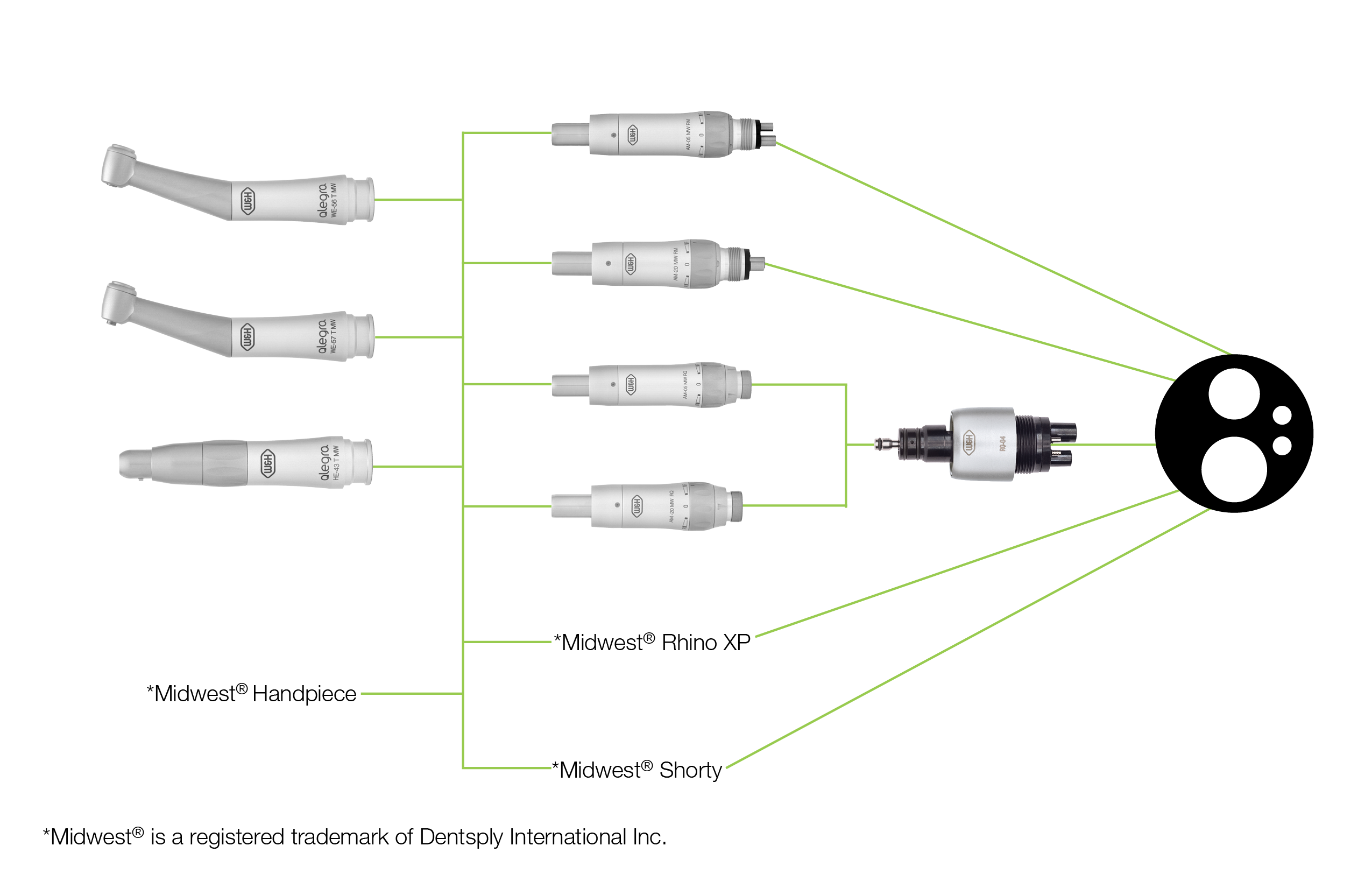

Air Motor for Midwest® Connection
![Air motor AM-05 MW RQ]( "Air motor AM-05 MW RQ")

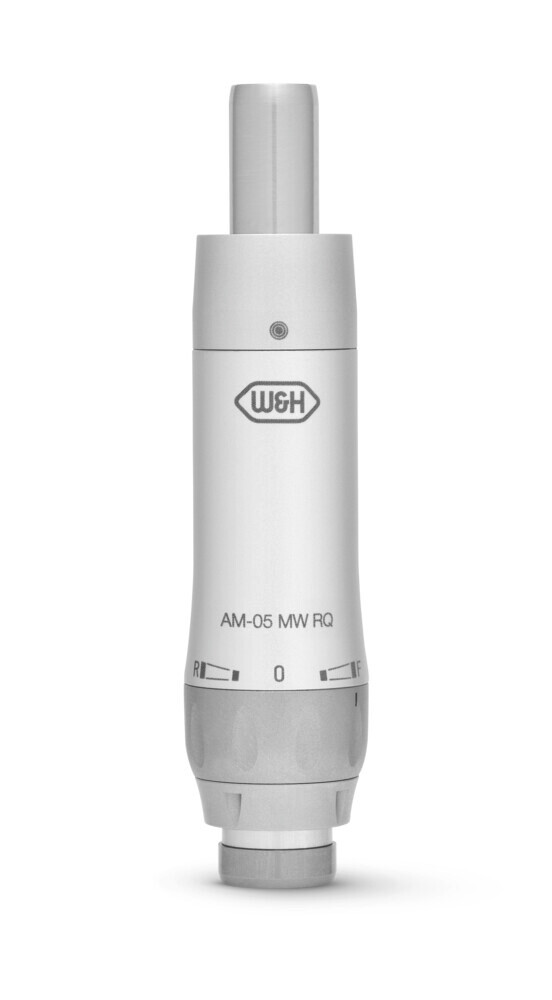

Air motor AM-05 MW RQ
without spray
forward / reverse drive
4:1 speed decreasingAM-05 MW RQ
REF 30404000without light, Roto Quick Connection, 4:1 speed decreasing
![Air motor AM-20 MW RQ]( "Air motor AM-20 MW RQ")

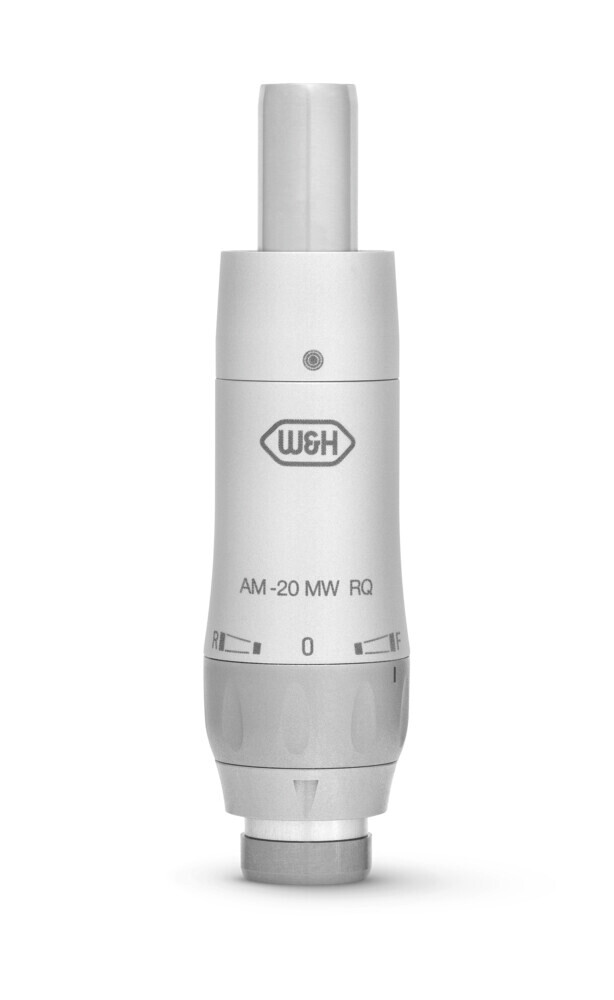

Air motor AM-20 MW RQ
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 MW RQ
REF 30402000without light, Roto Quick Connection
![Air motor AM-05 MW RM]( "Air motor AM-05 MW RM")

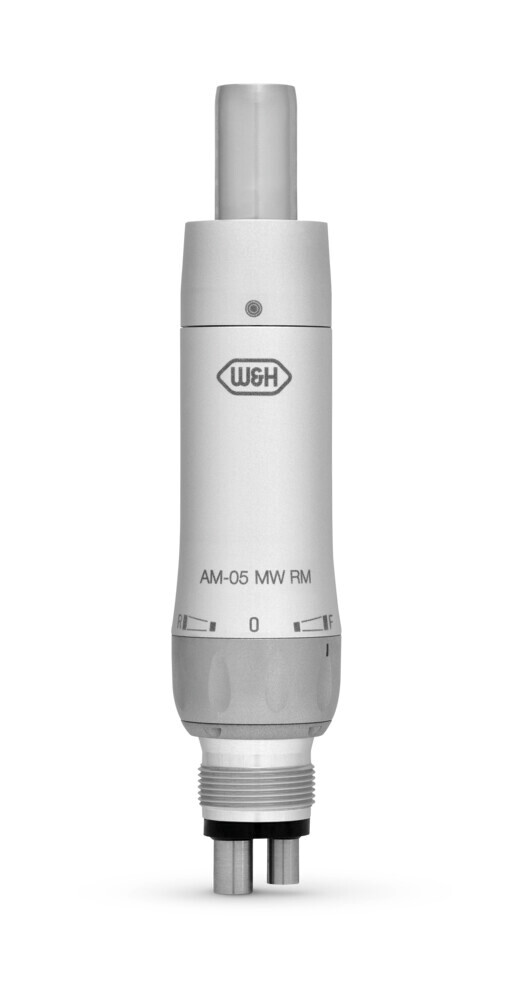

Air motor AM-05 MW RM
without spray
forward / reverse drive
4:1 speed decreasingAM-05 MW RM
REF 30220001without light, standard 4-hole connection, 4:1 speed decreasing
![Air motor AM-20 MW RM]( "Air motor AM-20 MW RM")

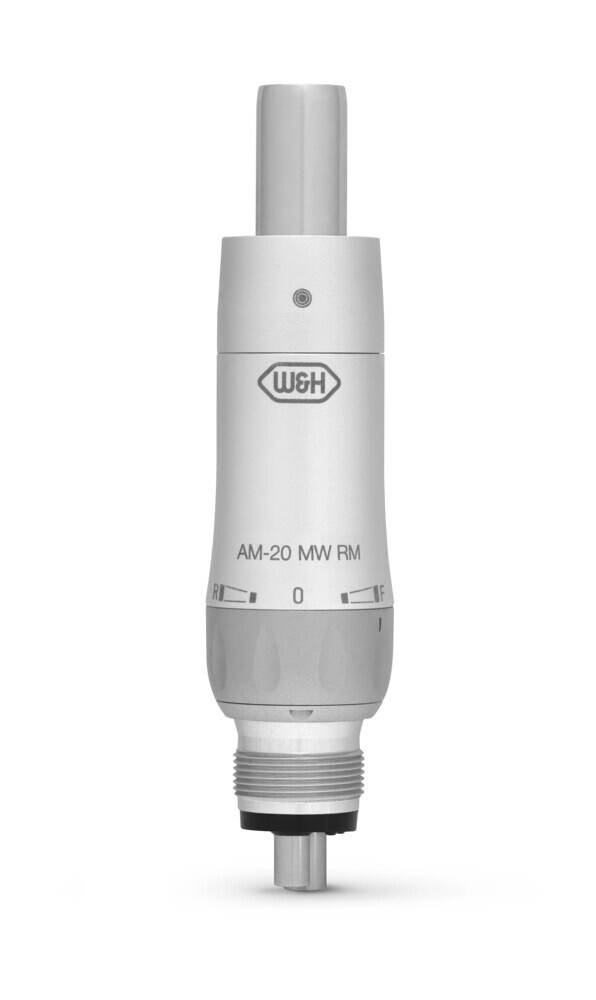

Air motor AM-20 MW RM
without spray
forward / reverse drive
speed: up to 25.000 rpm*AM-20 MW RM
REF 30115001without light, standard 4-hole connection
![]()
* Power and speed data of air driven motors are largely dependent on the quality of the turbine hoses used and may therefore differ from the specified values.
Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Air motors AM-25 A RM
AM-25 E RM
AM-25 RMCoupling hose end: Fixed connection
Standard 4-holeLight (LED version): – Spray: internal
external
–Weight: 78 g
75 g
73 gSpeed range (rpm) at
an operating pressure of:at 2.2 bar: 5,000 – 20,000*
at 3 bar: 5,000 – 25,000*Direction of rotation: forward / reverse drive Air motors AM-20 E RM
AM-20 RMCoupling hose end: Fixed connection
Standard 4-holeSpray: external
–Weight: 58 g
55 gSpeed range (rpm) at
an operating pressure of:at 2.2 bar: 5,000 – 20,000*
at 3 bar: 5,000 – 25,000*Direction of rotation: forward / reverse drive Air motors AM-20 SD RM AM-05 SD RM AM-20 MW RM AM-05 MW RM Coupling hose end: Fixed connection
Standard 4-holeSpray: – Weight: 58 g Speed range (rpm) at
an operating pressure of:at 2.2 bar: 5,000 – 20,000*
at 3 bar: 5,000 – 25,000*Direction of rotation: forward / reverse drive Air motors AM-20 SD RQ AM-05 SD RQ AM-20 MW RQ AM-05 MW RQ Coupling hose end: Fixed connection
W&H RQSpray: – Weight: 58 g Speed range (rpm) at
an operating pressure of:at 2.2 bar: 5,000 – 20,000*
at 3 bar: 5,000 – 25,000*Direction of rotation: forward / reverse drive * Performance and speed data of air driven motors are largely dependent on the quality
of the turbine hoses used and may therefore differ from the specified values.
