U-Son – Ultrasonic cleaner

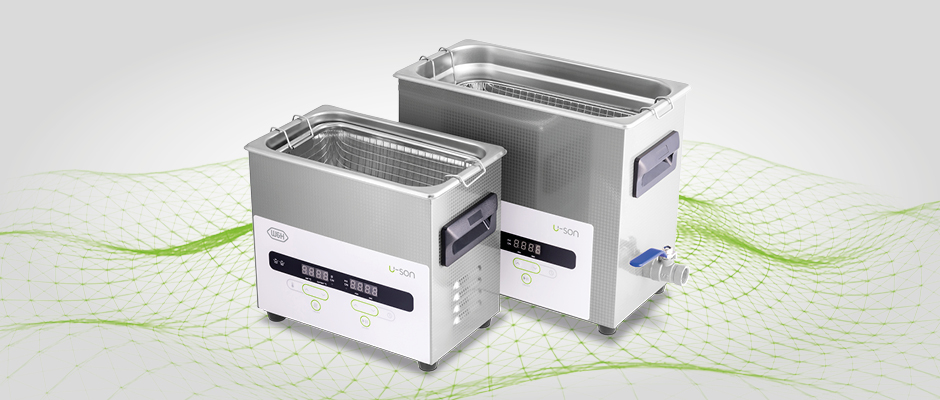

3 l and 6 l U-Son devices

Cleaning with high-frequency sound waves

The U-Son ultrasonic device from W&H enables highly effective cleaning. Ultrasonic cleaning is a quick and efficient method for perfect results. The use of ultrasonics facilitates removal of even the most stubborn deposits from difficult to reach areas where manual cleaning does not reach.

  • For safe reprocessing

    The U-Son ultrasonic device is completely reliable, and every component has been designed and produced to ensure excellent performance.


    High capacity and volume
    with two different versions of 6 litres and 3 litres

    Rounded corners
    inside the tank for easy removal of dirt and residues

    Main switch on/off
    loading and unloading in compliance with safety conditions

    Stainless steel
    for excellent resistance to corrosion and a longer service life of the device

    Stainless steel outer casing
    for easy, quick and effective cleaning

    Digital control panel
    that allows cleaning times and temperature to be controlled electronically

    Time settings
    to determine the cycle duration

    Temperature setting
    for different levels of soiling

    The safety of high-quality cleaning means safety for customers and staff. It´s about breaking the chain of infection to avoid injuries and cross-infection.

    • Digital control panel

      The U-Son device consists of a digital control panel that allows cleaning times and temperature to be controlled electronically.


      1
      Temperature settings
      for a simple and intuitive setting of the cycle temperature.
      It is also possible to switch off the heating function.

      2
      Time settings
      for different cleaning times (with option of double wash function by pressing the minute button twice).

      Appropriate accessories

      Minor extras lead to major results, and with the appropriate accessories it is even easier and more efficient.

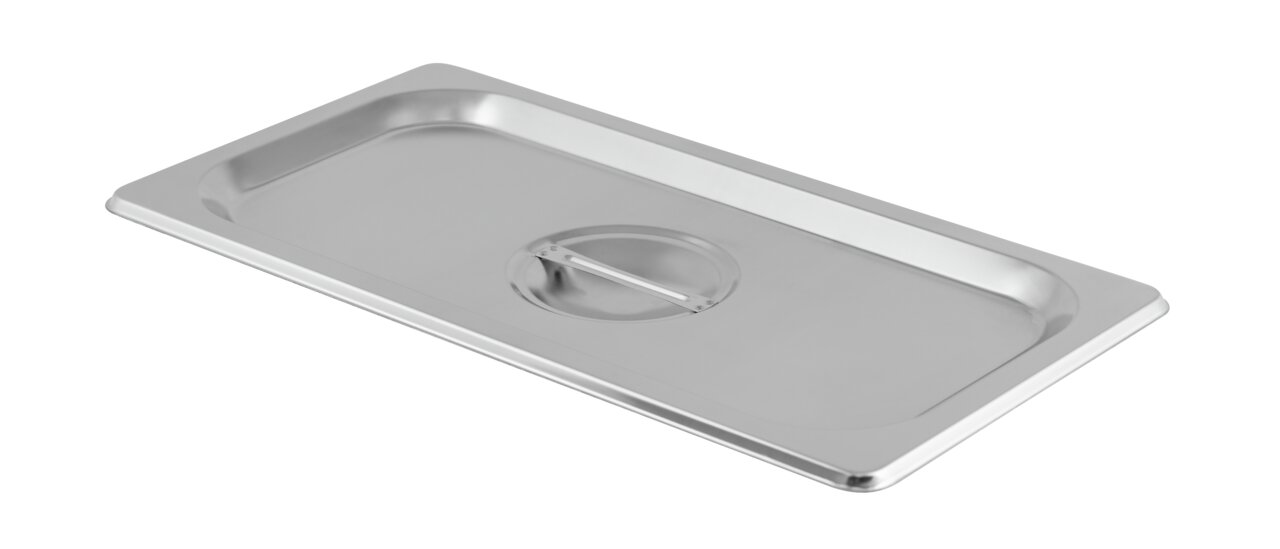

      Stainless steel lid (for 3 l or 6 l)
      The stainless steel lids close the ultrasonic device and prove to be particular useful when heating up the cleaning liquid: due to the closed lid, the set cleaning temperature is reached quickly. The lid also prevents liquid from splashing out during the cycle.

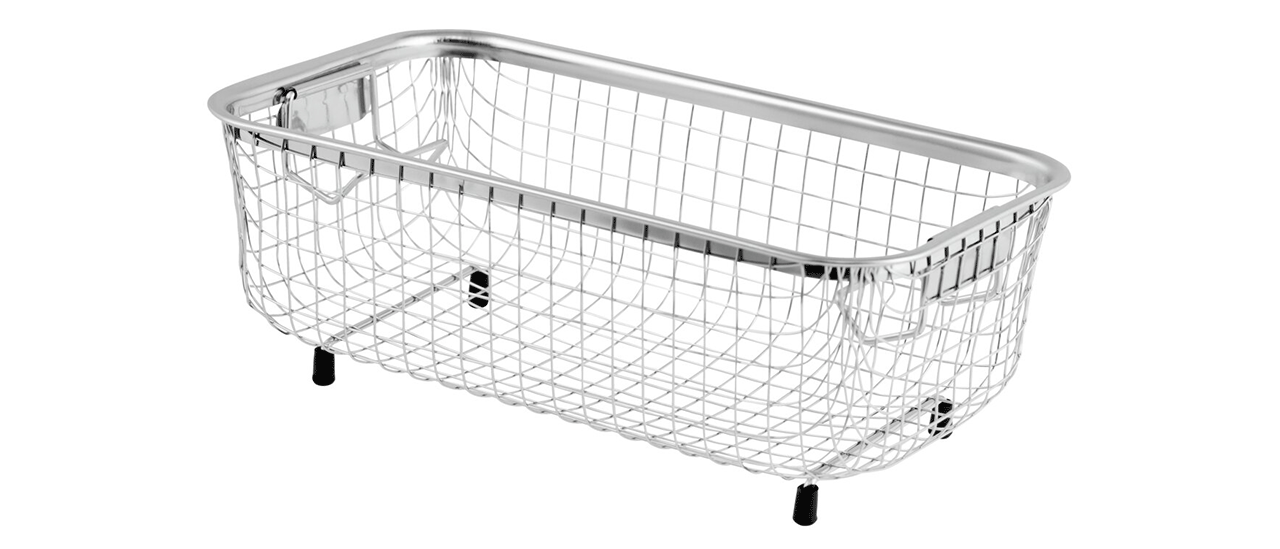

      Stainless steel rectangular basket (for 3 l or 6 l)
      It is mandatory to use the mesh basket. It allows the user to optimally clean the objects, and it is easier to rinse the instruments after the procedure.
      The basket must always be used during the cleaning process. Never place the instruments directly on the bottom of the tank.

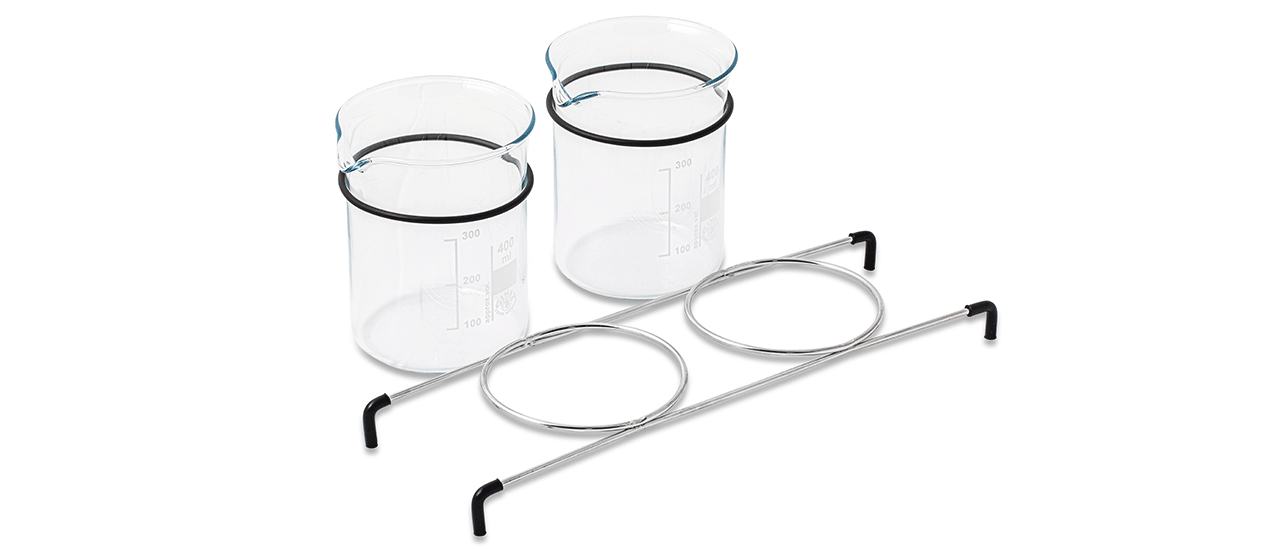

      Glass beakers and beaker holder
      Special beakers with an adjustable rubber support ring offer the best support for different requirements: cleaning small objects, cleaning with different detergent solutions or cleaning objects with particularly aggressive solutions that must not come into direct contact with the steel container. The holder is used to support the beakers during washing.

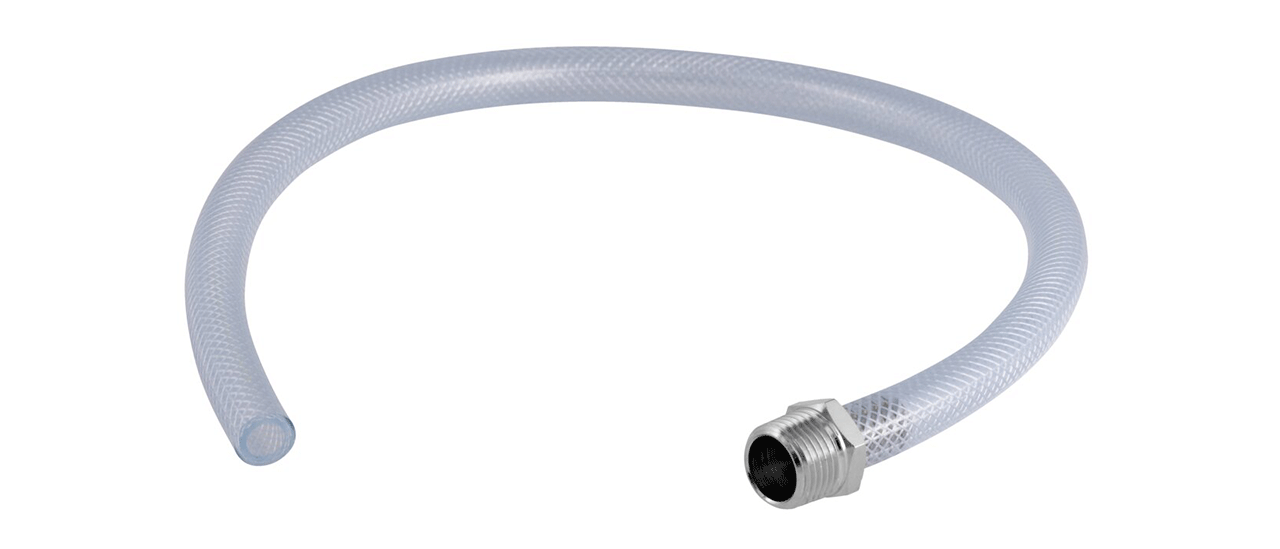

      Drain tube
      The drain tube in the 6 litres version allows to conduct the tank drainage in a safe, effective and efficient way.

      Simple operation for high performance

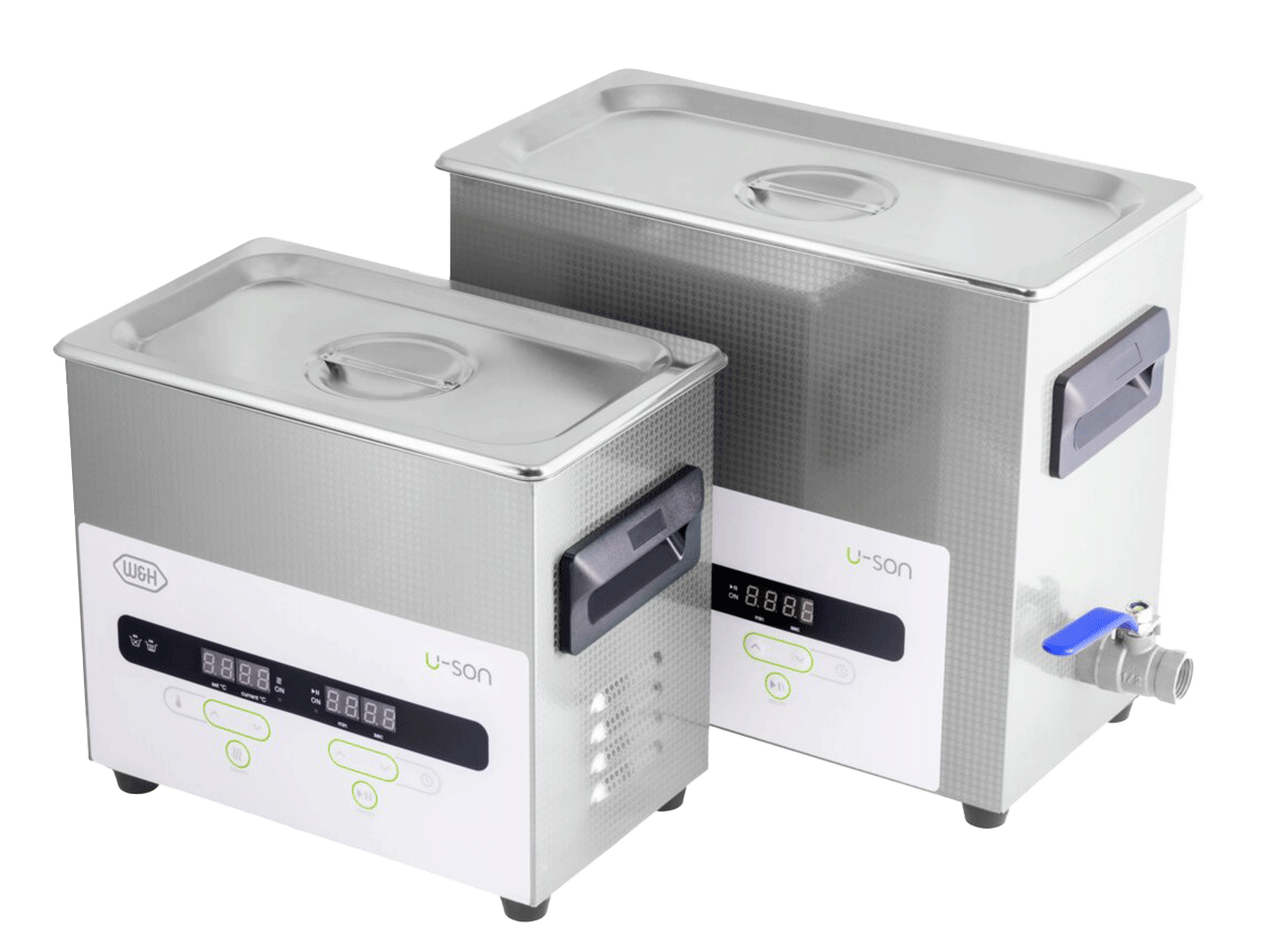

      Different needs require different solutions. That‘s why the U-Son device is available in two sizes for a capacity of either 3 litres or 6 litres.
      All according to the principle of simple and efficient handling.

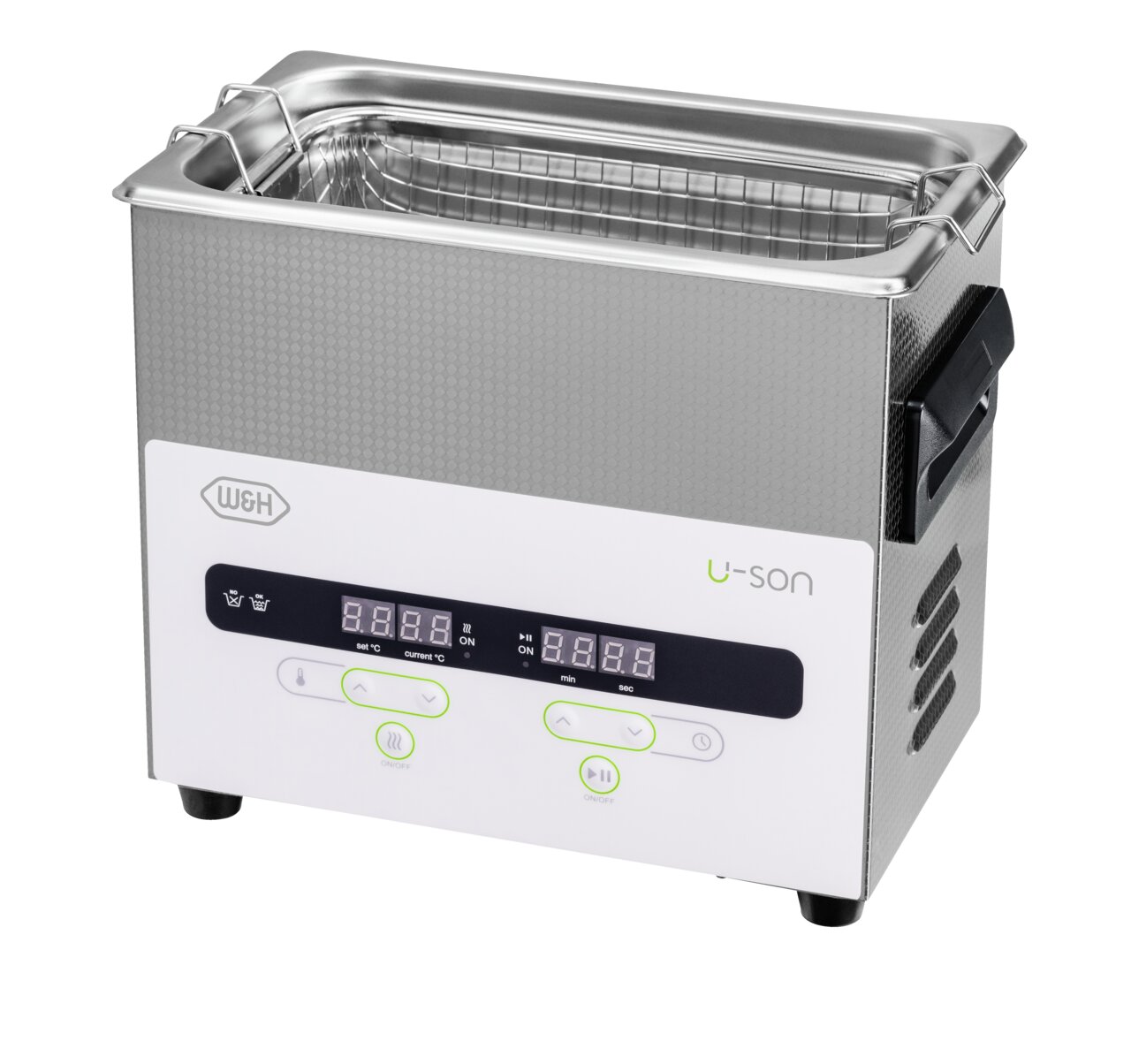

      U-Son 3 l device

      U-Son 3 l

      U-Son, 3 l
      REF 19600004

      Request price

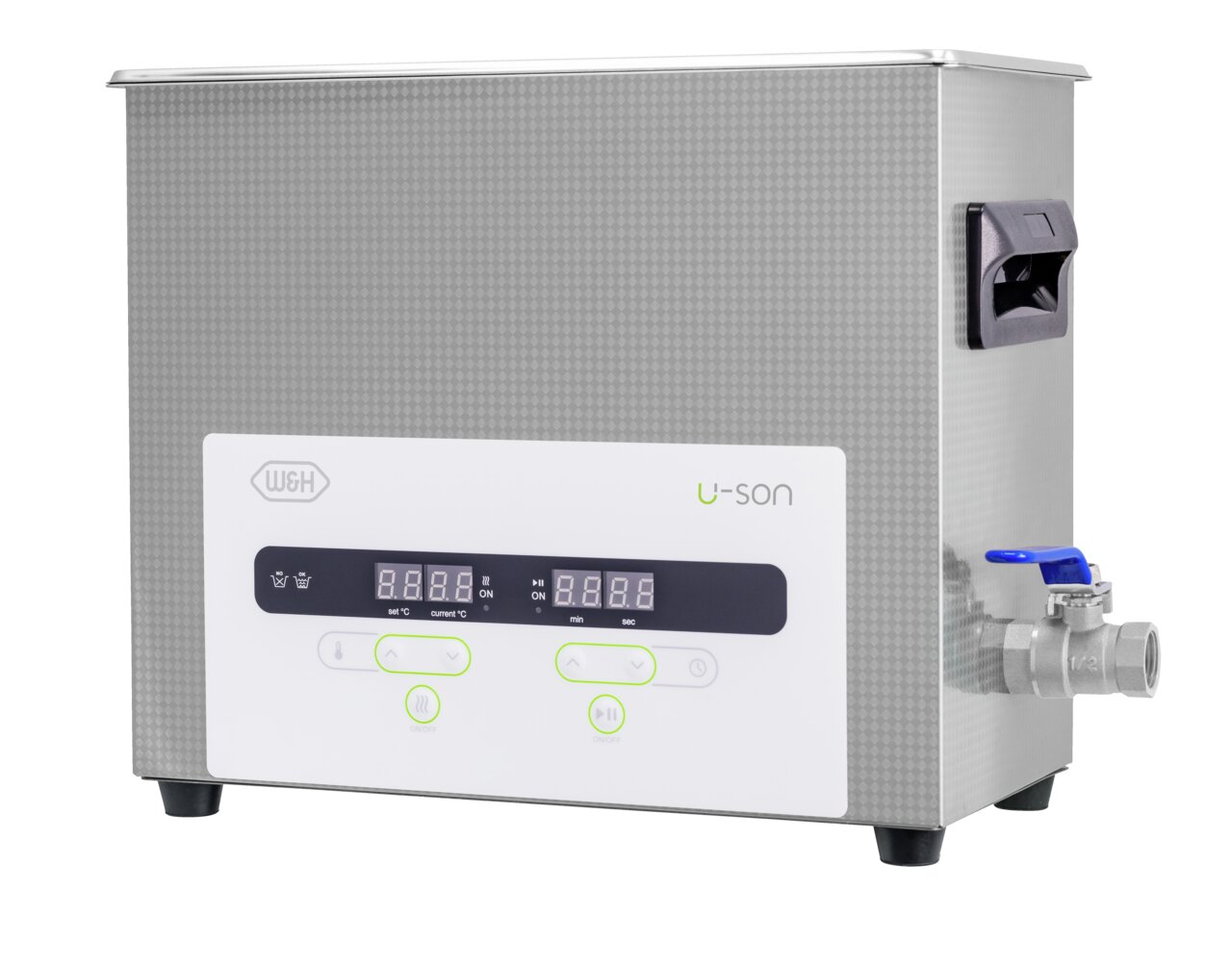

      U-Son 6 l device

      U-Son 6 l

      U-Son, 6 l
      REF 19600005

      Request price

      Download Area

      FAQ

      Downloads

      Instructions for use

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Service

    • U-Son

      Type: RIW-203 RIW-206
      Tank capacity: 3 litres 6 litres
      Recommended
      operating capacity:       		2.1 l 4.4 l
      Supply voltage: 230 V; 50/60 Hz
      Input power: 120 W 180 W
      Input power with heating: 100 W 200 W
      Weight (kg): 2.8 kg 4.7 kg
      Overall dimensions
      (w × h × d):       		265 × 220 × 165 mm 325 × 280 × 180 mm
      Tank dimensions
      (w × h × d):       		240 × 100 × 135 mm 300 × 150 × 150 mm
      Number of transducers: 2 3
      Ambient conditions: Temperature from 5 to 40°C; rel. humidity 80% up to 31°C with linear decrease up to 50% at 40°C
      Installation category: Class II according to IEC 61010-1
      Classification: 2017/745 Medical Device Regulation
      Class I, Non Active MD, Non Invasive MD, Non Implantable MD

      U-Son was designed, certified and validated in accordance with the most stringent directives and standards:
      2017/745
      Medical Device Regulation       		IEC 61326-1
      Electromagnetic compatibility       		IEC 61010-1
      Safety requirements

    Accessories & Consumables

    {{ foundItemsLength }} Accessories & Consumables
    show all

    Related products

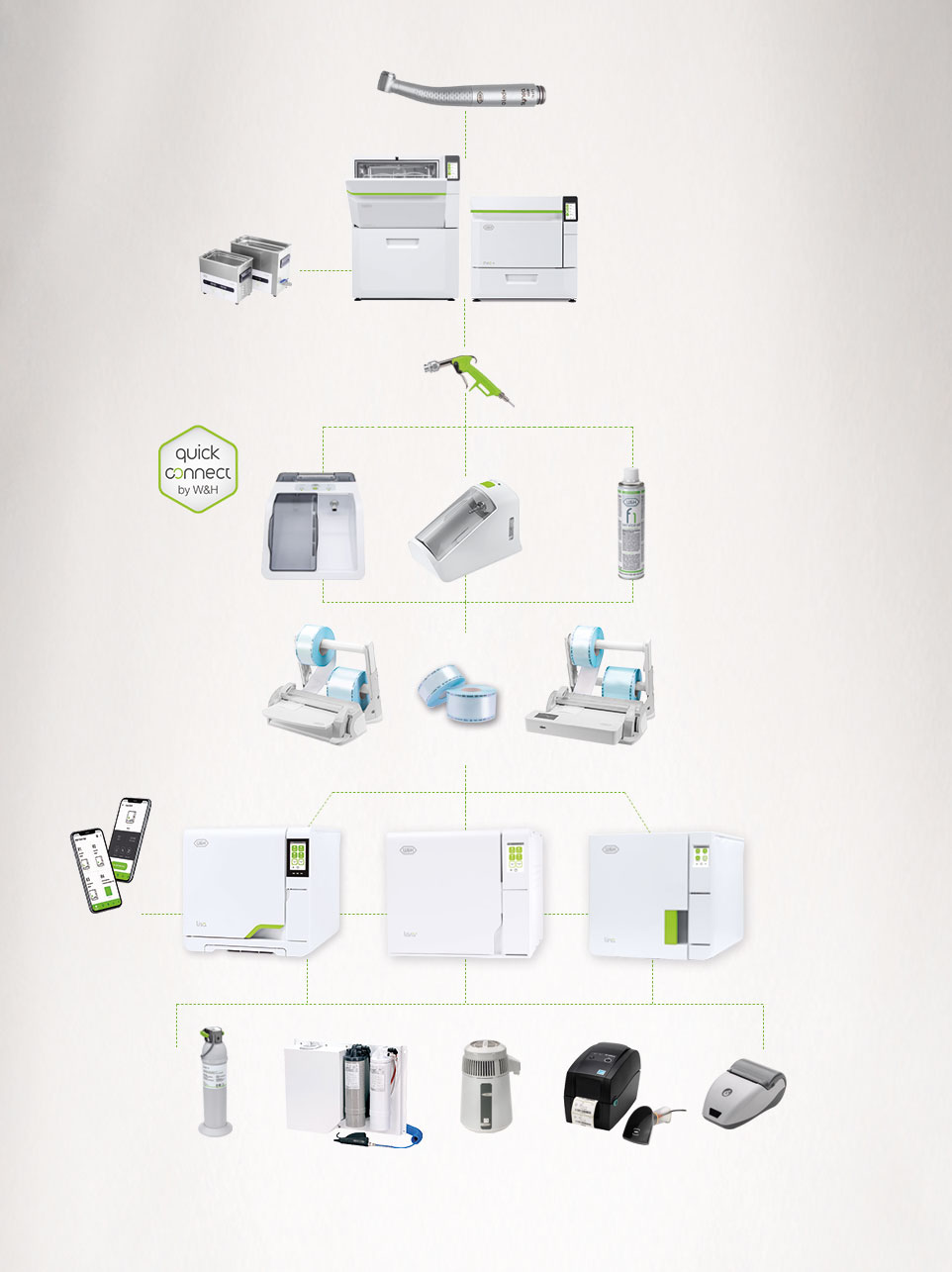

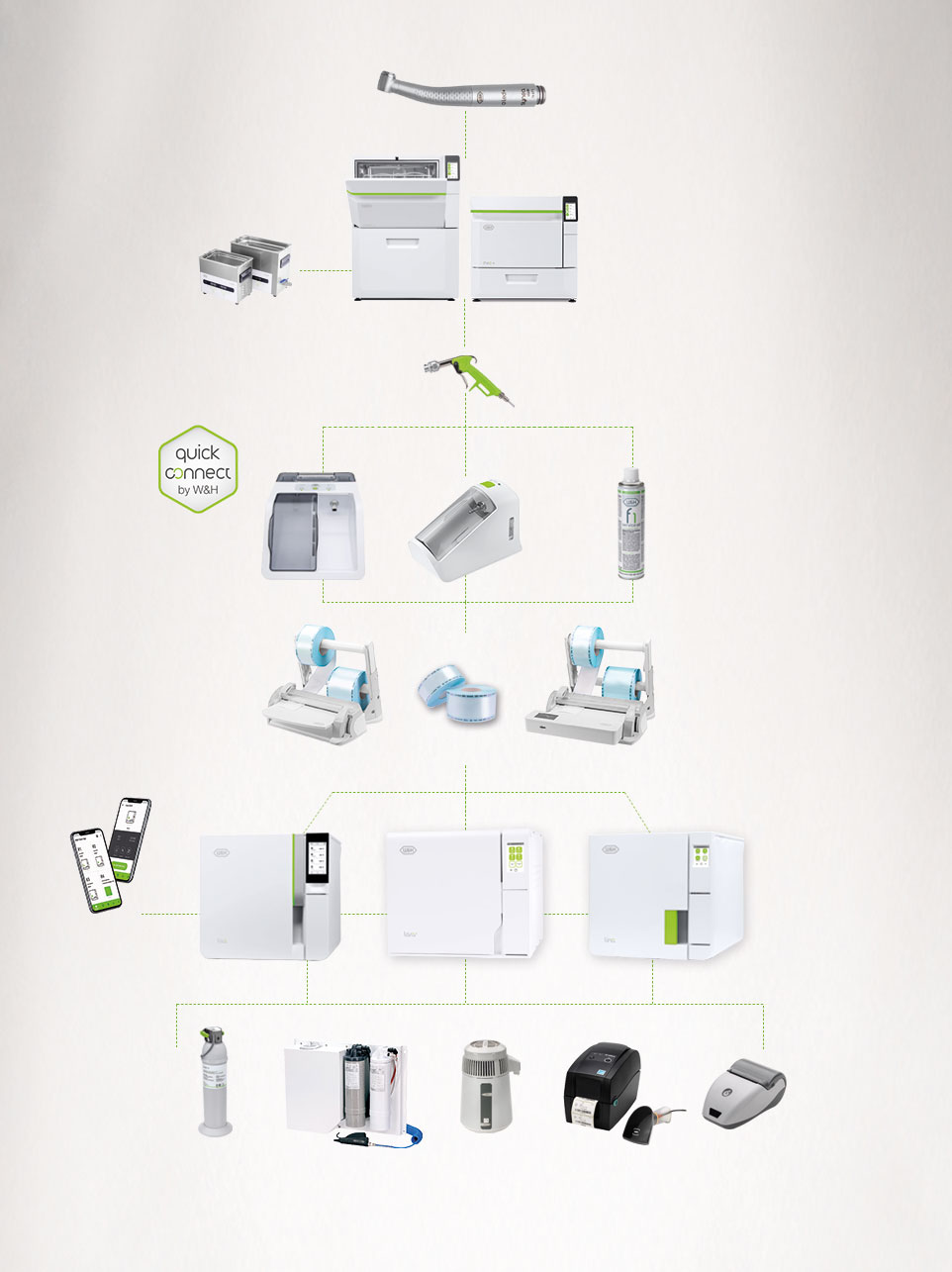

    W&H AIMS
