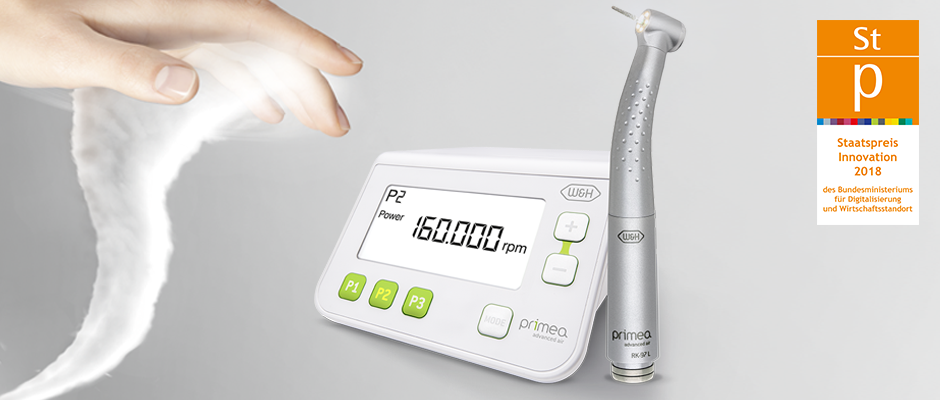

Primea Advanced Air turbine

We’ve harnessed air

The world’s first air-driven high-speed drive solution with an adjustable bur speed and constant removal rate, even with increasing pressure.

Work with the optimal application speed and maximum treatment efficacy through the unique symbiosis of power and ease for extra control combined with premium comfort.

Discover Product

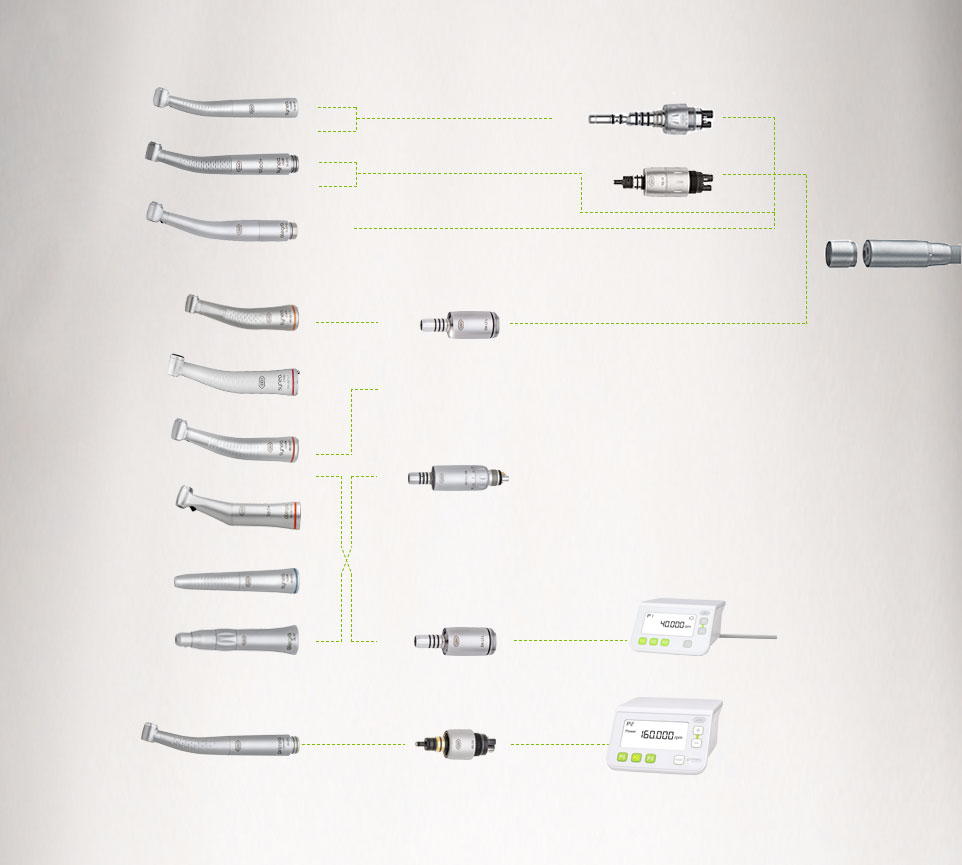

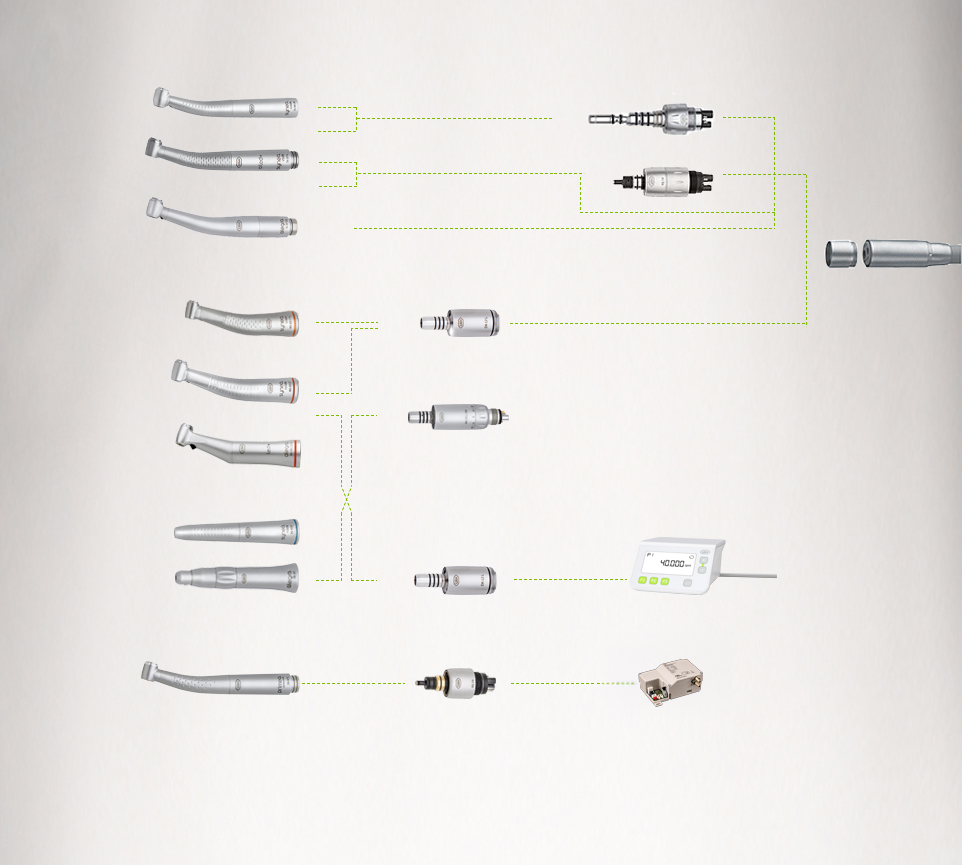

System Overview

- Adjustable bur speed

  Controlled preparation
  at constant speeds
- Optimal speed ranges

  Wide range of applications
- Advanced Air technology

  Loss of speed is a thing of the past

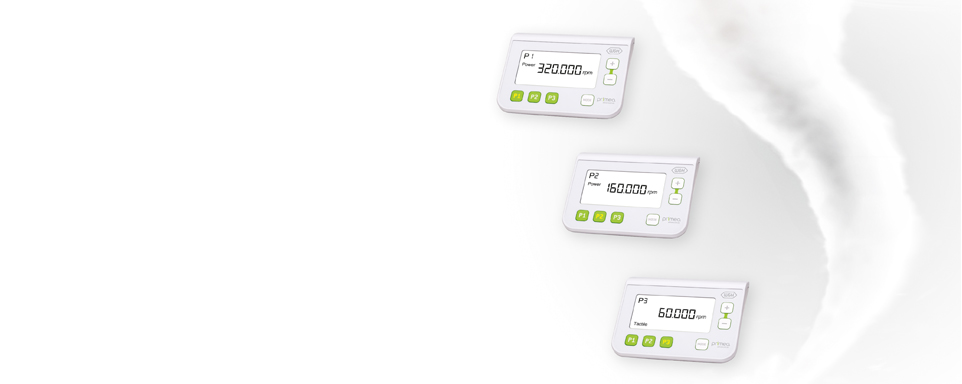

  Speed setting
  Speed check
  Speed regulation
- Built-in Solution

  It can be controlled simply and conveniently
  via your dental unit’s control panel
- Optimal speed

  Adjustable bur speed between 60,000 and 320,000 rpm

  Wide range of applications
  Controlled preparation
  Constant speeds
- Advanced Air technology

  Electronic air control

  Automatic power adjustment
  Constant removal rate
  Best tactile feedback

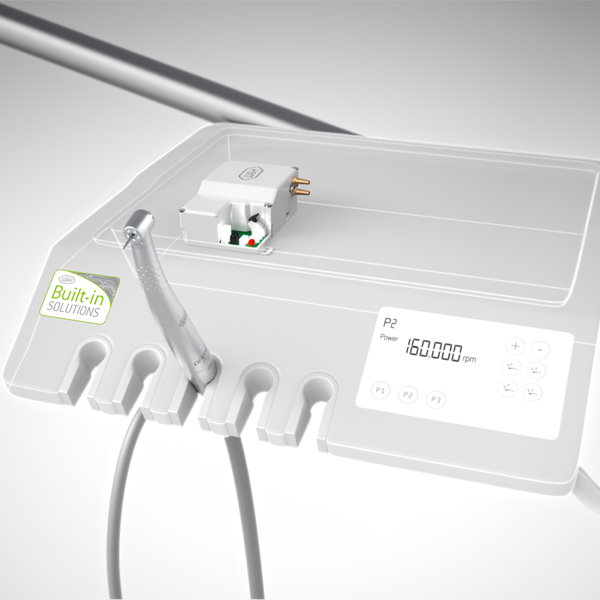

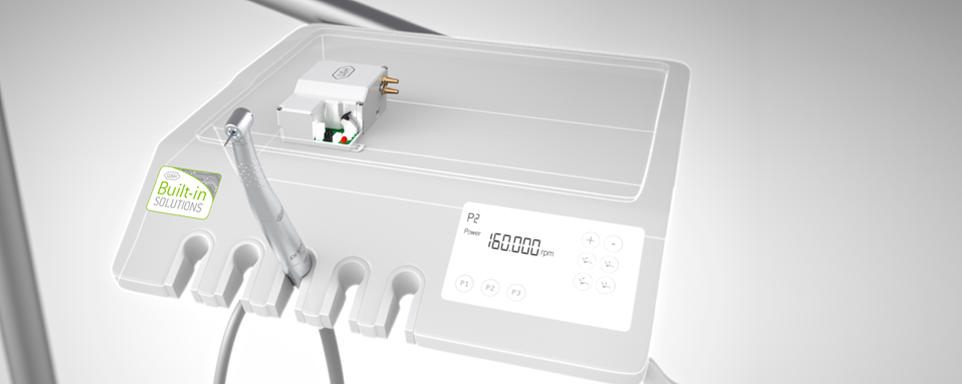

- Built-in Solution

  Fully integrated drive solution

  It can be controlled simply and conveniently via your dental unit’s control panel
It’s in your hands

You can always rely on Primea Advanced Air. It adapts to your personal preparation requirements and works together with you hand in hand.

You regulate the speed and benefit from maximum control. perfect combination, which represents a real competitive advantage for air driven dental units.

An interesting alternative to conventional turbines and red contra-angle handpieces for units with electric motors.
Your advantages at a glance
- Optimal view with 5x Ring LED+
- Perfect cooling thanks to 5x spray

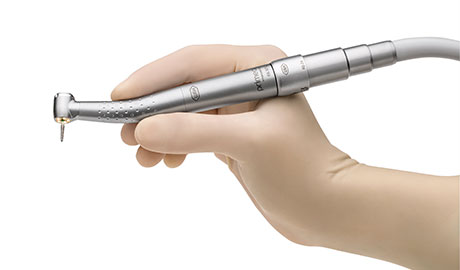

- Fatigue-free working thanks to ideal ergonomics and lightweight handpiece
- Best tactile feedback with quiet operation
- Value retention thanks to special scratch-resistant coating
- Added control thanks to non-slip grip profile
- Ultimate safety due to patented hygienic
  head system
- Maximum access thanks to small head
Patented hygienic
head system

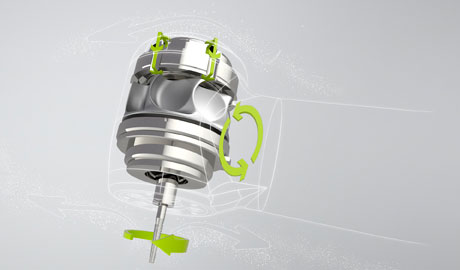

Patented hygienic head system

The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.

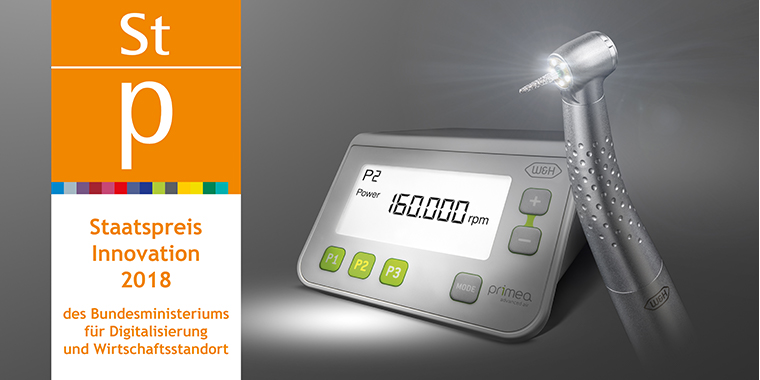

State prize winner 2018

State prize winner 2018

The State Prize for Innovation, awarded by the Federal Ministry for Digital and Economic Affairs.

Optimal speed

Without loss of speed

Built-in solution

Downloads

FAQ´s

Service

Accessories
- Wide range of applications

  Experience high-speed preparation

  Effortless opening of cavities, easy cutting of crowns and bridges, removal of old fillings at lightning speed and finishing of preparation margins with ultimate precision.

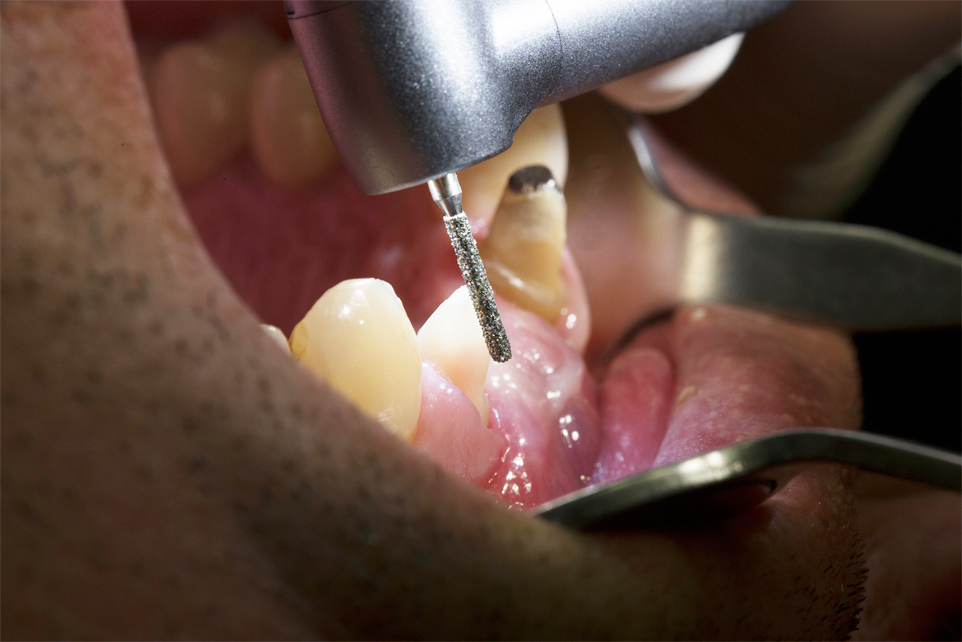

- Crown and cavity preparations

  Preparation of cavities and crowns with minimal effort

  The constantly high bur speed of 320,000 rpm allows efficient, controlled and precise performance of high-speed tasks.

  You cannot only open cavities effortlessly, but also shape crown preparations safely and guarantee effective treatment.

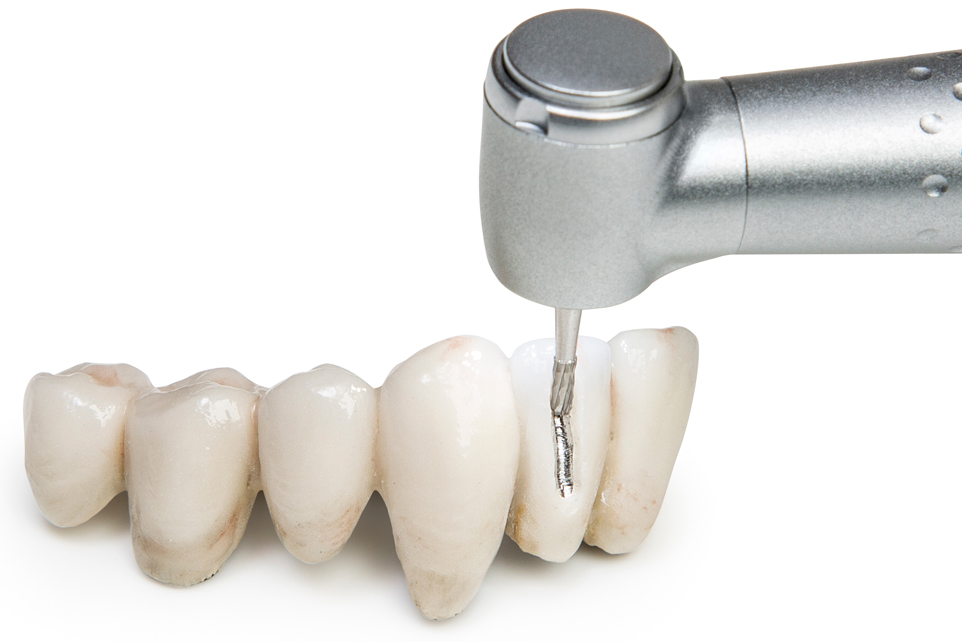

- Cut crowns and bridges

  Cut crowns and bridges faster

  Whether ceramic or metal, the removal and cutting of extremely robust, indirect restorations is a mighty challenge for the dentist and instrument alike.

  The Primea Advanced Air allows you to set the recommended speed for the specific instruments and enjoy optimal, constant removal rate.

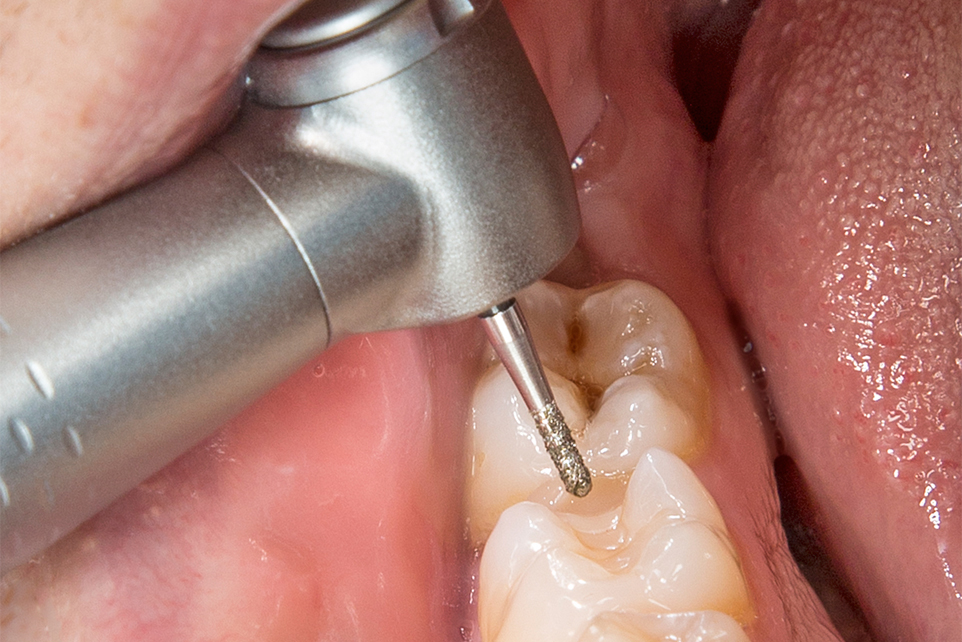

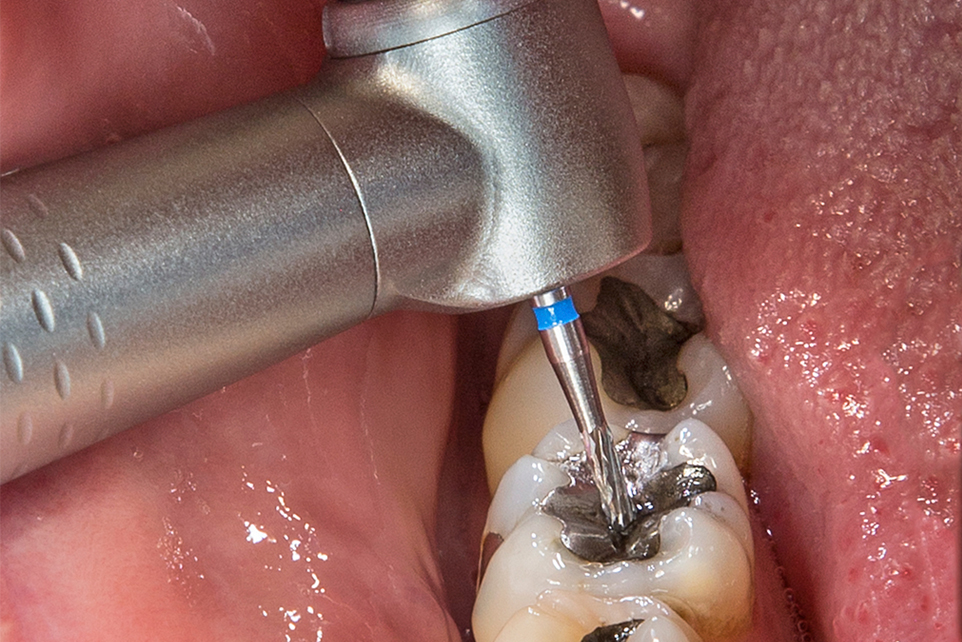

- Remove fillings

  Remove fillings safely and efficiently

  From A for amalgam to C for composite to Z for zirconium dioxide: the Primea Advanced Air allows you to remove old fillings quickly and safely. The optimal ratio of minimum heat development to high removal rate is achieved at a speed of 160,000 rpm.

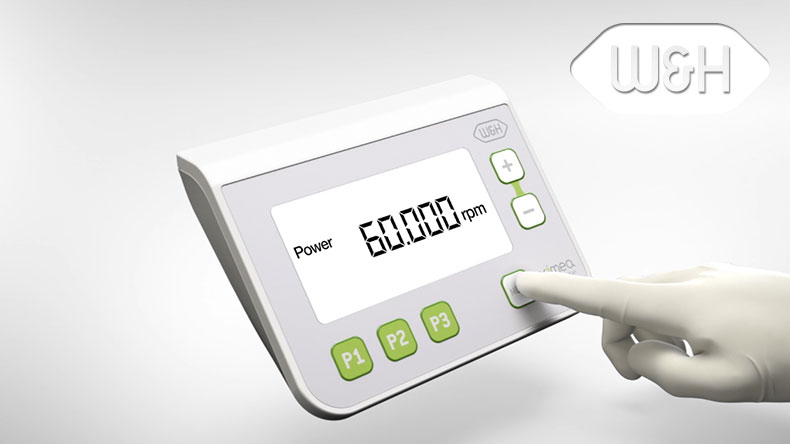

- Controlled finishing

  Controlled finishing

  With the Primea Advanced Air you can perform this sensitive step with a constantly low bur speed of just 60,000 rpm.
  This allows you to profile the preparation surface even more minimally invasively and finish the preparation margins with even more control than with a classic turbine handpiece.
Controlled and precise performance of high-speed tasks

“With the Advanced Air technology I can significantly reduce the treatment time of my patients.”

Dr. James Klim,
Santa Rosa, CA, USA
- Advanced Air technology

  Advanced Air technology

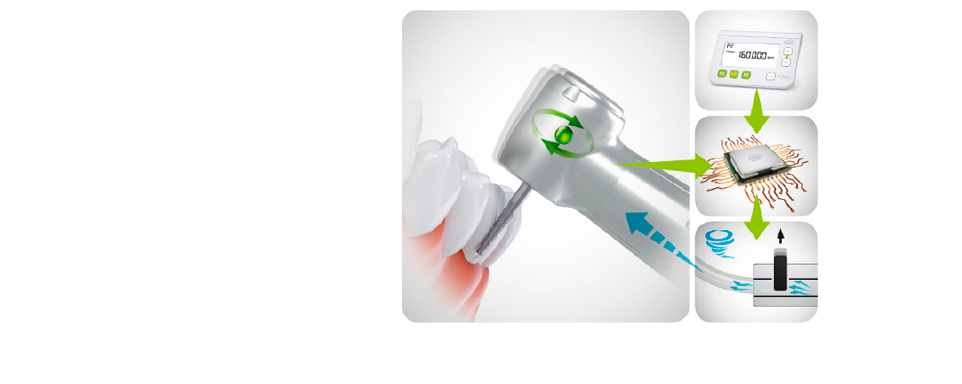

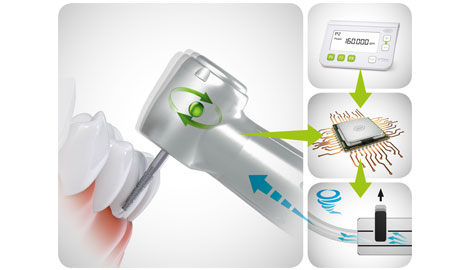

  With the Advanced Air technology, loss of speed is a thing of the past. A sensor in the head of the turbine measures the actual rotation speed of the bur on the tooth constantly. As soon as the speed threatens to slow, the control module adjusts the air supply immediately so as to ensure the constant removal of tooth structure.
- Automatic power adjustment

  Air control

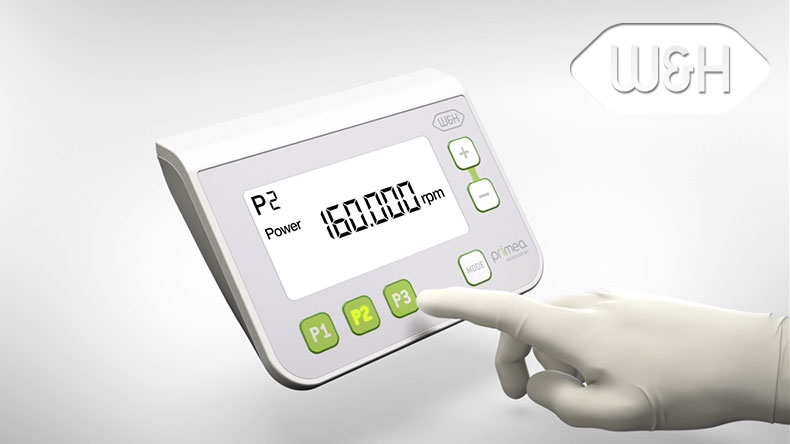

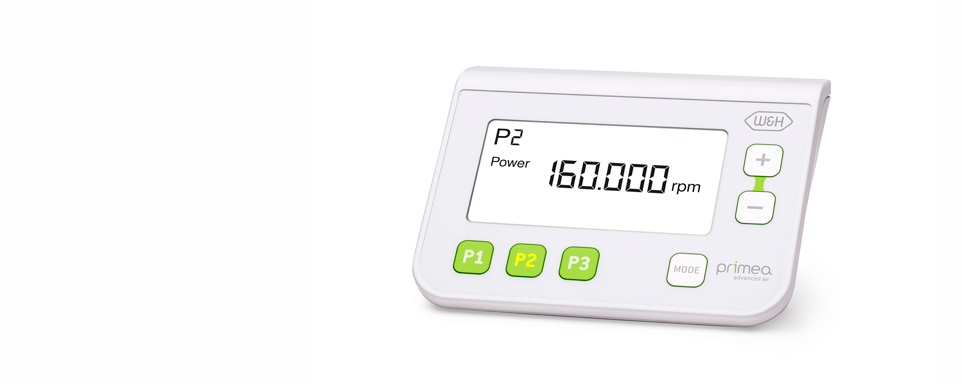

  Speed setting

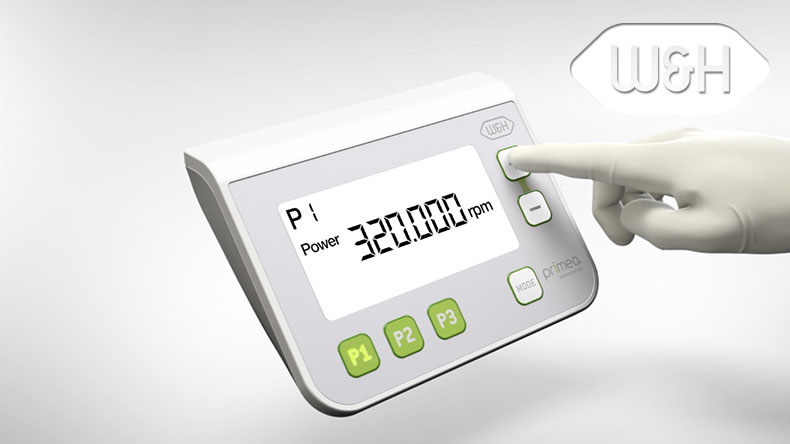

  You can set the required/recommended bur speed for the respective application on the display.

  Speed check
  The speed actually measured in the bur head is checked against the set speed.

  Speed regulation
  If the actual speed deviates from the set value, the air supply is accordingly adjusted immediately.
- Tactile feedback

  Additional function: operating mode

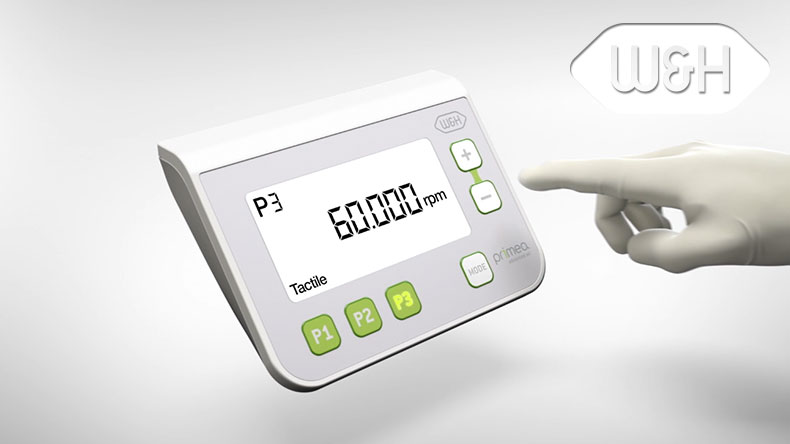

  Whilst the set speed is always maintained constant under increasing pressure in »Power« mode, »Tactile« mode permits reduction of the speed. This makes it possible to perform sensitive steps with even more control and even more minimally invasively.

  Standard turbine (RK/RG-97 L Power Mode)
  Primea Advanced Air System (RK/RG-97 L Power Mode)
  Primea Advanced Air System (RK/RG-97 L Tactile Mode)

  * Measured parameters: Bur: 836KR 314 016, depth: 3 mm (half cutting part length), Feed in: 0.8 mm (half cutting part diameter),
  material: marble, TK-98 L: 3 bar, RG-97 L: 320 krpm, chip air: 2 bar, water: 1.5 bar, all pressure measurements taken directly at RQ-24 coupling

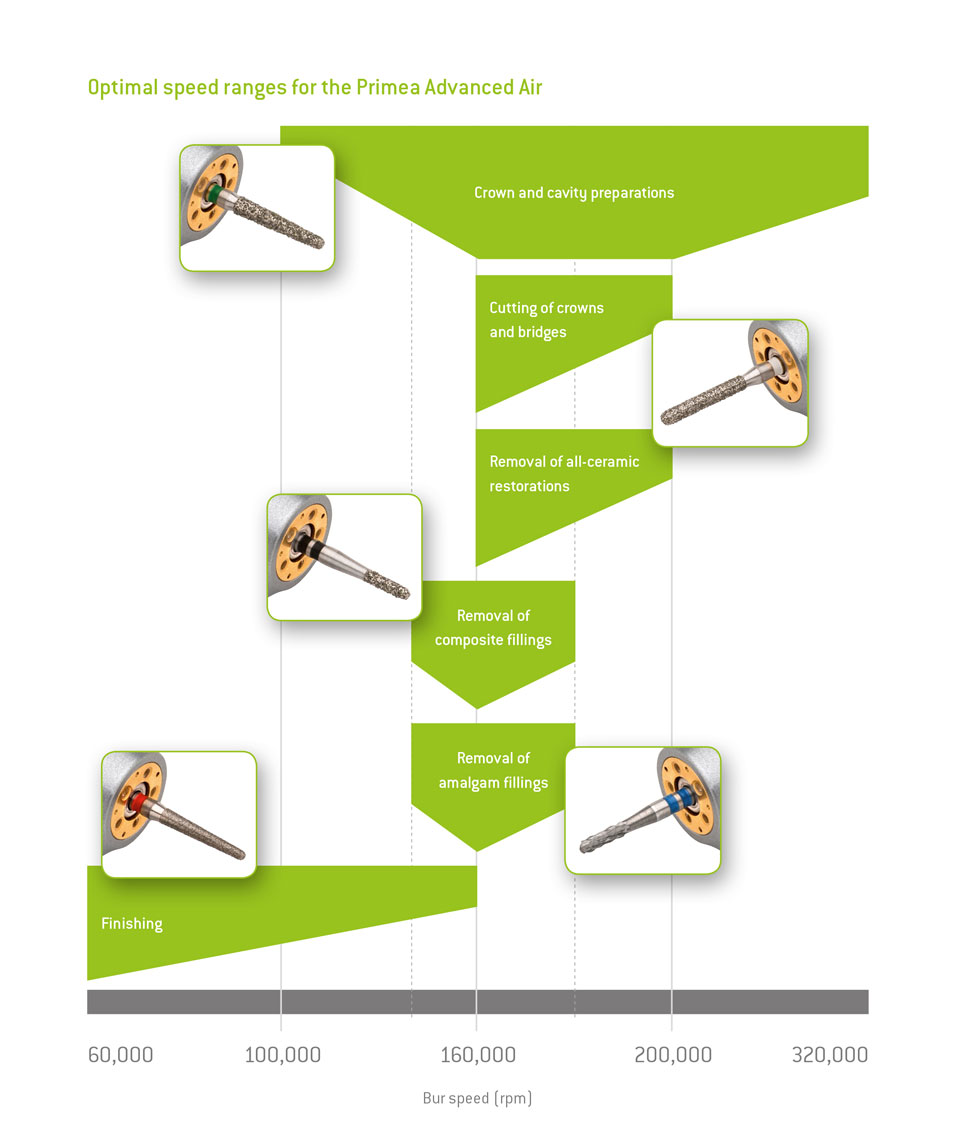

Optimal speed ranges

Crown and cavity preparations

Bur speed 320,000 rpm: Effortless opening of cavities Shape crown preparations safely

Cutting of crowns and bridges

Removal and cutting of extremely robust, indirect restorations made of ceramic or metal

Removal of amalgam fillings

Bur speed 160,000 rpm: From A for amalgam to ...

Removal of composite fillings

...C for composite to Z for zirconium dioxide remove old fillings quickly and safely

Finishing

Bur speed 60,000 rpm: Profile the preparation surface more minimally invasively Finish the preparation margins with even more control

Primea Advanced Air turbines

Tactile feedback

“I love the tactile feedback. I feel the smallest imperfections on the tooth and can thus increase the quality of my work.”

Dr. Christian Müller,
Salzburg, Austria

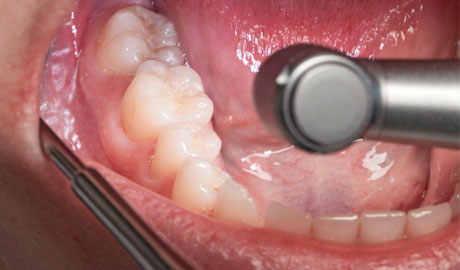

Ring LED+

Shadowless illumination

The 5x Ring LED+ offers an
optimal view of the treatment
site with perfect contrasts.

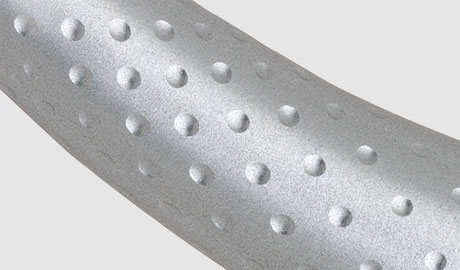

Scratch-resistant coating

Extraordinary value retention

Everyday like new with the special,
scratch-resistant coating.

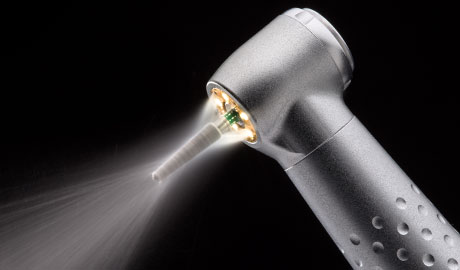

Optimum cooling

Optimum cooling

Thanks to the 5x spray the bur tip is optimally cooled
in every application position.

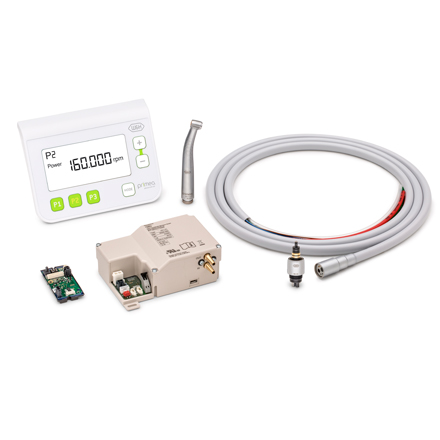

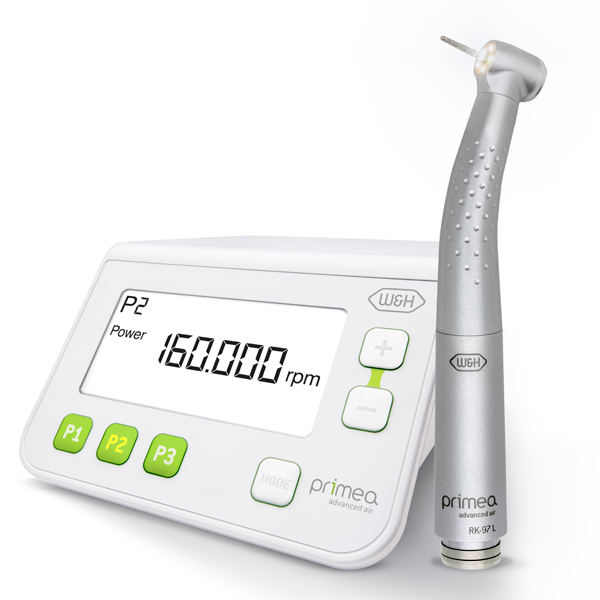

Primea Advanced Air Built-in Set

with display D-2.0 A

Built-in Set
REF 90000141

consists of:
> AC-1.0 Advanced Air Controller +
AD-1.0 Analog-digital converter
> Supply hose VA-6
> Air supply hose Ø 8 mm
> 2 connection sets
(pneumatic and electric)
> RQ-24
> RG-97 L
> Display D-2.0 A

Request price

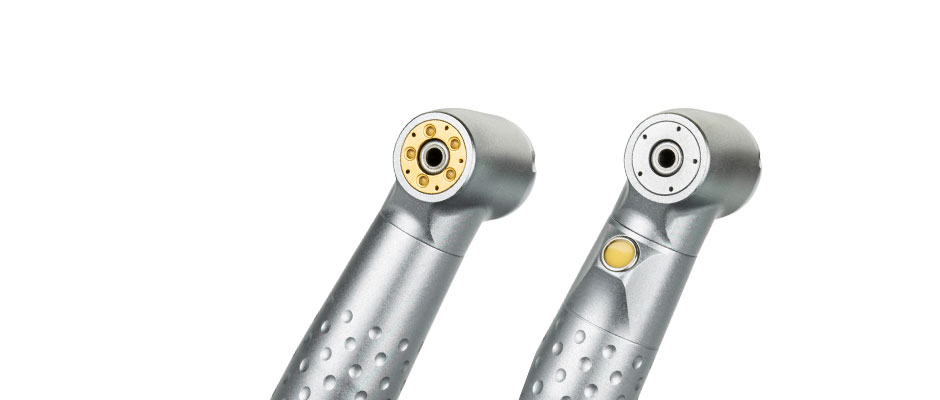

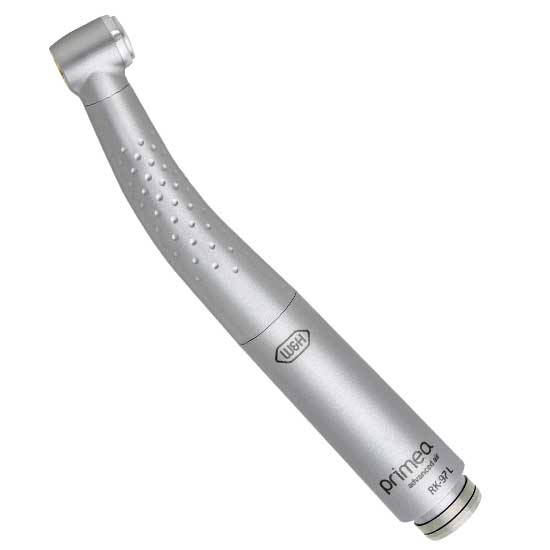

Primea Advanced Air turbine RK-97 L

5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mm

RK-97 L
REF 30221000

Ring LED+, ceramic ball bearings,
coupling system Roto Quick

Request price

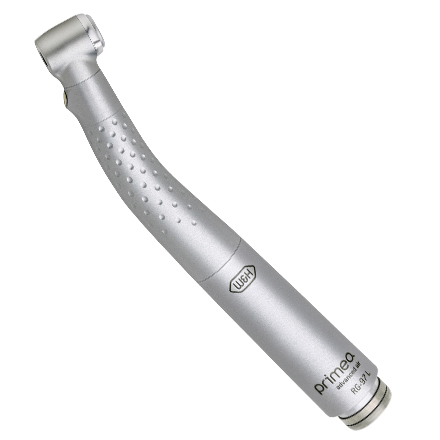

Primea Advanced Air turbine RG-97 L

5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mm

RG-97 L
REF 30222000

LED+, ceramic ball bearings,
coupling system Roto Quick

Request price
Download Area
FAQ
more
Downloads

Brochure

Instructions for use
Primea turbines

Instructions for use D-2.0 A

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Primea Advanced Air turbines

Type:	RK-97 L	RG-97 L
Speed range as Advanced Air turbine (± 30.000 rpm):	60,000 – 320,000 rpm
Maximum power as Advanced Air turbine (Add-on):	27 W at 5.5 bar
Maximum power as Advanced Air turbine (Built-in):	30 W at 5.9 bar
Speed range as standard turbine (± 30.000 rpm):	400,000 rpm
Maximum power as standard turbine:	21 W
Head with bur:	Ø 10 mm
Head height with bur (19 mm):	21.1 mm
Weight:	39 g
Noise level:	57 dB (A)
Rotary instruments: Maximum working part diameter: Maximum permissible length:	FG bur Ø 1.6 mm, compliant with ISO 1797 2 mm 21 mm

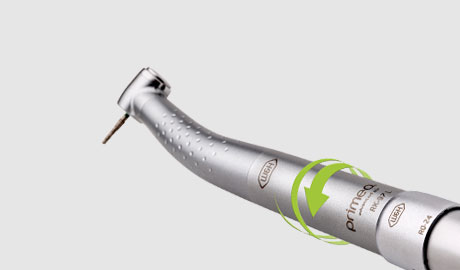

Coupling:	Roto Quick
Light:	Ring LED+	LED+
Illuminating power:	25,000 Lux
Spray:	5x
Ball bearing:	Ceramic
Warranty:	24 months	12 months
