RC at your fingertips
The W&H RC Series also includes high-quality straight and contra-angle handpieces. These provide excellent price
to performance ratios and can be easily converted to Exco handpieces using the RC-E spray kit.Your advantages at a glance
- Solid components
- Long lifespan
- Short and lightweigt
- Improved visibility
- Robust and flexible chucking system

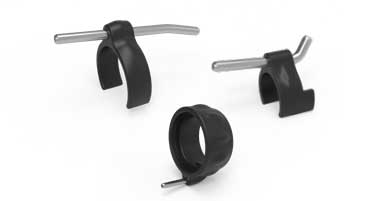

RC-E spray-clip kitTransform RC to RC E
The RC E spray-clip kit
(including spray clips) is an
easy-to-locate and economical
tool to transform any RC handpiece
into an RC Exco handpiece.

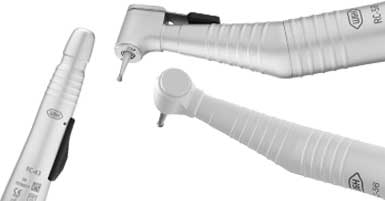

Comfortable handlingGuarantees a perfect application
RC contra-angle handpieces impress thanks to
their improved visibility and comfortable handling and help to reduce fatigue, even during longer treatments.
Like the turbine and contra-angle handpieces,
the RC-43 straight handpiece offers a robust and flexible chucking system.

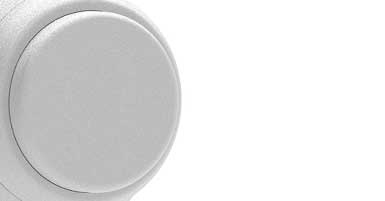

Push-button chuck systemPush-button chuck system
The push-button chuck system guaranties
easy, comfortable and secure bur change.

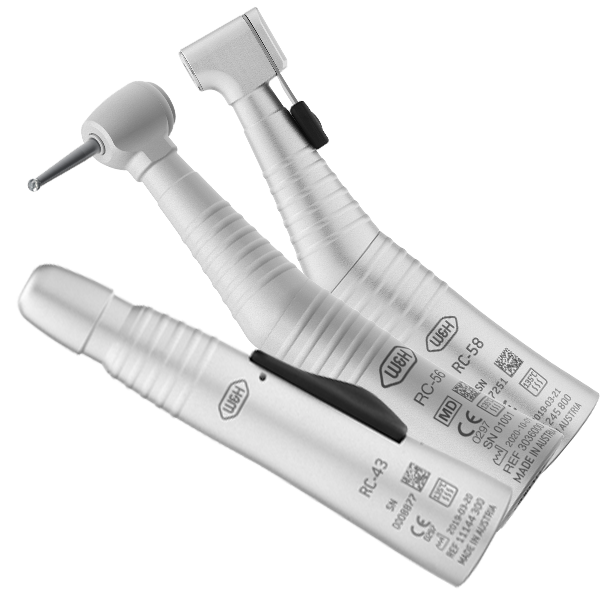

RC Straight & Contra-angle Handieces & Air motors
![RC-58]( "RC-58")

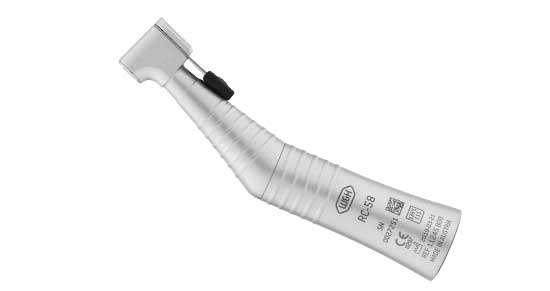

RC-58
Contra-angle handpiece 1:1,
25,000 rpm,
lever chuck,
for contra-angle burs Ø 2.35 mmRC-58
REF 11245800RC contra-angle handpiece
![RC-43]( "RC-43")

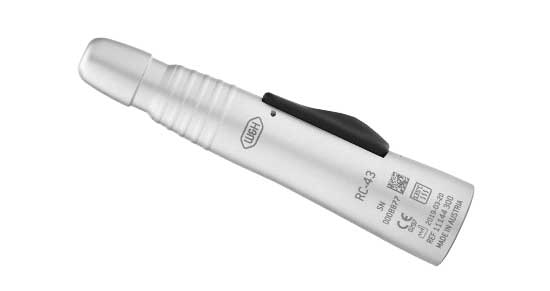

RC-43
Straight handpiece 1:1,
25,000 rpm,
lever chuck,
for contra-angle burs Ø 2.35 mmRC-43
REF 11144300RC straight handpiece
![RC-20]( "RC-20")

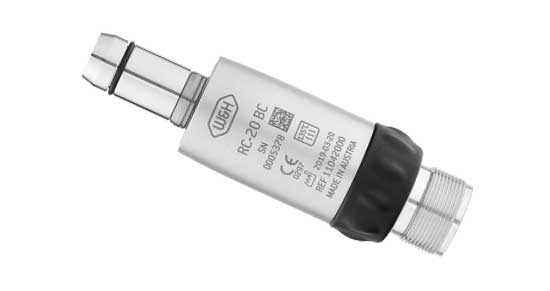

RC-20
Air motor,
30 W, 4 Ncm, 20,000–25,000 rpm,
additional option of adding an external sprayRC-20 RM
REF 11042001Coupling system Ritter Midwest
Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
RC Straight & Contra-angle handpieces
Types: RC-58 Transmission ratio: 1:1 Motor coupling: ISO 3964 Rotary instruments EN ISO 1797-1: Ø 2.35 mm Max. speed (rpm): 25,000 Chucking system: lever chuck RC Air motor
Types: RC-20 BC Connection on the hose side (ISO 9168): Borden 2/3-hole/Ritter Midwest Motor coupling: ISO 3964 Speed range at 2.2 bar– 3bar (rpm): 20,000–25,000 Stationary torque (Ncm): 4 Max. power (W): 30
