* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available

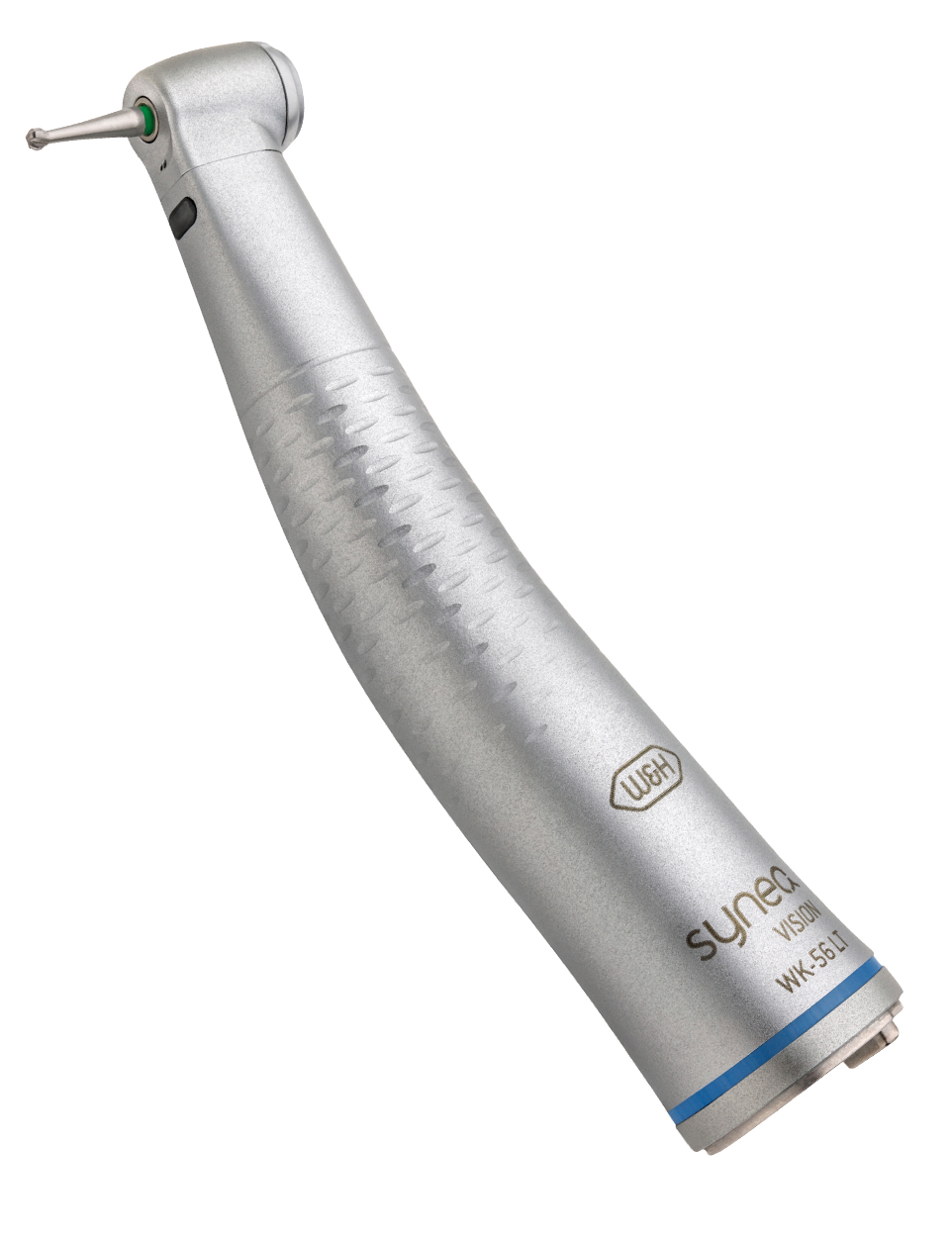

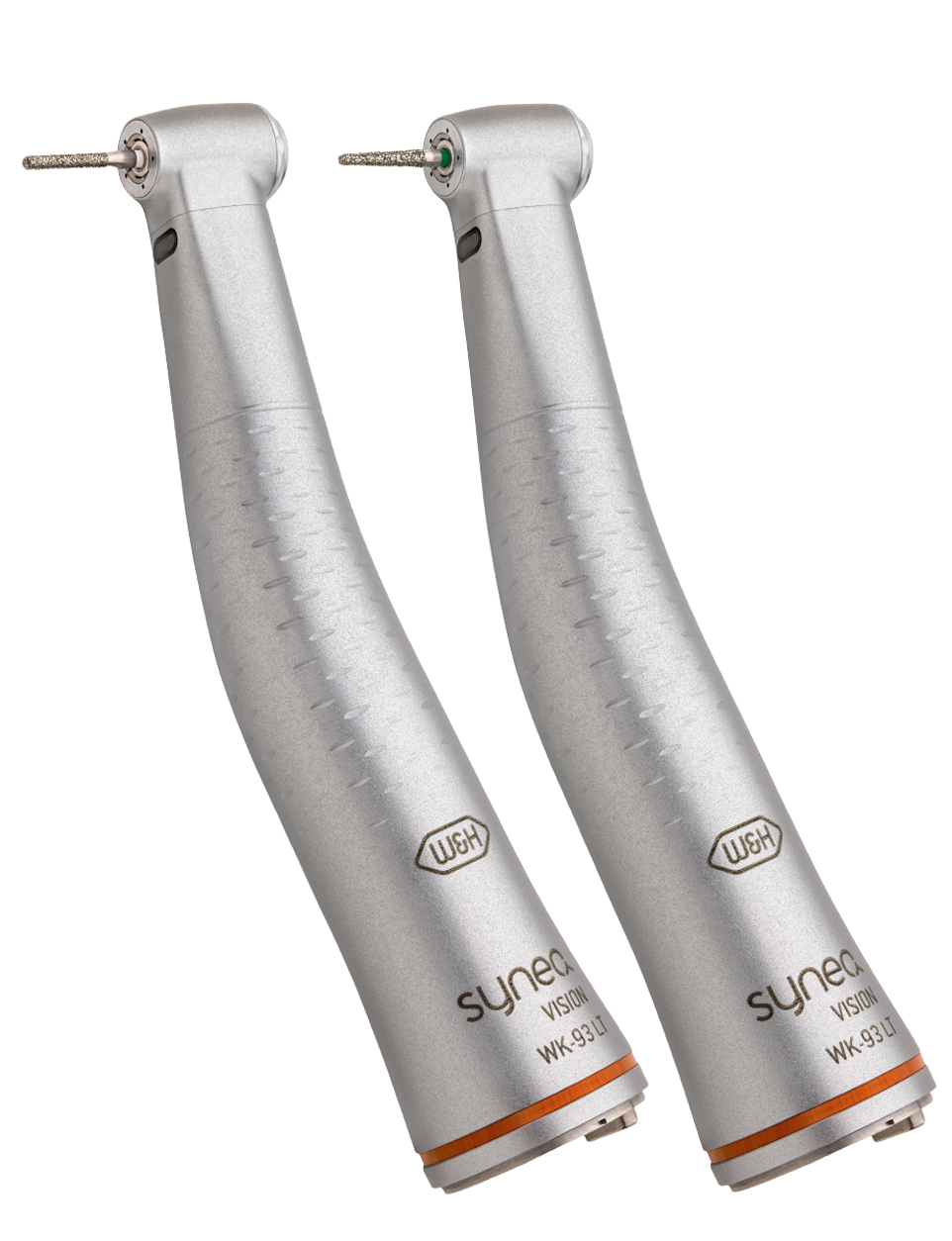

*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.
-

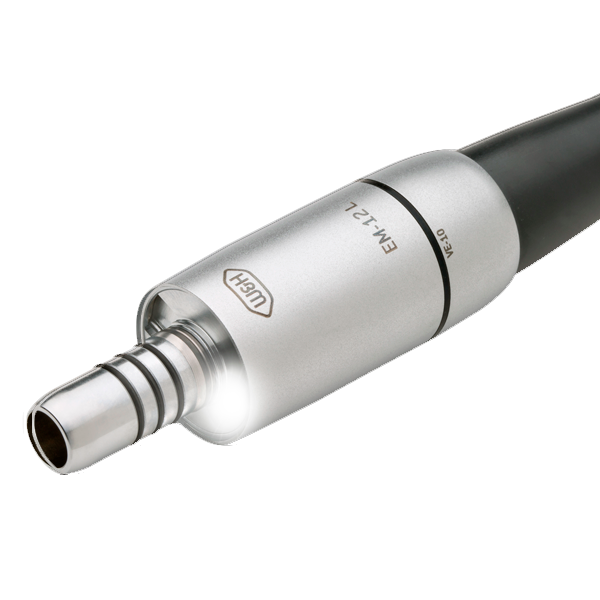

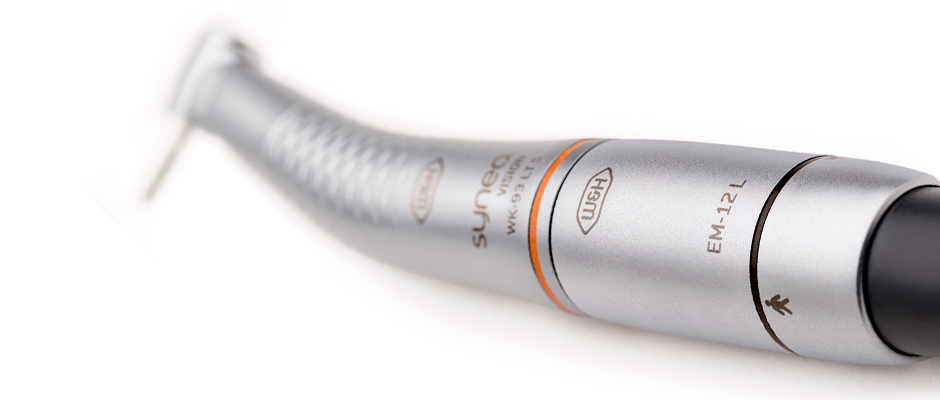

Perfect balance of
performance and ergonomicsIt is particularly small and surprisingly light,
is comfortable to hold and in addition to the consistent high power, also scores extra points with its features such as LED technology, long service life and quiet operation.Your advantages at a glance
- Particularly small
- Optimally balanced
- 25% lighter, 15% shorter

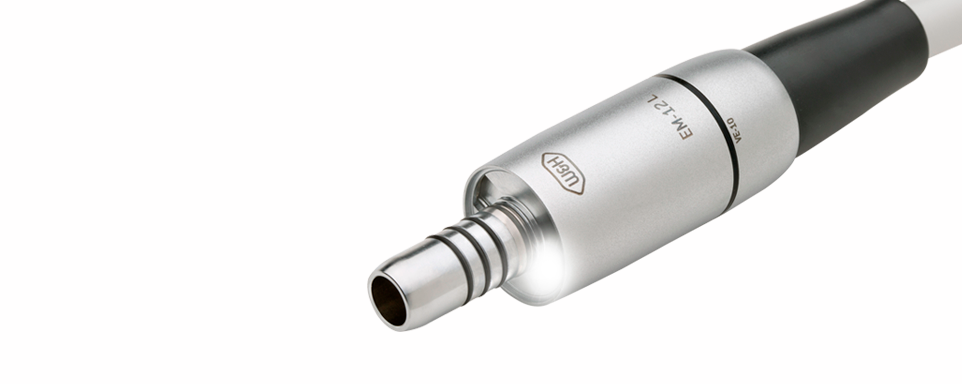

- LED technology

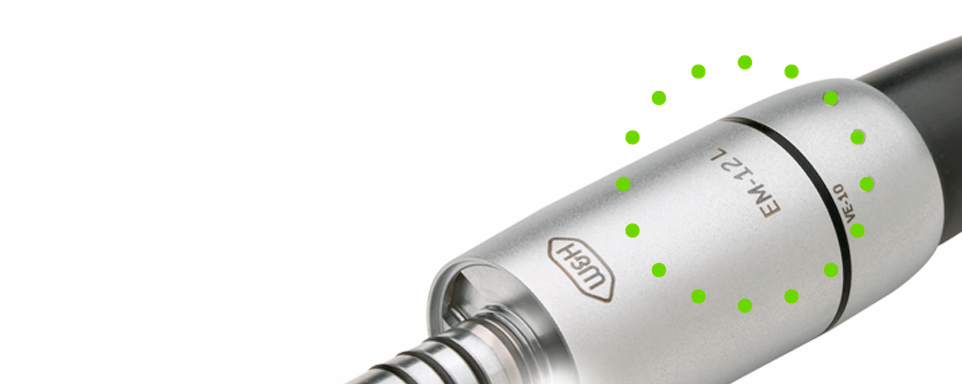

- Constantly high power

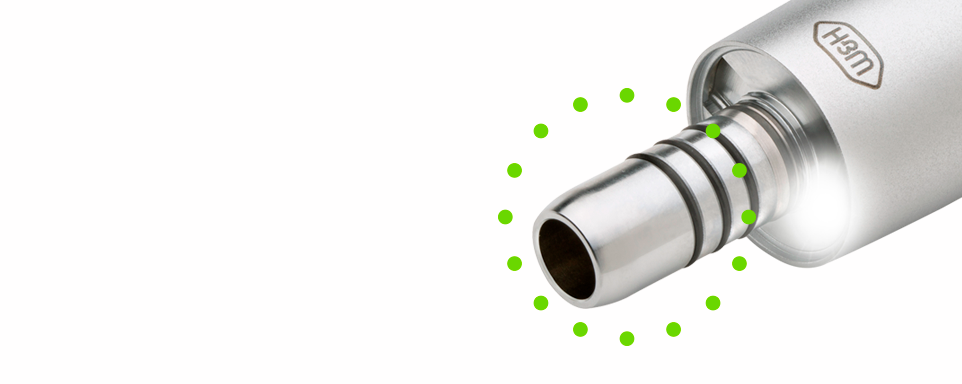

- ISO Short coupling
- Low maintenance and preserved value
- Quiet and low vibration
Low maintenanceLow maintenance and preserved value
The long-lasting brushless drive means reduced service and maintenance costs combined with increased service life.
Quiet
Sensor-controlled drive technology makes it particularly quiet and largely free from vibration.

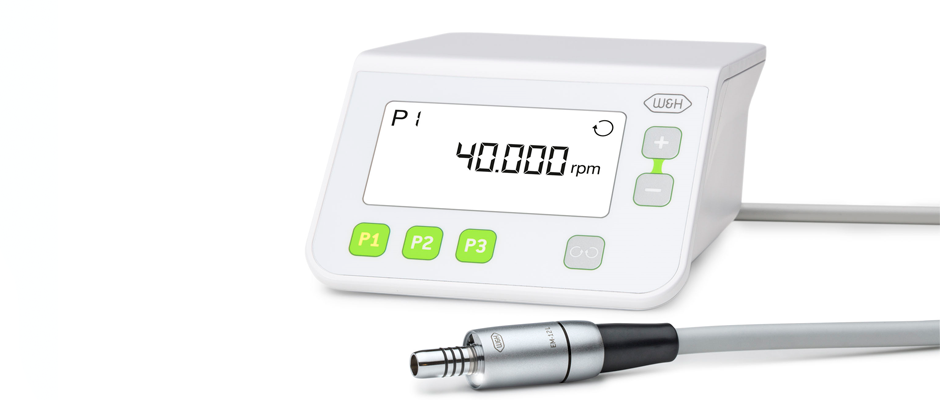

![Electric motor MF-100]( "Electric motor MF-100")
Electric motor MF-100
> Add-on
> Power supply unit

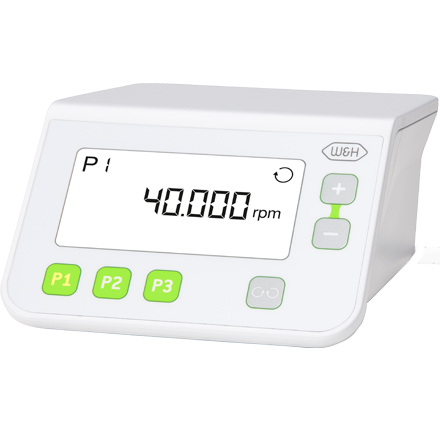

MF-100
REF 30241000Control unit for 100 – 240 V
![EM-12 L]( "EM-12 L")

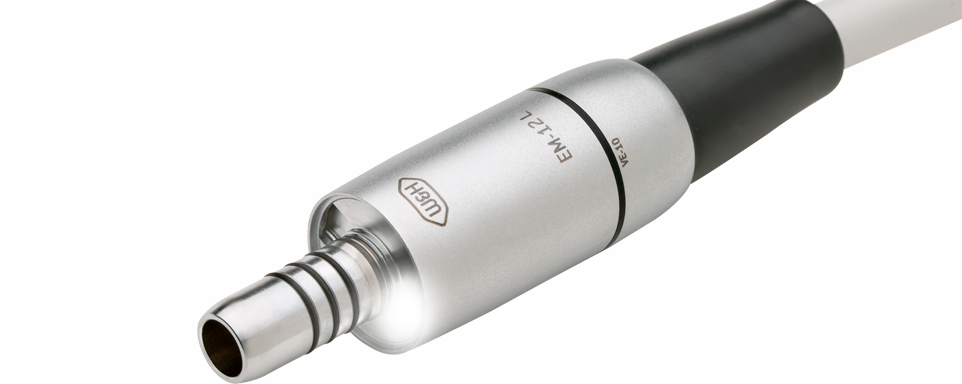

EM-12 L
Electric motor
EM-12 L
REF 30178000Electric motor
Download Area
FAQ
- How do I connect the EM-12 L electric motor to my unit as an Add-on?
- Which contra-angle handpiece series is recommended for the EM-12 L electric motor?
- Can I sterilize my EM-12 L electric motor in a sterilizer?
- Should I always call my W&H service partner in advance before sending devices/instruments in for repair?
- What is a brushless electric motor and what benefits does it offer me as a user?
- Does the electric motor need to be lubricated with oil?
- Does the Add-on version of the EM-12 L electric motor require maintenance?
- Does the Built-in version of the EM-12 L electric motor require maintenance?
- Can my EM-12 L electric motor be reprocessed in a thermo washer disinfector?
- How can I integrate the EM-12 L electric motor into my unit as a Built-in version?
-
-
Perfect balance of
performance and ergonomicsIt is particularly small and surprisingly light,
is comfortable to hold and in addition to the consistent high power, also scores extra points with its features such as LED technology, long service life and quiet operation.Your advantages at a glance
- Particularly small
- Optimally balanced
- 25% lighter, 15% shorter
- LED technology
- Constantly high power
- ISO Short coupling
- Low maintenance and preserved value
- Quiet and low vibration

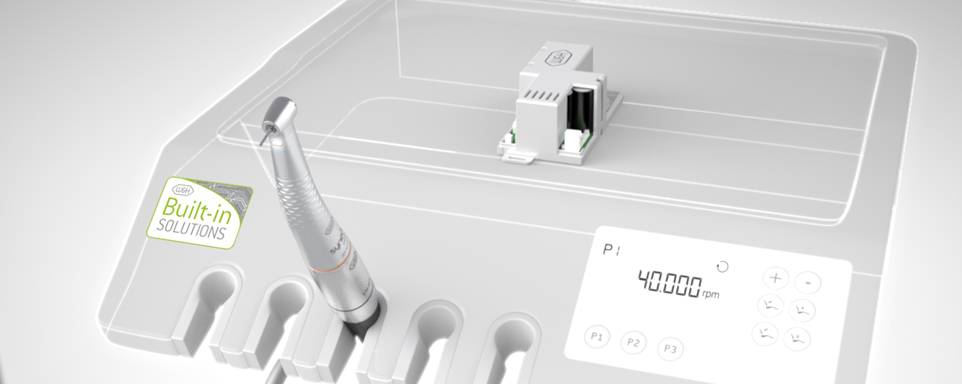

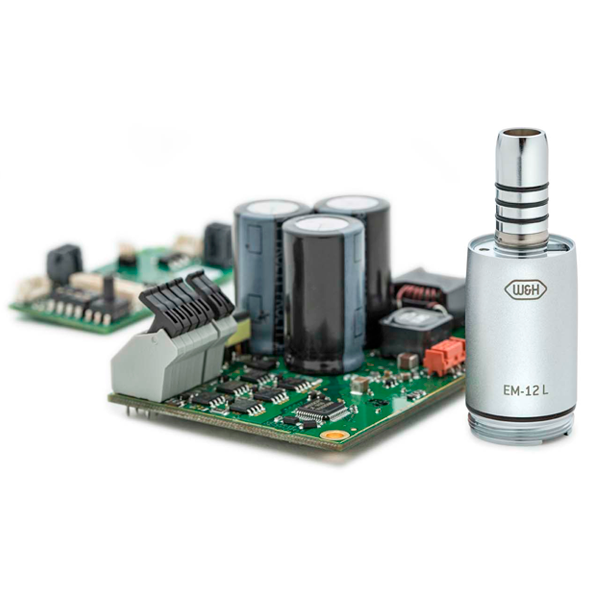

An ingenious systemBuilt-in Solution
Selected unit manufacturers offer the W&H EM-12 L electric motor as a fully integrated drive solution within the scope of a complete system. It can be controlled simply and conveniently via your dental unit’s control panel. Ask W&H or your unit manufacturer about the EM-12 L as a Built-in Solution.
Low maintenanceLow maintenance and preserved value
The long-lasting brushless drive means reduced service and maintenance costs combined with increased service life.
Quiet
Sensor-controlled drive technology makes it particularly quiet and largely free from vibration.
Restoration & Prosthetics

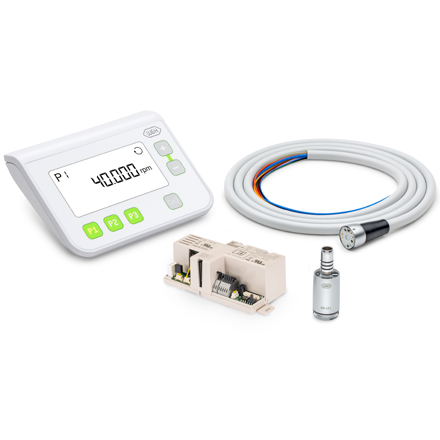

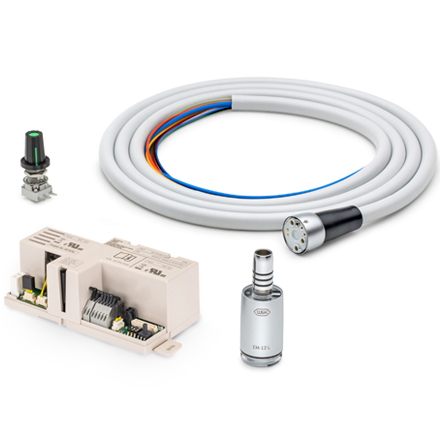

![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)Electric motor EM-12 L
REF 90000138analog control knob

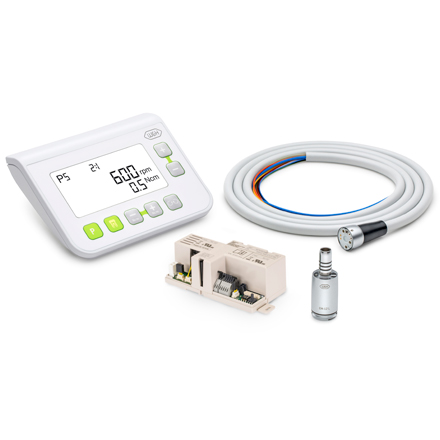

![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)
Electric motor EM-12 L
REF 90000245analog Display Basic

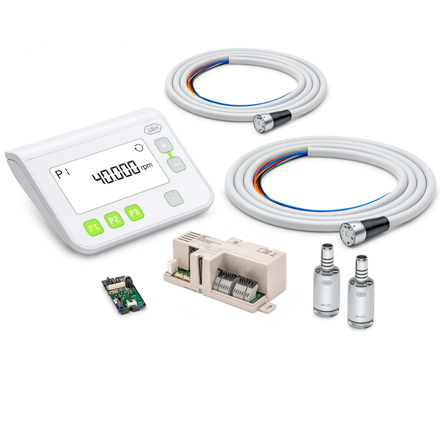

![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-2.0 Motorcontroller analog
> 2x VE-10 hose
> 2x EM-12 L Electric motor
> AD-1.0 Analog-Digitall Converter
> 2 Connection sets (pneumatic and electric)2x Electric motor EM-12 L
REF 90000224analog Display Basic

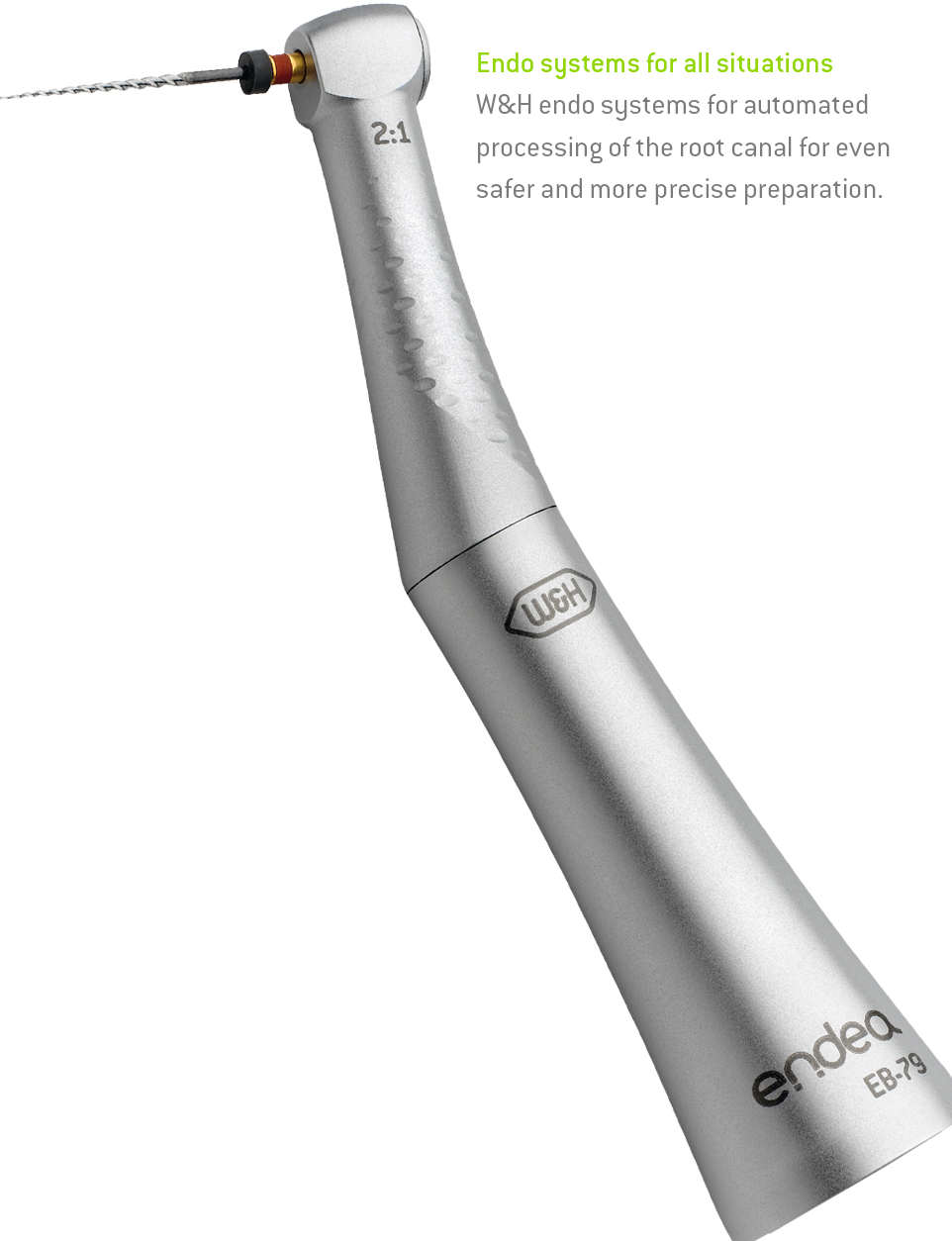

Restoration & Prosthetics, Endodontics
![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 E Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)Electric motor EM-12 L
REF 90000139analog display basic
Download Area
FAQ
- How do I connect the EM-12 L electric motor to my unit as an Add-on?
- Which contra-angle handpiece series is recommended for the EM-12 L electric motor?
- Can I sterilize my EM-12 L electric motor in a sterilizer?
- Should I always call my W&H service partner in advance before sending devices/instruments in for repair?
- What is a brushless electric motor and what benefits does it offer me as a user?
- Does the electric motor need to be lubricated with oil?
- Does the Add-on version of the EM-12 L electric motor require maintenance?
- Does the Built-in version of the EM-12 L electric motor require maintenance?
- Can my EM-12 L electric motor be reprocessed in a thermo washer disinfector?
- How can I integrate the EM-12 L electric motor into my unit as a Built-in version?
-
-

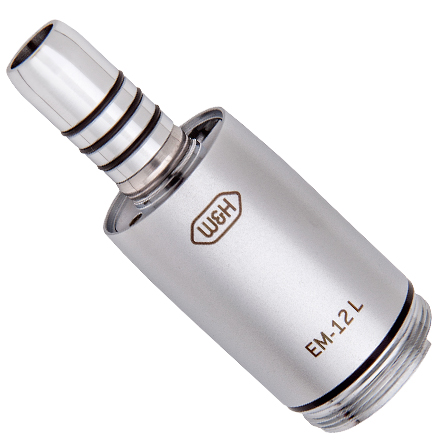

Electric motor EM-12 L
Type: EM-12 L Speed range*: 100 – 40,000 rpm Maximum power: 59 W Length (effective, without ISO connection): 31.55 mm Weight: 57 g Noise level: 43 dB (A) Light: LED Spray: internal Cooling air: 6 – 8 Nl/min Direction of rotation: Forward/reverse operation Instrument coupling: ISO 3964 (short) compatible Warranty: 24 months *Speed range depends on motor/system version Add-on control MF-100 for EM-12 L
Type: MF-100 Speed range: 2,000 – 40,000 rpm Mains voltage: 100 – 240 V, 47 – 63 Hz Dimensions (height x width x depth): 92 x 156 x 211 mm Weight: 1.06 kg Warranty: 24 months
