Proxeo Ultra

The new Piezo Scalers from W&H

The new Proxeo Ultra Piezo Scalers from W&H were developed in collaboration with prophylaxis professionals and really live up to their name. Exclusive user advantages such as »Q-Link«, the only quick connection system of its kind in the world, and the verified compatibility with pacemakers allow ultraefficient treatment.

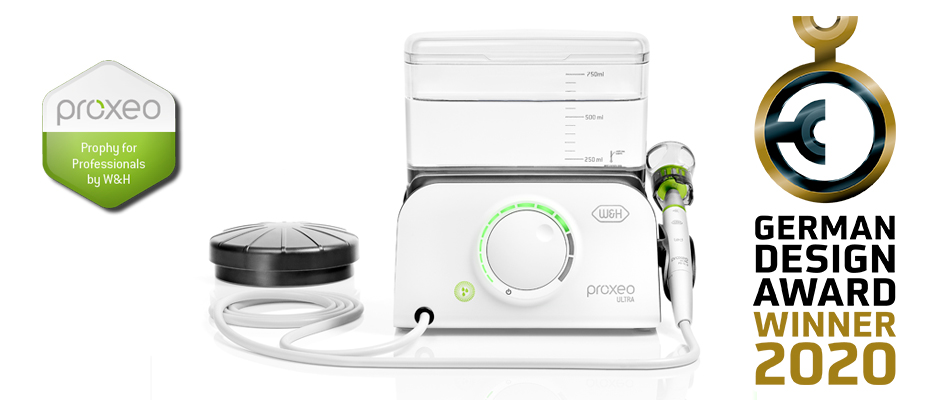

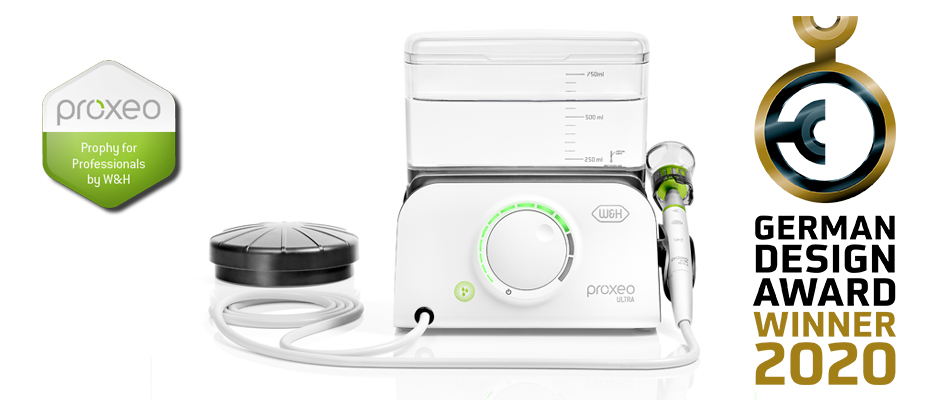

German Design Award:
Proxeo Ultra was honored as one of the Product Innovations 2020 in the German Design Awards. The high-quality product and communication design were assessed. Proxeo Ultra is thus considered one of the defining products in the international product and design landscape.

Discover Product

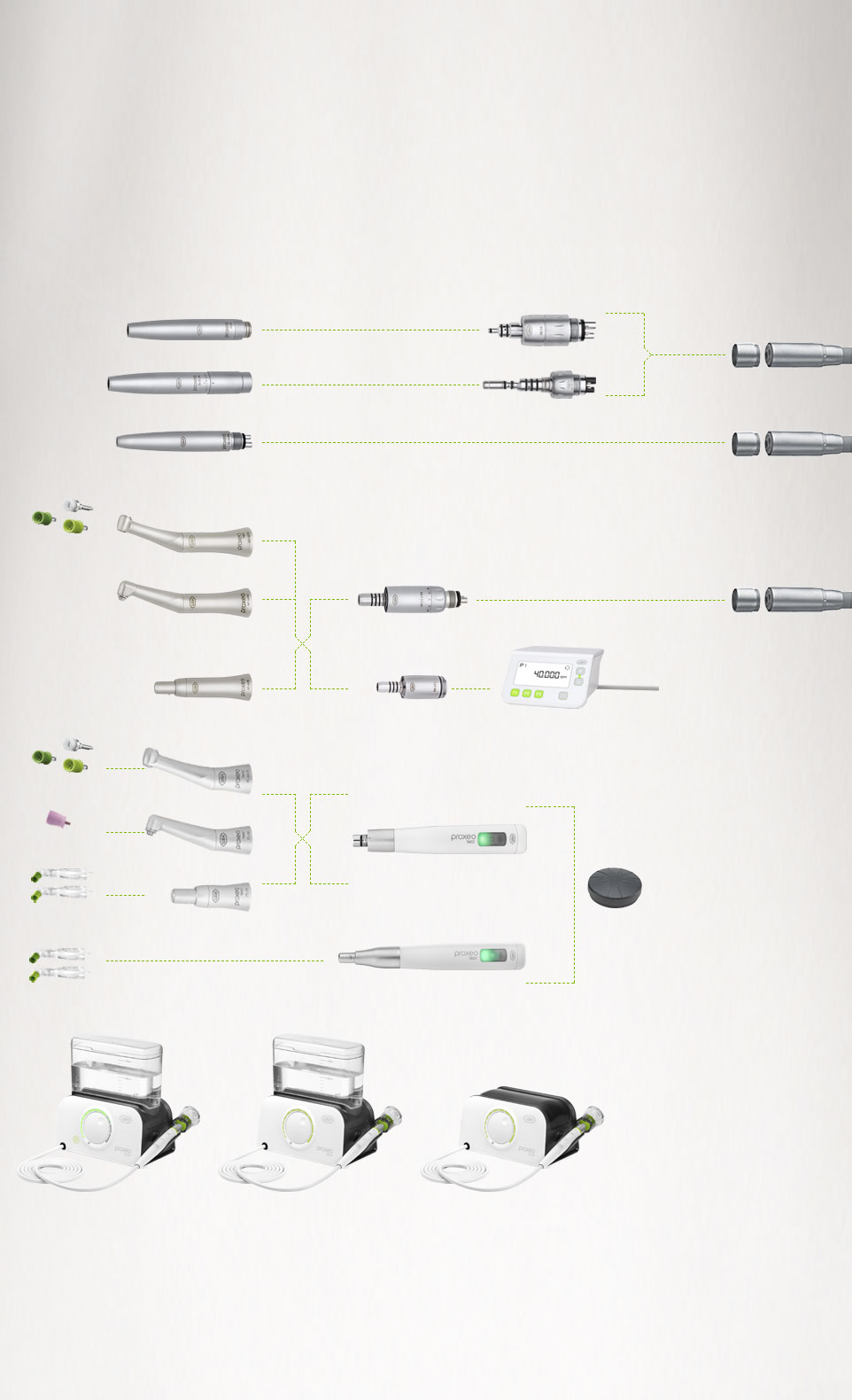

System Overview

Proxeo Ultra
Piezo Scaler Built-in Solution
Technical Data

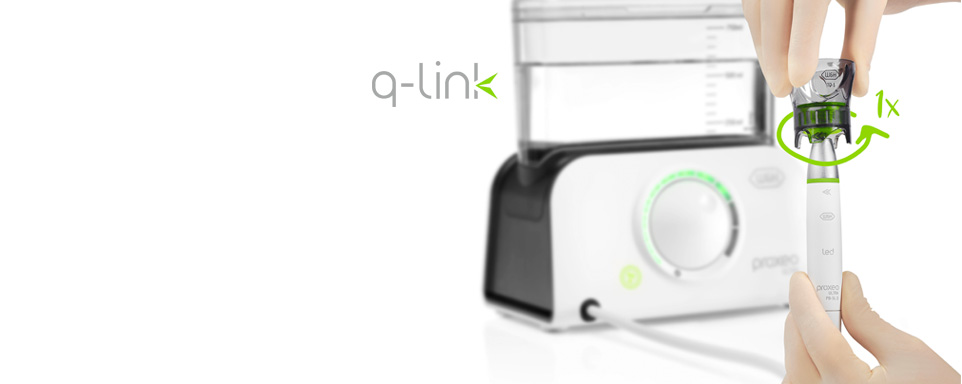

- Ultra rapid
  changing of tips

  The new handpiece of the Proxeo Ultra Piezo
  Scalers comes with its own proprietary
  and patented quick connection system.

  The tip is screwed on and off with
  just one turn, making changing the tips
  not only quicker, but also much easier.
- Ultra safe feeling

  Increased safety for every patient

  W&H is the first manufacturer to confirm that Piezo
  Scalers can be used on patients with pacemakers
  without any concerns.

  With an independent expert opinion from Graz
  University of Technology, users can now rest assured that
  prophylaxis treatment of patients with
  pacemakers is safe.
Ultra as in ultra brilliant

Scaling can be so easy:
in combination with the wireless foot
control, the ergonomic, light handpieces
ensure perfect handling and the ultimate
in flexibility in every treatment.
Main advantages at a glance
- Q-Link quick connection system
- Compatibility with pacemakers tested by Graz University of Technology
- Handpiece with LED ring
- Thin, flexible hose
- Wireless foot control
- Automatic fill level detection
- Infinitely adjustable power setting
- Perfectly coordinated tip range
- Large tank (750 ml)
- Special cleaning program for reprocessing hose systems
Downloads

FAQs

Service

Accessories
- Ultra flexible

  Ultra flexible freedom of movement

  Changing position is easier than ever before. Position the wireless foot control for the PB-530 wherever it suits you best – no more annoying cords!
- Ultra large

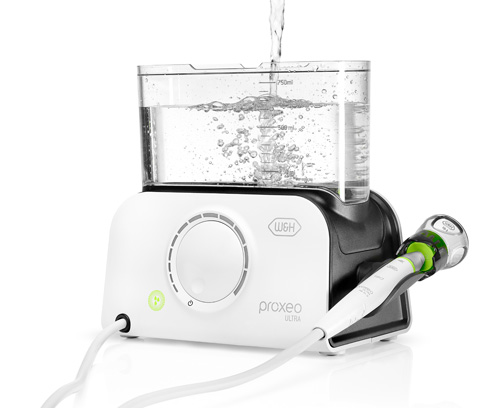

  Ultra large tank

  The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.
- Ultra smooth

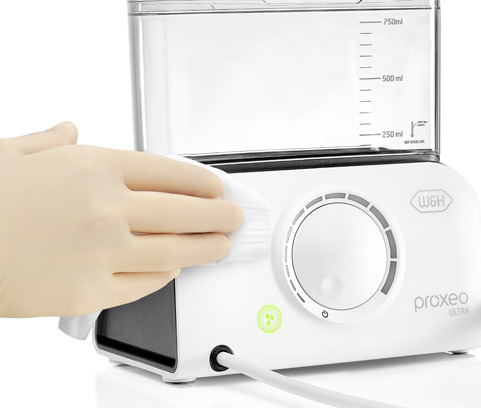

  Ultra smooth surfaces

  The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.
- Ultra practical

  Ultra practical fill level detection

  The Proxeo Ultra PB-530 warns you in good time when the water is running low. This allows you to integrate the refilling into your workflow conveniently.
- Ultra bright

  Ultra bright illumination

  The LED ring lights up the treatment site with daylight-quality illumination.

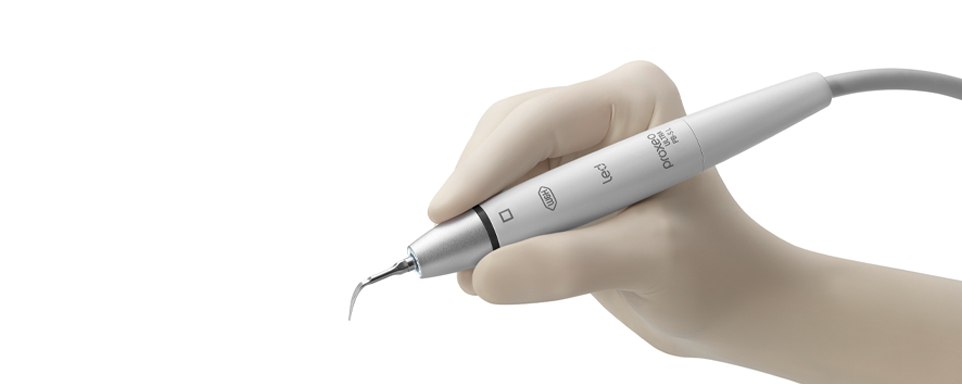

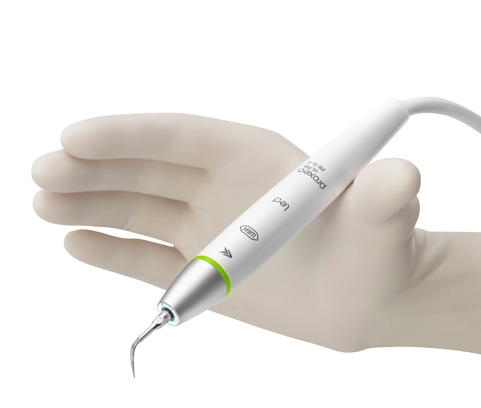

- Ultra ergonomic

  Ultra ergonomic handpiece

  Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.
- Ultra smooth

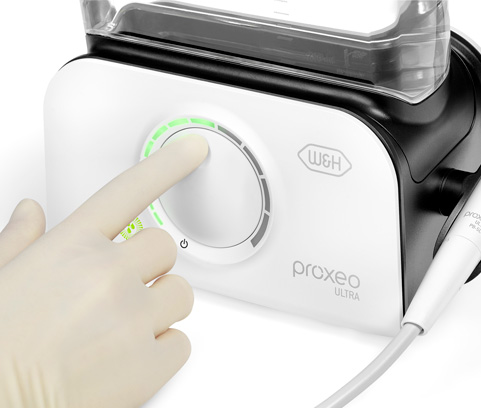

  Ultra smooth power setting

  The rotary dial makes setting the basic mode particularly comfortable.
“The dentists and hygienists played a key role in this product. From the requirements to the design to the simplicity of use, the product clearly satisfies the users’ needs.”

Bernhard Eder
Product portfolio manager W&H, Bürmoos

“The Proxeo Ultra Piezo Scaler really lives up to its name. It allows ultra rapid changing of the tips, has an ultra ergonomic handpiece and is ultra flexible in its use, ultra simple to handle and ultra versatile in treatment. In addition, it also looks ultra great!”

Fanny Bretschneider
Dental hygienist, Salzburg
- One control unit – two devices

  The new W&H prophylaxis solution presents itself as convenient, wireless and efficient. From now on, the PB-530 Proxeo Ultra Piezo scaler and the wireless PL-40 H Proxeo Twist Polishing System can be controlled using just a single wireless foot control. This not only makes it more convenient to operate, but also ensures more efficiency in working process.

  More info.
Proxeo Ultra Systems

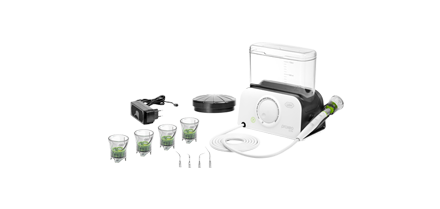

PB-530

› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Wireless foot control
› Automatic fill level detection
› Infinitely adjustable power setting
› Perfectly coordinated tip range
› Large tank (750 ml)
› Special cleaning program for
reprocessing hose systems

PB-530
REF 90000258

PB-5 L Q handpiece

PB-530
REF 90000257

PB-5 L handpiece

PB-530
REF 90000297

PB-5 L S handpiece

Request price

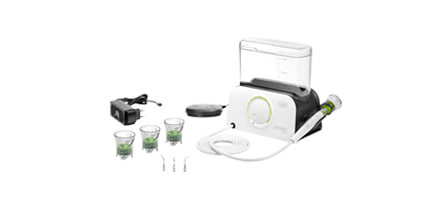

PB-520

› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Infinitely adjustable power setting
› Perfectly coordinated tip range
› Large tank (750 ml)

PB-520
REF 90000256

PB-5 L Q handpiece

PB-520
REF 90000255

PB-5 L handpiece

PB-520
REF 90000296

PB-5 L S handpiece

Request price

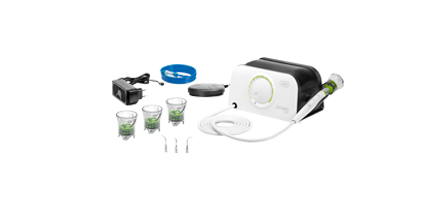

PB-510

› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Infinitely adjustable power setting
› Perfectly coordinated tip range

PB-510
REF 90000254

PB-5 L Q handpiece

PB-510
REF 90000253

PB-5 L handpiece

PB-510
REF 90000295

PB-5 L S handpiece

Request price

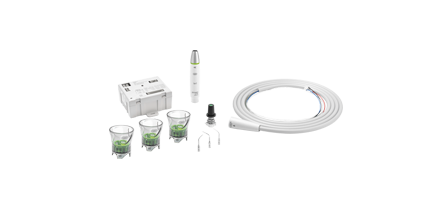

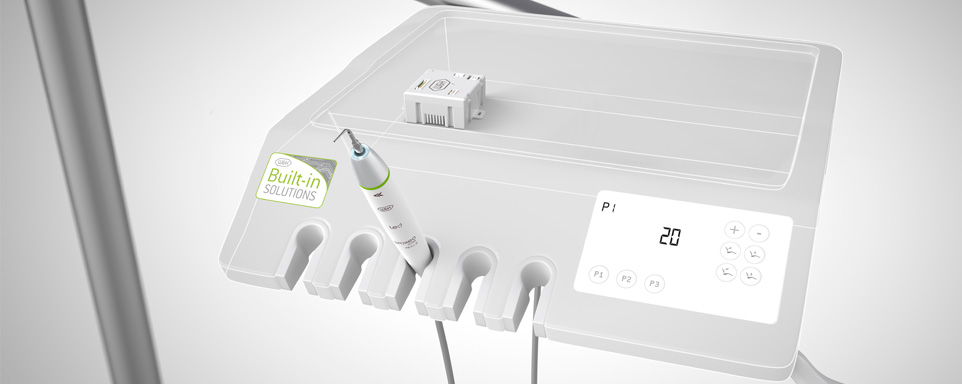

Built-In Piezo Scaler

Selected unit manufacturers
offer W&H Piezo Scalers as an
integrated drive solution as part of
the complete system. They can be
controlled simply and conveniently
via your dental unit’s control panel.
Ask W&H or your unit manufacturer
about W&H Piezo Scalers as a Built-in Solution.

Built-In Piezo Scaler
REF 90000252

PB-5 L Q handpiece

Built-In Piezo Scaler
REF 90000251

PB-5 L handpiece

Built-In Piezo Scaler
REF 90000149

PB-3 handpiece

Request price

Proxeo Ultra Handpieces

PB-5 L Q

Handpieces with Q-Link quick connection system.

PB-5 L Q
REF 30327000

Request price

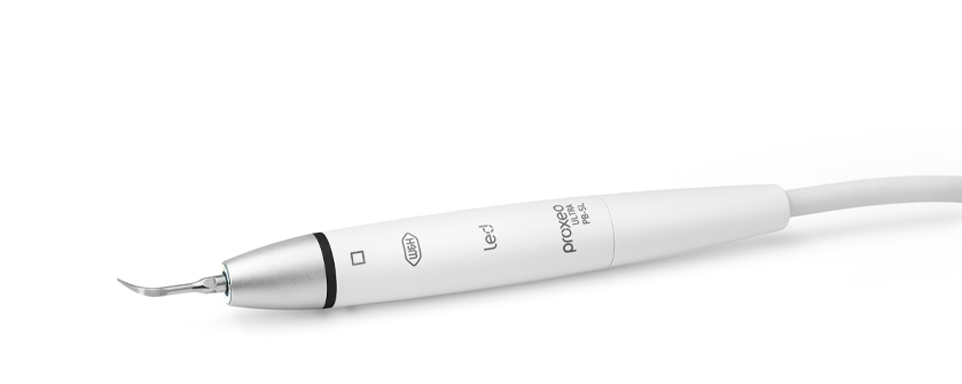

PB-5 L

Handpiece for W&H thread.

PB-5 L
REF 30326000

Request price

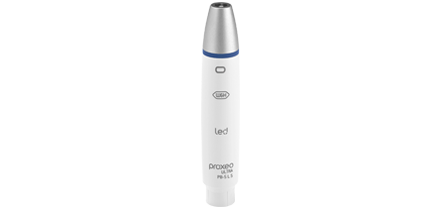

PB-5 L S

Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.

PB-5 L S
REF 30328000

Request price

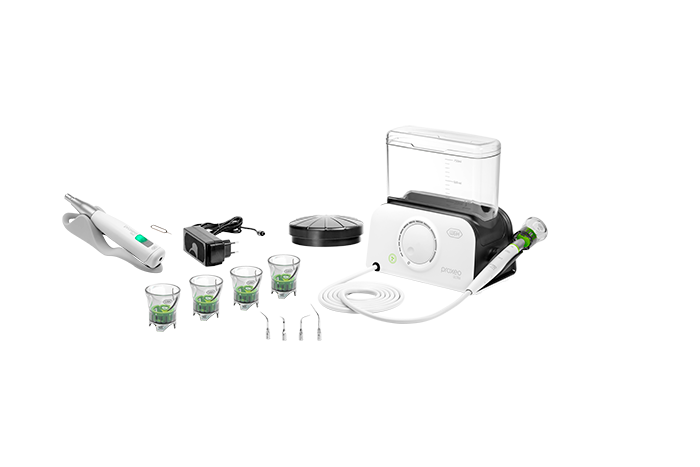

Proxeo Combi-Set

Proxeo Ultra & Proxeo Twist Cordless

› Proxeo Twist Cordless PL-40 H
› Proxeo Ultra PB-530
› Handpiece with LED ring
› Wireless foot control
› Perfectly coordinated tip range

Set PB-530, PL-40H, PB-5LQ
REF 90000298

Handpieces with Q-Link quick connection system.

Set PB-530, PL-40H, PB-5L
REF 90000299

Handpiece for W&H thread.

Set PB-530, PL-40H, PB-5LS
REF 90000301

Handpiece compatible with Satelec* thread

*(Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection)

Request price

Proxeo Ultra & Proxeo Twist Cordless + LatchShort

› Proxeo Twist Cordless PL-40 HW + LatchShort PL-66 W
› Proxeo Ultra PB-530
› Handpiece with LED ring
› Wireless foot control
› Perfectly coordinated tip range

Set PB-530, PL-40 HW, PL-66 W, PB-5LQ
REF 90000356

Handpieces with Q-Link quick connection system.

Set PB-530, PL-40 HW, PL-66 W, PB-5L
REF 90000354

Handpiece for W&H thread.

Set PB-530, PL-40HW, PL-66 W, PB-5LS
REF 90000358

Handpiece compatible with Satelec* thread

*(Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection)

Request price
Download Area
FAQ
more
Instructions for use

Proxeo Ultra

Proxeo Ultra Handpiece

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure

Piezo Scaler handpieces

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting
- Built-in Solution

  Simple and convenient
  operation via your
  dental unit’s control
  panel
- Piezo technology
  for your dental unit

  Simply to integrate
- Piezo scaler handpieces

  > PB-5 L Q handpiece
  > PB-5 L handpiece
  > PB-3 handpiece
- Built-in
  Solution

  Fully integrated drive solution

  Simple and convenient operation via your dental unit’s control panel
- Piezo Scaler
  Built-in Set

  Easy installation solution

  Operate the piezo scaler with the unit’s foot control, activate it using the instrument holder or control it via the control knob
- Tailor the
  optimal power

  Control knob

  Tailor the power optimally to the intended use with the control knob
You have the choice

The W&H piezo scaler can be optimally
integrated into your personalized workflow.
Choose a simple stand-alone solution or
utilize the advantages of a Built-in Solution.

Selected unit manufacturers offer the
W&H piezo scaler as an integrated drive
solution. It can be controlled simply and conveniently via your dental unit’s control panel.
Your advantages at a glance
- Easy integration into your existing dental unit
- Convenient operation via your dental unit’s control panel or with the control knob to tailor the optimal power
- Perfectly matched W&H tip system
- Fast removal of calculus thanks to state-of-the-art piezo technology

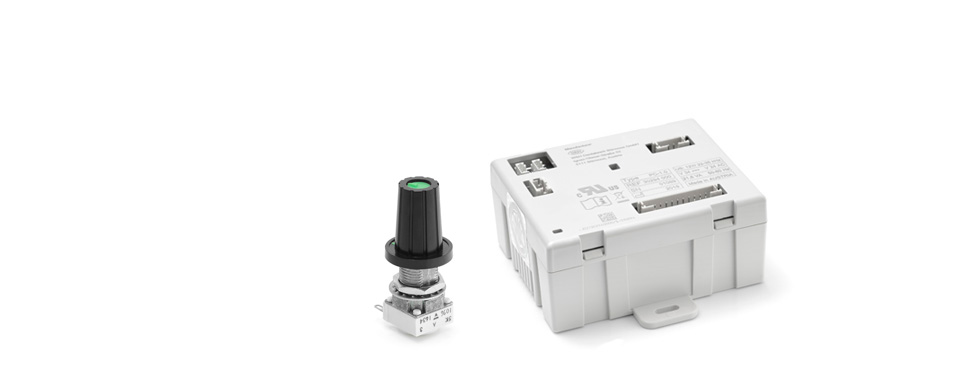

Built-in Solutions

Control knob
(potentiometer)

Piezo scaler handpieces

FAQ's

Downloads

Service

Accessories

Maximum efficiency

The piezo scaler handpiece is powerful and gentle at the same time for a minimally invasive application and painless treatment.
State-of-the-art piezo technology improves efficiency and tactile feedback in all clinical indications.
- Piezo Scaler Built-in Set

  Get your treatment unit ready for the future

  With the W&H Built-in Solutions, such as the PB-5 L Built-in Set analogue. The new-generation piezo scaler Built-in Solution.

  Ask W&H or your unit manufacturer about the W&H piezo scaler as a Built-in Solution.
- Easy to use

  Optimal power adjustment

  Thanks to infinitely variable power regulation the W&H piezo scaler can be effortlessly adjusted to the particular application and tip.

  The W&H tip system is perfectly matched to the requirements of the respective application areas.
- Piezo scaler handpieces

  Easy to clean

  The piezo scaler handpieces can be easily dismantled
  for simple and improved cleaning.

  Both piezo scaler handpieces are thermo washer
  disinfectable and sterilizable.
Fast removal of calculus

“The W&H piezo scaler makes light work of what is often not possible by hand. A very convincing product!”

Tania Eberle, dental hygienist, Germany
- Comfortable

  High-performance
  and gentle

  The W&H ultrasonic scaler stands out for its fast removal of calculus and gentle, minimally invasive application.

  The shape of the handpiece and its light weight ensure maximum comfort.
- Gentle application

  Effective cooling

  The integrated spray ensures constant and effective cooling of the treatment site.

  For a minimally invasive application and painless treatment.
- Diverse range of applications

  Flexible

  From prophylaxis and periodontology to endodontics or the micro-preparation of restorations right up to implant preservation, the W&H piezo scaler boasts a diverse range of uses.

  The tip system, developed with end users, is perfectly matched to the individual treatment steps.

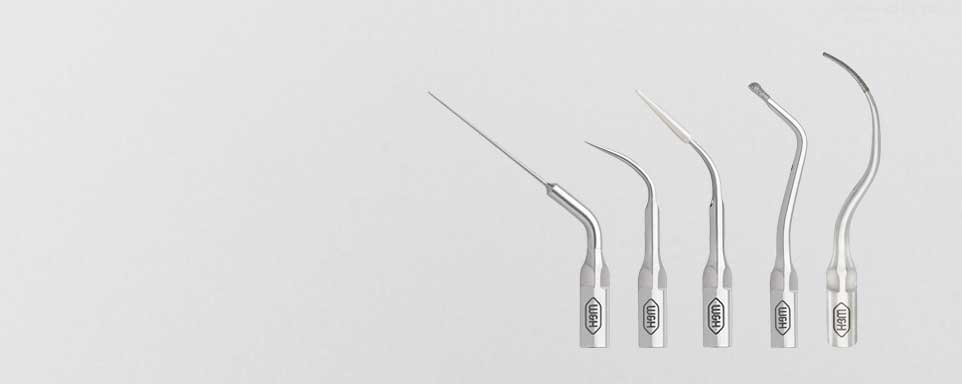

W&H Piezo scaler tips

Compact, organized, safe and effective.

The tip system, developed with end users, is perfectly matched to the requirements of the respective application areas and the individual treatment steps.

The W&H piezo scaler tip range
includes different tips for prophylaxis, periodontology, endodontics, implantology and restoration.

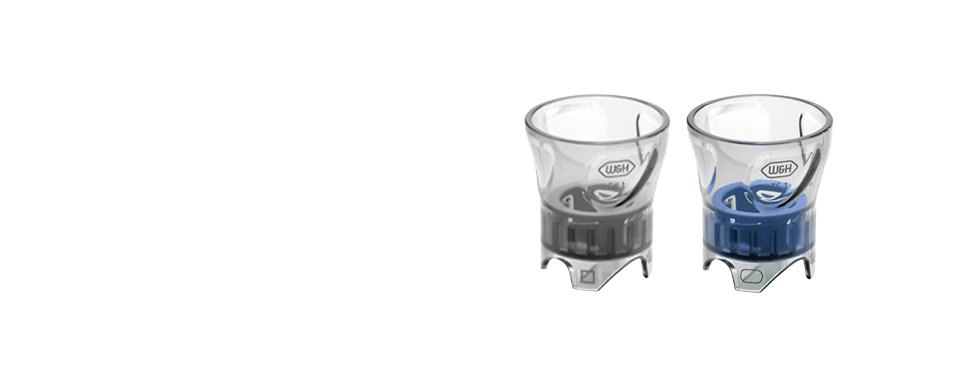

W&H Tip changer

Thanks to the W&H tip changer, tips can easily be attached and removed. At the same time, the tip changer also serves as an ideal depository when sterilizing the tip.

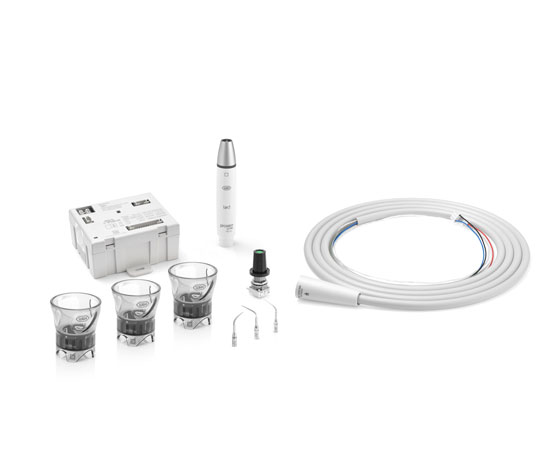

Piezo Scaler PB-5 L Q (Built-in Set)

PB-5 L Q Built-in Set
REF 90000252

consists of
› PC-1.0 Piezo Controller analogue
› VP-5 Supply hose
› Handpiece PB-5 L Q
› Electrical connection set
› Control knob
› Tips 1UQ, 2UQ, 1PQ
› Tip changer

Request price

Piezo Scaler PB-5 L (Built-in Set)

PB-5 L Built-in Set
REF 90000251

consists of
› PC-1.0 Piezo Controller analogue
› VP-5 Supply hose
› Handpiece PB-5 L
› Electrical connection set
› Control knob
› Tips 1UQ, 2UQ, 1PQ
› Tip changer

Request price

Piezo Scaler PB-3 (Built-in Set)

PB-3 Built-in Set
REF 90000149

consists of
› PC-1.0 Piezo Controller analogue
› Supply hose
› Handpiece PB-3
› Electrical connection set
› Control knob
› Tip changer with tip 1U
› Tip changer with tip 1P

Request price

Piezo Scaler PB-5 L S (Built-in Set)

PB-5 L S Built-in Set
REF 90000294

consists of
› PC-1.0 piezo controller analogue
› VP-5 supply hose
› PB-5 L handpiece with 5x ring LED
› Electrical connection set
› Control knob
› Tips 1US, 2US, 1PS

Request price
Download Area
FAQ
more
Instructions for use

Proxeo Ultra

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure

Piezo Scaler handpieces
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Proxeo Ultra

Control unit	PB-530	PB-520	PB-510
Mains Voltage:	100-230 V
Maximum output power to handpiece under load (ultrasonic):	12 W
Frequency (ultrasonic):	22–35 kHz
Operating mode:	S3 (14 s/6 s)
Length of handpiece cable:	1,8 m
Dimensions in mm (W×D×H):	120×185×205		120×185×110
Weight:	1.106 g	1.064 g	807 g
Can be used with foot control:	C-NW	C-NF

Foot control

Foot control	C-NW	C-NF
Weight:	190 g	114 g
Dimensions in mm (W×D×H):	117×117×38	100×110×26,5
Battery type:	Li-Ion	-
Running time when fully charged:	approx. 2 months	-
Standby:	automatically if not actuated	-
Charging time:	approx. 3 hours	-

Piezo Scaler handpiece

Piezo Scaler handpiece	PB-5 L Q	PB-5 L	PB-5 L S
Light:	LED-Ring
Weight:	55 g
Length without tip:	135 mm (with coupling)
Diameter:	18,5 mm

Built-In

Built-In Set analog	PB-3	PB-5 L Q/PB-5 L
Piezo Controller:	PC-1.0
Electrical connection set:	✔
Control knob:	✔
Supply hose:	VP-3 (1,8 m)	VP-5 (1,8 m)
Handpiece:	PB-3	PB-5 L Q/PB-5 L
Tip changer with tip inserted:	TW-1: 1U, 1P	TQ-1: 1UQ, 2UQ, 1PQ/TW-1: 1U, 2U, 1P

Compatibility of tips with W&H handpieces

	Q-Link*	W&H/EMS/Mectron			W&H/NSK/Satelec**
	PB-5 L Q	PB-5 L	PA-1 LED	PB-3	PB-5 L S	PB-3 LED S	PB-3 S
Tigon+			X			X
Proxeo Ultra	X	X			X
Pyon 2				X		X	X
Built-In	X	X		X	X		X

* Q-Link tips (e.g., 1UQ, 2UQ) are compatible with the PB-5 L Q.

** W&H tips with Satelec thread (e.g., 1US, 2US) are compatible with the W&H handpieces PB-5 L S, PB-3 LED S and PB-3 S.

Note: EMS®, Mectron®, NSK® and Satelec® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH. When using tips from other manufacturers, the user is responsible for ensuring the W&H piezo device´s performance parameters are set correctly.
