Piezomed
The new force in bone surgery
-
Minimally invasive, maximally effective -
Ultrasound technology in oral surgeryPiezomed facilitates the surgeon’s and implantologist's work: thanks to innovative ultrasound technology, only bone substance is resected with high precision. The surrounding soft tissue is protected. A noticeable relief for the patient: less pain, better healing!
Your advantages at a glance
- Automatic instrument detection
- Temporary power increase due to boost function
- Ideal illumination of the operating field thanks to LED ring illumination
- Efficient cooling thanks to spray opening close to the instrument’s working area
- Handpiece with cable thermo washer disinfectable and sterilizable
World first!

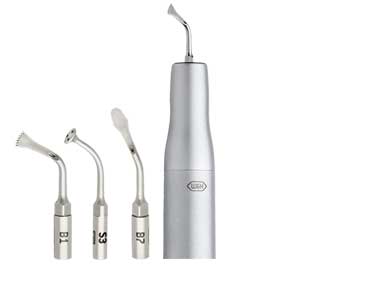

Automatic instrument detectionAutomatic instrument detection in oral surgery
As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class.
This not only facilitates operation but also increases safety in oral surgery. In addition, the risk of overloading the instruments is reduced and the service life of your surgical instruments considerably extended!
Innovative LED ringInnovative LED ring

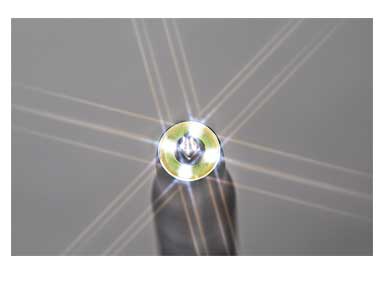

The shadow-free light ensures ideal illumination of the operating site.
The handpiece with LED socket and cable can be thermo washer disinfected and sterilized.
Efficient coolingCooling right where it is needed

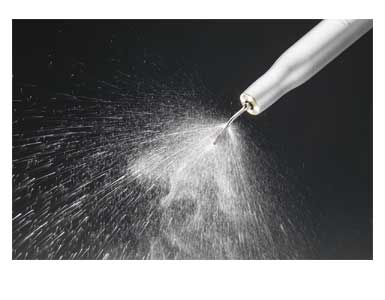

The supply of coolant through the instrument to near the operating point guarantees optimal cooling of the instrument and the hard tissue.
The spray exits near the instrument’s area of activity and cools the operating site extremely efficiently during maxillofacial applications.

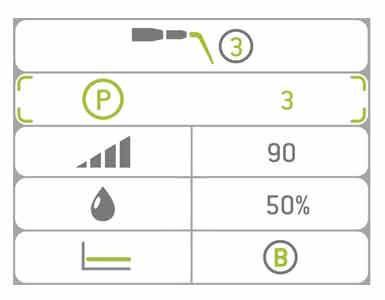

Individual performance settingIndividual performance setting for oral surgery
Piezomed detects the instrument during insertion and sets the correct power class automatically.
The power can be changed manually within the detected power class.
Individual operating modesPiezomed adapts to your style of working
Piezomed adapts to your personal way of working and saves your last selected settings. The boost function can be used to increase the set basic power by 20 % for a short period of time.
"Power" operating mode: The handpiece’s power is increased by increasing pressure on the instrument. (Boost function possible)
"Basic" operating mode:The handpiece power remains the same irrespective of the load on the instrument. (Boost function possible)
"Smooth" operating mode: The handpiece‘s power is reduced by increasing pressure on the instrument.
Piezomed InstrumentsFlexibility and individuality in working for oral surgeons

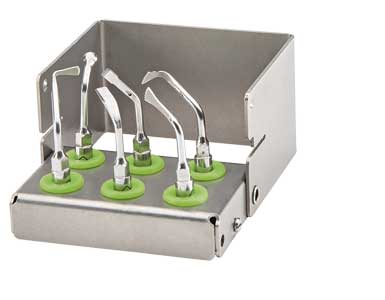

With its range of 33 innovative instruments, W&H offers you the right instrument for bone surgery, periodontology and extraction, retrograde endodontics as well as for lateral sinus lift.
![Piezomed]( "Piezomed")

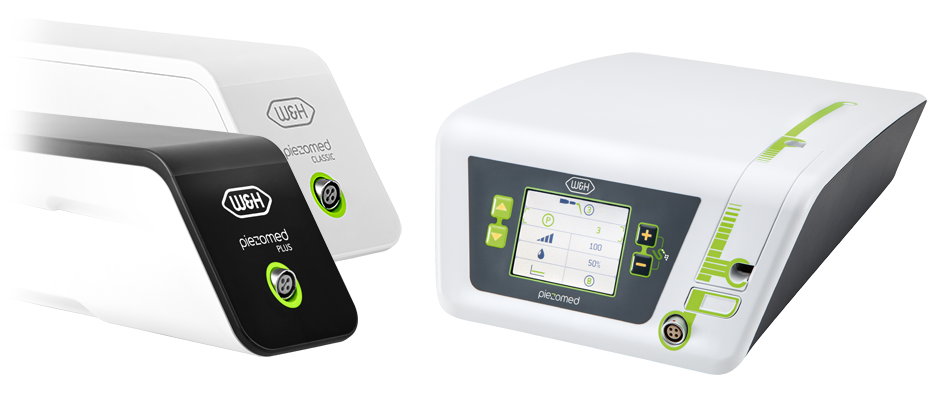

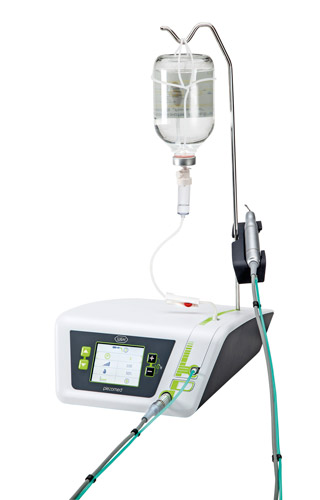

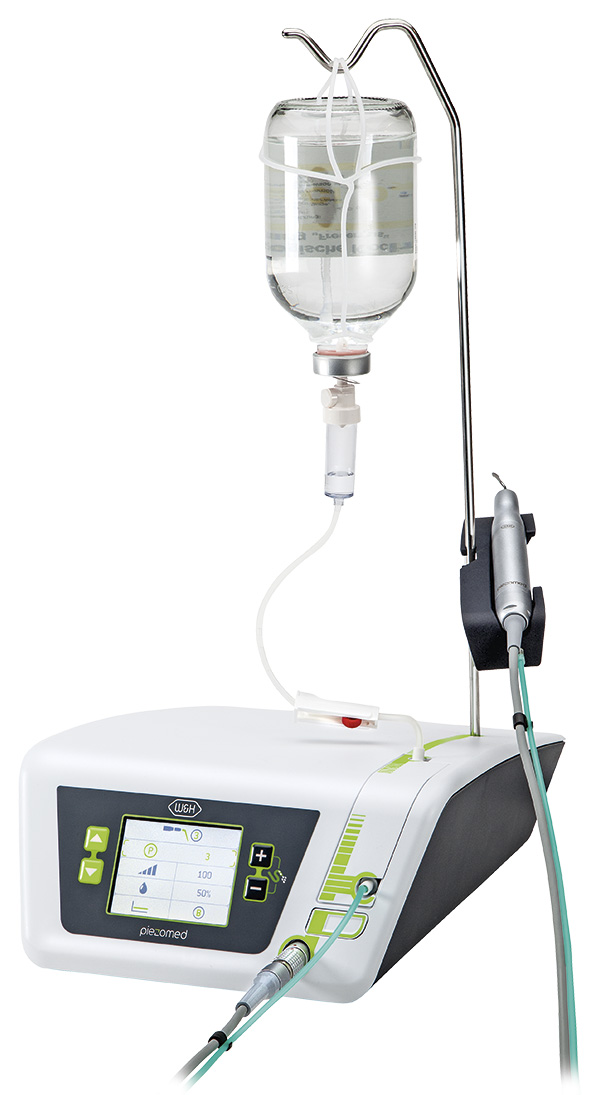

Piezomed
consists of: control unit, foot control S-N1, handpiece with 1.8 m cable and clips, irrigation tubing set, mains cable, motor support, stand, instrument changer, sterilization cassette, instrument kit "Bone"
SA-320
REF 30078000Handpiece with 1.8 m cable
Piezomed module*

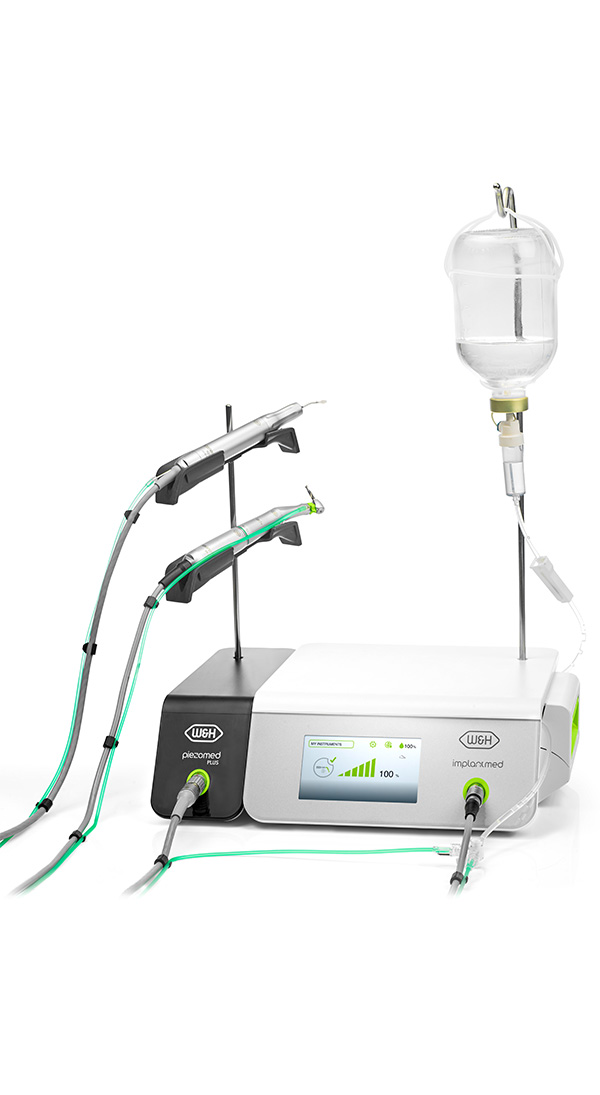

The game changer in piezosurgery
Piezomed module
The Piezomed module combines an
implantology motor and piezosurgery in
one device. This means Implantmed can
be combined with the Piezomed module
and can be used to cover several surgical
applications.
*only in connection with Implantmed PlusYour advantages at a glance
- Modularity
- Automatic instrument detection**except Piezomed Classic Module
- Efficient cooling thanks to spray opening close to the instrument’s working area
- Instrument library
- The wireless foot control allows you to choose the optimal location in your working area.
- No impairment of the sterile environment due to the emission of cooling air.

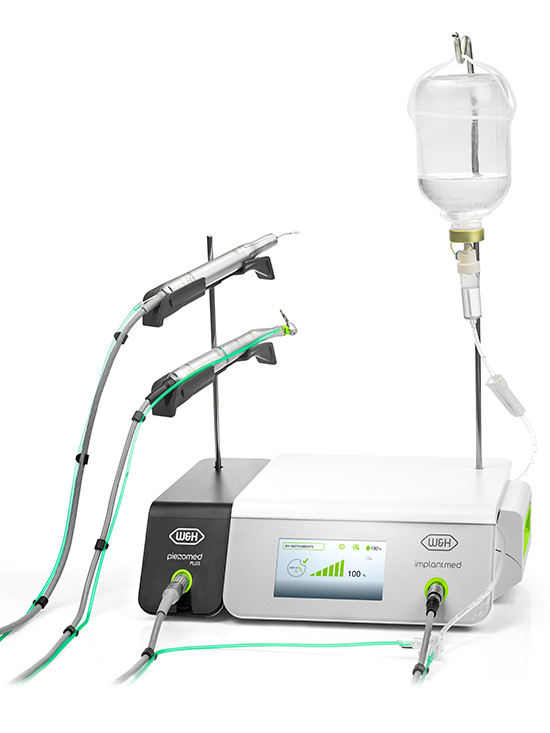

![Piezomed Plus module]( "Piezomed Plus module")

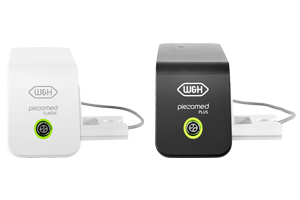

Piezomed Plus module
consists of: Module, Handpiece SA-40 L, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes
SA-435 M
REF 90000350Handpiece with 1.8 m cable
SA-435 M
REF 90000351Handpiece with 3.5 m cable

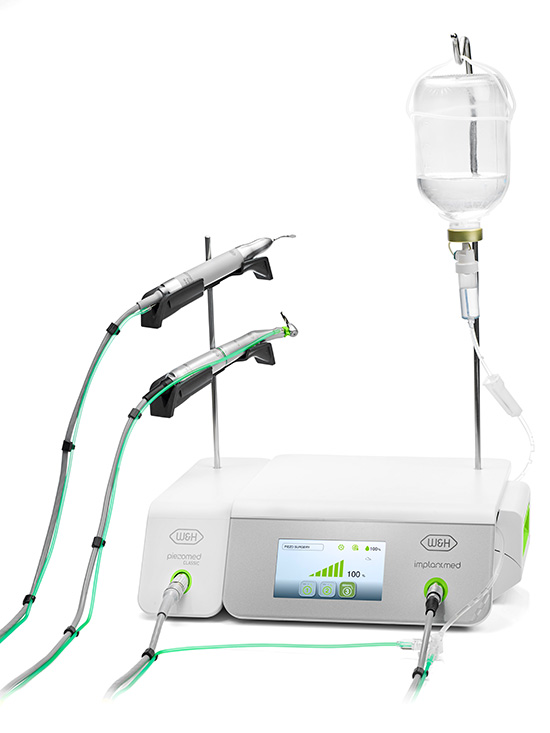

![Piezomed Classic module]( "Piezomed Classic module")
Piezomed Classic module
consists of: Module, Handpiece SA-40, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes
SA-430 M
REF 90000349Handpiece with 1.8 m cable

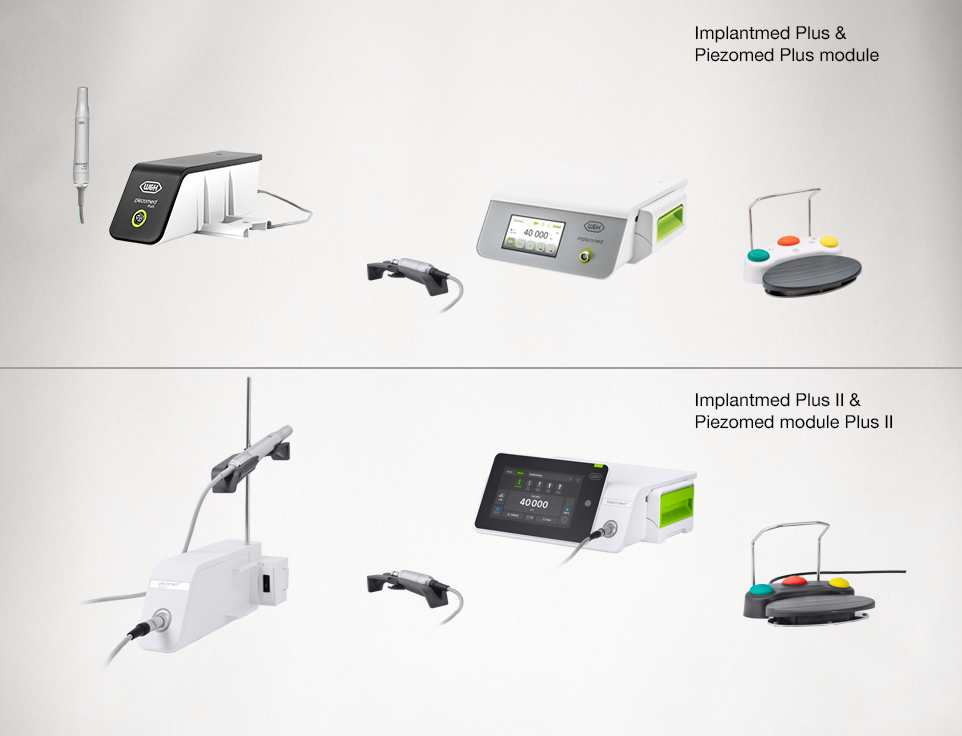

Modularity for optimal flexibility
Workflow driven solution
The combination of Implantmed Plus and
Piezomed module changes the way oral
surgery and implantology work.
Electric motor
Particularly small and surprisingly light. It enables you to work with ease.
Piezomed Plus and Classic module
Combine piezo surgery and implantology in one device.
Straight & Contra-angle Handpieces
Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
More Info!
Documentation function
The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).
Wireless or wired foot control
Control the Implantmed Plus and Piezomed module with just one foot control.
Osstell Beacon
Bluetooth connection to the Osstell Beacon
for easy measurement and representation of implant stability.
More Info!Features at a glance
Features
Piezomed Piezomed Plus module Piezomed Classic module Automatic Instrument detection
Instrument library
Modularity
Wireless foot control
Control unit cooling without case fan
Osstell Beacon connection
Implantmed and Piezomed functions can
be controlled with just one foot control
ioDent® system
Software update via USB
Implantmed and Piezomed in one device
Handpiece with (LED socket) and cable,
thermodisinfectable and sterilisable
Pacemaker reports
Boost function
LED light
24 watts
20 watts
18 watts
* 24 W with boost function
Download Area
FAQ
- Can Piezomed instruments also be used on third-party devices?
- How long is the useful service life of the LED?
- Can third-party instruments be used on the Piezomed?
- How are the instruments prepared for cleaning?
- How long do the instruments last and when should they be replaced?
- Is it necessary for the torque driver to engage audibly when tightening the instrument?
- How long is the useful service life of the instrument detection?
- How does it work to wirelessly control the Implantmed and the Piezomed?
- Piezomed module: Can devices be retrofitted on the market?
- Piezomed module: Are the handpieces of the modules compatible with the SA-320?
- Piezomed module: Does the module also work with OEM devices?
- Piezomed module: Can I use the same Piezomed tips for SA-320 and the new modules as well?
- Piezomed module: Can I use tips from competitors?
- Piezomed module: Is it possible to upgrade every existing product on the market?
- Piezomed module: Compatibility of the handpieces with Piezomed Plus module and Piezomed Classic module.
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
Piezomed & Piezomed module
Type:
Piezomed
SA-320Piezomed Plus module
SA-435 MPiezomed Classic module
SA-430 MSupply voltage:
100–130 V/220–240 V
100–240 V
Frequency:
50–60 Hz
Permitted voltage fluctuation:
±10%
Nominal current:
0.1–1.0 A/0.1–0.5 A
1.6 A
Mains frequency:
50–60 Hz
Maximum output US:
20 W*
24 W
18 W
Operating frequency:
22–35 kHz
Coolant flow rate at 100%:
at least 60 ml/min
at least 90 ml/min
Length of handpiece cable:
1.8 m
1.8 m
1.8 m without light
Dimensions in mm (height × width × depth):
256 × 305 × 109
90 × 140 × 285
Weight:
7 kg
0.7 kg
0.6 kg
Foot control:
S-N1/S-NW with SPI dongle
S-N2/S-NW
* 24 W with boost function
Open Source Software
The software running this product was developed by utilization of the library QT of Digia. As kernel Linux is applied, the initial starting sequence is carried out by using the bootloader U-Boot. For CANopen communication CanFestival is applied.
These and all other software components are copyrighted by W&H Dentalwerk Bürmooos GmbH or third parties.
The source code of the used software components (Linux, Qt, U-Boot and CanFestival) will be provided on request, charging all arising expenses. Please contact: opensource@wh.com
There is no warranty transferring this software, neither implied warranty nor express warranty.
You will find further information concerning the applied license versions and the complete license text under www.wh.com/en_global/gnu. Alternatively, you can obtain it directly from the manufacturer.
