Independence with an extra small head
Optimal freedom of movement is not the only reason that Entran amazes as a cableless solution for automatic root canal preparation. The specially designed, light contra-angle handpiece considerably reduces hand fatigue.
The extremely small head increases the field of view and allows optimal access to the treatment site. The long-lasting lithium-ion battery makes up to 30 treatments possible with one charge.Your advantages at a glance
- Cordless for complete freedom of movement
-
Contra-angle attachment with
extremely small head - Torque limiting and torque control
- Auto reverse and auto forward mode
- Reliability with long-life Li-ion battery
-
Ergonomic drive handpiece for fatigue-free
and comfortable working - Contra-angle head thermo washer disinfectable and sterilizable
Safety functionsSafety functions
The autoreverse and autoforward modes with automatic safety stop minimize the risk of file breakage.
Torque controlTorque control
The LED control ring lights up when over 75 % of the set torque is reached.
Maximum comfortMaximum comfort
Ergonomically shaped drive handpiece for comfortable and fatigue-free working.
![Endo Cordless Set]( "Endo Cordless Set")

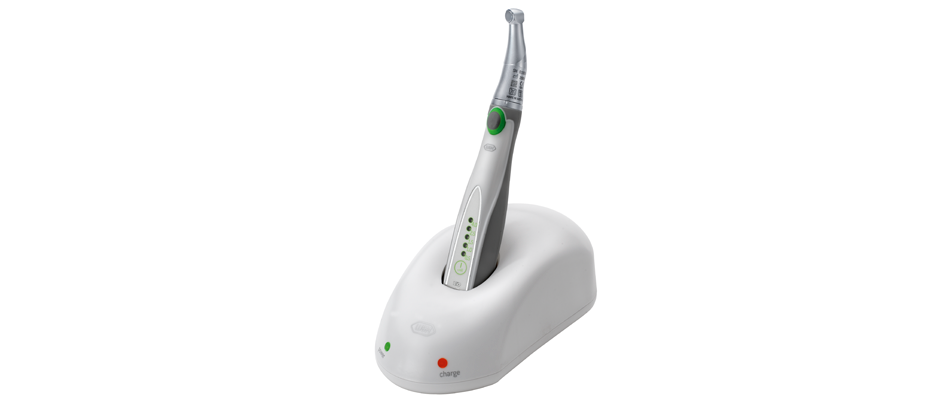

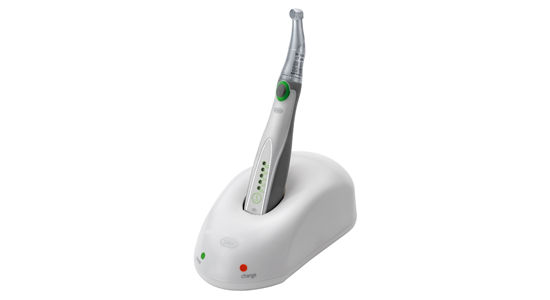

Endo Cordless Set
consists of: contra-angle head EB-16,
drive handpiece EB-3 H, charging station,
Li-ion battery, mains cable and file overviewEB-300
REF 12923000Download Area
FAQ
- Can an external apex locator be operated with the Entran?
- For which file systems can Entran be used?
- What happens if the file cannot be freed using the auto forward / auto reverse mode?
- How long does it take to charge the battery?
- Can I use Entran with a Gates bur?
- Where can I find the Entran torque settings that correspond to my file system?
- How long can you work on one battery charge?
- Can the Entran stop working during treatment if the battery runs out?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
Downloads
-
Always check that the values stated on the file cards are accurate and up to date.
Re-order files
Please re-order files at your responsible dental dealer.
Download Area
-

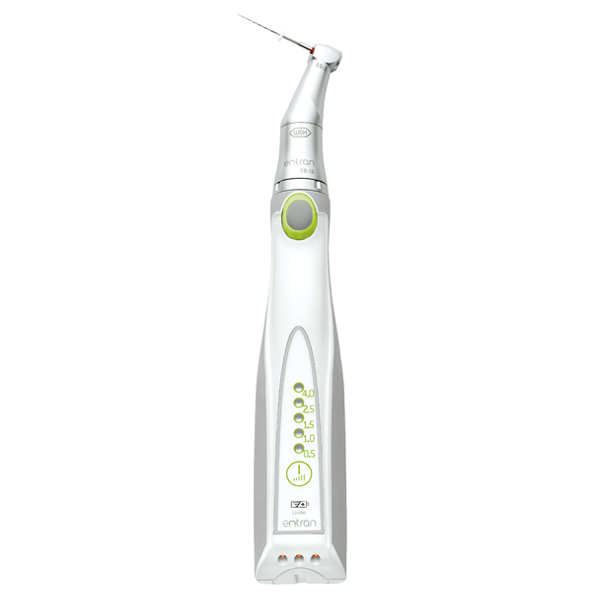

Drive handpiece EB-3 H Battery type: Li-Ion Battery voltage: 3.7 V Rated capacity: 680 mAh Speed at root canal instrument: 300 rpm Torque stages: 0.5 / 1.0 / 1.5 / 2.5 / 4.0 Ncm Weight: 85 g Contra-angle head EB-16 Transmission ratio: 16:1 Coupling system: W&H coupling Recommended root canal instruments
according to EN ISO 1797-1:1995:Files for rotary root canal preparation at 300 rpm
with a shaft diameter of 2.35 mmWeight: 35 g Hygiene: thermo washer disinfectable / sterilizable Charging station Mains voltage: 100 – 240 V Permissible voltage fluctuation: ±10 % Frequency: 50 – 60 Hz Rated current: 0.08 – 0.12 A Power: 5 W Weight: 345 g
