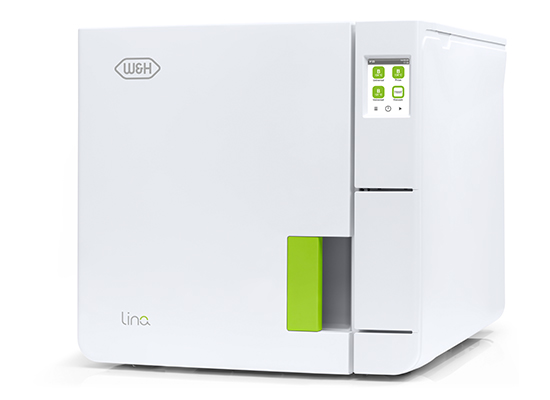

Lina sterilizer

The power of efficiency

Usability outside. Technology inside.

B type sterilizer for best performance.
To prevent the transmission of infections, steam sterilization plays a significant role in the reprocessing of dental instruments. Thereby, efficiency and simplicity are crucial. The new generation of Lina sterilizers meet all these requirements and more: simple operation, ergonomic and functional design, appropriate sterilization cycles and upgradeable functions guarantee high efficiency leading to maximum results.

Přehled

Sterilizace a ošetření instrumentů

Sterilizace a ošetření instrumentů

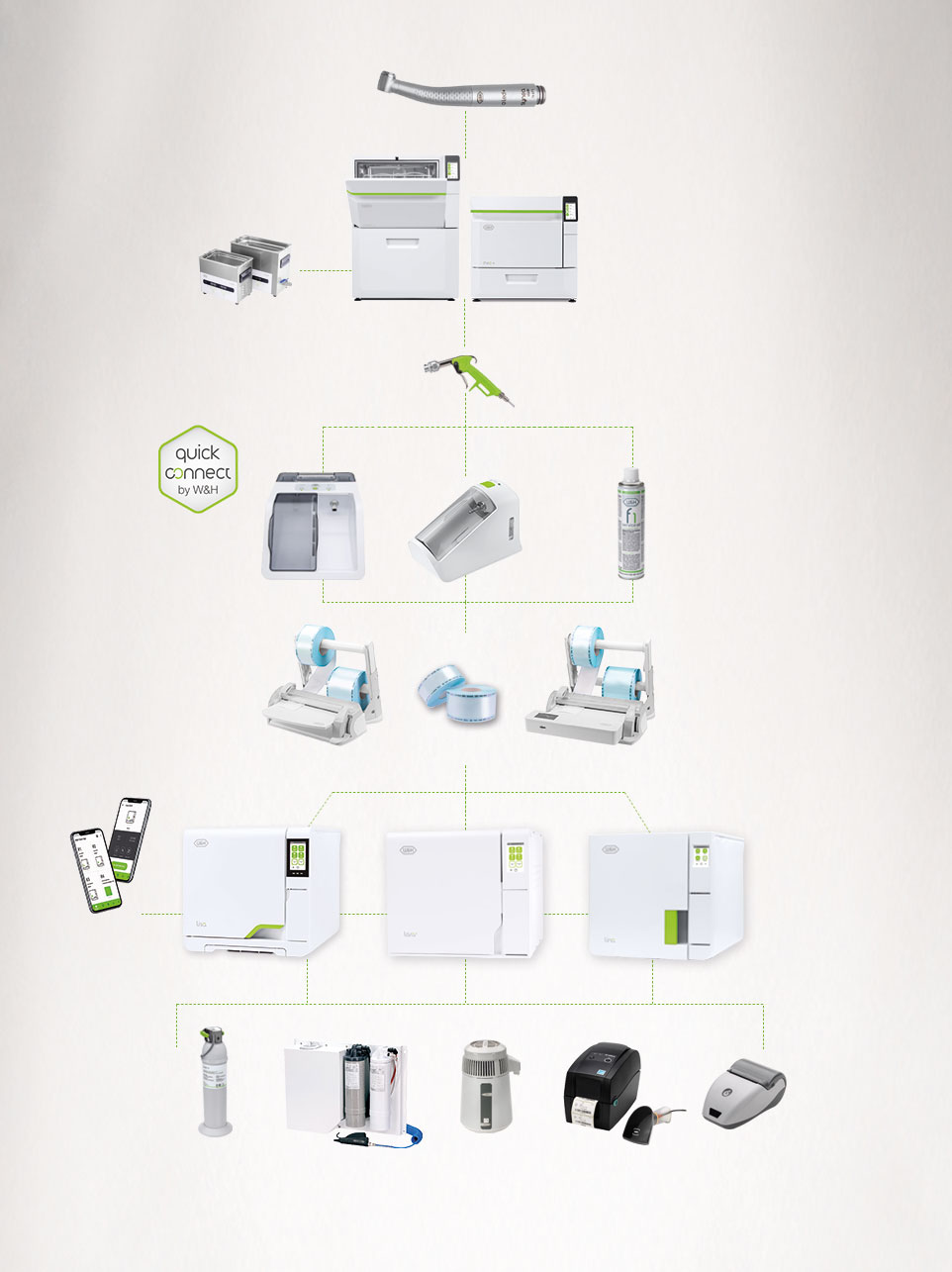

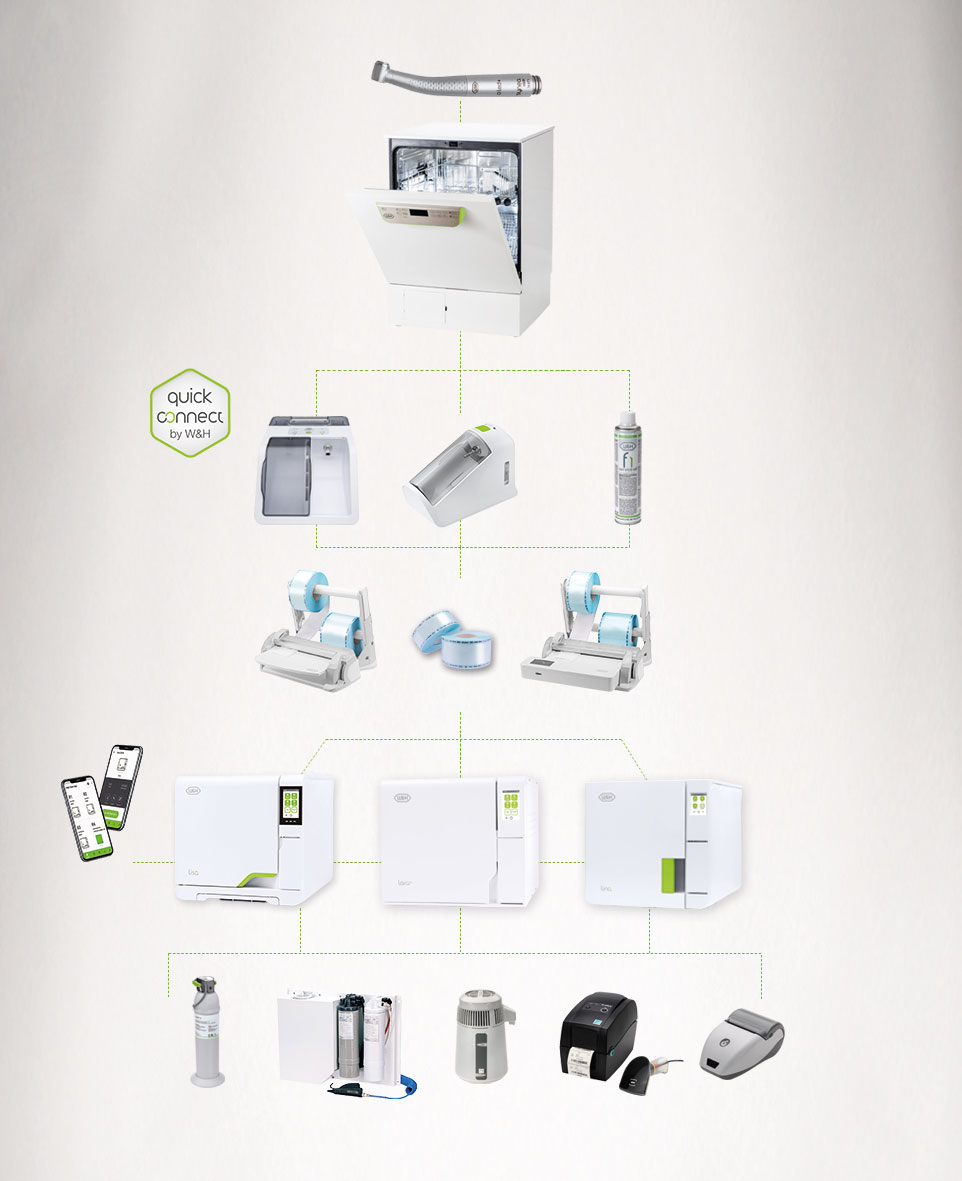

Přehledové schéma

  •

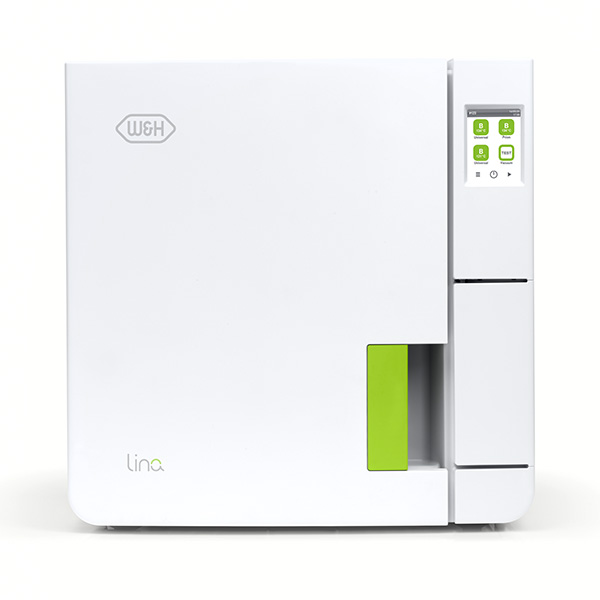

    Lina sterilizer

    B type sterilizer, yet brilliant

    Interrupting the chain of infection.

    B type sterilizer – for peace of mind reprocessing and infection prevention.

    Benefits at a glance:

    • B type sterilizer with the best cycle times of its category.
    • Ease of use for an unrivalled smooth user experience.
    • Unique upgradeability for customising and modernising the device according to your needs.
    • Advanced traceability for complete documentation.

    Improved components

    Simplified work processes

    Usability outside.
    The Lina sterilizer is characterised by an effortless handling, ergonomic and functional design. Ideal to simplify the sterilization process and thus to ensure an efficient workflow in your practice.

    “The risk of infection is actively minimised by sterilization! Because it's all about the safety of your patients, your staff and yourself.”


    How may you benefit from the improved usability?

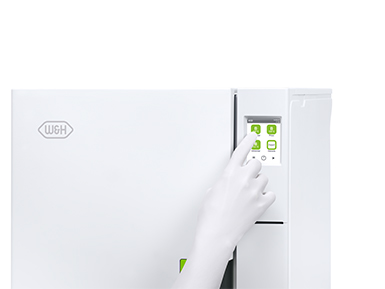

    Ease of use

    Ease of use

    //a.storyblok.com/f/45617/385x289/79f49fe19a/lina-easeofuse_big.jpg

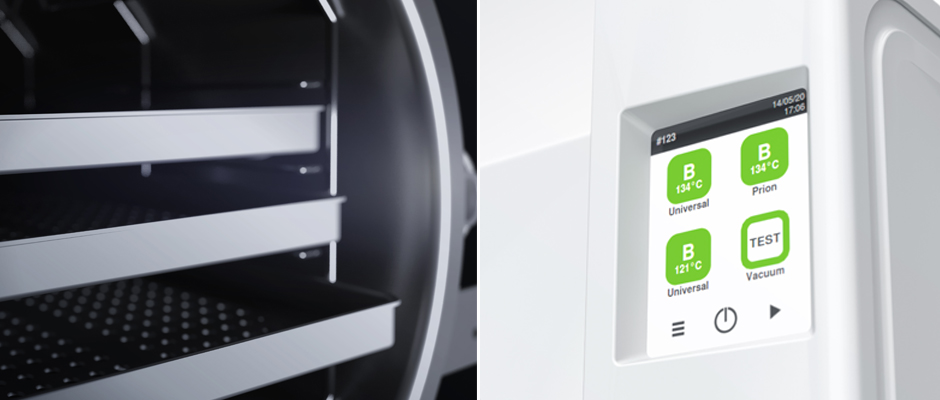

    › The 3.5’’ touch screen display
    enables smooth operation.

    › The simplified user interface and menu structure support practices in all daily activities.

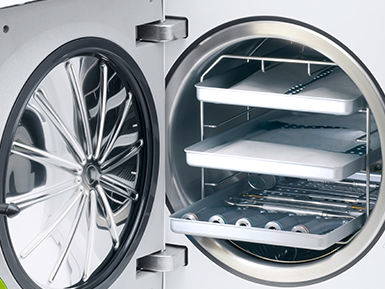

    Optimal sterilization programs

    Optimal sterilization programs

    //a.storyblok.com/f/45617/385x289/39f232e0f0/lina-sterilizationprograms_big.jpg
    › The Eco B sterilization program reprocesses 0.5 kg in 25 minutes.

    › Lina can reprocess up to 6 kg of load
    to meet all requirements of dental clinics.

    › The B Universal 121°C cycle even allows the reprocessing of sensitive items, including porous such as surgical clothing.
    Design and maintenance

    Design and maintenance

    //a.storyblok.com/f/45617/385x289/381a586cb9/lina-designandmaintanance_big.jpg

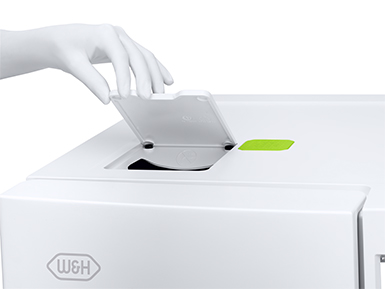

    › The easily removable cover allows effortless access to the water tanks without tools. Filling is particularly easy with the integrated funnel.

    › Thanks to the high level of reliability, the service interval is set to 4,000 cycles or 5 years.

    › The design impresses with its ergonomic and functional shape and fits in anywhere thanks to modular feet and compact layout.

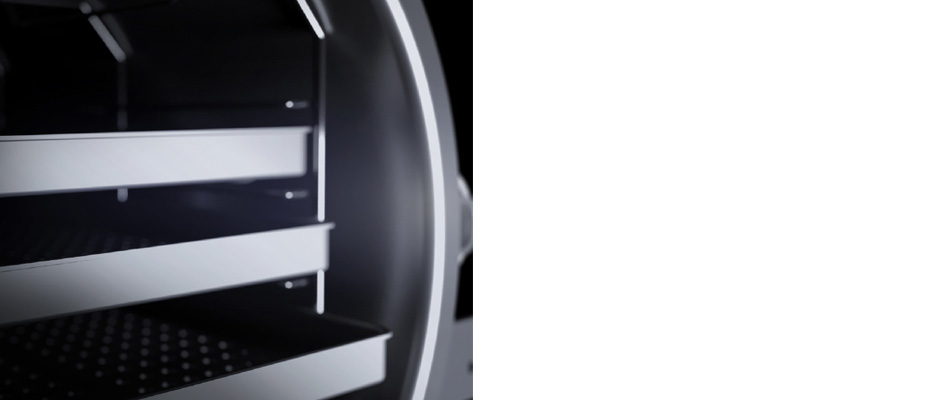

    Technical concepts

    Realised visions

    Technolgy inside.
    Not only the outside, but also the technical expertise inside makes the difference. The Lina sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.

    How may you benefit from the advanced technology?


    “Use the technological upgrades to master all challenges with your sterilizer – today and tomorrow!”

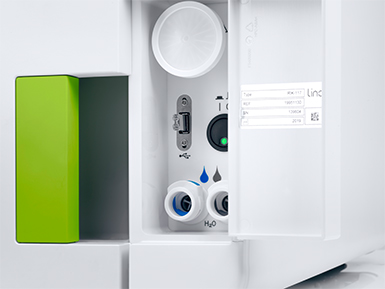

    Enhanced traceability

    Enhanced traceability

    //a.storyblok.com/f/45617/385x289/156647aa97/lina-enhancedtraceability_big.jpg
    › The documentation is automatically
    saved via a high-capacity USB stick.

    › The barcode label printer provides additional support on traceability thanks to the opportunity to link cycle, sterilization package and patient.

    › The cycle report printer ensures adequate paper documentation of the cycle.
    Advanced connectivity

    Advanced connectivity

    //a.storyblok.com/f/45617/385x289/d9a3f4ec1f/lina-connectivity_big.jpg

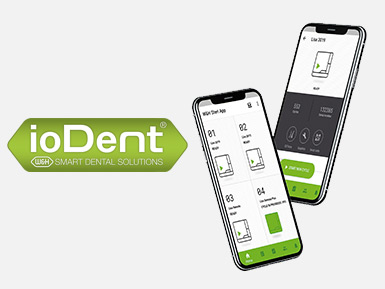

    › The ioDent® system offers intelligent dental solutions and allows an advanced service support.

    › The W&H Steri App allows controlling and remote monitoring of the sterilizer. Moreover, cycle history back-up saved on smartphone ensures extra-safety.
    Unique upgradeability

    Unique upgradeability

    //a.storyblok.com/f/45617/385x289/64956dc210/lina-upgradeability_big.jpg
    › The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enhance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lina sterilizer.

    Unique upgradeability

    Covering individual needs.

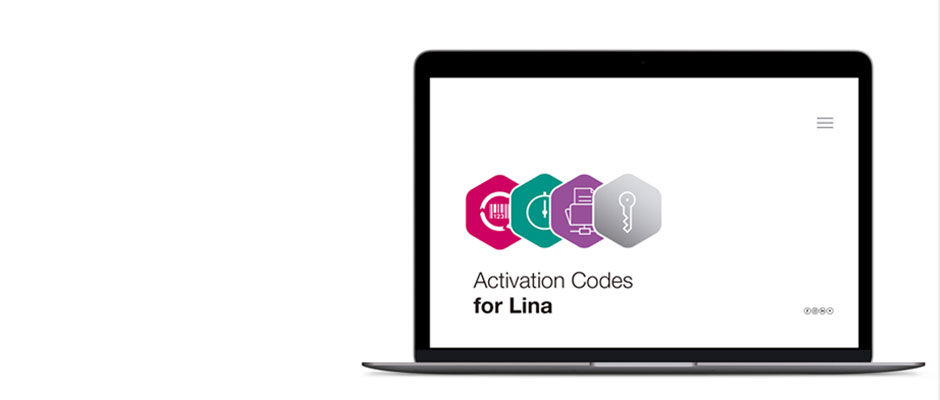

    Needs and requirements may change. Prepare yourself now: with the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.

    S naked
    The “S naked” cycle feature ensures maximum speed for reprocessing unwrapped handpieces.
    Remote data storage
    The “Remote data storage” feature is the ideal addition for the digital cycle documentation. It offers the possibility to save cycles directly on PC.
    Traceability
    The “Traceability” feature enables user identification and load release confirmation. Identification is secured by a PIN directly on the Lina sterilizer and the W&H Steri App.

    All in One
    The “All in One” feature provides all benefits at once – and ultimately your sterilizer becomes an unattainable price-performance ratio.

    Six steps to your customized sterilizer:

    1. Purchase Activation Code of your choice from your local approved dental supplier.
    2. After receiving the related login code, go to activation.wh.com
    3. Enter this code along with serial number and model of your sterilizer.
    4. Your individual, secure Activation Code is generated.
    5. Enter this code in the menu of your Lina sterilizer.
    6. The feature is available.

    Lina Autoclave

    Lina

    supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 50 Hz

    Lina 17 (RIK-117)
    REF 19951130

    Chamber size 17 l

    Lina 17 (RIK-117)
    REF 19951131

    AWF (Automatic water filling)
    Chamber size 17 l

    Lina 22 (RIK-122)
    REF 19952130

    Chamber size 22 l

    Lina 22 (RIK-122)
    REF 19952131

    AWF (Automatic water filling)
    Chamber size 22 l

    Žádost o cenovou nabídku
    Lina Autoclave

    Lina

    supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 60 Hz

    Lina 17 (RIK-117)
    REF 19951230

    Chamber size 17 l

    Lina 17 (RIK-117)
    REF 19951231

    AWF (Automatic water filling)
    Chamber size 17 l

    Lina 22 (RIK-122)
    REF 19952230

    Chamber size 22 l

    Lina 22 (RIK-122)
    REF 19952231

    AWF (Automatic water filling)
    Chamber size 22 l

    Žádost o cenovou nabídku

    Download Area

    Často kladené otázky

    more

    Návody k použití

    IFU Lina Sterilizer (RIK-1)
    IFU Lina Sterilizer (PRO13)
    Maintenance Sheet
    Lina PRO13-003
    Maintenance Sheet
    Lina RIK-1 2020

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Video návody

    Pro bezproblémový a interaktivní online zážitek z našeho multimediálního obsahu (např. videa, mapy) prosím přijměte ukládání nezbytných souborů cookie (YouTube, MovingImage – podrobné informace o těchto souborech cookie naleznete v tiráži/ochraně dat) pro marketingové účely.

    Souhlasím

    Soubory ke stažení

  • Lina sterilization cycles

    Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121 S naked 134 (optional)
    Temperature: 134 °C 134 °C  121 °C 134 °C
    Holding time (minutes): 4' 18' 30'' 20' 30'' 4'
    Total cycle duration
    (minutes) including
    complete drying:     		Automatic from Typical
    load     		Automatic from Typical
    load     		Automatic from Automatic from
    Lina 17
    25’–49’
    		45'
    40’–64’
    		60‘ 63’–71’ 20’–26’
    Lina 22
    28’–52’
    		48’
    43’–67’
    		63’ 65’–74’ 21’–27’
    Lina17 loads:
    Lina 22 loads:
    maximum 3.5–5.5(1) kg/typical 2 kg/maximum porous 0.5–1.5(2) kg
    maximum 4–6(3) kg/typical 2 kg/maximum porous 0.5–2(4) kg
    max. 4 kg unwrapped
    max. 4 kg unwrapped
    Lina 17/22 containers: maximum 6 kg –
    Test cycles: Helix/Bowie and Dick/Vacuum


    Items supplied with: reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test



    (1) Duration reported in the table refers to 3.5 kg. It is possible to sterilize up to 5.5 kg by drying time extension.
    (2) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 1.5 kg by drying time extension.
    (3) Duration reported in the table refers to 4.0 kg. It is possible to sterilize up to 6.0 kg by drying time extension.
    (4) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 2.0 kg by drying time extension.

    Lina

    Lina 17

    Lina 22

    Type:

    RIK-117

    RIK-122

    Chamber size:

    17 l

    22 l

    Power supply:

    200–240 V AC; 50 Hz or 60 Hz; 10 A single phase

    200–240 V AC; 50 Hz or 60 Hz; 10 A single phase

    Power consumption:

    2.0–2.4 kW

    Overall dimension (w x h x d):

    465 × 452 × 646 mm

    Weight (empty):

    40 kg

    42 kg

    Main/Used water tanks:

    4.8/4.8 l

    Working range:

    7 to 10 cycles

    Usable space in chamber (w x h x d):

    195 × 195 × 312 mm

    195 × 195 × 400 mm

    Connection types:

    1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)

    Lina sterilizers were designed, certified and validated with the most stringent directives and standards:

    93/42/EHS

    Medical Device Regulation

    IEC 61326-1

    Electromagnetic compatibility

    2014/68/EU

    Pressure equipment Directive

    IEC 61010-1

    Safety requirements sterilizer

    EN 13060

    Small steam sterilizer

    IEC 61010-2-040

    Specific requirements for steam sterilizer

    IEC 61770

    Electric appliances connected to the water mains


    The sterilizer can be validated according to EN ISO 17665-1
