Alegra dental turbine handpieces without light
Long service life and extremely quiet operation
Alegra turbine handpieces are precision manufactured to a high standard.
Ceramic ball bearings in Alegra turbines guarantee comfortable, vibration-free and quiet operation. When used with optimized care and maintenance, they will also ensure a long service life.Your advantages at a glance
- Ceramic ball bearings
- Triple spray for TE-97 and TE-98 models
- Powerful and reliable performance
- Patented hygienic head system
- Integrated resuction stop
- Thermo washer disinfectable and sterilizable
Precision coolingTriple spray
The triple spray during treatment cools the treatment site from all sides for safety during treatment.
Simple bur changingOptimum balance and retention force
The easy operation of the push-button chucking system facilitates rapid bur change.
No tools required!

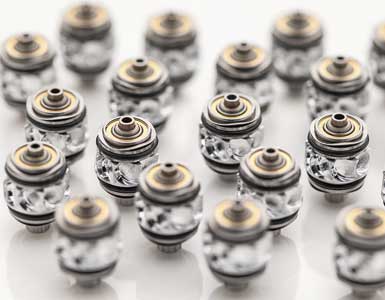

Long service lifeMade in Austria
Innovative technologies, high quality material
concepts and stringent quality criteria guarantee
long service life of Alegra turbine handpieces.

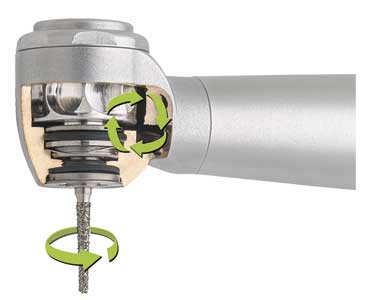

Patented hygienic
head systemPatented hygienic head system
The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.
Manual lubricationW&H Service Oil F1
W&H Service Oil F1 in a spray can is ideal for the perfect manual lubrication of Alegra turbine handpieces.
W&H Service Oil F1 cleans and lubricates your Alegra turbine handpiece and guarantees trouble-free use.
Maintenance at the press of a buttonDental devices from W&H: Automatic internal and external cleaning and lubrication
The W&H cleaning and maintenance devices Assistina 301 plus, Assistina 3x2 and Assistina 3x3 provide optimized maintenance options from oil service up to automatic internal and external cleaning.
Preparing your turbine handpieces for sterilization in record time!
![Alegra dental turbine TE-97]( "Alegra dental turbine TE-97")

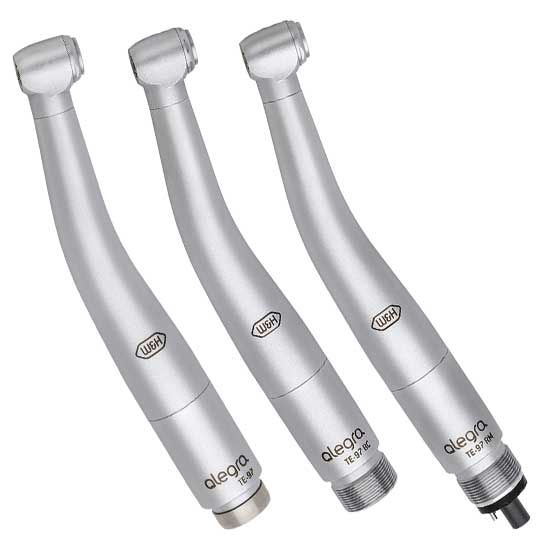

TE-97
Dental turbine with ceramic ball bearings, press button chuck, head size Ø 10.4 mm,triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10.4 mm
Power*: 16 Watt
Speed*: 390,000 rpmTE-97
REF 30068000With mini head, for Roto Quick connection
![Alegra dental turbine TE-98]( "Alegra dental turbine TE-98")

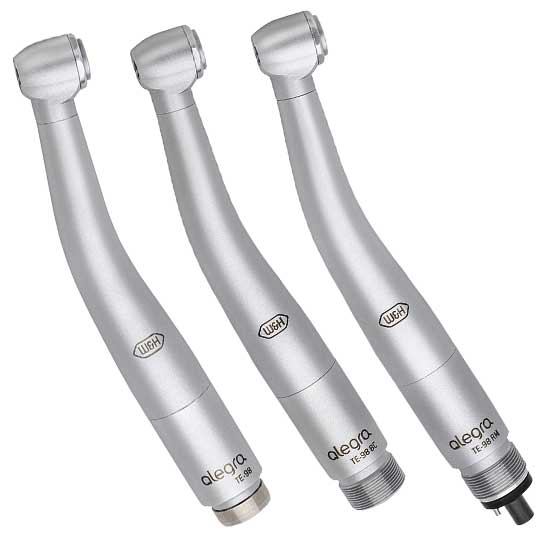

TE-98
Dental turbine with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330,000 rpm
TE-98
REF 30071000With standard head, for Roto Quick connection.

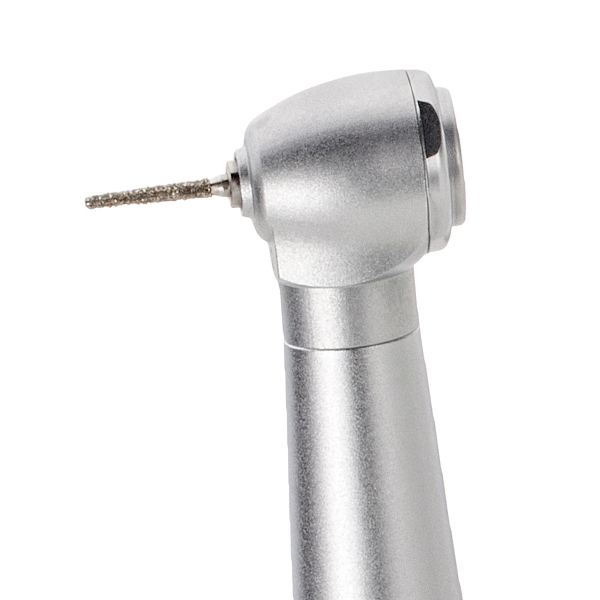

![Alegra dental turbine TE-95]( "Alegra dental turbine TE-95")

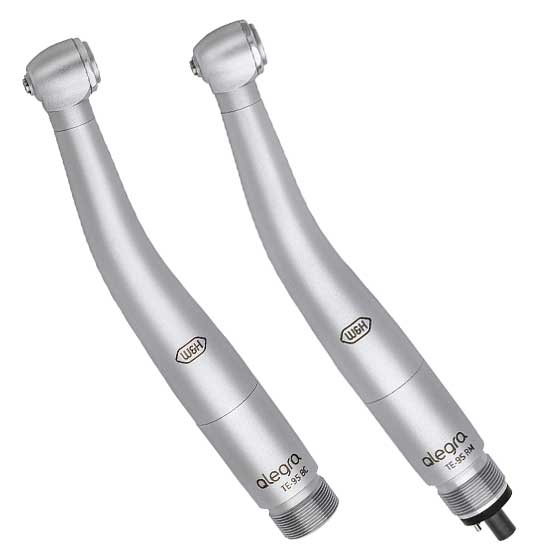

TE-95
Dental turbine with steel ball bearings, single spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330,000 rpmTE-95 BC
REF 30074000Dental turbine with
Borden 2-hole connection
TE-95 RM
REF 30075000Dental turbine with
standard 4-hole Midwest connection
* The power and speed depend on the quality of the supply hose used and may differ from the specified value.Alegra dental turbines with LED
for use with Roto Quick couplings RQ-53 and RQ-54
Optimal view and independent LED for the dentist
The ideal positioning of the LED on the Alegra turbine head guarantees optimal view and illumination of the treatment site.
The integration of a generator into the coupling enables the use of the Alegra LED turbine on the standard non-optic turbine hose without using a power supply.
Precision manufactured, high quality Alegra dental turbines with light offer an ideal solution for those wanting to use a handpiece with illumination on a system without built-in optics. Manufactured with ceramic ball bearings Alegra turbines guarantee vibration-free and quiet operation, also ensuring a long service life.Your advantages at a glance
- Independent light
- Ceramic ball bearings
- Triple spray
- Powerful and reliable performance
- Patented hygienic head system
- Integrated resuction stop
- Thermo washer disinfectable and sterilizable

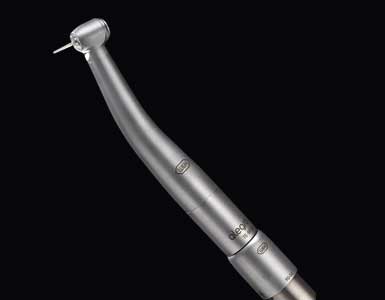

Independent lightTurbine handpiece with light and Roto Quick coupling with generator
A generator in the Roto Quick coupling enables the use of turbine handpieces with light on the turbine hose without using a power supply.

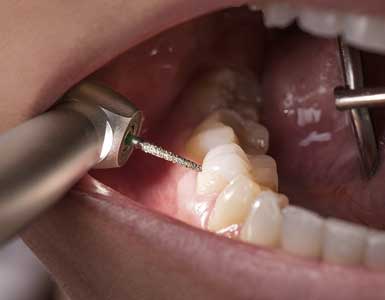

Optimal viewOptimal LED position
The position of the LED on the turbine head
guarantees optimal view and illumination
of the treatment site.
Excellent ergonomicsFatigue-free working
Easy 360° rotation of the dental turbine with light on the Roto Quick coupling ensures fatigue-free operation.
The low overall weight and slender design provide additional relief.
Patented hygienic head systemPatented hygienic head system
The patented hygienic head system prevents aerosol particles from being sucked into the turbine handpiece with light as the rotor runs down.

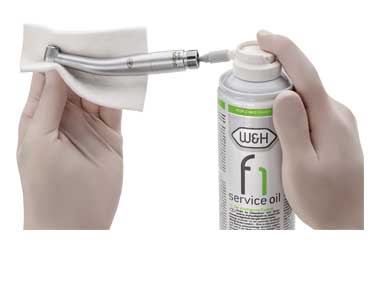

Manual lubricationW&H Service Oil F1
W&H Service Oil F1 in a spray can is ideal for the perfect manual lubrication of Alegra turbine handpieces with light.
W&H Service Oil F1 cleans and lubricates your Alegra turbine handpiece with light and guarantees trouble-free use.
Maintenance at the press of a buttonDental devices from W&H: Automatic internal and external cleaning and lubrication
The W&H cleaning and maintenance devices Assistina 301 plus, Assistina 3x2 and Assistina 3x3 provide optimized maintenance options from oil service up to automatic internal and external cleaning.
Preparing your turbine handpieces with light for sterilization in record time!

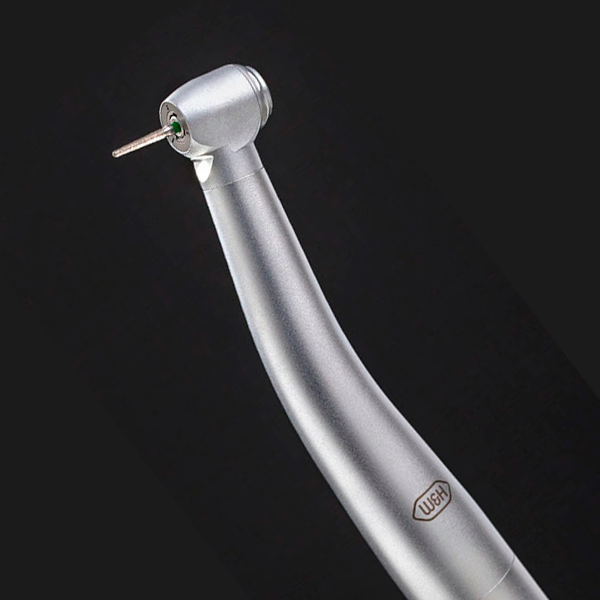

![TE-97 LQ]( "TE-97 LQ")

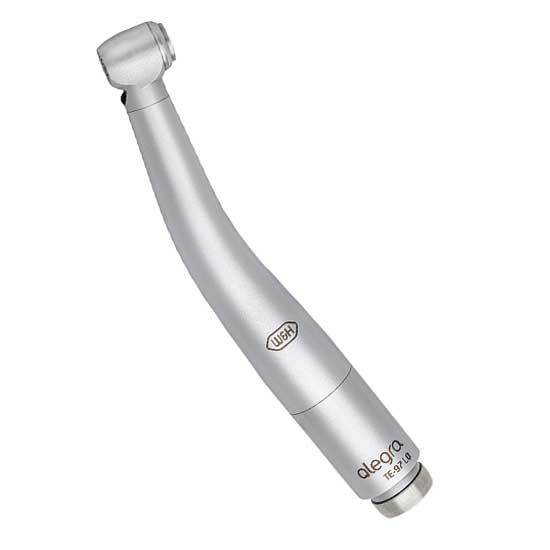

TE-97 LQ
Dental turbine with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs
Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10.4 mm
Power*: 16 Watt
Speed*: 390,000 rpmTE-97 LQ
REF 30066000Dental turbine with light
with Roto Quick connection

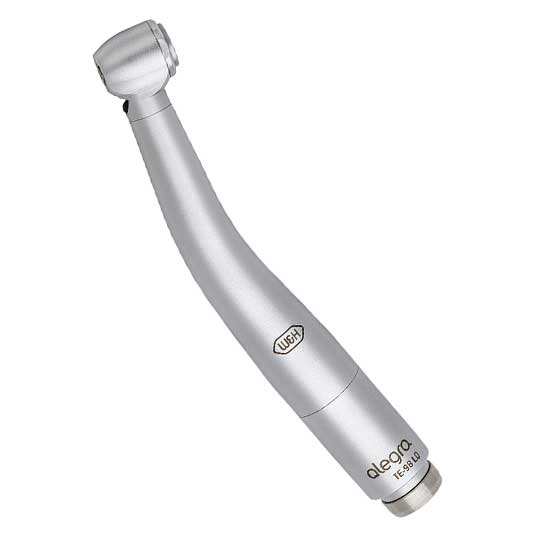

![TE-98 LQ]( "TE-98 LQ")
TE-98 LQ
Dental turbine with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs
Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10.4 mm
Power*: 18 Watt
Speed*: 390,000 rpmTE-98 LQ
REF 30067000Dental turbine with light
with Roto Quick connection* Power and speed data of turbines are largely dependent on the quality of the turbine hoses used and may therefore differ from the specified values.
Roto Quick couplings with generator
for use with Alegra LED dental turbines TE-97 LQ and TE-98 LQ

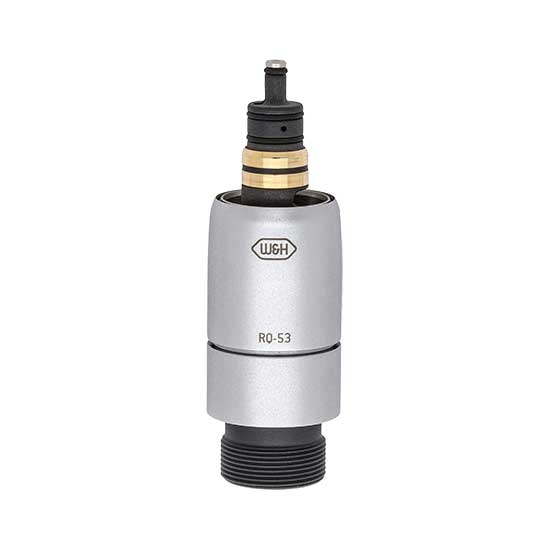

![RQ-53]( "RQ-53")
RQ-53
Roto Quick coupling with generator
and resuction stopRQ-53
REF 10405300Roto Quick coupling
with Borden 2(3)-hole connection

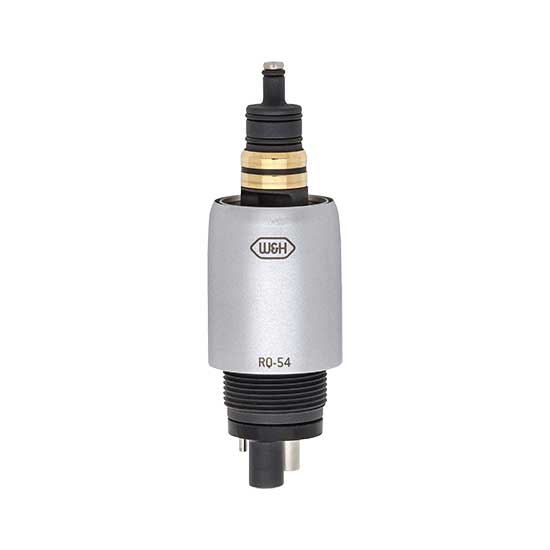

![RQ-54]( "RQ-54")
RQ-54
Roto Quick coupling wiht generator
and resuction stopRQ-54
REF 10405400Roto Quick coupling
with standard 4-hole Ritter-Midwest connectionDownload Area
FAQs
- Which burs can be used with W&H turbines?
- How does the new W&H Click & Pull system work? How do I remove a turbine?
- What is the maximum length of rotary instruments that can be used with the handpiece?
- I've just bought a new W&H turbine? Should I call a service engineer for my unit to install it?
- At the moment I have a W&H turbine without light. How can I have a light in my turbine?
- My turbine doesn't have enough power/speed?
- Can my W&H turbine be sterilized?
- Can my W&H turbine be processed via a thermo washer disinfector?
- Does the Alegra turbine handpiece also product light when used on optic dental units?
- I have a new Alegra LQ LED turbine handpiece, which is supplied with power by a Roto Quick coupling with integrated generator. What should I pay attention to when servicing the Roto Quick coupling with generator?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Alegra Dental turbine handpieces without light
Types: TE-95 BC / TE-95 RM TE-98 TE-97 Connection: BC: Borden 2(3)-hole /
RM: Standard Ritter-Midwest 4-holeRoto Quick Head size (Ø mm): 12.2 10.4 Power (W): 18* 16* Speed (± 30.000 rpm): 330,000 rpm* 390,000 rpm* Rotary instruments: FG burs with 1.6 mm Ø, according to ISO 1797-1 Maximum length approved by W&H (mm): 25 21 Ball bearings: steel ceramic Spray: single triple Recommended operating pressure (bar): 2.2 - 2.8 Warranty: 12 months
* The power and speed depend on the quality of the supply hose used and may differ from the specified value.
Alegra Dental turbine handpieces with LEDTypes: TE-98 LQ TE-97 LQ Connection: W&H Roto Quick couplings RQ-53 and RQ-54 Head size (Ø mm): 12.2 10.4 Power (W): 18* 16* Speed (± 30.000 rpm): 330,000 rpm* 390,000 rpm* Rotary instruments: FG burs with 1.6 mm Ø, according to ISO 1797-1 Maximum length approved by W&H (mm): 25 21 Ball bearings: ceramic Spray: triple Recommended operating pressure (bar): 2.2 - 2.8 Warranty: 12 months * The power and speed depend on the quality of the supply hose used and may differ from the specified value.
