Implantmed knows what surgeons and implantologists need!

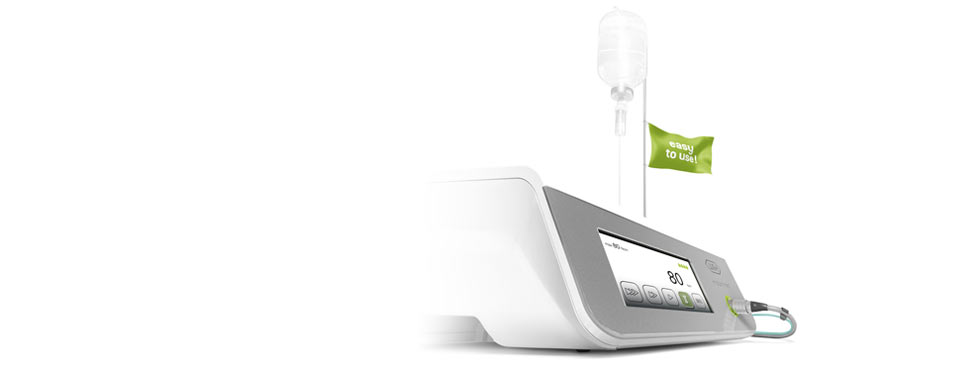

The Implantmed plus from W&H ensures improved treatment safety for you and your patients.

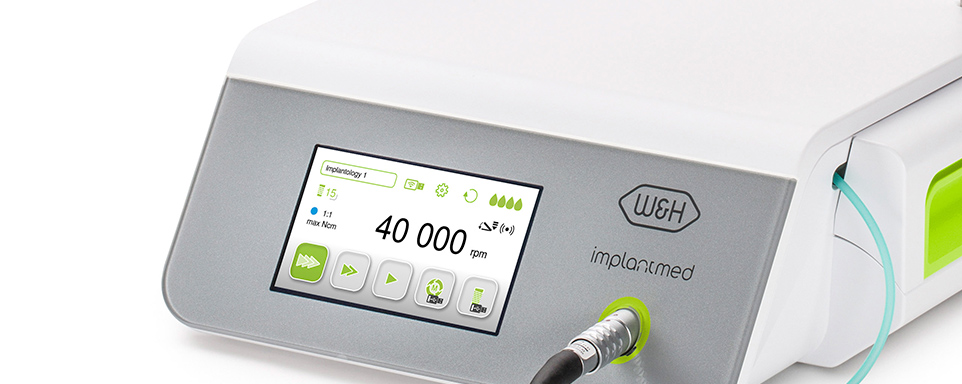

With the intuitive user interface, colour touch screen and glass surface the new Implantmed offers you the highest levels of design and comfort.
The drive unit is ideally designed for purpose with its automatic thread cutter function and automatic torque control and W&H Osstell products (available as an accessory) for precise measurable implant stability.Your advantages at a glance
- Intuitive user interface
- Secure torque control
- Ultra-short, powerful electric motor

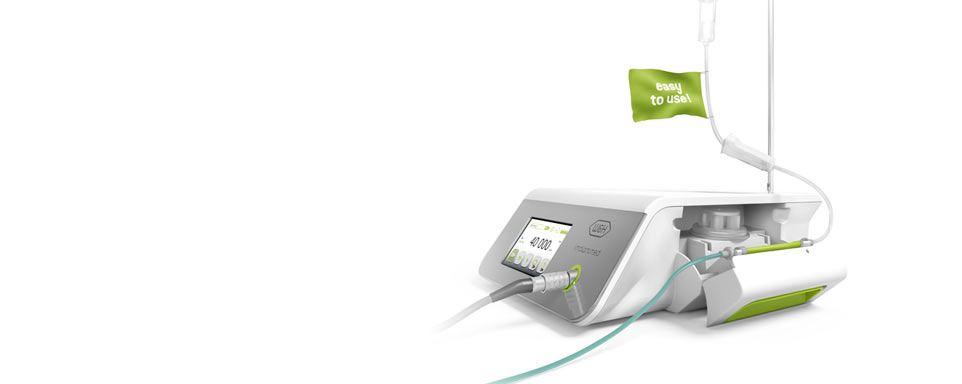

- New pump design
- Wireless foot control
- Flexibility to integrate the Piezomed Module

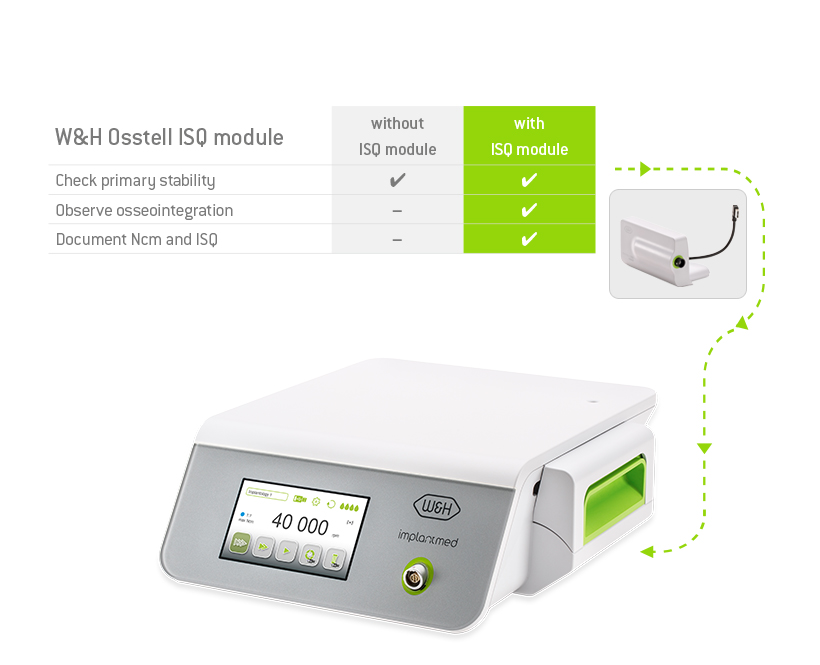

W&H Osstell Beacon PairingW&H Osstell Beacon Pairing
• Connection via Bluetooth dongle and USB interface
• Display of the measured values incl. colour coding on the Implantmed display

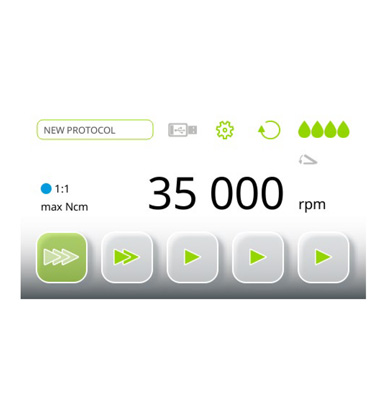

Protocol extension drilling stepsProtocol extension drilling steps
• Up to 5 additional drill steps selectable
• 2 torque-controlled implantation programs possible

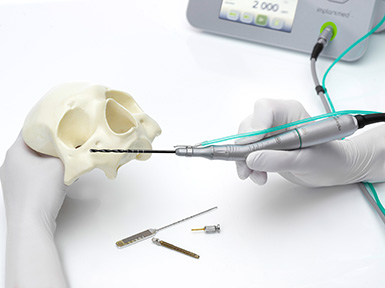

Zygoma ImplementationZygoma Implementation
• Implementation Zygoma handpiece SZ-75
• Torque precision through tuning to the overall system
• Selectable as transmission ratio in Implantmed Plus
-

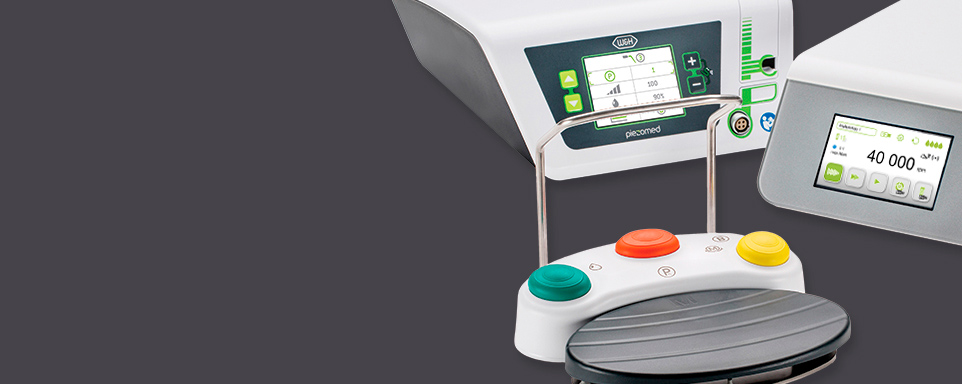

Wireless foot control
Freedom of movement
- Complete safety in the treatment area
- One for all – Control the functions of multiple W&H units

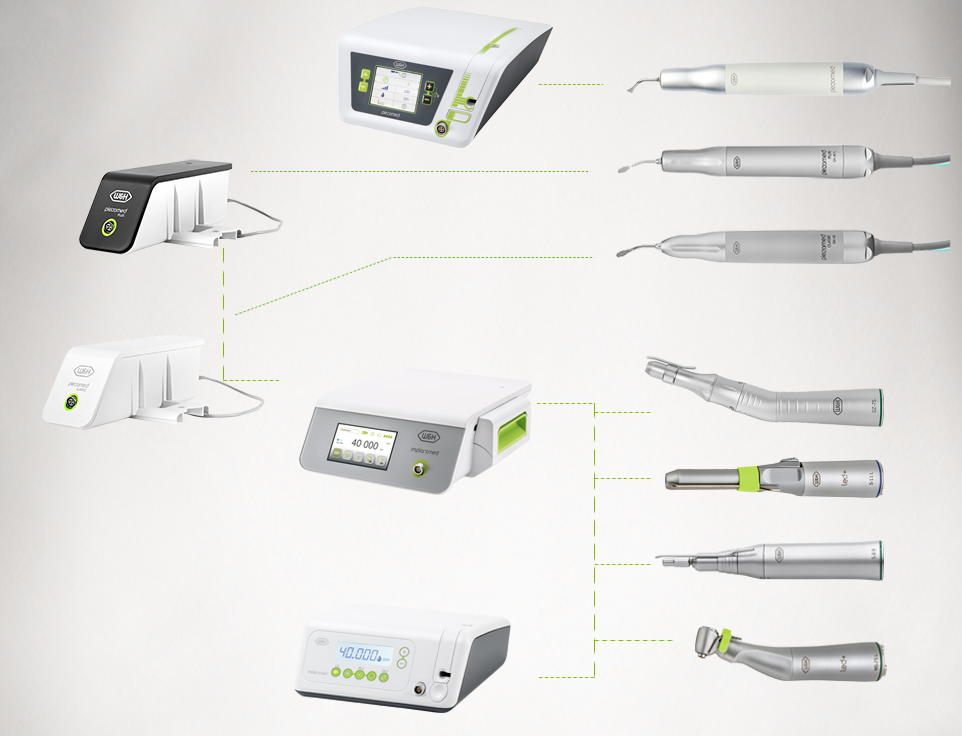

Modularity for optimal flexibility
Workflow driven solution
The combination of Implantmed Plus and
Piezomed module changes the way oral
surgery and implantology work.
Electric motor
Particularly small and surprisingly light. It enables you to work with ease.

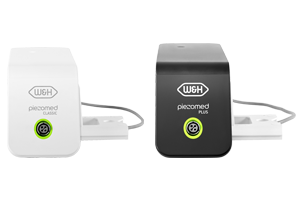

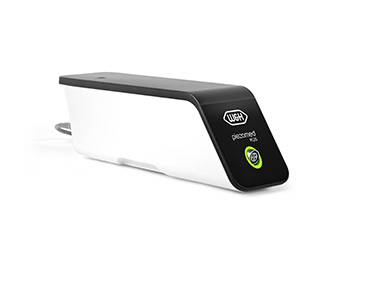

Piezomed Plus and Classic module
Combine piezo surgery and implantology in one device.

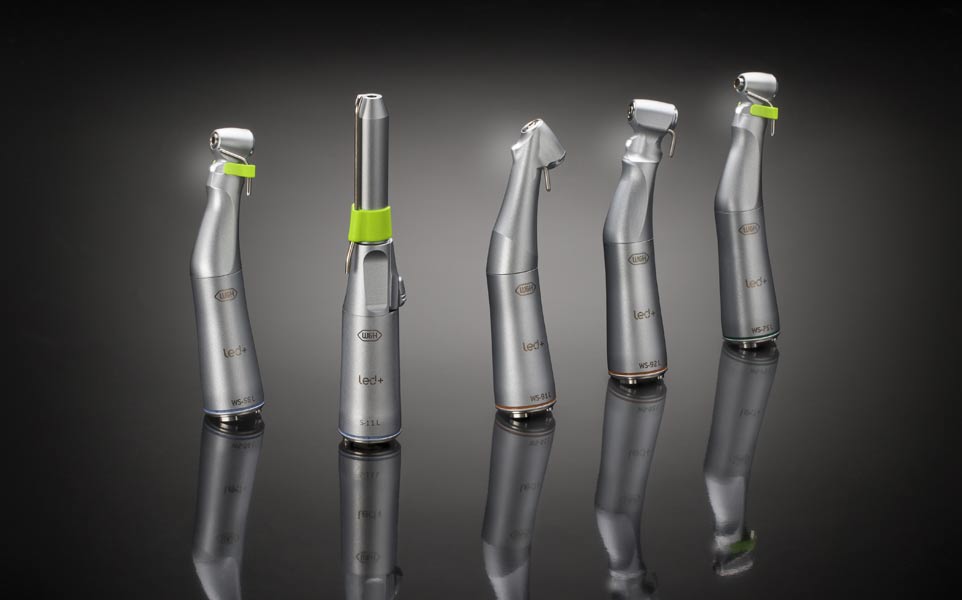

Straight & Contra-angle Handpieces
Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
More Info!
Documentation function
The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).

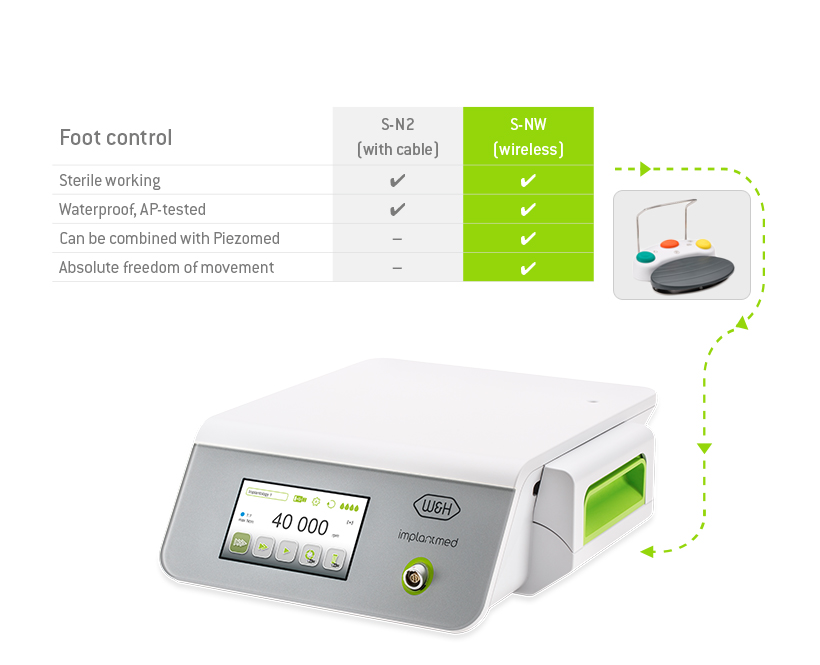

Wireless or wired foot control
Control the Implantmed Plus and Piezomed module with just one foot control.

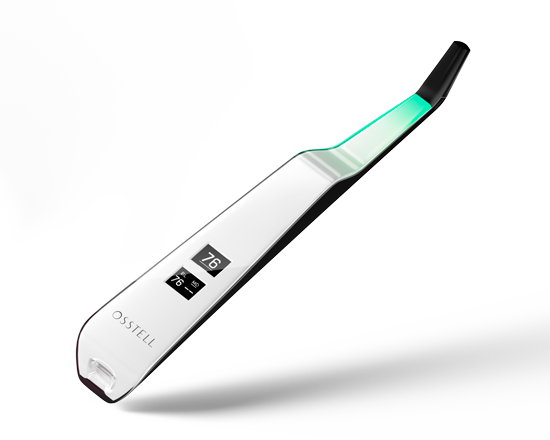

Osstell Beacon
Bluetooth connection to the Osstell Beacon
for easy measurement and representation of implant stability.
More Info!Step 1: control unit

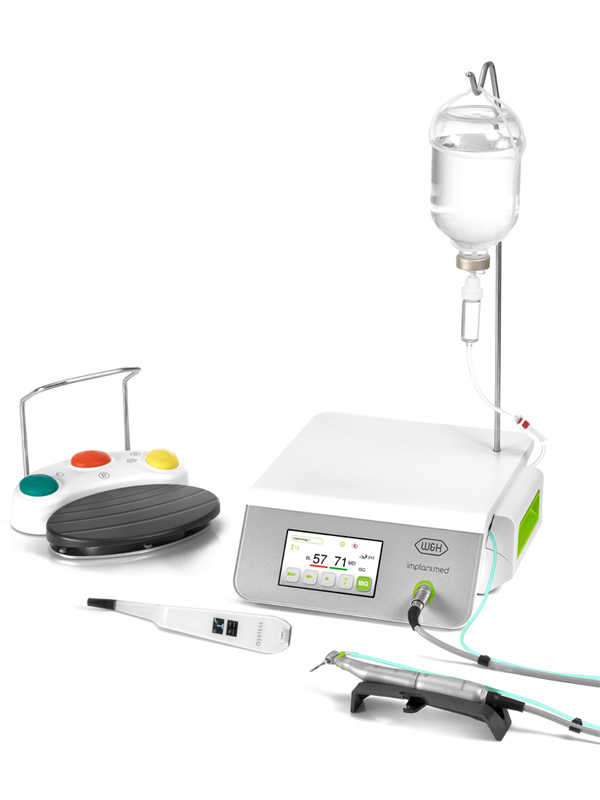

![Implantmed Plus]( "Implantmed Plus")

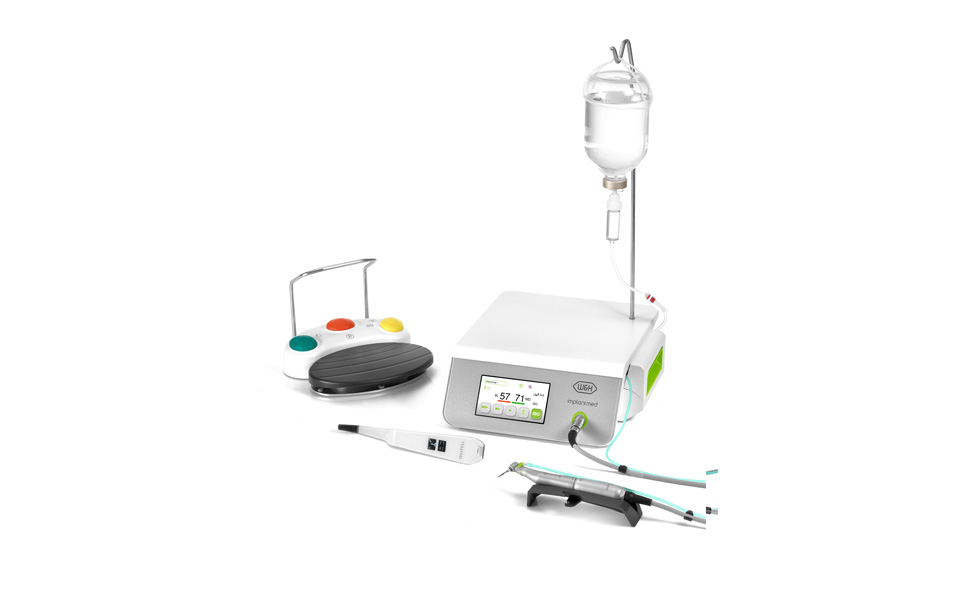

Implantmed Plus
consists of
> Control unit
> Irrigant support
> Universal support
> Mains cable
> 3 disposable irrigation tubingsSI-1023
REF 30288000Control unit for 230 V mains voltage
SI-1015
REF 30289000Control unit for 115 V mains voltage
SI-1010
REF 30290001Control unit for 110 V mains voltage

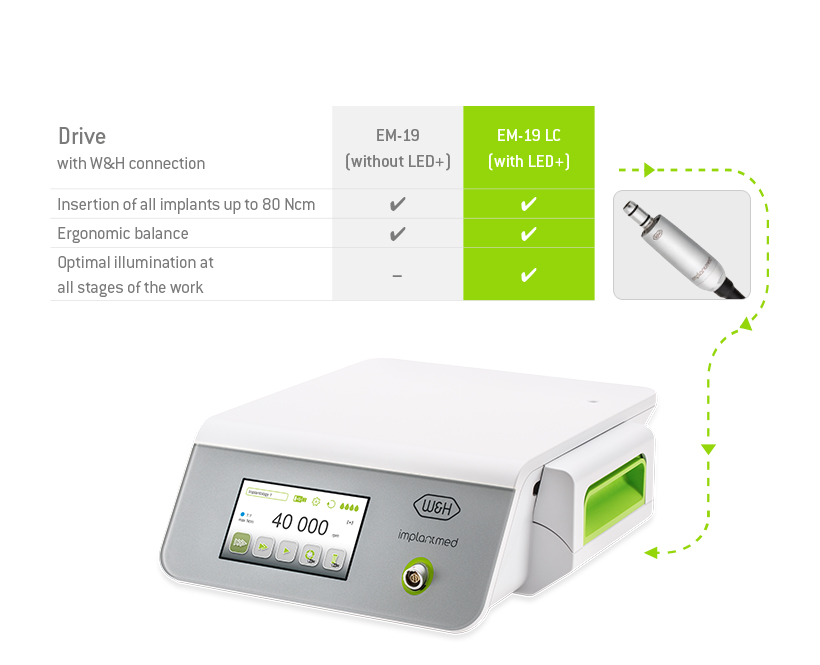

Step 2: Drive

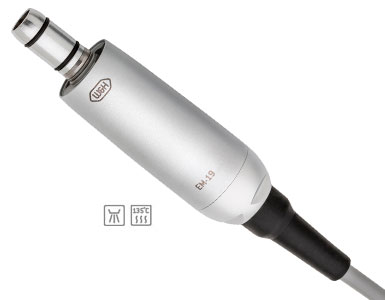

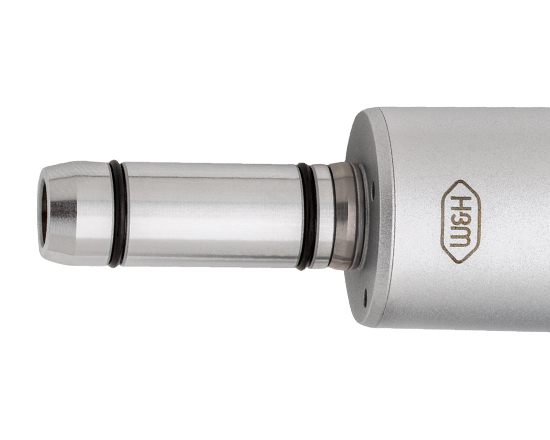

![Electric motor with W&H connection]( "Electric motor with W&H connection")
Electric motor with W&H connection
Maximum torque at motor: 6.2 Ncm
Motor speed range in the rated voltage range:
200 – 40.000 rpmEM-19 LC
REF 30281000with LED+
mit electric contacts
with 1.8 m cableEM-19
REF 30185000without LED+
without electric contacts
with 1.8 m cableStep 3: Foot control
![Wireless foot control]( "Wireless foot control")

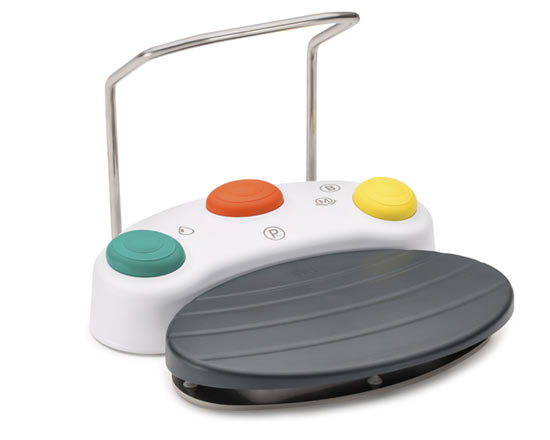

Wireless foot control
S-NW + CAN
REF 30264000with CAN dongle
compatible with
Implantmed SI-1023, SI-1015, SI-1010
![Foot control with cable]( "Foot control with cable")

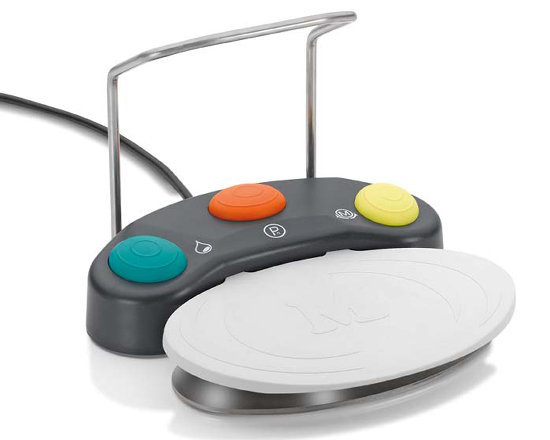

Foot control with cable
S-N2
REF 30285000compatible with
Implantmed SI-923, SI-915, SI-1023, SI-1015, SI-1010Step 4: Implant stability measurement

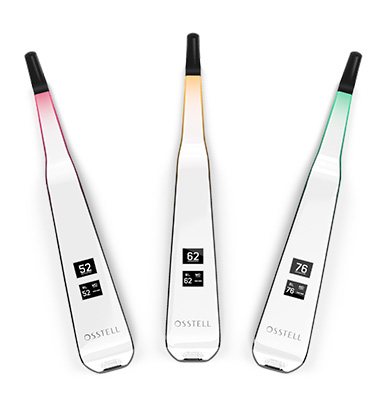

![Osstell Beacon]( "Osstell Beacon")
Osstell Beacon
Included with delivery of the Osstell Beacon measuring device:
> USB dongle for Bluetooth communication
> 1 Osstell TestPeg
> 1 SmartPeg mount
> Instruction manual
Dimensions: 210 x 35 x 25 mm
Weight: 0.7 kg
Osstell Beacon
REF Beacon

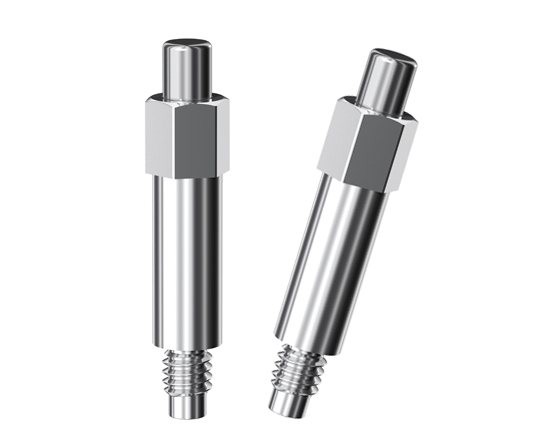

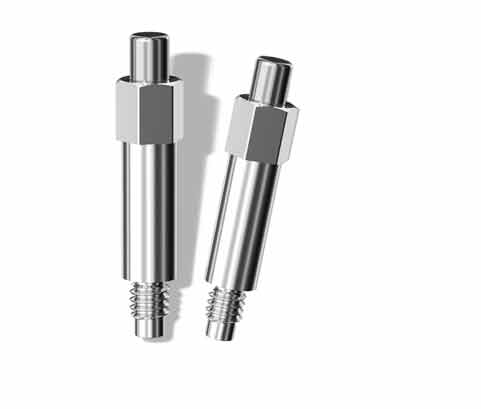

![SmartPeg]( "SmartPeg")
SmartPeg
> Voucher on first order for 5 SmartPegs
> Order in the WebShop
![SmartPegs]( "SmartPegs")
SmartPegs
> Disposable product
> Delivered in sterile individual packets of 5 items each
Weight: 0.3 g
SmartPegs
REF SmartPegs
Download Area
FAQs
- How can I adjust the torque?
- Can handpieces from another manufacturer be used on a W&H surgical motor (i.e. Implantmed or Elcomed)?
- Can other brands of tubing be used?
- How to insert irrigation tube?
- How can the unit / motor be cleaned / sterilized?
- Is it possible to adjust the motor speed within the program to insert an implant?
- Why is the light of my "LED G" handpiece not working when placing the implant?
- Can my Implantmed/Elcomed motor be processed in a thermo washer disinfector?
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
- Does my W&H unit need to be serviced.
- What types of tubing can I use on my device?
- Does the motor have to be lubricated?
- What does ISQ stand for?
- How does the measurement of the ISQ work?
- Where can I buy the SmartPegs?
- What’s the difference between torque and ISQ?
- Is every new Implantmed compatible with the W&H Osstell ISQ module?
- Can the Implantmed unit be upgraded by the surgeon or does it require a technical specialist?
- Are previous Implantmed motors compatible with the new Implantmed or vice versa?
- What does the LC in EM-19 LC stand for, is there an LED in the motor?
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Are old cable foot controls compatible with the new unit or vice versa?
- How does wireless control of the Implantmed and Piezomed work?
- Can previous Implantmed units be retrofitted with the wireless foot control
- Is it possible to use the Implantmed Classic in combination with the wireless foot controller?
- Is the previous Implantmed motor compatible with Implantmed Classic?
- Is it possible to use the foot controller S-N1 (previous version)?
- Piezomed module: Are the handpieces of the modules compatible with the SA-320?
- Piezomed module: Can devices be retrofitted on the market?
- Piezomed module: Does the module also work with OEM devices?
- Piezomed module: Compatibility of the handpieces with Piezomed Plus module and Piezomed Classic module.
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
- Piezomed module: Can I use the same Piezomed tips for SA-320 and the new modules as well?
- Piezomed module: Can I use tips from competitors?
- Piezomed module: Is it possible to upgrade every existing product on the market?
- Can our customers dis-assemble the surgical contra-angles
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Downloads
Video Tutorials
-
Your reliable partner in implantology

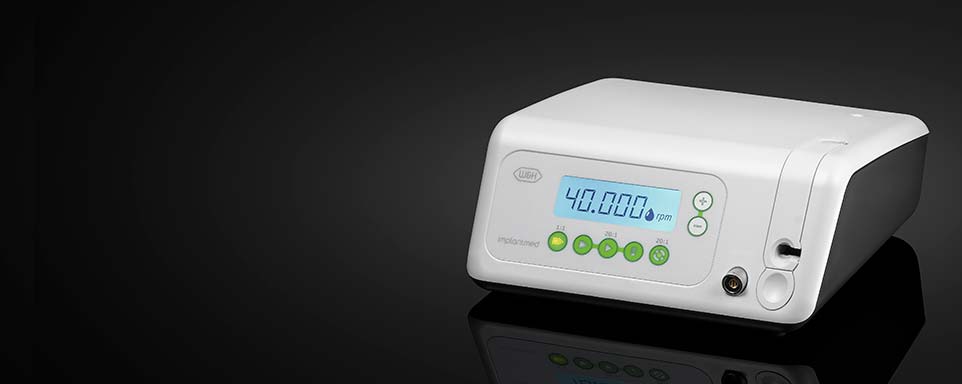

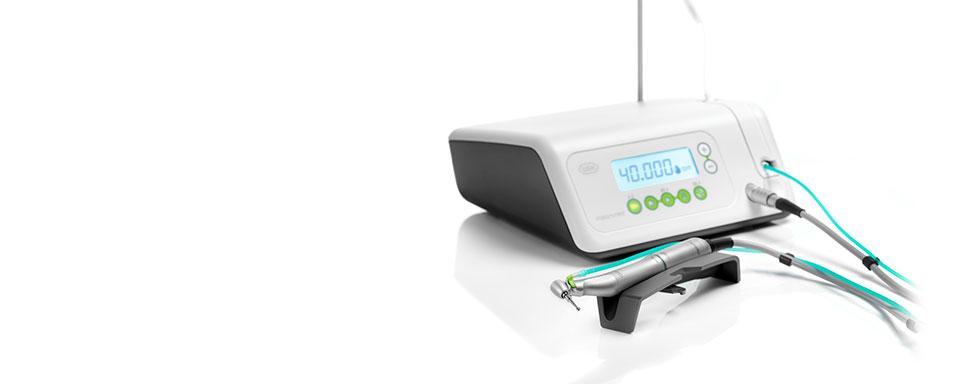

Implantmed excels by virtue of its ease of operation, powerful motor and automatic
thread cutter function.
The logically designed operating concept
supports implantologists and ensures all
programs can be set up easily, by
pressing the buttons on the unit or by
operating the foot control.Your advantages at a glance
- Easy to use
- Powerful motor with 5.5 Ncm torque
- Wide speed range: 300 up to 40,000 rpm at the motor
- Precise torque limitation: 5 to 70 Ncm
- Automatic thread cutter function
- Motor with cable, thermo washer disinfectable and sterilizable
Powerful motorPowerful motor for implantology

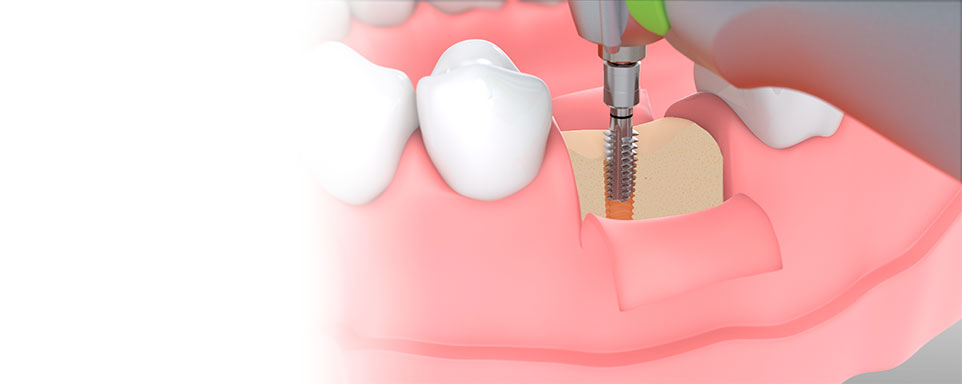

With this powerful motor even difficult implantological procedures
no longer demand great strength.
A motor torque of 5.5 Ncm and a motor speed range of
300 up to 40,000 rpm make light work of tough procedures.
The automatic torque control at the rotary instrument,
which can be set on the Implantmed unit at between
5 and 70 Ncm, ensures it is safe in operation.
Ease of operationEase of operation
Ease of use is the major feature.
You can set up all the steps for an implantation without difficulty by pressing the plus and minus buttons on the unit or by operating the foot control.
The set parameters are clearly visible on the display and are easy - to - read.
Automatic thread cutter functionAutomatic thread cutter function
The thread cutter function, which is integrated in Program 5, supports you when inserting implants in hard bone.
Cutting a thread before screwing in an implant prevents excessive compression of the bone and promotes
stress – free healing of the implant.

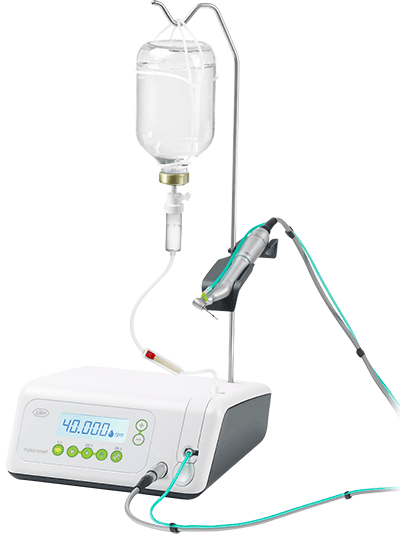

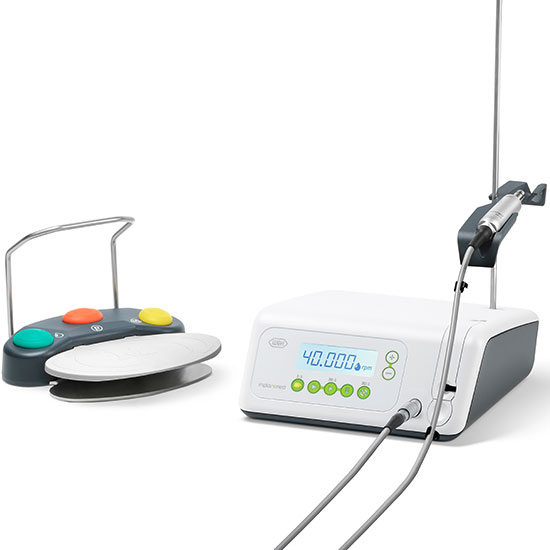

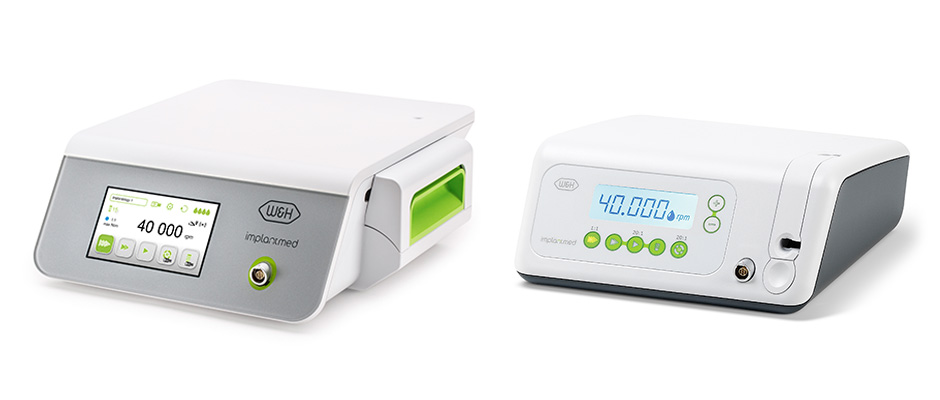

![Implantmed Classic]( "Implantmed Classic")

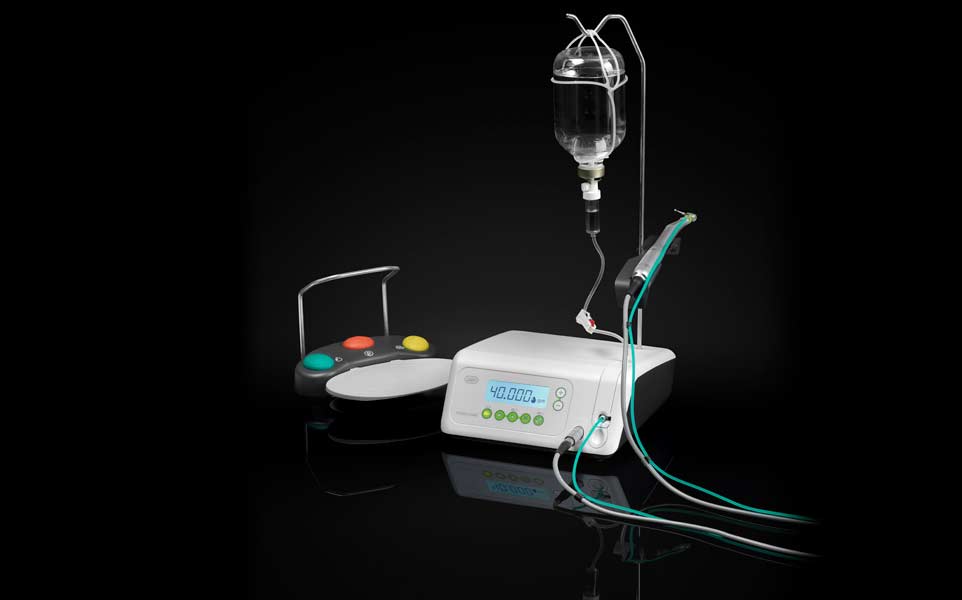

Implantmed Classic
