Zygoma - 20:1 handpiece

The new solution in the Zygoma application

Discover Product

Surgical Handpiece SZ-75

specially for the insertion of Zygoma implants

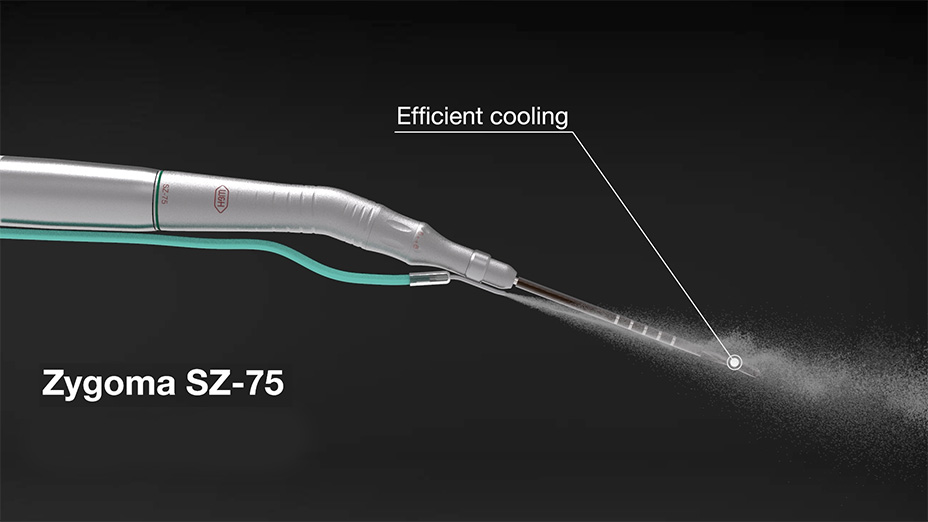

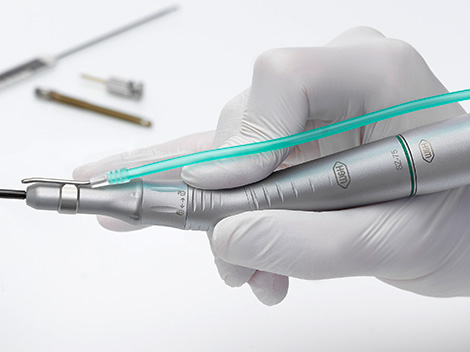

  • Efficient cooling

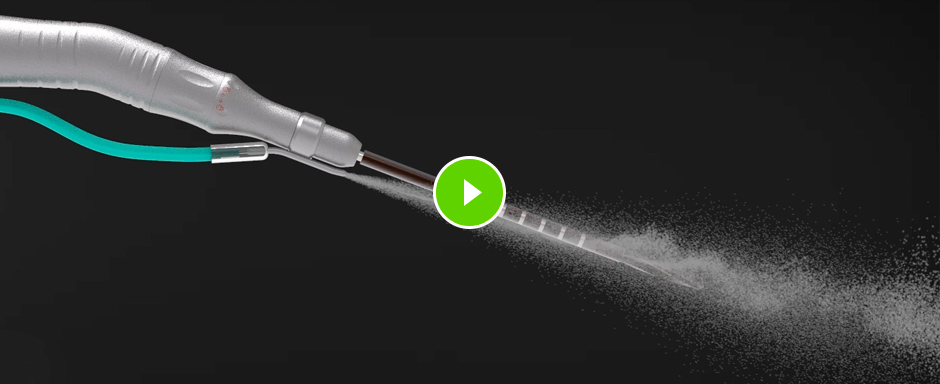

    The spray exits near the instrument‘s area of activity and cools the operating site extremely efficiently.

  • High application security

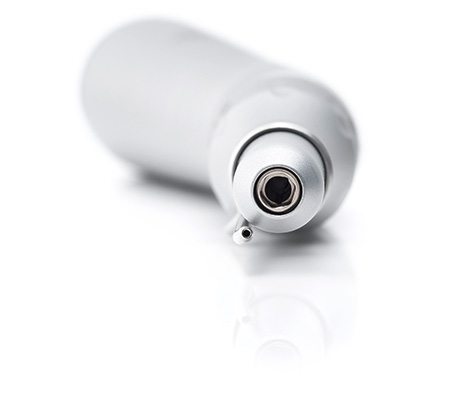

    The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

  • Easy access to treatment site

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

  • Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

  • 1 Efficient cooling

    Efficient cooling

    The spray exits near the instrument‘s area of activity and cools the operating site extremely efficiently.

  • 2 High application security

    High application security

    The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

  • 3 Easy access to treatment site

    Easy access to treatment site

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

  • 4 Fatigue-free working

    Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

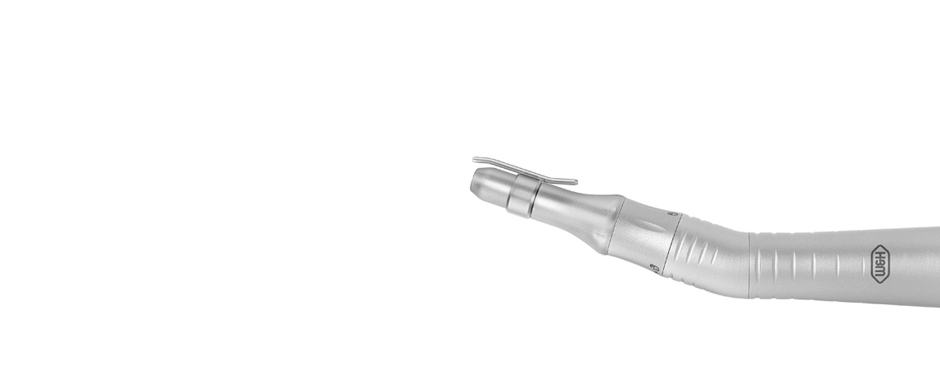

  • Surgical Handpiece SZ-75 specially for Zygoma implants

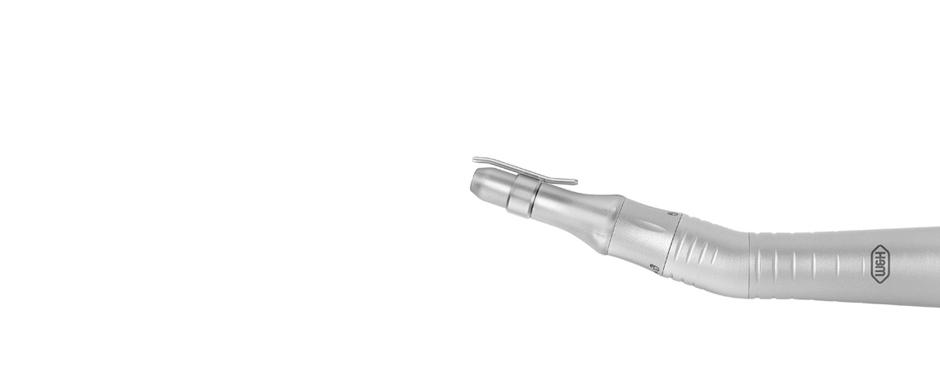

    Surgical Handpiece SZ-75

    Unique, easy and safe

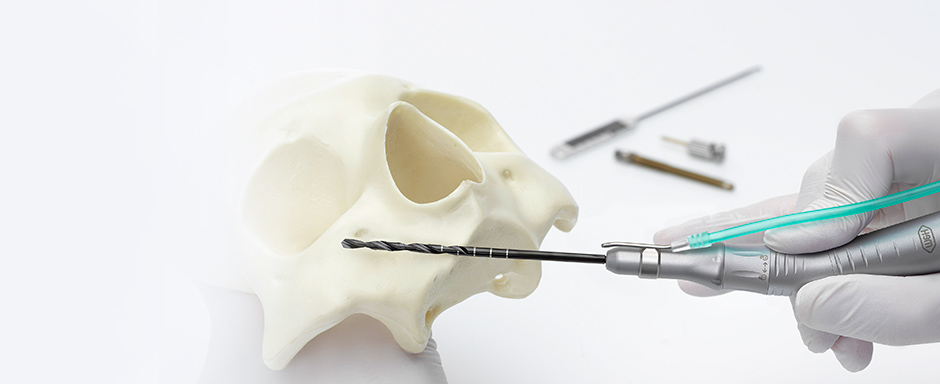

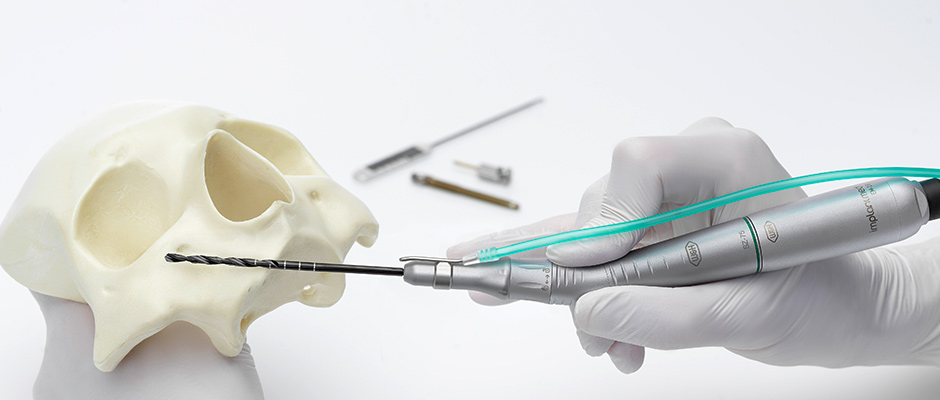

    The SZ-75 20:1 handpiece is designed specially for the insertion of
    Zygoma implants. Its unique angulation allows an excellent field of view of the treatment site allowing improved access to even the most difficult to reach areas in the zygomatic bone.

    Advantages at a glance

    • Easy access to treatment site
    • High application security
    • Fatigue-free working
    • Efficient cooling

    Easy access to treatment site

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

    High application security

    The 20:1 handpiece with contra-angle chucking system ensures safer working at high concentricity.

    Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

    “W&H offers the best handpiece for the insertion of Zygoma implants: The unique combination of the specially angled handpiece, the efficient spray cooling and a secure chucking system allows maximum comfort. For doctor and patient.”

    Dr. Armando Lopes
    Specialist in Oral Surgery & Implantology
    MALO CLINIC, Portugal

    “Beautifully machined for quality and balance. W&H sets new standards in the Zygoma application. Incredibly easy to use with Implantmed and fatiguefree working thanks to the ergonomic design of the handpiece are guaranteed.”

    Dr. Ana Ferro
    Specialist in Periodontology
    MALO CLINIC, Portugal

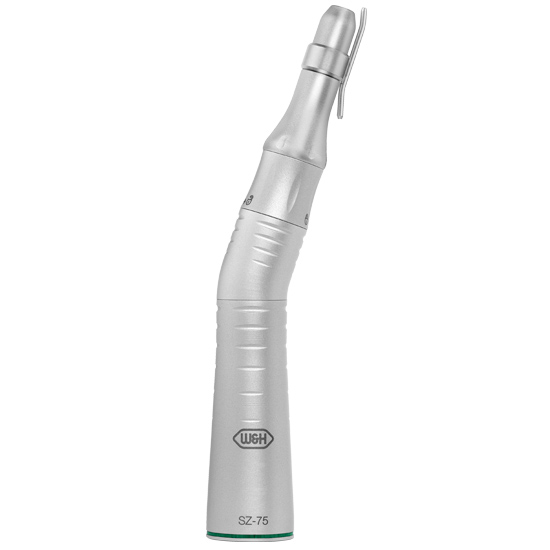

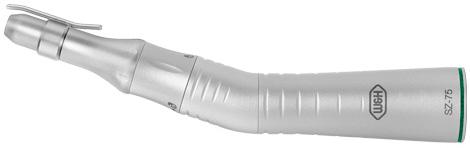

    Surgical Handpiece SZ-75

    SZ-75

    20:1 Surgical Handpiece with contra-angle
    chucking system
    Coupling system: ISO 3964 (DIN 13940)

    SZ-75
    REF 30095000

    20:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm, external spray, maximum drive speed 50.000 min-1

    Indications

    e.g.: Implantation of Zygoma implants osteotomy

    Request Price

    Download Area

    Instructions for use

    Surgical Handpiece SZ-75

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Downloads

  • Zygoma

    Typ: SZ-75
    Transmission ratio: 20:1
    Coupling system: ISO 3964
    External cooling system: single
    Chucking system: twist chuck system
    Rotary instruments: Zygoma burs, surgical burs
    and cutters with contra-angle shank Ø 2,35 mm
    Maximum drive speed: 50.000 min -1
    Can be dismantled: yes
