Versatile, precise and practical
Whether using an electric, an air or a
torque-controlled motor, the Endea
contra-angle EB-75 (16:1) enables all
commercially available files to reach the
required speeds.The main features at a glance
- Small head for best possible access to the treatment site
- Hygienic and easy to use with non-slip handle
- Ball bearing fully mounted for precise transmission of speed to the file
- Thermo washer disinfectable and sterilizable

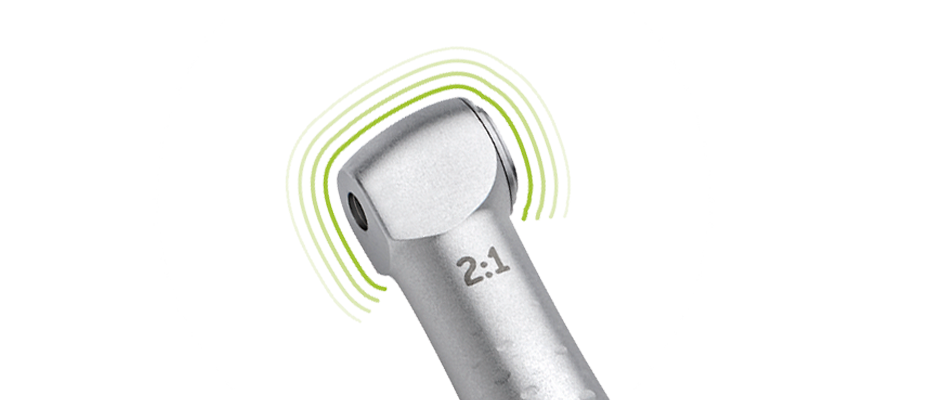

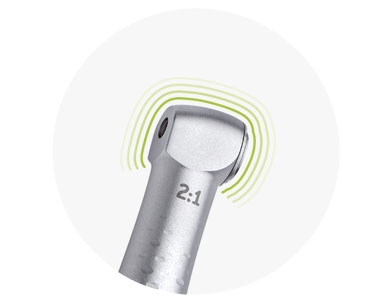

Extremely small headExtremely small head
Endea, with its extremely small head, offers even better access to the treatment site.
Head size diameter: 8.3 mm
Head height: 9.3 mm

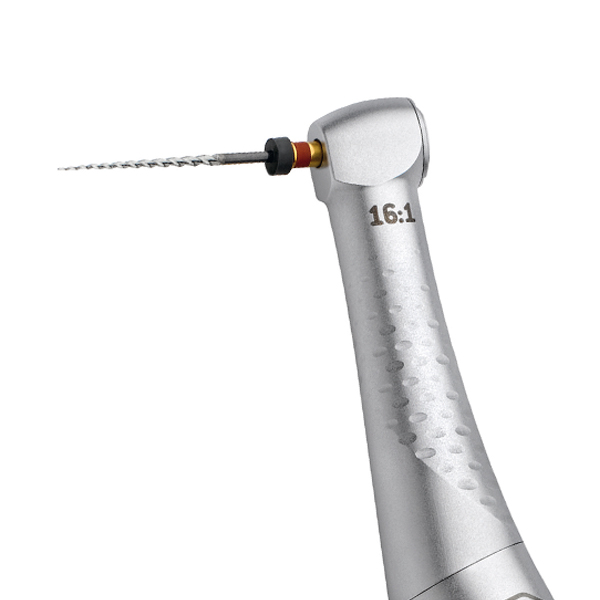

Shortened file shafts
The shortened file shafts reduce the overall working height and simplify access, particularly to the posterior region of the oral cavity.

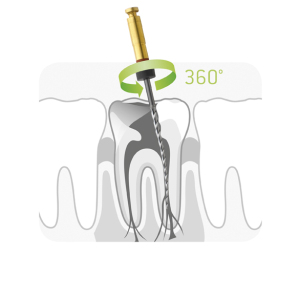

Nickel-titanium filesRoot canal preparation
Precise, fast and efficient preparation of the root canal with 360° rotation.
![Endea Contra-angles]( "Endea Contra-angles")
Endea*

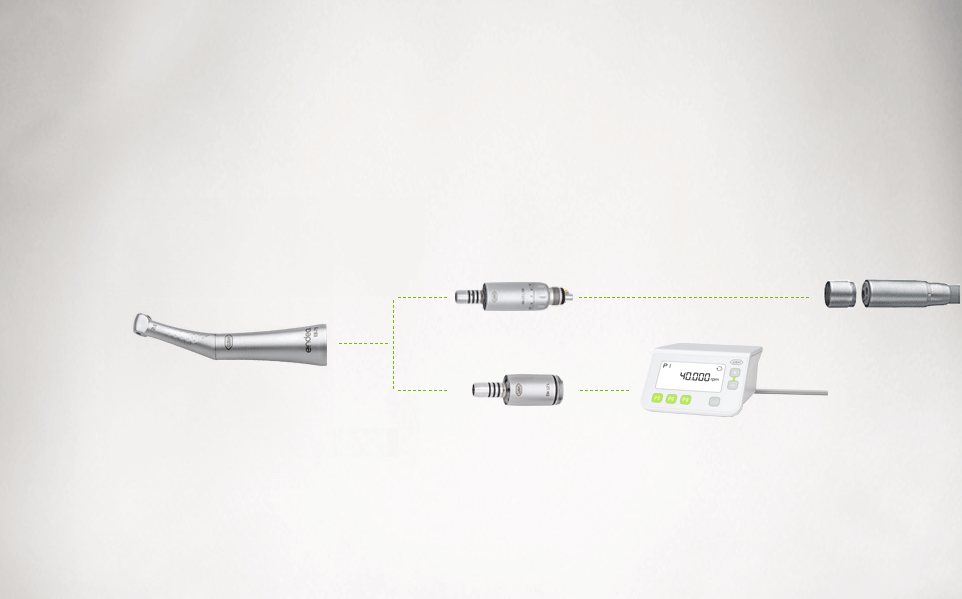

Coupling system: Motors with ISO connection according to ISO 3964 (DIN 13.940) Connection diameter: 20 mm

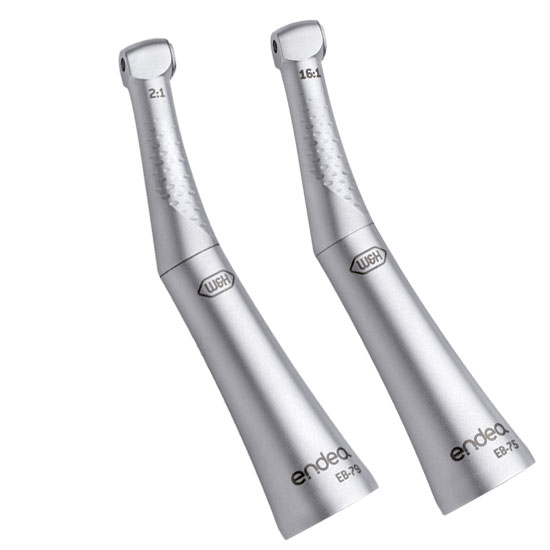

EB-75
REF 12227501Contra-angle 16:1,
for motor speed up to 5,000 min-1,
shaft diameter 2.35 mm (type 1)
according to EN ISO 1797-1:1995EB-79
REF 12227901Contra-angle 2:1,
for motor speed up to 600 min-1,
shaft diameter 2.35 mm (type 1)
according to EN ISO 1797-1:1995* Recommended root canal instruments according to EN ISO 1797-1:1995: Nickel-titanium files, suitable for 360° rotation, shaft diameter 2.35 mm (type 1)
Download Area
FAQs
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Endea
Type: EB-75 EB-79 Transmission ratio: 16:1 2:1 Recommended root canal instrument´s
according to EN ISO 1797-1:1995:Nickel-titanium files, suitable for 360° rotation,
shaft diameter 2.35 mm (type 1)Connection diameter: 20 mm Coupling system: Motors with ISO connection according to ISO 3964 (DIN 13.940)
