Answer 3 questions to find the right Water Treatment Device for your demands!
Find the right Water Treatment Device for your demands.
Your product recommendation:
Osmo
Possible alternative product:
Your product recommendation:

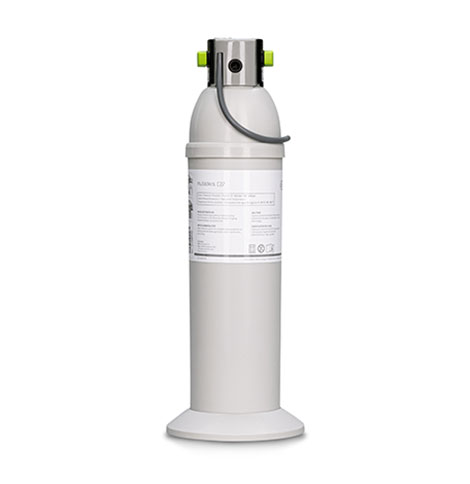

Multidem
Possible alternative product:
Your product recommendation:

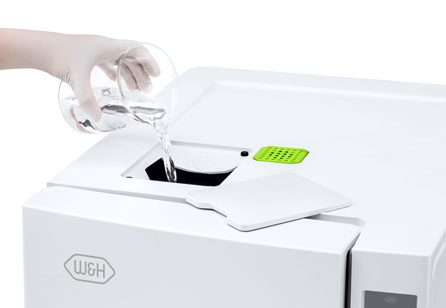

Distilled Water
Possible alternative product:
-

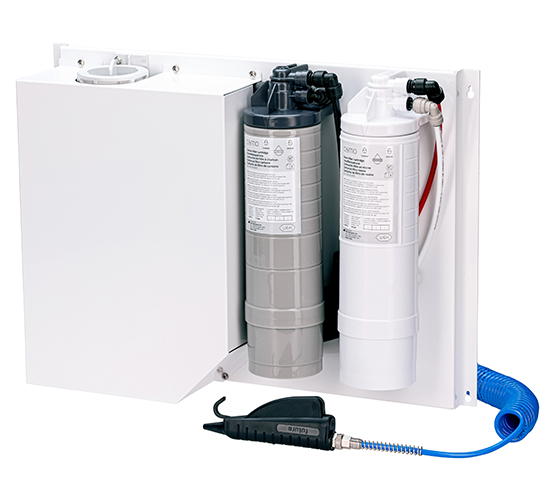

Purified water for optimal results
Osmo is able to produce up to 30 litres of demineralized water per hour and supply up to 6 devices simultaneously. The water storage tank supplied has an effective volume of 7 litres of demineralized water to provide higher amounts of purified water used for sterilization and daily activities, such as instrument rinsing.
Advantages at a glance
- Suitable for use with all types of sterilizers, up to 6 devices simultaneously
- Flexible use in combination with the spray gun
- Fast cartridge replacement without tools
- Automatic water filling and direct draining
- Optimized ion exchange resin and carbon filter cartridges
- Cost effective solution both for regions with poor water quality and practices with high demand
- The purified water complies with the relevant recommendations and regulations for the correct reprocessing of instruments
- Consistently high water quality, no limescale deposits

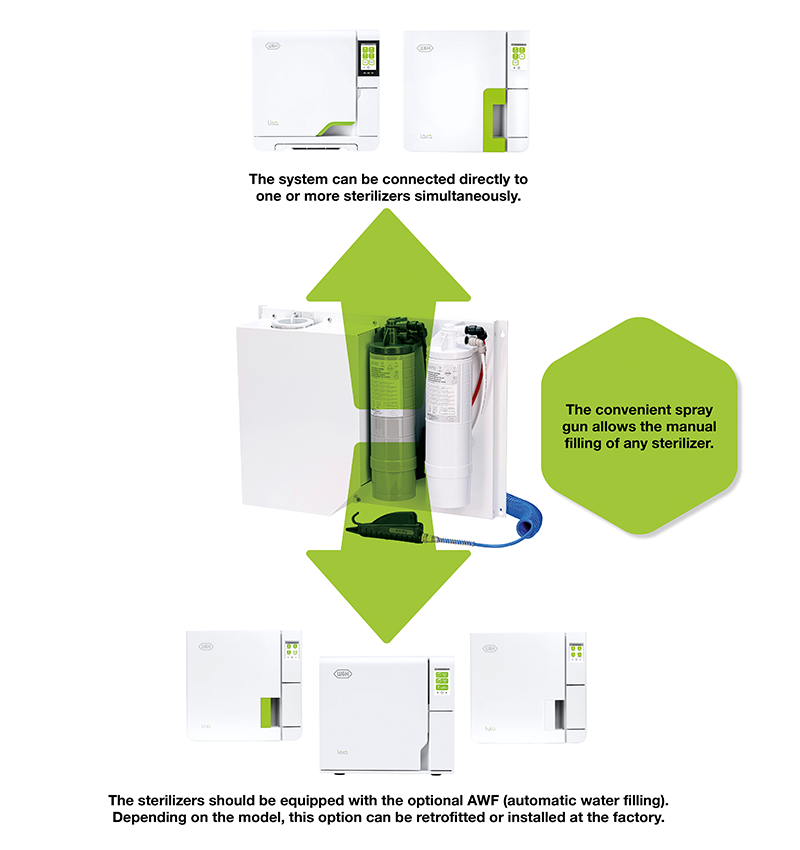

Do you have more than one sterilizer? Osmo supplies multiple devices simultaneously.Connection to different sterilizer models
Lexa models included
* Not all models shown are available in North America. Check with your local W&H rep.

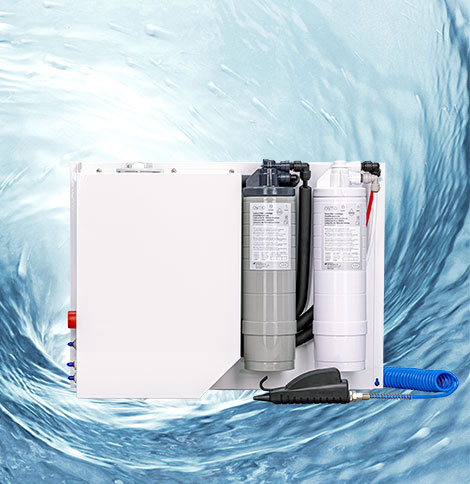

![Osmo]( "Osmo")

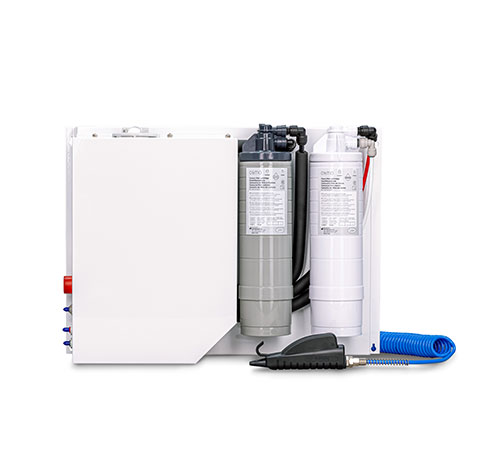

Osmo
Automatic filling
Osmo
REF 19721134Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
Type:
Osmo
Water pressure (min./ max.):
0.5-5 bar
Water temperature (inlet):
+5 °C ÷ 30 °C
Water temperature (storage):
+5 °C ÷ 35 °C
Protect from sunlight or other sources of heat
Water quality (output):
0.5-5 µS/cm
Produced water:
30 l/h
Electrical power supply:
230 V AC, 50/60 Hz, 0.6 A
115 V AC, 50/60 Hz, 1.2 AWeight with filter cartridges (empty storage tank):
~13 kg
Weight of water storage tank (empty):
~2.5 kg
Overall dimensions (w x h x d):
520 x 370 x 130 mm
Volume water storage tank:
7l
Backflow preventer according to EN1717:
yes
Quantity of produced water with conductibility < 15 µS *
10,000 l
