Improved visibility and optimum speed
With the small contra-angle head you will always have everything in view – even treatment sites in the distal area.
The rotational speed and the transmission ratio of 4:1 enable:
> Greater cleaning efficiency
> Gentle polishing of tooth surfaces
> No splattering of pasteYour advantages at a glance
- Long life with unique sealing system
- Best view with small head
- Efficient treatment with ergonomic design
- Optimal speeds for atraumatic and efficient polishing/cleaning
- Easy to clean and hygiene-friendly
- Thermo washer disinfectable and sterilizable
Sealing systemsLong life and hygienic
Long service life with special sealing system. Prevents penetration of paste or particles resulting from treatment.

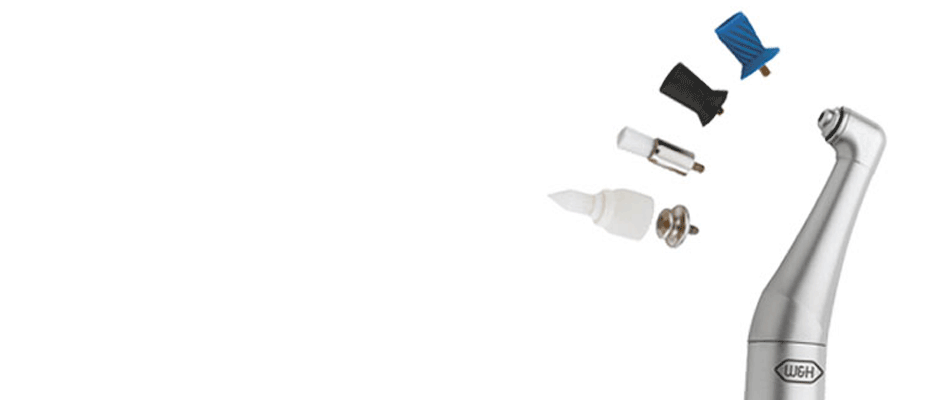

System UNIVERSAL (WP-64 MU)
A specially developed sealing system from W&H
protect the precision components against the ingress of paste and treatment debris.
System YOUNG (WP-64 M)
The sealing effect is renewed each time the cap is changed, because the cutting ring of the instrument head cuts into the rubber of the cap. This prevents the penetration of polishing paste and provides optimum protection for the precision engineering.
Best viewBest view
A small contra-angle handpiece head ensures an excellent view of treatment sites – even in the distal region.
Cleaning and polishingCleaning and polishing
Cleaning and polishing of tooth surfaces in the interdental region
Polishing of composite fillings in the frontal region
Polishing of amalgam fillings in the interdental region
Prophy handpiece with air motor

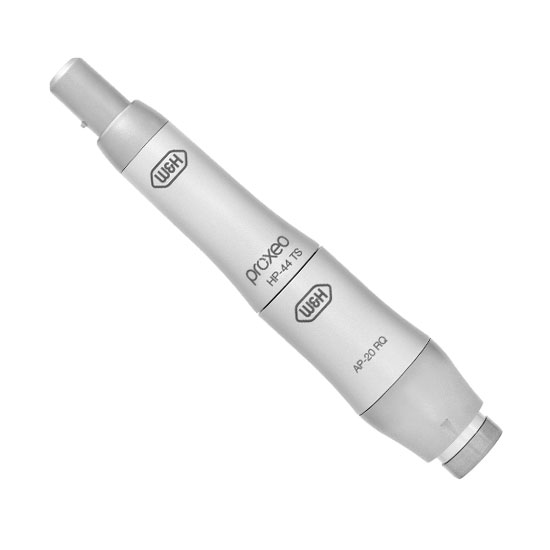

![Proxeo Set AP-20 RQ + HP-44 TS]( "Proxeo Set AP-20 RQ + HP-44 TS")
Proxeo Set AP-20 RQ + HP-44 TS
RQ connection
for disposable contra-angles with
plastic shankProxeo Set
AP-20 RQ +
HP-44 TS
REF 90000364Handpiece 4:1
System Doriot

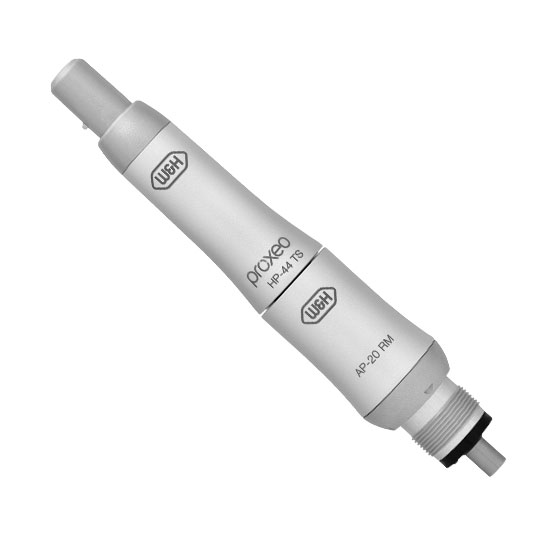

![Proxeo Set AP-20 RM + HP-44 TS]( "Proxeo Set AP-20 RM + HP-44 TS")
Proxeo Set AP-20 RM + HP-44 TS
RM connection
for disposable contra-angles with
plastic shankProxeo Set
AP-20 RM +
HP-44 TS
REF 90000366Handpiece 4:1
System DoriotProphy straight handpiece

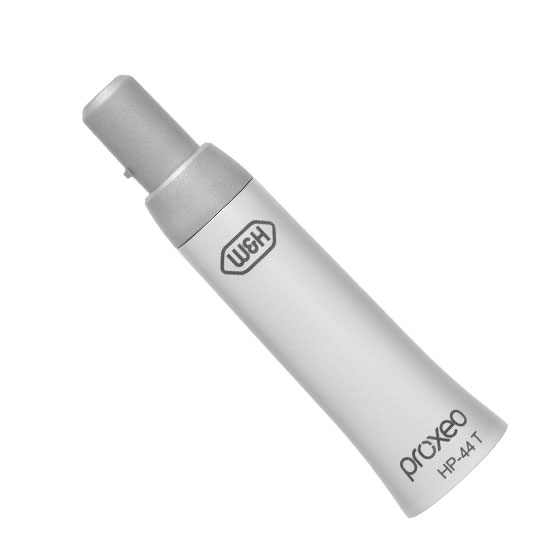

![HP-44 T]( "HP-44 T")
HP-44 T
for disposable contra-angles with plastic shank
HP-44 T
REF 30191003Straight handpiece 4:1
System Doriot

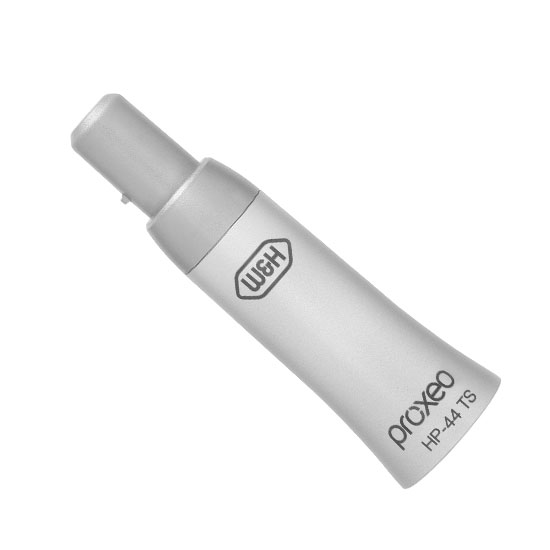

![HP-44 TS]( "HP-44 TS")
HP-44 TS
short
for disposable contra- angles with plastic shankHP-44 TS
REF 30313001Straight handpiece 4:1
System Doriot

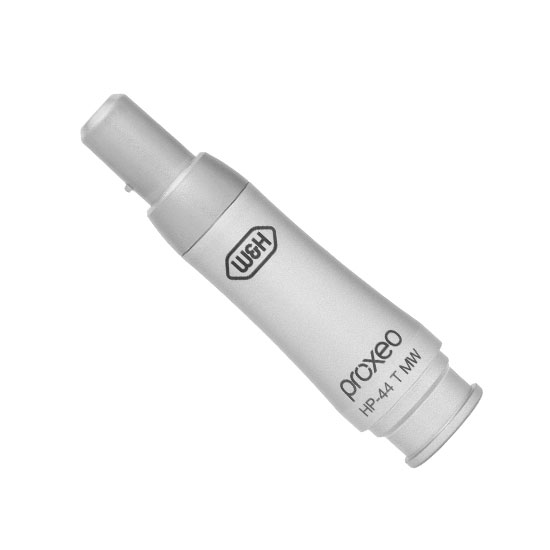

![HP-44 T MW Midwest handpiece connection]( "HP-44 T MW Midwest handpiece connection")
HP-44 T MW Midwest handpiece connection
short
for disposable contra-angles with plastic shankHP-44 T MW Midwest handpiece connection
REF 30079001Straight handpiece 4:1
System Doriot

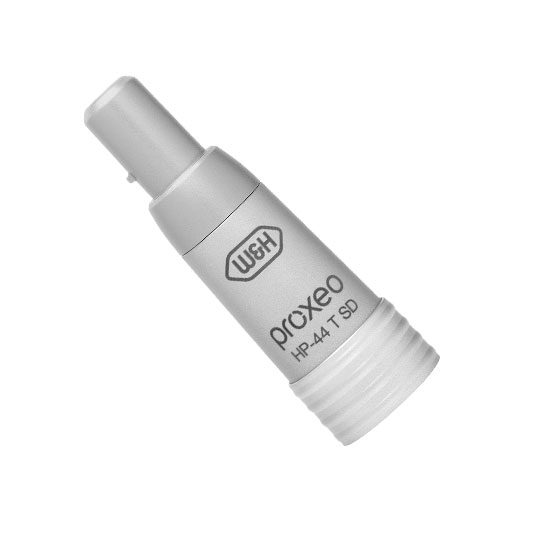

![HP-44 T SD Star Dental handpiece connection]( "HP-44 T SD Star Dental handpiece connection")
HP-44 T SD Star Dental handpiece connection
short
for disposable contra-angles with plastic shankHP-44 T SD
Star Dental handpiece connection
REF 30080001Straight handpiece 4:1
System DoriotProxeo handpiece

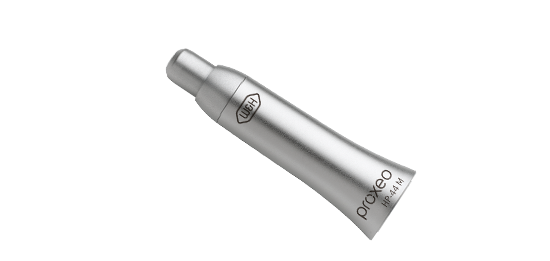

![Proxeo Handpiece HP-44 M]( "Proxeo Handpiece HP-44 M")
HP-44 M
for disposable contra-angles with plastic shank, System Doriot
HP-44 M
REF 10114403Handpiece 4:1
Prophy contra-angle handpiece

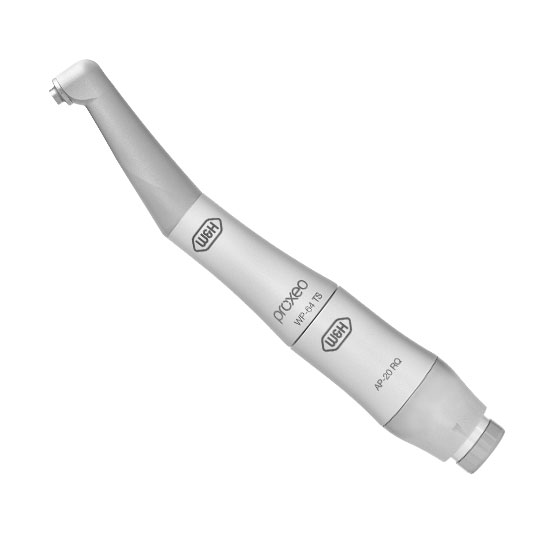

![WP-64 TS + AP-20 RQ]( "WP-64 TS + AP-20 RQ")
WP-64 TS + AP-20 RQ
with airmotor and RQ connection
for YOUNG Screw-in cups and brushesWP-64 TS +
AP-20 RQ
REF 90000365Contra-angle 4:1

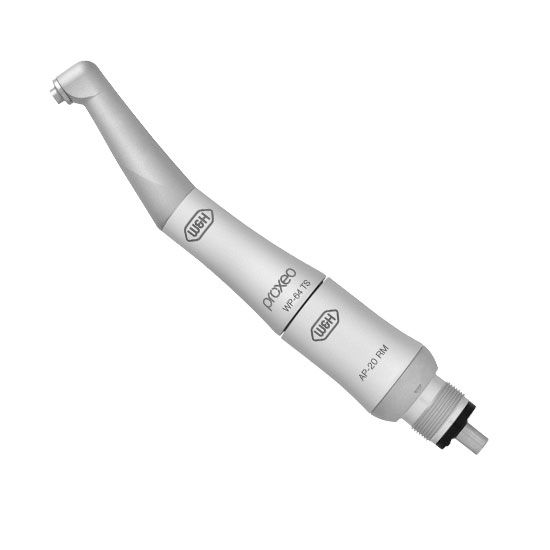

![WP-64 TS + AP-20 RM]( "WP-64 TS + AP-20 RM")
WP-64 TS + AP-20 RM
with airmotor and RM connection
for YOUNG screw-in cups and brushesWP-64 TS +
AP-20 RM
REF 90000367Contra-angle 4:1
System YOUNG

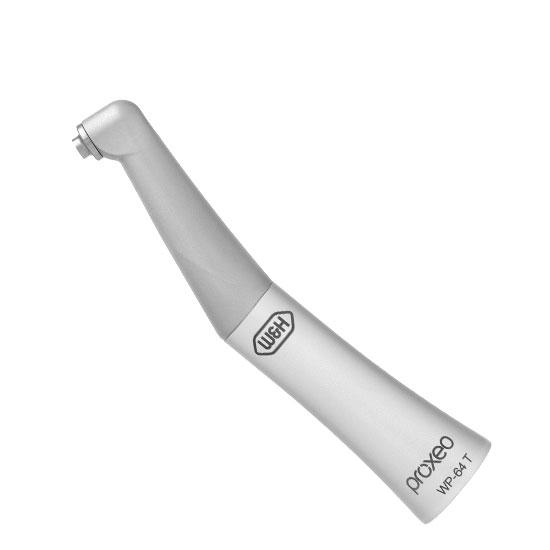

![WP-64 T]( "WP-64 T")
WP-64 T
for YOUNG Screw-in cups and brushes
WP-64 T
REF 30192002Contra-angle 4:1
System YOUNG with key

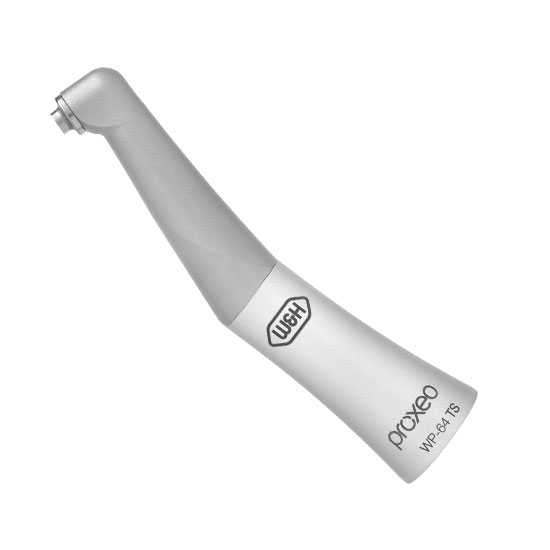

![WP-64 TS]( "WP-64 TS")
WP-64 TS
short
for YOUNG Screw-in cups and brushesWP-64 TS
REF 30314001Contra-angle 4:1
System YOUNG with keyProxeo contra-angle handpieces for screw-in cups and brushes

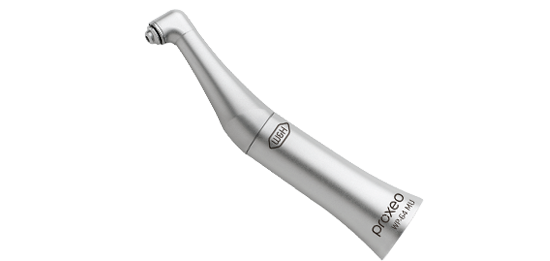

![Proxeo Contra-angle WP-64 MU]( "Proxeo Contra-angle WP-64 MU")
WP-64 MU
for all common screw-in cups, brushes and snap-on adaptor
WP-64 MU
REF 10216443Contra-angle 4:1
System UNIVERSAL

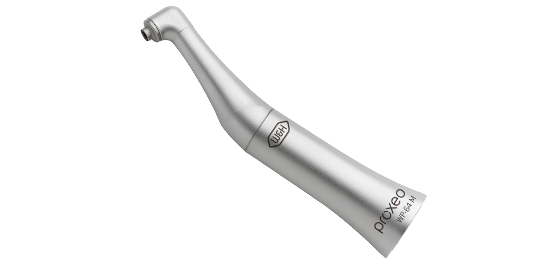

![Proxeo Contra-angle WP-64 M]( "Proxeo Contra-angle WP-64 M")
WP-64 M
for YOUNG screw-in cups and brushes
WP-64 M
REF 10216403Contra-angle 4:1
System YOUNGProxeo contra-angle handpiece for cups and brushes with 2.35 mm shaft

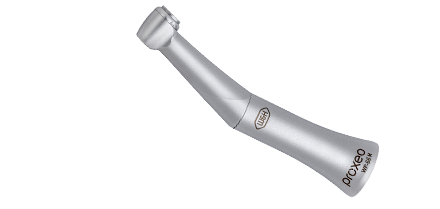

![Proxeo Contra-angle WP-66 M]( "Proxeo Contra-angle WP-66 M")
WP-66 M
for caps, brushes and snap-on adaptor with 2.35 mm shaft
WP-66 M
REF 30190000Contra-angle 4:1
Download Area
FAQs
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Type: WP-64 MU WP-64 M WP-66 M HP-44 M Max. motor speed: 10,000 min -1 10,000 min -1 10,000 min -1 10,000 min -1 Transmission ratio: 4:1 4:1 4:1 4:1 Recommended speed
for cups and brushes:1,250 – 1,500 min -1 1,250 – 1,500 min -1 1,250 – 1,500 min -1 1,250 – 1,500 min -1 Maximum speed
for cups and brushes:2,500 min -1 2,500 min -1 2,500 min -1 2,500 min -1 Attachments that can be used: All standard screw-in
cups, brushes and
snap-on caps (screw
thread 1-72 UNF 2A)
YOUNG screw-in
cups and brushes
Caps, brushes and
snap-on caps with
2.35 mm shaftdisposable contra-angles with
plastic shaft, system DoriotCoupling system ISO 3964
