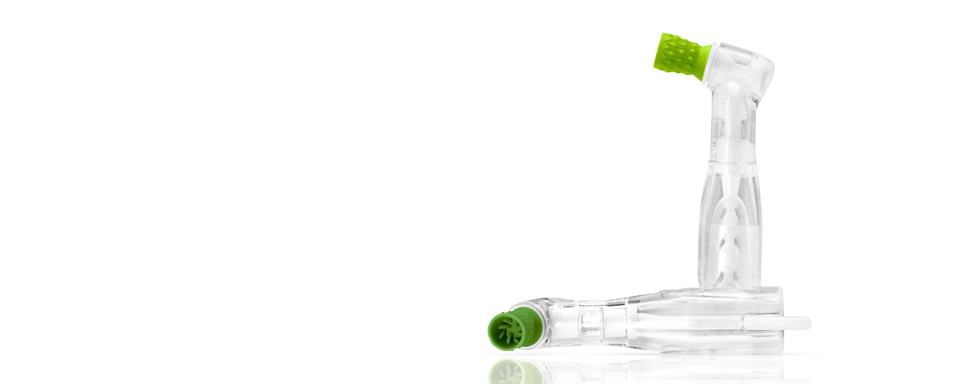

Prophy Angle Cups

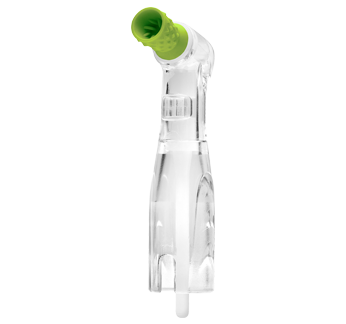

Prophy Angle Cups soft / apple green
REF 07994950100 pcs

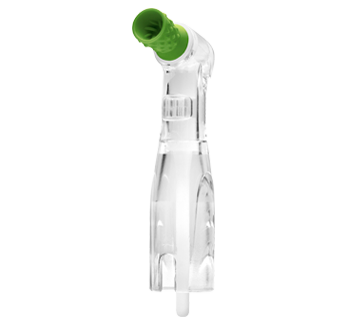

Prophy Angle Cups firm / dark green
REF 07979710100 pcs

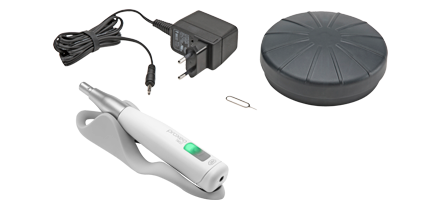

Proxeo Twist Cordless + DPA (Doriot) system

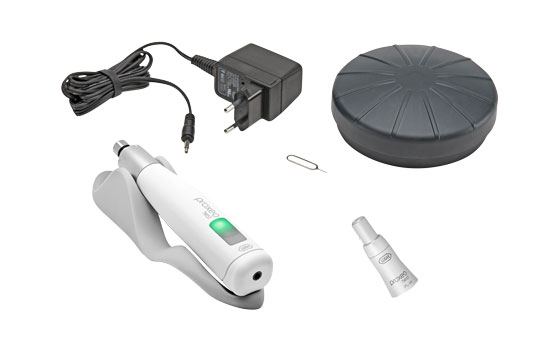

Set PL-40 HW + PL-44 (Doriot)
Consist of:
› Handpiece drive
› Wireless foot control
› PL-44 contra-angle head (DPA)
› Handpiece holder
› Charger incl. adaptor
for W&H Prophy Angle Cups,
Doriot System
(further contra-angle attachments can be found as accessories)Set PL-40 HW + PL-44 (Doriot)
REF 90000348PL-40 H
Consist of:
› Handpiece drive
› Wireless foot control
› Handpiece holder
› Charger incl. adaptor
for W&H Prophy Angle Cups,
Doriot System
(not compatible with contra-angle handpiece attachments)
PL-40 H
REF 30317000Download Area
FAQs
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Downloads
-
Disposable prophy angle
Not for reuse
Latex-freeAngle: 105° Connection: Doriot Hardness levels: soft/apple green
firm/dark greenProxeo Twist Cordless
Cordless handpiece PL-40 H PL-40 HW Weight: 118 g 105 g Maximum speed: 3,000 rpm 12,000 rpm * Maximum torque: 2 Ncm Dimensions (W x D x H): 160 x 25 x 28 mm 142 × 25 × 28 mm Battery type: Li-ion Running time when fully charged: 8 polishing treatments of 6 minutes each Standby: automatically after 4 minutes Charging time: for full charge (100%) approx. 2 hours
for recharge (50%) approx. 30 min* maximum speed 3,000 rpm using prophy cup/brush together with straight and contra-angle head
Removable sleeve
Removable sleeve: on PL-40 H Thermowasher disinfectable
Sterilizable up to the stated temperatureStraight and contra-angle head*
PL-66 W
LatchShort systemPL-64
Screw-in Young systemPL-44
Doriot systemTransmission ratio: 4:1 Maximum speed of prophy cup/brush: 3.000 Usable attachments: W&H LatchShort Prophy
cups and brushesYoung prophy
screw-in cupsDoriot disposable
prophy angles* suitable for PL-40 HW
Prophy cups and brushes
Not for reuse
Latex-freeWireless foot control
C-NW Weight: 190 g Dimensions (W × D × H): 117 x 117 x 38 mm Battery type: Li-ion Running time when fully charged: 2 months Standby: automatic if not actuated Charging time: approx. 3 hours
