Proxeo Twist Cordless

The new freedom
of rotary polishing

Proxeo Twist Cordless is about polishing with no restrictions in various ways. Enjoy complete freedom of movement without cords. Choose your preferred cup system from the modular system and benefit from a significantly reduced working height with the unique LatchShort system.

German Design Award:
Proxeo Twist Cordless was honored as one of the Product Innovations 2020 in the German Design Awards. The high-quality product and communication design were assessed. Proxeo Twist Cordless is thus considered one of the defining products in the international product and design landscape.

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH
** Currently not available in North America

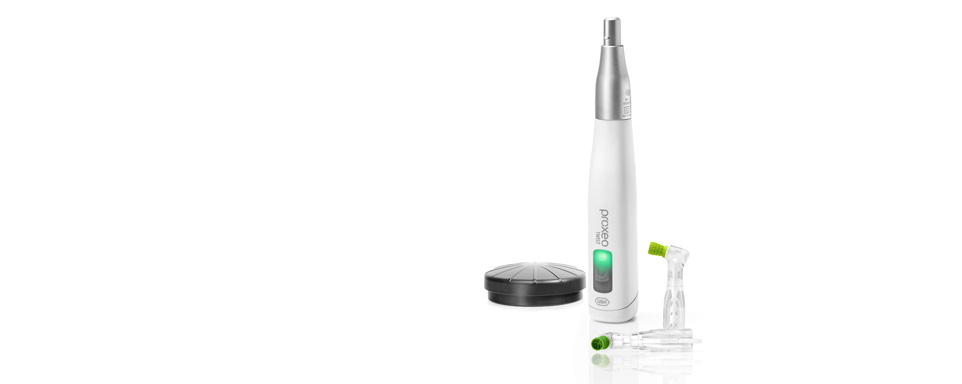

Proxeo Twist Cordless

The new freedom of rotary polishing

  • Inspired by Prophy professionals

    The Prophy Angle Cups offer a smooth surface on the edge
    for gentle cleaning into the sulcus, Nubs on the outside which reduce splattering of the paste and polish the interdental space at the same time. The special internal fins ensure easy pickup and targeted application of paste.

  • Small head and thin neck

    for an optimum view of the treatment site and better accessibility of hard-to-reach areas, such as the molar and tuber regions.

  • Cordless and ergonomic

    The cordless, ergonomic design means that the handpiece can easily be rotated 360 degrees in the hand, enabling dynamic adjustment of the working position.

  • Allows you complete freedom

    Twist and turn the handpiece at will and change your treatment position as needed for better access and an unrestricted view.

  • 1 Prophy Angle Cups

    Inspired by Prophy professionals

    The Prophy Angle Cups offer a smooth surface on the edge
    for gentle cleaning into the sulcus, Nubs on the outside which reduce splattering of the paste and polish the interdental space at the same time. The special internal fins ensure easy pickup and targeted application of paste.

  • 2 Small head and thin neck

    Small head and thin neck

    for an optimum view of the treatment site and better accessibility of hard-to-reach areas, such as the molar and tuber regions.

  • 3 Cordless and ergonomic

    Cordless and ergonomic

    The cordless, ergonomic design means that the handpiece can easily be rotated 360 degrees in the hand, enabling dynamic adjustment of the working position.

  • 4 Allows you complete freedom

    Allows you complete freedom

    Twist and turn the handpiece at will and change your treatment position as needed for better access and an unrestricted view.

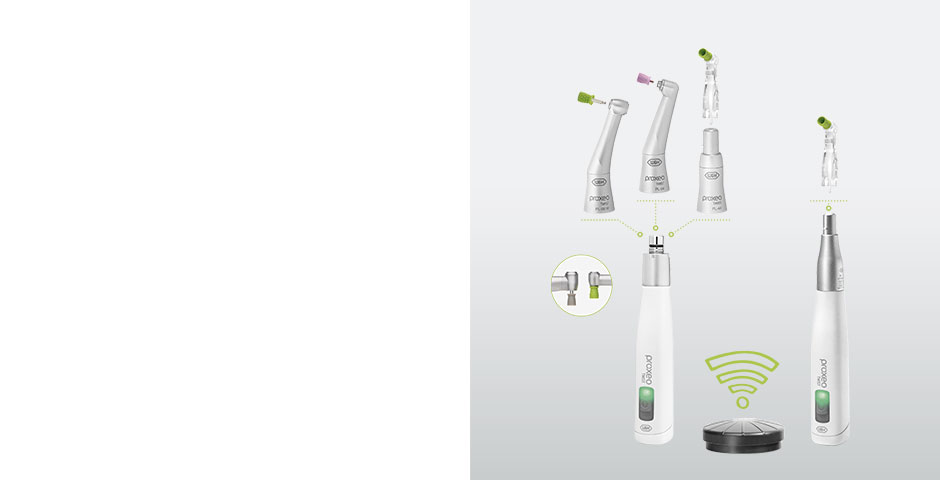

    • You have the choice

      ONE handpiece
      for THREE cup systems:

      With the prophy-heads for DPA, LatchShort or Screw-in

    • Cordless, ergonomic, free

      The system, consisting of disposable prophy angles,
      handpiece drive and cordless foot control, allows you to change
      your treatment position in an instant.

    • Inspired by Prophy professionals


      The new freedom of rotary polishing.

      It´s so easy, so easy ...

      The Proxeo Twist Cordless handpiece with wireless foot control and innovative LatchShort prophy cups provides a lower working height of up to 4 mm, enabling you to have better access and a more ergonomic working experience.

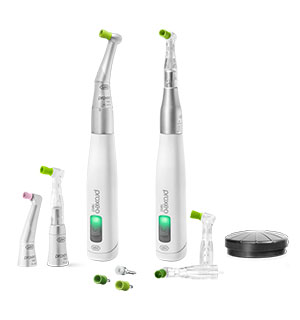

      Main advantages at a glance

      • Cordless handpiece
      • Lighter than many smartphones
      • Cordless foot control
      • Appropriate disposable prophy angles
      • One-stop shop
      • No pulling from the cable
      • Li-Ion battery
      • prophy cups

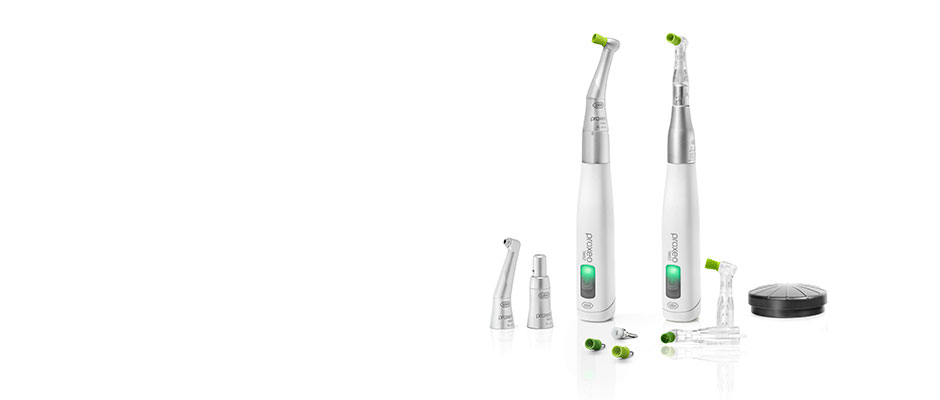

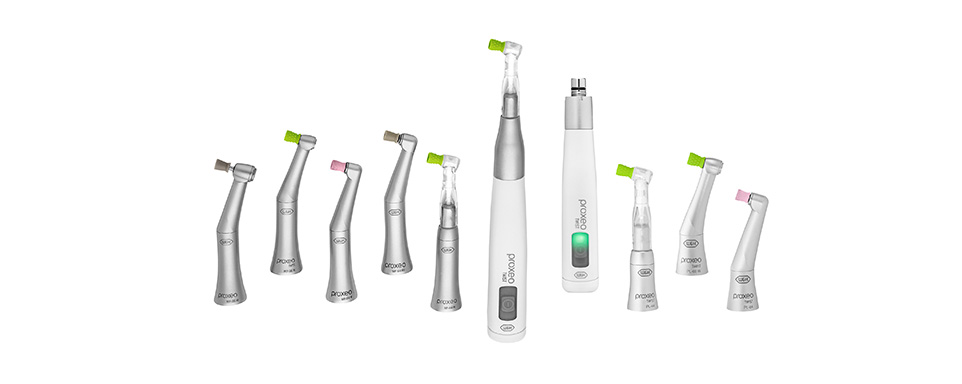

      • Proxeo Twist Cordless systems
      • Proxeo Twist Cordless PL-40 HW
      • Prophy angle cups

      You have the choice

      Both Proxeo Twist Cordless systems offer maximum freedom of movement and the best polishing results: the classic Cordless

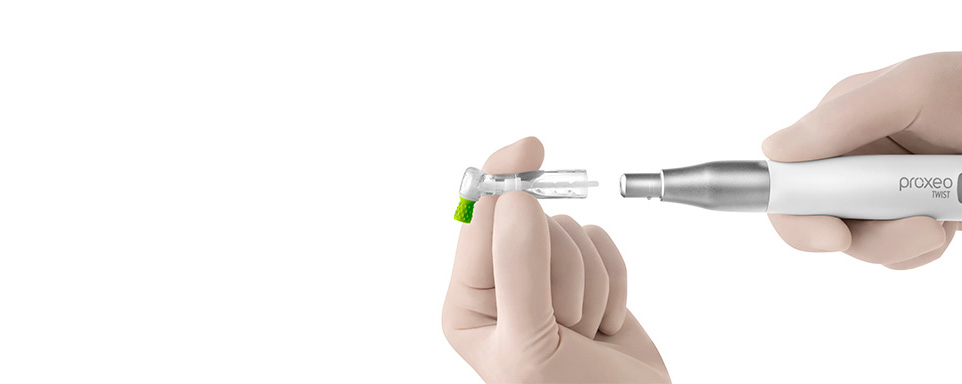

      PL-40 H handpiece with direct Doriot connection for disposable prophy angles, or the modular Cordless PL-40 HW system with straight and contra-angle heads, giving you the option to polish with either disposable prophy angles, screw-in prophy cups, or the unique LatchShort system with its shortened shaft and a reduction in working height of up to 4 mm compared to a standard latch polishing contra-angle.

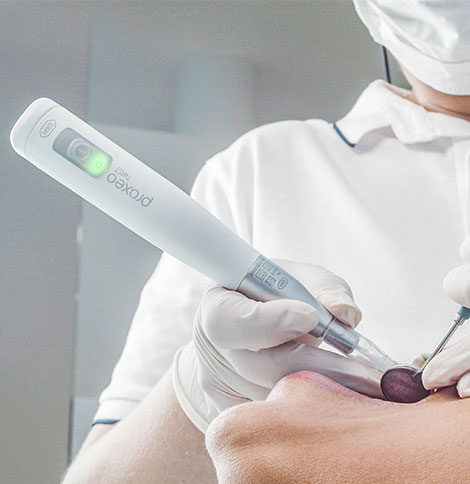

      • More adaptable than ever

        More adaptable than ever

        The cordless, ergonomic design means that the handpiece can easily be rotated 360 degrees in the hand, enabling dynamic adjustment of the working position.

      • Make it easier on yourself

        Make it easier on yourself

        The cordless handpiece along with the disposable prophy angle is less than half the weight of many connected motors with a speed reduction green contra-angle handpiece – for even greater comfort when polishing.

      • Allows you complete freedom

        Allows you complete freedom

        Twist and turn the handpiece at will and change your treatment position as needed for better access and an unrestricted view.

      • Follows you every step of the way

        Follows you every step of the way

        With the cordless foot control you can move much more freely and quickly change your position in relation to the patient.

        • Supports your back

          Supports your back

          Without cable you can pay greater attention to maintaining an ergonomic and back-friendly posture. Cord dragging is now a thing of the past.

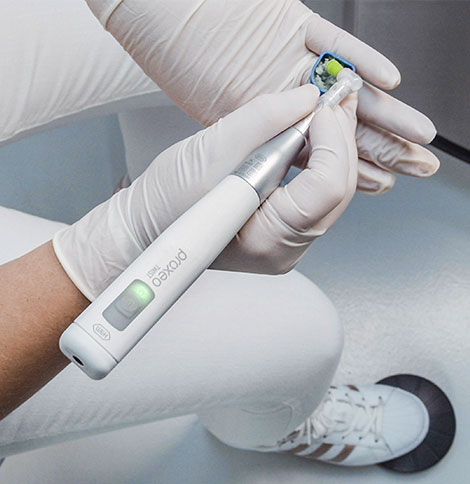

        • Never lets you down

          Never lets you down

          The foot control enables you to infinitely vary the handpiece speed and adjust it to the clinical requirements. The durable lithium-ion batteries always ensure sufficient power.

        • Easy to reprocess

          Easy to reprocess

          The smooth surface ensures maximum hygiene. Simply wipe-disinfect the handpiece. The metal sleeve can be removed and sterilised or thermo washer disinfected.

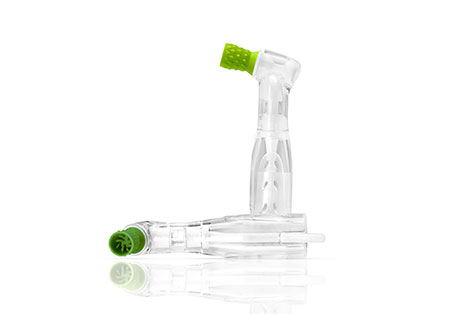

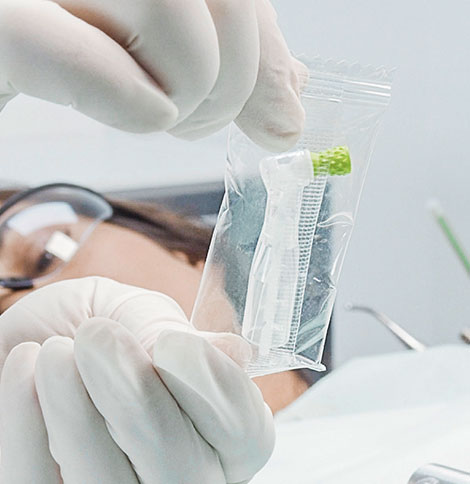

        • Prophy Angle Cups

          Prophy Angle Cups

          W&H offers the appropriate disposable prophy angles in various hardness levels for the Proxeo Twist Cordless Polishing System. They were designed in consultation with Prophy users. Great emphasis was placed on features such as optimal adaptation, simple paste pickup and distribution as well as gentle cleaning into the sulcus.

          Bernhard Eder
          Strategic Product Manager
          W&H, Bürmoos

          The cordless Proxeo Twist offers more freedom of movement and comfort during treatment. We also paid particular attention to the weight. Compared to a contra-angle handpiece with an electric motor, the cordless Proxeo Twist weighs less than half as much and therefore minimises wrist fatigue when polishing.

          Monika Riedl
          Dental hygienist, Munich

          The cordless Proxeo Twist eliminates the stresses and uncomfortable aches that are usually caused by the tensile strain from a cable.
          • One control unit – two devices

            The new W&H prophylaxis solution presents itself as convenient, wireless and efficient. From now on, the PB-530 Proxeo Ultra Piezo scaler and the wireless PL-40 HW or
            PL-40 H Proxeo Twist Polishing System can be controlled using just a single wireless foot control. This not only makes it more convenient to operate, but also ensures more efficiency in working process.

            More info.

            NIWOP - No Implantology without Periodontology
            #NIWOP: The systematic and evidence-based workflow

            Proxeo Twist Cordless + LatchShort system

            Set PL-40 HW + PL-66 W (LatchShort)

            Consist of:
            › Handpiece drive
            › Wireless foot control
            › PL-66 W contra-angle head (LatchShort)
            › Handpiece holder
            › Charger incl. adaptor

            for W&H Prophy Cups and Brushes
            (LatchShort system)

            (further contra-angle attachments can be found as accessories)

            Set PL-40 HW + PL-66 W
            REF 90000346

            Buy

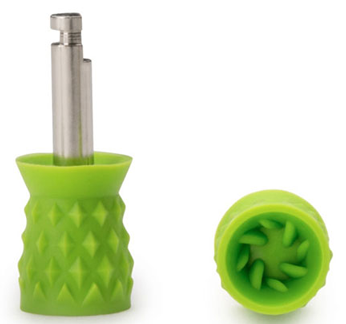

            Prophy Cups soft / apple green

            for LatchShort system

            Prophy Cups soft / apple green
            REF 08003630

            144 pcs

            Buy

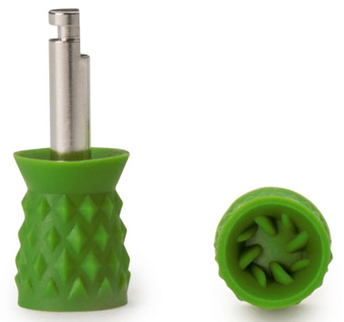

            Prophy Cups firm / dark green

            for LatchShort system

            Prophy Cups firm / dark green
            REF 07597900

            144 pcs

            Buy

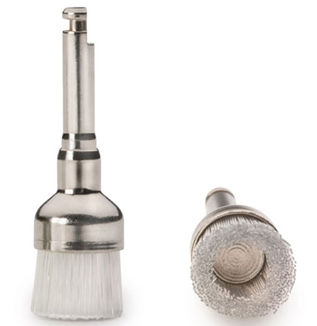

            Prophy Brushes cup-shaped, soft / clear

            for LatchShort system

            Prophy Brushes cup-shaped, soft / clear
            REF 08003650

            144 pcs

            Buy

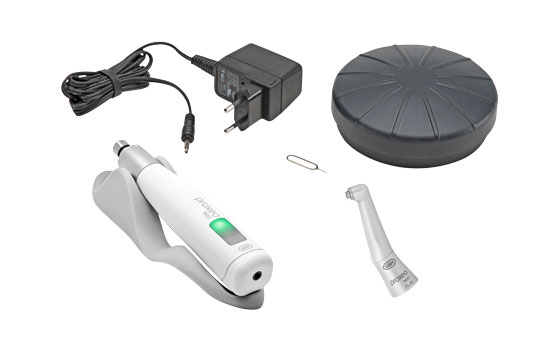

            Proxeo Twist Cordless + Screw-in Young system

            Set PL-40 HW + PL-64 (Screw-in Young)

            Consist of:
            › Handpiece drive
            › Wireless foot control
            › PL-64 contra-angle head (Screw-in for YOUNG)
            › Handpiece holder
            › Charger incl. adaptor

            for Screw-in (Young) system

            (further contra-angle attachments can be found as accessories)

            Set PL-40 HW + PL-64
            REF 90000347

            Buy

            Proxeo Twist Cordless + DPA (Doriot) system

            Set PL-40 HW + PL-44 (Doriot)

            Consist of:
            › Handpiece drive
            › Wireless foot control
            › PL-44 contra-angle head (DPA)
            › Handpiece holder
            › Charger incl. adaptor

            for W&H Prophy Cups and Brushes,
            Doriot System

            (further contra-angle attachments can be found as accessories)

            Set PL-40 HW + PL-44 (Doriot)
            REF 90000348

            Buy

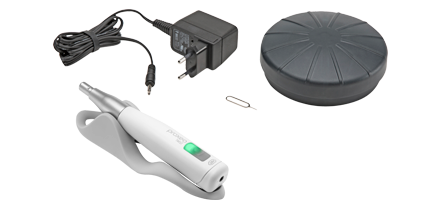

            PL-40 H

            Consist of:
            › Handpiece drive
            › Wireless foot control
            › Handpiece holder
            › Charger incl. adaptor

            for W&H Prophy Cups and Brushes,
            Doriot system

            (not compatible with contra-angle handpiece attachments)

            PL-40 H
            REF 30317000

            Buy

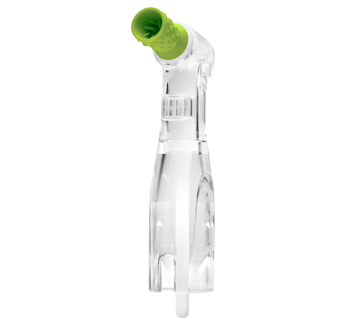

            Prophy Angle Cups soft / apple green

            for Doriot system

            Prophy Angle Cups soft / apple green
            REF 07994950

            100 pcs

            Buy

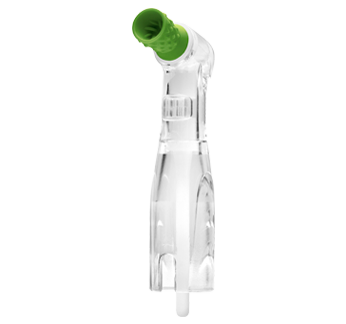

            Prophy Angle Cups firm / dark green

            for Doriot system

            Prophy Angle Cups firm / dark green
            REF 07979710

            100 pcs

            Buy

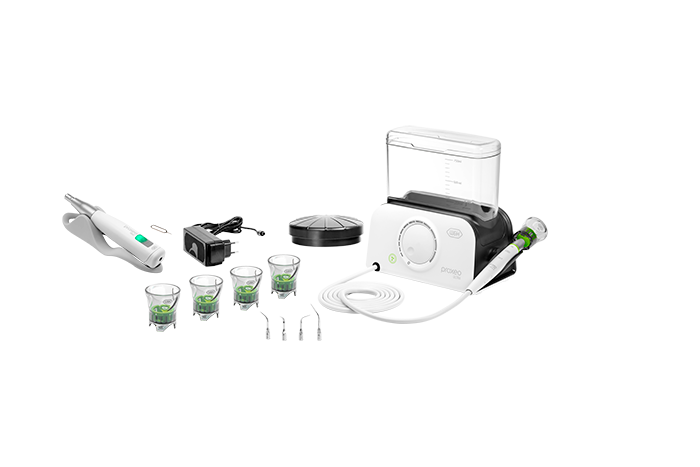

            Proxeo Combi-Set: Not available in NA yet

            Proxeo Ultra & Proxeo Twist Cordless for LatchShort system

            › Proxeo Twist Cordless PL-40 HW
            › Proxeo Ultra PB-530
            › Contra-angle head for LatchShort
            › Wireless foot control
            › Charger incl. adaptor
            › Handpiece holder
            › Perfectly coordinated tip range

            Set PB-530, PL-40HW, PL-66W, PB-5L
            REF 90000354

            Handpiece for W&H thread

            Set PB-530, PL-40HW, PL-66W, PB-5LQ
            REF 90000356

            Handpieces with Q-Link quick connection system

            Set PB-530, PL-40HW, PL-66W, PB-5LS
            REF 90000358

            Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.

            Buy

            Proxeo Ultra & Proxeo Twist Cordless for disposable Prophy Angle Cups

            › Proxeo Twist Cordless PL-40 H
            › Proxeo Ultra PB-530
            › Handpiece with LED ring
            › Wireless foot control
            › Handpiece holder
            › Perfectly coordinated tip range

            Set PB-530, PL-40H, PB-5L
            REF 90000299

            Handpiece for W&H thread

            Set PB-530, PL-40H, PB-5LQ
            REF 90000298

            Handpieces with Q-Link quick connection system

            Set PB-530, PL-40H, PB-5LS
            REF 90000301

            Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.

            Buy

            Download Area

            Instructions for use

            Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

            Video Tutorials

            For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

            Accept
          • Proxeo Twist Cordless

            Cordless handpiece PL-40 H PL-40 HW
            Weight: 118 g 105 g
            Maximum speed: 3,000 rpm 12,000 rpm *
            Maximum torque: 2 Ncm
            Dimensions (W x D x H): 160 x 25 x 28 mm 142 × 25 × 28 mm
            Battery type: Li-ion
            Running time when fully charged: 8 polishing treatments of 6 minutes each
            Standby: automatically after 4 minutes
            Charging time: for full charge (100%) approx. 2 hours
            for recharge (50%) approx. 30 min

            * maximum speed 3,000 rpm using prophy cup/brush together with straight and contra-angle head

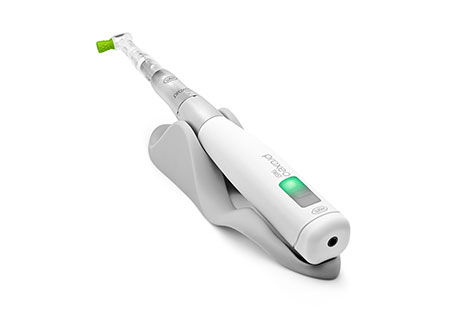

            Removable sleeve

            Removable sleeve: on PL-40 H Thermowasher disinfectable
            Sterilizable up to the stated temperature

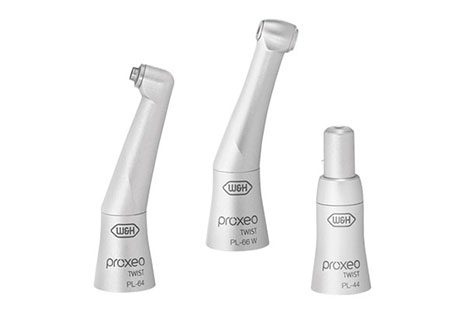

            Straight and contra-angle head*

            PL-66 W
            LatchShort system
            PL-64
            Screw-in Young system
            PL-44
            Doriot system
            Transmission ratio: 4:1
            Maximum speed of prophy cup/brush: 3.000
            Usable attachments: W&H LatchShort Prophy
            cups and brushes
            Young prophy
            screw-in cups
            Doriot disposable
            prophy angles

            * suitable for PL-40 HW

            Disposable prophy angle

            Not for reuse
            Latex-free
            Angle: 105°
            Connection: Doriot
            Hardness levels: soft/apple green
            firm/dark green

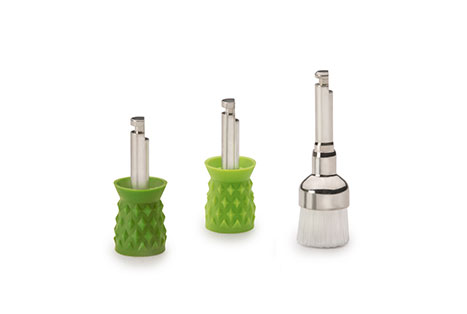

            Prophy cups and brushes

            Not for reuse
            Latex-free

            Wireless foot control

            C-NW
            Weight: 190 g
            Dimensions (W × D × H): 117 x 117 x 38 mm
            Battery type: Li-ion
            Running time when fully charged: 2 months
            Standby: automatic if not actuated
            Charging time: approx. 3 hours
