Maintenance at the touch-of-a-button
The maintenance process starts automatically
at the touch of a button. After only 35 seconds,
the instrument is perfectly maintained.
The automatic rotational lubrication ensures optimum distribution of the oil and that an
even film of lubricant is created. Dirt particles
are loosened and removed. The lifespan of the instruments is increased significantly whilst
service costs are reduced.Your advantages at a glance
- Cleaning and lubrication of the internal components with Service Oil through rotation
- Optimum cleaning of the spray water and spray air channels with cleaning fluid
- Flushing through with compressed air
Maintenance at the
touch-of-a-buttonMaintenance at the touch-of-a-button

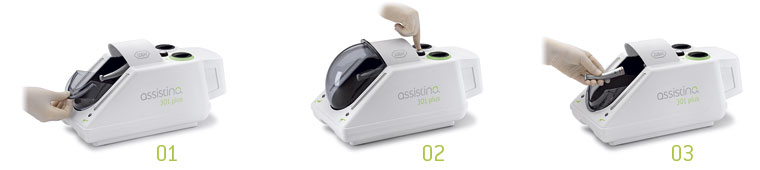

01 Connect the instrument. Close the cover.
02 Press the button. Maintenance program starts automatically.
03 After 35 seconds, the cleaning and lubrication process is finished leaving a perfectly maintained instrument.
Rotational lubricationRotational lubrication

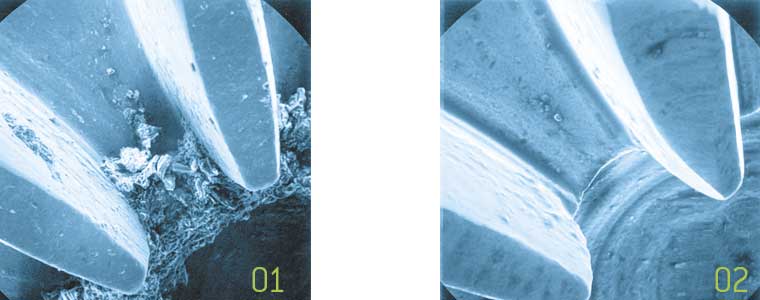

01 Contra-angle handpiece gearing after conventional maintenance with oil spray can
02 Contra-angle handpiece gearing after Assistina maintenance with rotational lubrication
The automatic rotational lubrication ensures the optimum flow of oil to internal components, whilst grime and other matter is removed by the cleaning fluid, resulting in minimal friction, less wear and longer life.
Because of the dispensing system, only a small amount released during each maintenance cycle optimum lubrication, making it very no need for further lubrication.
Assistina – always a winnerAssistina – always a winner
In 2009, the tried and tested W&H Assistina was awarded the title of
„Best automatic instrument care system 2009“ by the Townie Choice Awards® at US Dental Magazine DentalTown. This survey is used by many dentists in the USA to aid the decision to purchase new products.
In total, more than 1,000 dentists voted online and selected the Assistina as the test winner from three other well-known competitor products.
We are proud of this accolade and hope to be able to gain the trust of more dentists in future with our innovative and reliable products.
![Assistina 301 plus]( "Assistina 301 plus")

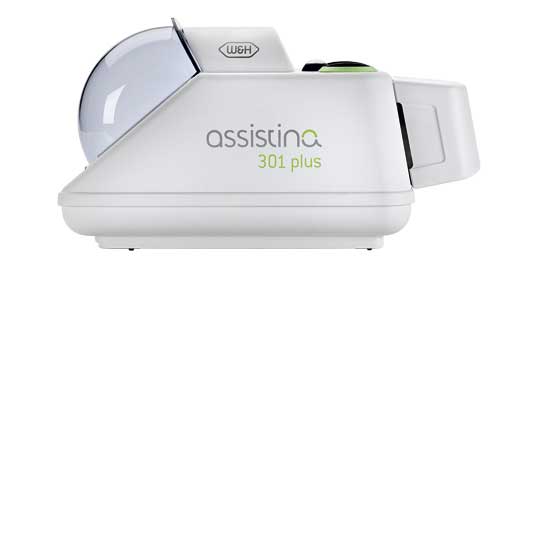

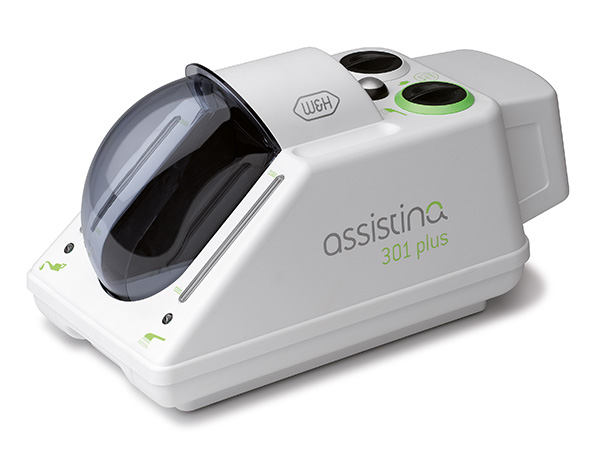

Assistina 301 plus
with base adaptor
Assistina
301 plus
REF 00030140
![Assistina 301 plus]( "Assistina 301 plus")

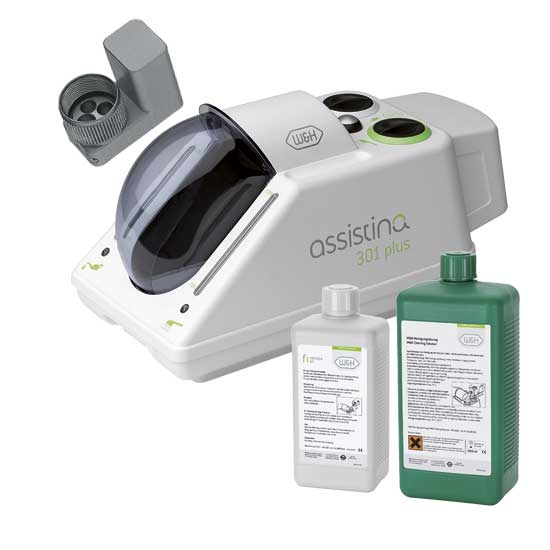

Set Assistina 301 plus
consists of: Assistina 301 plus,
base adaptor, cleaning and lubricating setSet Assistina
301 plus
REF 00030125Download Area
FAQs
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Assistina 3x3 / Assistina 3x2
Assistina 3x3 3x2 Supply voltage: 100 - 240 V AC Permitted voltage fluctuation: ±10 % Nominal current: 0.1 - 0.3 A Frequency: 50 - 60 Hz Max. power consumption: 40 VA Air consumption: approx. 100 Nl/min. approx. 60 Nl/min. Operating pressure: 5 - 10 bar
(controlled via an integrated automatic pressure controller)Max. volume: 70 dB 65 dB Height / Width / Depth: 358 mm x 207 mm x 397 mm Weight: 7.5 kg 6.5 kg Capacity: 1000 ml W&H Activefluid, MC-1100
200 ml W&H Service Oil F1, MD-200Designed for: Straight and contra-angle handpieces, turbines,
air motors and air-driven scalers
Assistina 301 plusAssistina 301 plus Air consumption: approx. 60 Nl/min. Operating pressure: 4 - 10 bar
(controlled via an integrated automatic pressure controller)Max. volume: 63 dB Height / Width / Depth: 223 mm x 190 mm x 415 mm Weight: 2.7 kg Capacity: 250 ml W&H Cleaning fluid, MC-1000
250 ml W&H Service Oil F1, MD-500Designed for: Straight and contra-angle handpieces, turbines,
air motors and air-driven scalers
