Surgical Contra-angles

For the highest surgical requirements

Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required. W&H contra-angle handpieces made from high-quality stainless steel with special coating are particularly robust.

Oral Surgery & Implant Surgery

Oral Surgery & Implant Surgery

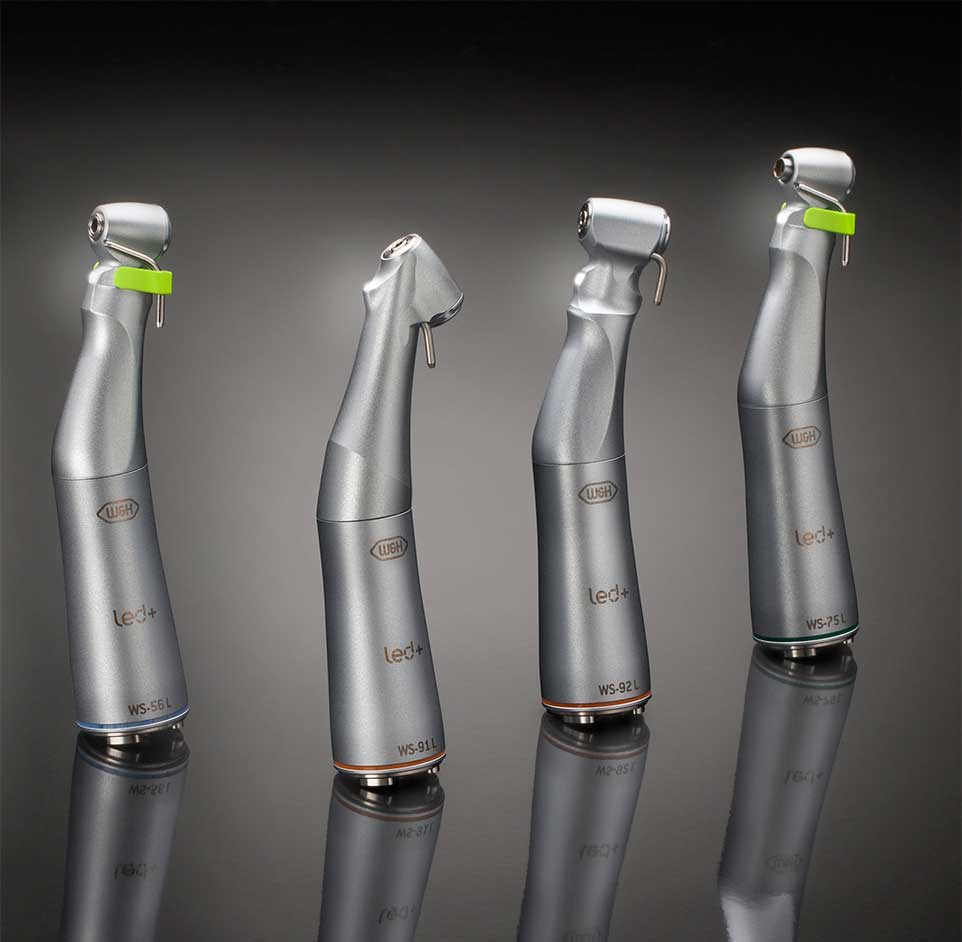

System Overview

  • The new surgical contra-angle handpieces with mini LED+ and W&H connection

    Fatigue-free and flexible operation

    Optimum cooling and illumination of the treatment site. High-quality stainless steel
    with a scratch-resistant coating makes the contra-angle handpieces robust
    and gives them a particularly long service life.

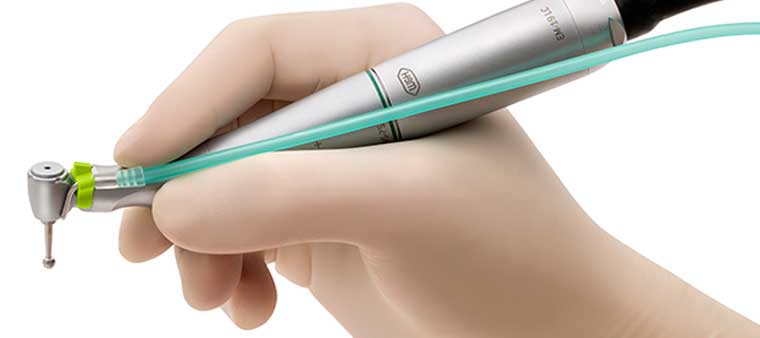

    Fatigue-free operation

    Fatigue-free operation

    //a.storyblok.com/f/45617/a0e8b290ef/ws-75-l_fatigue-free-operation.jpg
    Combination with the ultra-short EM-19 electric motor allows long periods of work without fatigue.

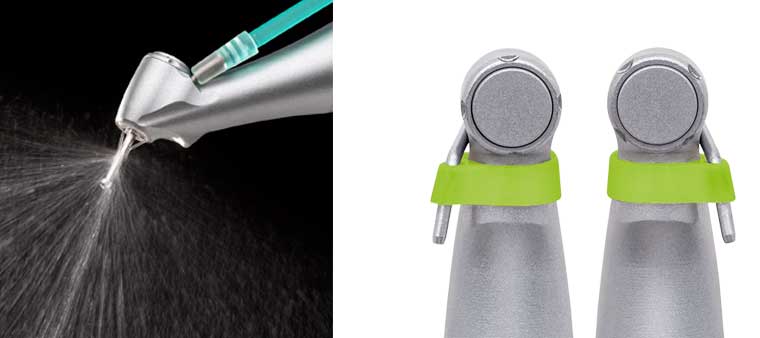

    Optimum cooling and illumination

    Optimum cooling and illumination

    //a.storyblok.com/f/45617/34f6ecad93/optimum-cooling-and-illumination_overlay.jpg
    Optimum illumination By halving the size of a normal LED, the mini LED+ offers optimum illumination of the treatment site.

    Optimum cooling There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements.

    Your advantages at a glance

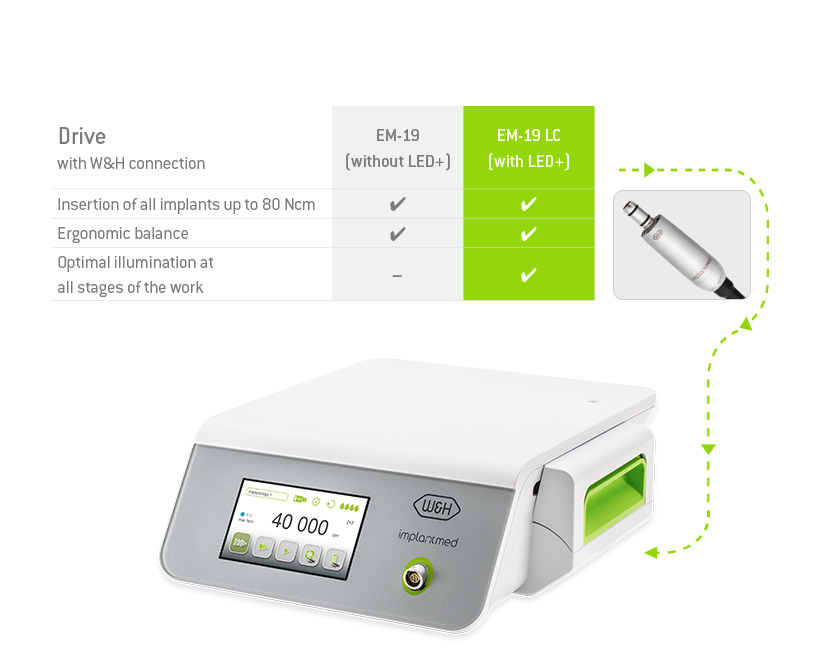

    • Matched to Implantmed SI-1023, SI-1015 and SI-1010
    • Optimal illumination at all stages of the work
    • Fatigue-free working thanks to ergonomic balance
    • Robust and long service life due to high-quality stainless steel with scratch-resistant coating
    • Developed for the W&H electric motor EM-19 LC
    • Work with daylight quality
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable

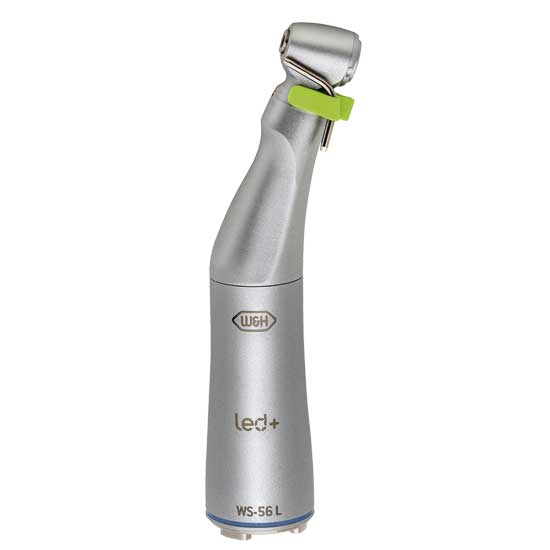

    WS-56 L

    Surgical contra-angle handpiece
    with push-button and mini LED+
    Coupling system: W&H EM-19 LC / EM-19
    Maximum drive speed: 50.000 min-1

    WS-56 L
    REF 30040000

    1:1, can be dismantled, single spray,
    for surgical burs and cutters with
    contra-angled shank Ø 2.35 mm

    Indications

    Osteotomy, sequestrotomy,
    germectomy, hemisection

    Buy

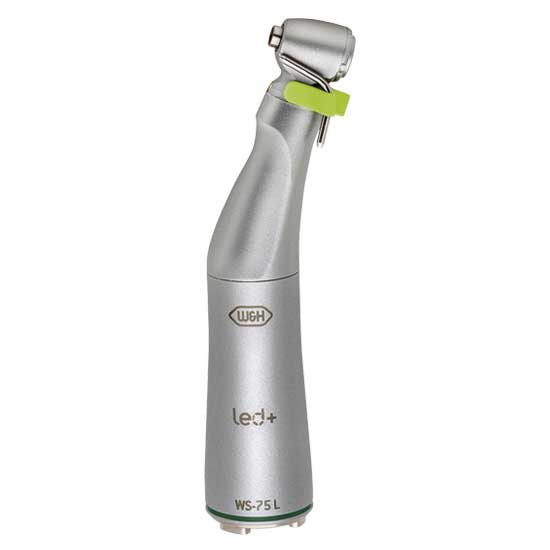

    WS-75 L

    Surgical contra-angle handpiece with hexagon
    chucking system, push-button and mini LED+
    Coupling system: W&H EM-19 LC / EM-19
    Maximum drive speed: 50.000 min-1

    WS-75 L
    REF 30033000

    20:1, can be dismantled, single spray,
    for surgical burs and cutters with
    contra-angled shank Ø 2.35 mm,
    (shank hardness >50 HRC, >520 HV),
    Kirschner/Meyer internal bur cooling system

    Indications

    Specially for preparation of the implant site and implant insertion

    Buy

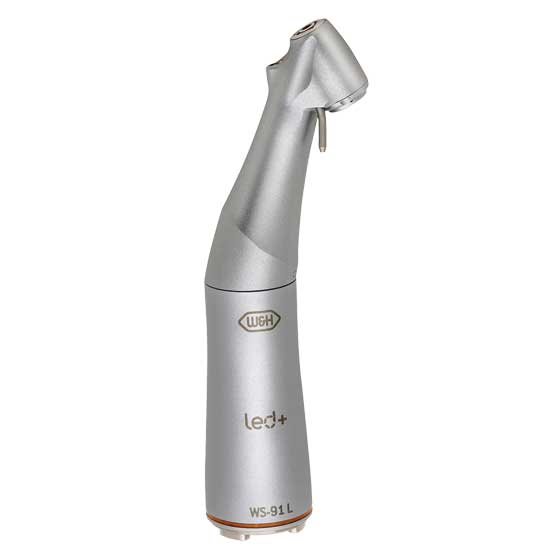

    WS-91 L

    Surgical contra-angle handpiece
    with 45° head, push-button and mini LED+
    Coupling system: W&H EM-19 LC / EM-19
    Maximum drive speed: 50.000 min-1

    WS-91 L
    REF 30049000

    1:2,7, can be dismantled, triple spray,
    for surgical burs and cutters with FG shank Ø 1.6 mm

    Indications

    Specially to improve access in the premolar and molar region

    Buy

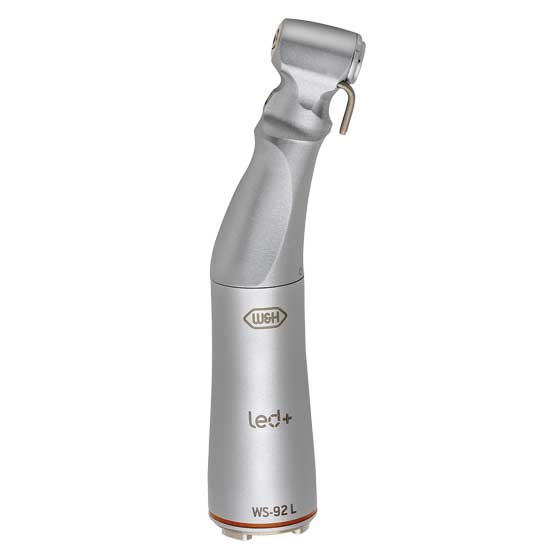

    WS-92 L

    Surgical contra-angle handpiece
    with push-button and mini LED+
    Coupling system: W&H EM-19 LC / EM-19
    Maximum drive speed: 50.000 min-1

    WS-92 L
    REF 30043000

    1:2,7, can be dismantled, triple spray,
    for surgical burs and cutters
    with FG shank Ø 1.6 mm

    Indications

    osteotomy, sequestrotomy,
    germectomy, hemisection

    Buy




    Surgical contra-angle handpieces with mini LED+ and generator

    Surgical Contra-angle handpiece WS-75 L G

    Work with daylight quality

    As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini LED+, which offers outstanding illumination with high-contrast, natural light.

    Your advantages at a glance

    • Natural reproduction of red tones
    • Independent power supply with
      integrated generator
    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality
      stainless steel and scratch-resistant coating
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable

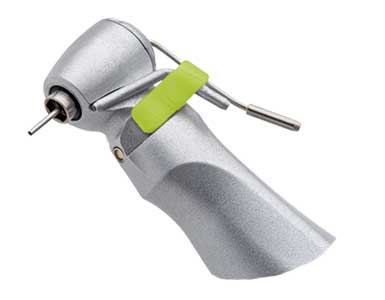

    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free working

    //a.storyblok.com/f/45617/6e9e32e652/ws-75-l-g_ergonomic-design_overlay.jpg
    The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.

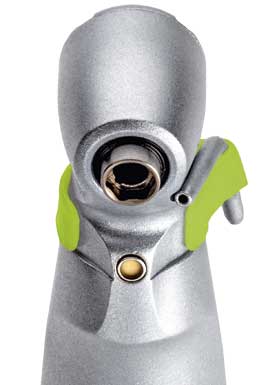

    Perfect light due to mini LED+

    Optimal illumination

    //a.storyblok.com/f/45617/9366b7458c/ws-56-l-g_perfect-light_overlay.jpg
    Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the contra-angle head and offers optimal illumination.

    With their neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area whether you have an optic or non-optic drive system.

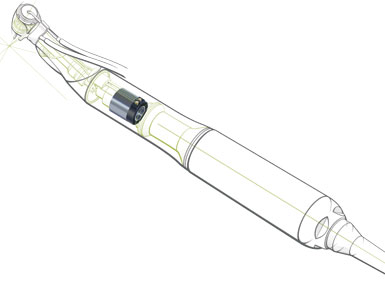

    Independent power supply

    Independent power supply

    //a.storyblok.com/f/45617/30bbb71bd3/ws-75ledg-with-generator_overlay.jpg
    As soon as you activate your contra-angle handpiece, the generator turns. It autonomously generates the electricity needed for the mini LED+ regardless of the type of drive system you work with.
    Scratch-resistant surface

    Scratch-resistant surface

    //a.storyblok.com/f/45617/063d58e65e/handpiece-mixup_overlay.jpg
    The unique coating protects the contra-angle handpiece from scratches. This facilitates cleaning and preserves the value.

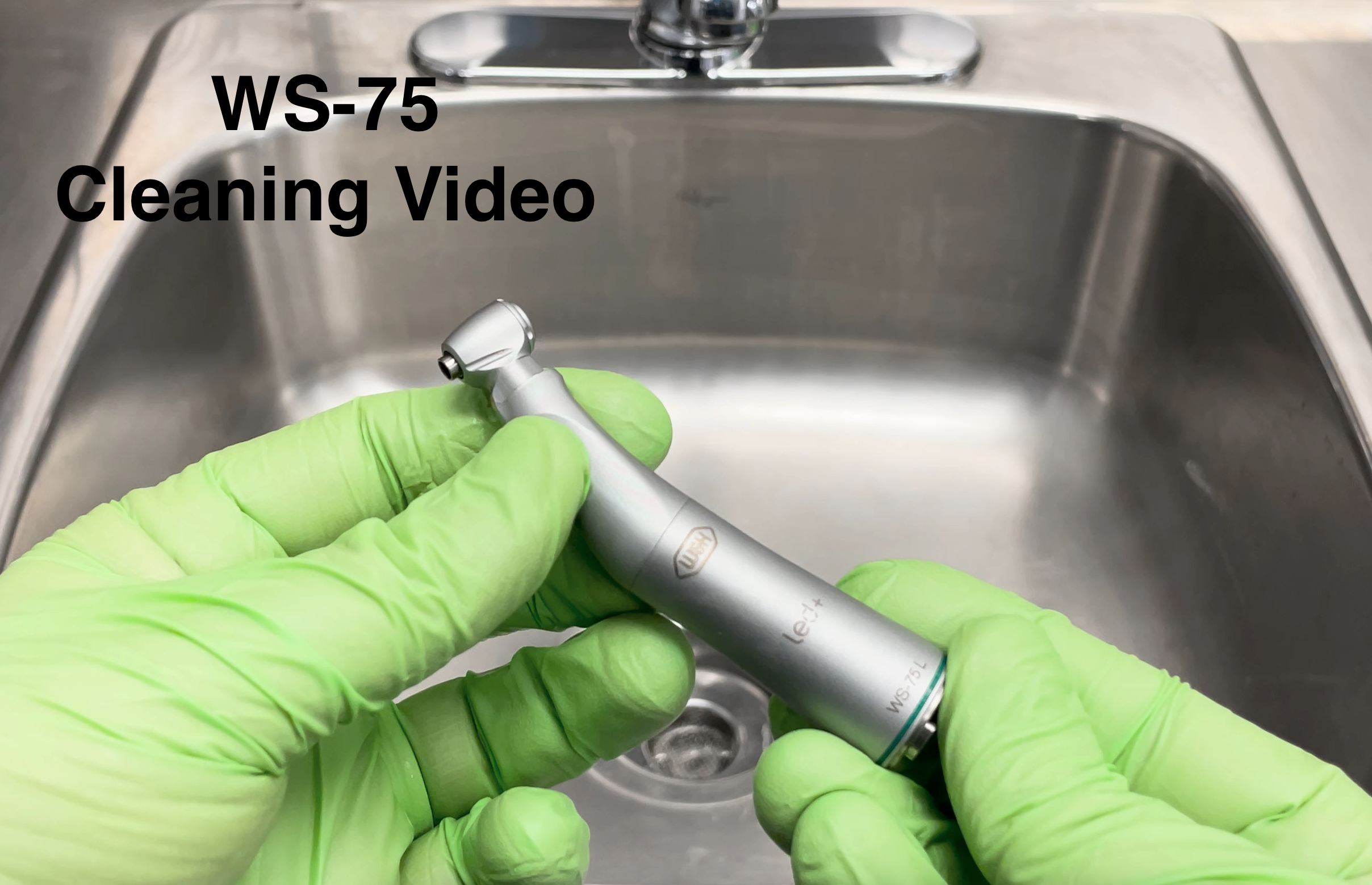

    Can be dismantled without tools

    Perfect cleaning – Dismantled without tools

    //a.storyblok.com/f/45617/5bbdf0ba26/ws-75_dismantled_overlay.jpg
    To enable thorough cleaning to be carried out, the contra-angle handpieces can be easily and quickly dismantled and re-assembled – without the use of tools. Cleaning parts individually provides the most effective result.

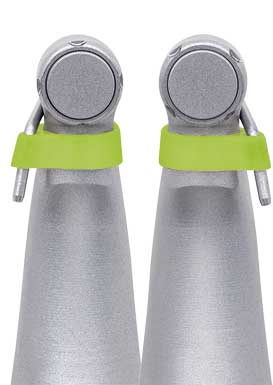

    Variable cooling

    Variable cooling

    //a.storyblok.com/f/45617/9f68d2ae58/ws-56-l-g_flexible-cooling_overlay.jpg
    There are spray clips available for the left and right. This means that for the first time cooling can be adapted to the individual requirements.

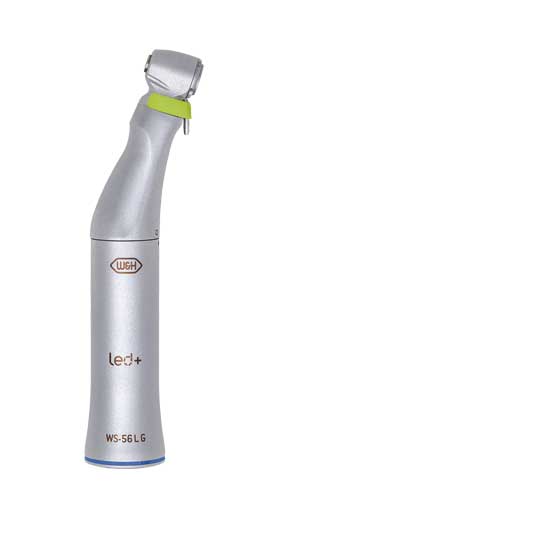

    WS-56 L G

    Surgical contra-angle handpiece
    with push-button, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    WS-56 L G
    REF 30039000

    1:1, can be dismantled, single spray, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, maximum drive speed 40,000 min-1

    Indications

    e.g.: maxillary and mandibular osteotomy,
    germectomy, sequestrectomy

    Buy

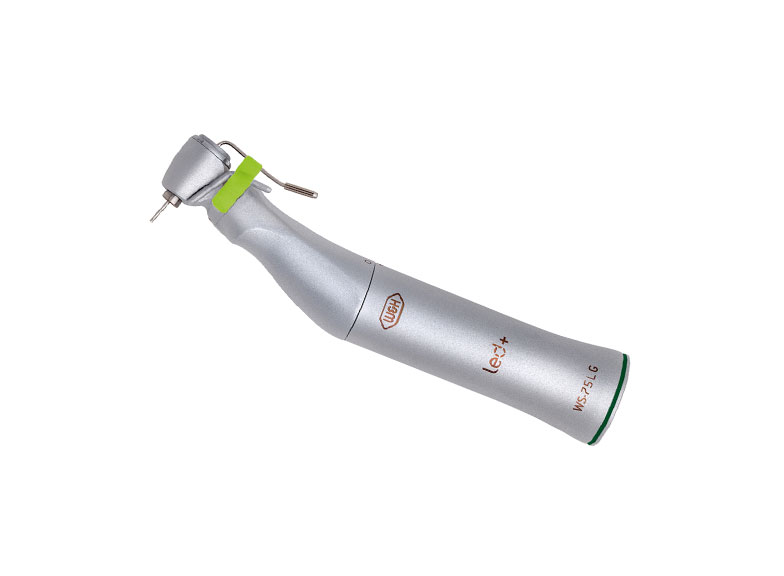

    WS-75 L G

    Surgical contra-angle handpiece with push-button, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    WS-75 L G
    REF 30032000

    20:1, can be dismantled, single spray,
    with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm,
    (shank hardness >50 HRC, >520 HV),
    Kirschner/Meyer internal bur cooling system,
    maximum drive speed 40,000 min-1

    Indications

    e.g.: implantation, osteotomy

    Buy

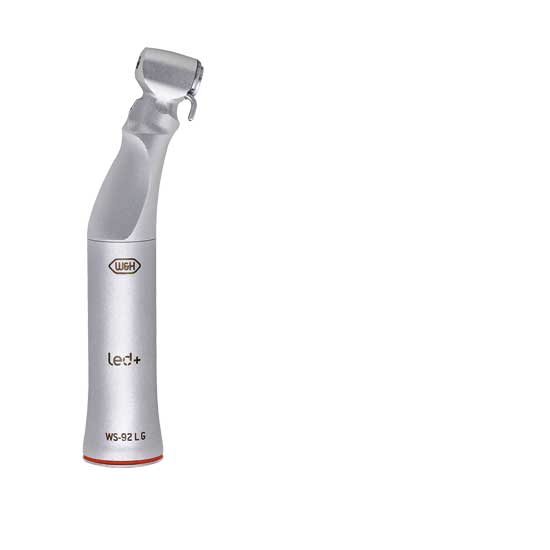

    WS-92 L G

    Surgical contra-angle handpiece
    with push-button, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    WS-92 L G
    REF 30042000

    1:2.7, can be dismantled, triple spray,
    for surgical burs and cutters with
    FG shank Ø 1.6 mm,
    maximum drive speed 40,000 min-1

    Indications

    e.g.: hemisection, extraction of wisdom teeth

    Buy


    Surgical contra-angle handpieces with 45° head

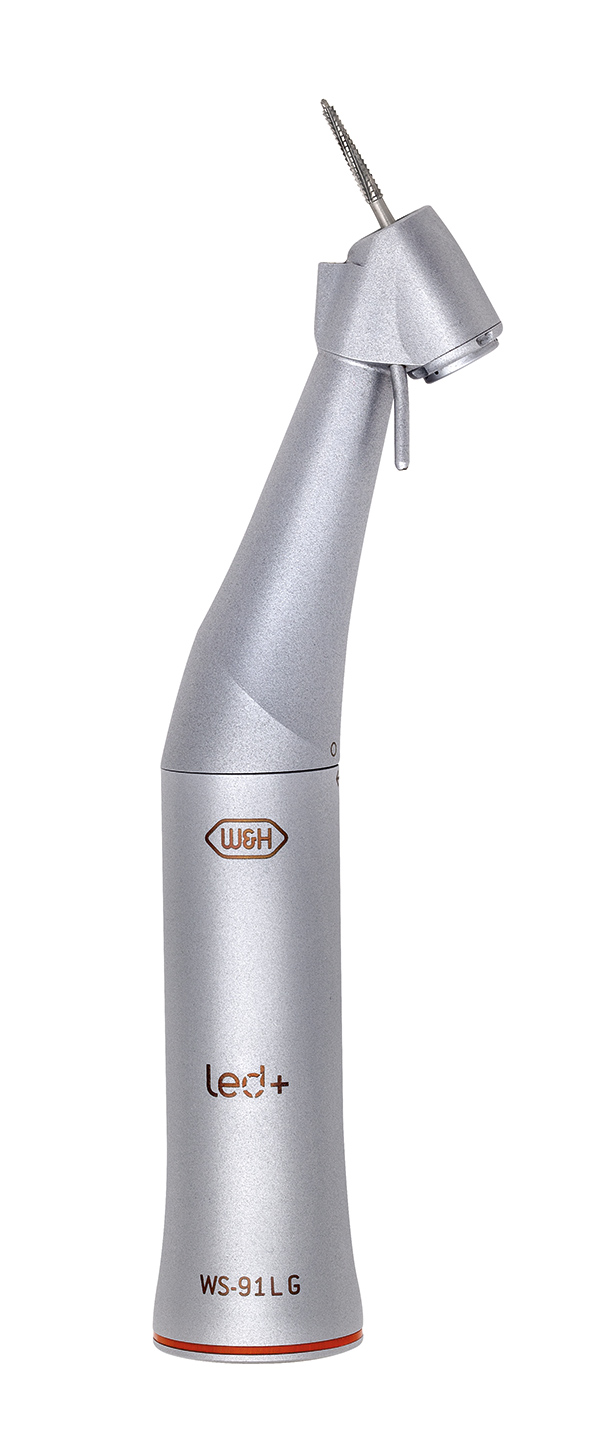

    Surgical contra-angle handpiece WS-91 L G

    For tight squeezes

    The contra-angle handpieces with 45° head unite the advantages of straight and contra-angle handpieces for the first time. This is particularly helpful in the surgical extraction of wisdom teeth, precise tooth separations and apical resections. Depending on the drive speed, the ratio of 1:2.7 makes it possible to achieve speeds of up to 135,000 revolutions per minute on the rotary instrument.

    Your advantages at a glance

    • Considerably better visibility of the
      treatment site thanks to the 45° head
    • Unite the advantages of a straight and
      contra-angle handpiece
    • Makes the access to the maxillary and mandibular molars much simpler
    • A triple spray guarantees sufficient cooling of the rotary instrument and the treatment site.

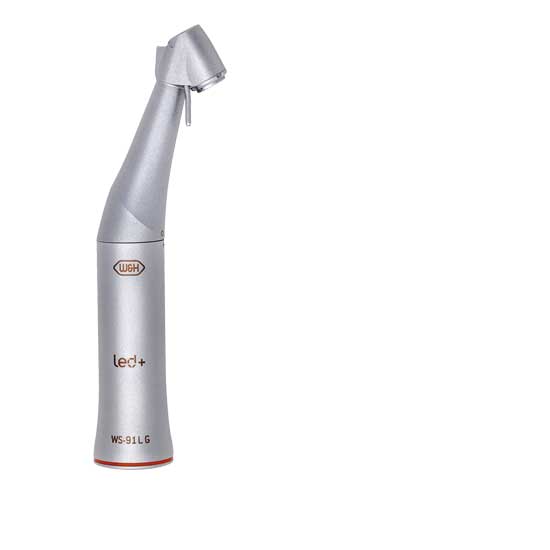

    WS-91 L G

    Surgical contra-angle handpiece
    with 45° head, push-button, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    WS-91 L G
    REF 30048000

    1:2.7, can be dismantled, with mini LED+,
    triple spray, for surgical burs and cutters
    with FG shank Ø 1.6 mm,
    maximum drive speed 40,000 min-1

    Indications

    e.g.: hemisection, extraction of wisdom teeth

    Buy

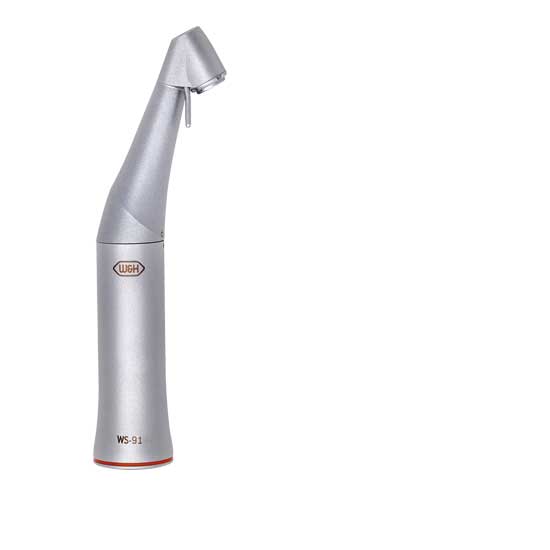

    WS-91

    Surgical contra-angle handpiece
    with 45° head and push-button
    Coupling system: ISO 3964 (DIN 13940)

    WS-91
    REF 30047000

    1:2.7, can be dismantled, without light,
    triple spray, for surgical burs and cutters
    with FG shank Ø 1.6 mm,
    maximum drive speed 50,000 min-1

    Indications

    e.g.: hemisection, extraction of wisdom teeth

    Buy


    Surgical contra-angle handpieces without light

    Surgical contra-angle handpiece WS-75

    Providing the best treatment

    The high standards required for the
    achievement of optimum surgical results
    are met by the W&H range of surgical
    contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.

    The main features at a glance

    • Durable and robust due to high-quality
      stainless steel and scratch-resistant coating
      (except WI-75 E/KM)
    • Fatigue-free working thanks to optimal ergonomics
    • Can be dismantled for thorough cleaning
      (except WI-75 E/KM)
    • Thermo washer disinfectable and sterilizable

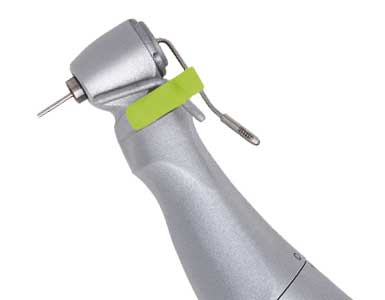

    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free working

    //a.storyblok.com/f/45617/08deed4386/ws-75_ergonomic-design_overlay.jpg



    The ergonomic design is perfectly coordinated to
    all the application possibilities and prevents fatigue.

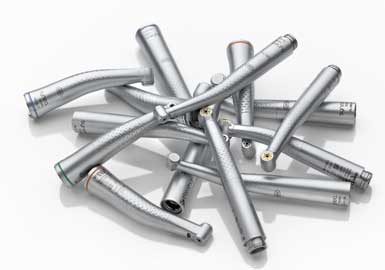

    Scratch-resistant surface

    Scratch-resistant surface

    //a.storyblok.com/f/45617/063d58e65e/handpiece-mixup_overlay.jpg
    The unique coating protects the contra-angle handpiece
    from scratches.
    This facilitates cleaning and preserves the value.

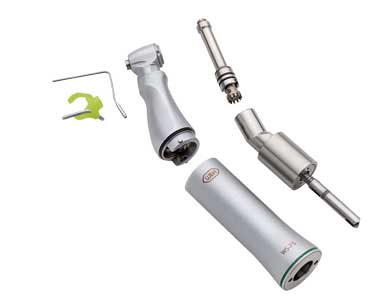

    Can be dismantled without tools

    Perfect cleaning – Can be dismantled without tools

    //a.storyblok.com/f/45617/5bbdf0ba26/ws-75_dismantled_overlay.jpg



    To enable thorough cleaning to be carried out,
    the contra-angle handpieces can be easily and quickly
    dismantled and re-assembled – without the use of tools.

    Cleaning parts individually provides the most effective result.
    Variable cooling

    Variable cooling

    //a.storyblok.com/f/45617/9f68d2ae58/ws-56-l-g_flexible-cooling_overlay.jpg




    There are spray clips available for the left and right.
    This means that for the first time cooling can be adapted
    to the individual requirements

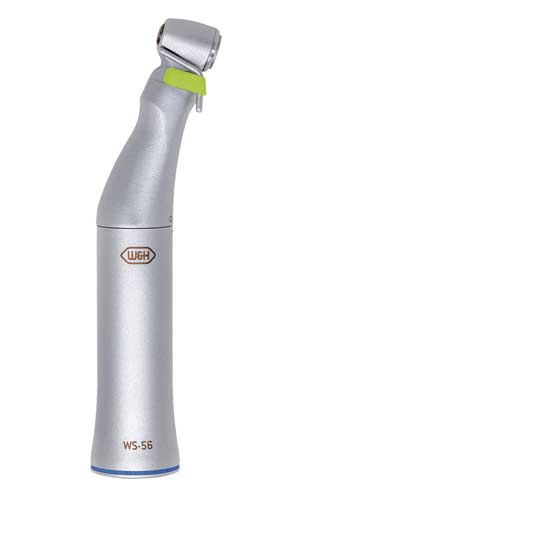

    WS-56

    Surgical contra-angle handpiece with push-button
    Coupling system: ISO 3964 (DIN 13940)

    WS-56
    REF 30038000

    1:1, can be dismantled, single spray,
    for surgical burs and cutters with contra-angled shank Ø 2.35 mm,
    maximum drive speed 50,000 min-1

    Indications

    e.g.: maxillary and mandibular osteotomy,
    germectomy, sequestrectomy

    Buy

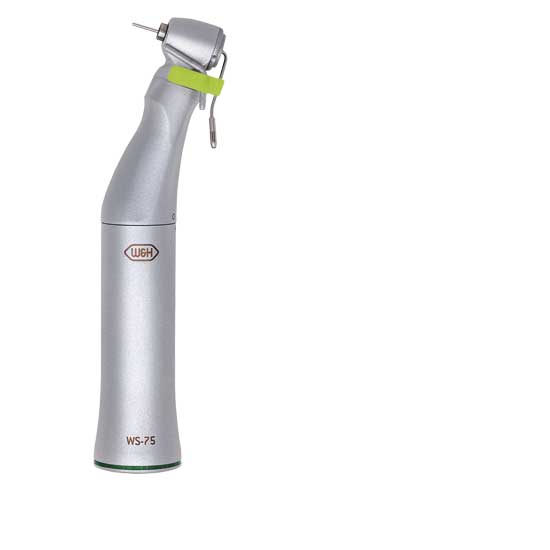

    WS-75

    Surgical contra-angle handpiece
    with push-button
    Coupling system: ISO 3964 (DIN 13940)

    WS-75
    REF 30065000

    20:1, can be dismantled, single spray,
    with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm,
    (shank hardness >50 HRC, >520 HV),
    Kirschner/Meyer internal bur cooling system,
    maximum drive speed 50,000 min-1

    Indications

    e.g.: implantation, osteotomy

    Buy

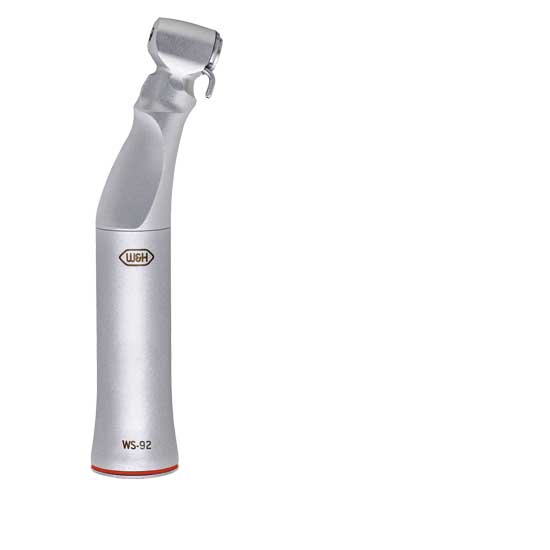

    WS-92

    Surgical contra-angle handpiece with push-button
    Coupling system: ISO 3964 (DIN 13940)

    WS-92
    REF 30041000

    1:2.7, can be dismantled, triple spray, for surgical burs and cutters with FG shank Ø 1.6 mm, maximum drive speed 50,000 min-1

    Indications

    e.g.: hemisection, extraction of wisdom teeth

    Buy

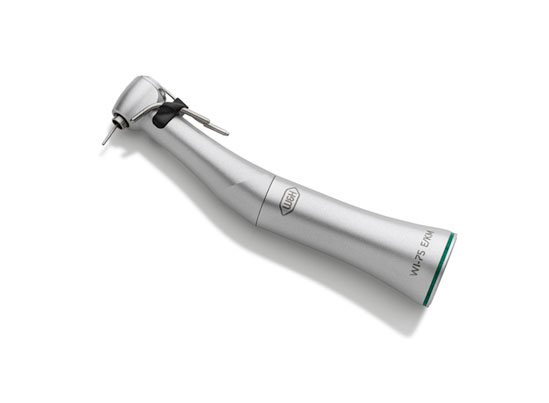

    WI-75 E/KM

    Implantology contra-angle handpiece
    with push-button
    Coupling system: ISO 3964 (DIN 13940)

    WI-75 E/KM
    REF 10207550

    20:1, cannot be dismantled, single spray,
    with hexagon chucking system,
    for surgical burs and cutters with
    contra-angled shank Ø 2.35 mm,
    (shank hardness >50 HRC, >520 HV),
    Kirschner/Meyer internal bur cooling system,
    maximum drive speed 50,000 min-1

    Indications

    e.g.: implantation, osteotomy

    Buy
  • Surgical contra-angle handpieces with mini LED+ and W&H connection
    Type: WS-75 L WS-56 L WS-91 L WS-92 L
    Transmission ratio: 20:1 1:1 1:2.7 1:2.7
    Coupling system: W&H EM-19 LC / EM-19
    Lighting system: mini LED+
    External spray: single triple
    Internal bur cooling system: Kirschner/Meyer
    Chucking system: push-button chuck
    Rotary instruments: for surgical burs and cutters
    with contra-angled shaft Ø 2.35 mm
    for surgical burs and cutters
    with FG shank Ø 1.6 mm
    Maximum drive speed: 50,000 min -1
    Can be dismantled: yes


    Surgical contra-angle handpieces with mini LED+ and generator
    Type: WS-75 L G WS-56 L G WS-91 L G WS-92 L G
    Transmission ratio: 20:1 1:1 1:2.7 1:2.7
    Coupling system: ISO 3964
    Lighting system: mini LED+
    Power supply: via independent generator
    Light quality: daylight
    External spray: single triple
    Internal bur cooling system: Kirschner/Meyer
    Chucking system: push-button chuck
    Rotary instruments: for surgical burs and cutters
    with contra-angled shank Ø 2.35 mm
    for surgical burs and cutters
    with FG shank Ø 1.6 mm
    Maximum drive speed: 40,000 min -1
    Can be dismantled: yes

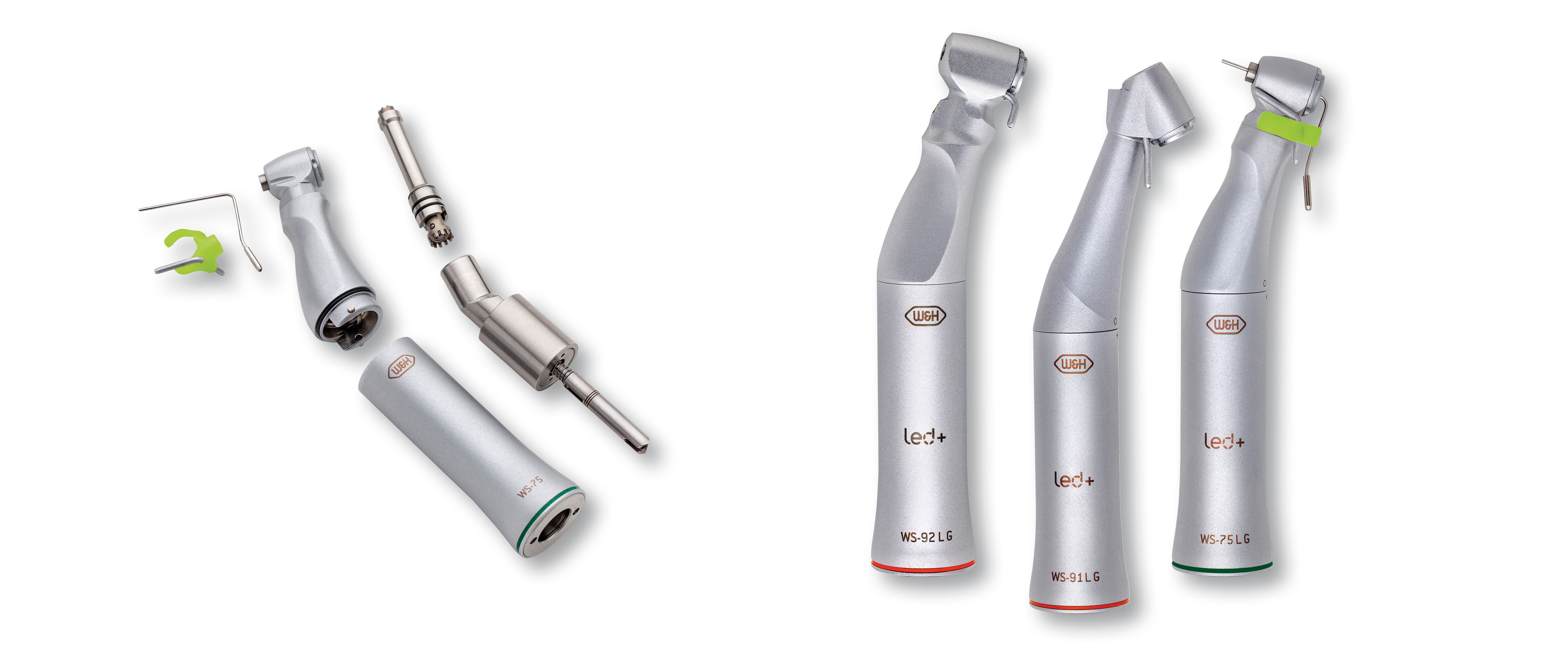

    Surgical contra-angle handpieces without light
    Type: WS-75
    (WI-75 E/KM*)
    WS-56 WS-91 WS-92
    Transmission ratio: 20:1 1:1 1:2.7 1:2.7
    Coupling system: ISO 3964
    External spray: single triple
    Internal bur cooling system: Kirschner/Meyer
    Chucking system: push-button chuck
    Rotary instruments: for surgical burs and cutters
    with contra-angled shank Ø 2.35 mm
    for surgical burs and cutters
    with FG shank Ø 1.6 mm
    Maximum drive speed: 50,000 min -1
    Can be dismantled: yes

    * WI-75 E/KM: cannot be dismantled
