Outstanding price-performance ratio
The RC-98 perfectly completes the RC series. Like the already well-known single spray turbines RC-90 and RC-95, it provides precise handling with perfect ergonomics, solid components for a long lifespan and a simple rotor-replacement-system.
Your advantages at a glance
- Solid components
- Long lifespan
- Small head
- Triple spray
- Push-button chuck system
- Simple rotor-replacement-system
- Power Blade rotor
- Hygienic head system

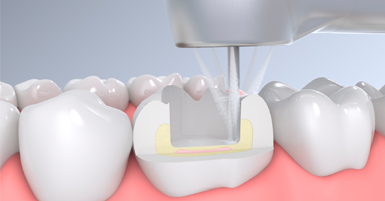

Optimal coolingTriple spray
Due to the multiport spray system,
even if part of the spray range
is obstructed by a tooth, the
bur tip is always optimally
cooled and cleaned.

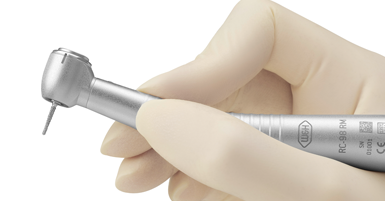

Comfortable handlingPerfect balance
The ergonomic, lightweight
and quiet turbines rest perfectly
in the hand for relaxed,
fatigue-free work.

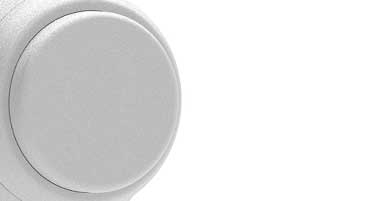

Push-button chuck systemPush-button chuck system
High visibility and access
optimal thanks to the new
small head size.
For easy, comfortable
and secure bur change.
Power Blade rotorFull steam ahead with the Power Blade rotor
The optimized blade geometry
allows higher rotor efficiency.
For maximum torque and optimal
power throughout preparation.
Patented hygienic
head systemPatented hygienic head system
The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.

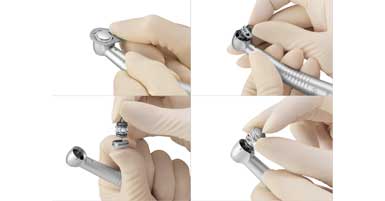

Smart repairSpare Rotor
Replaceable water filter
Minimal down time due
to the Do-It-Yourself
component replacement.
The water filter can be removed
and cleaned easily.
For more hygiene and better operation.
RC Turbines & High Speed RC Sets
![RC-98]( "RC-98")

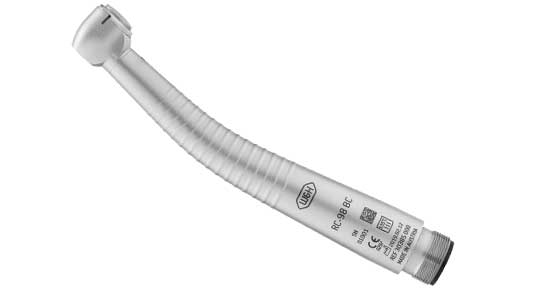

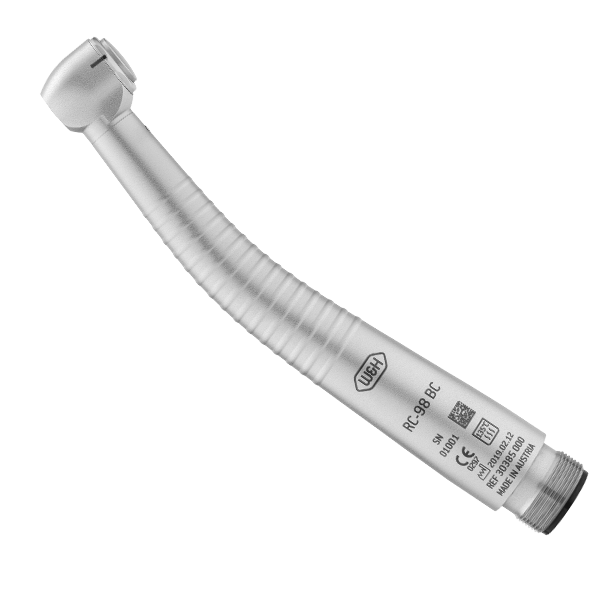

RC-98
Triple Spray
Head size up to Ø 12,2 mm,
≥16 W, 330,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm
RC-98 BC
REF 30385000with Borden 2/3 connection
RC-98 RM
REF 30384000with Ritter Midwest connection
![RC-95]( "RC-95")

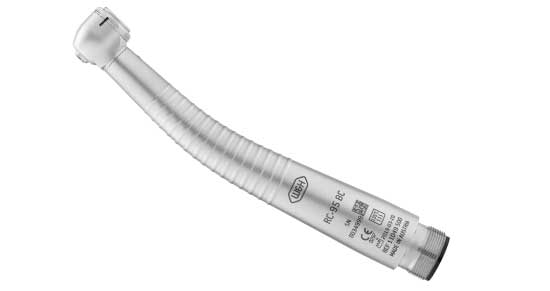

RC-95
Single Spray
Head size up to Ø 12,2 mm,
≥11 W, 330,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm
RC-95 BC
REF 11049500with Borden 2/3 connection
RC-95 RM
REF 11049501with Ritter Midwest connection
![RC-90]( "RC-90")

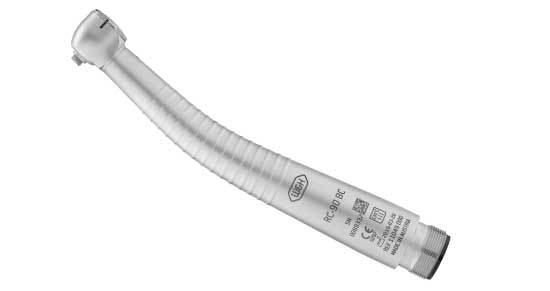

RC-90
Single Spray
Head size up to Ø 12,2 mm,
screw chuck,
≥11 W, 330,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm
RC-90 BC
REF 11049000with Borden 2/3 connection
RC-90 RM
REF 11049001with Ritter Midwest connection
Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
RC Turbines
Type: RC-90 BC/RM Connection on the hose side (ISO 9168): Borden 2/3-hole/Ritter Midwest Rotary instruments EN ISO 1797-1, FG: Ø 1.6 mm Max. speed (± 30.000 rpm) : 330,000 rpm Chucking system: Screw chuck Hygienic head system: Yes Power (W): ≥11
Spray: Single Head size (mm): Ø 12,2
